40W Split solar street light Outdoor Solar Solar Garden Led Light

40W Split solar street light Outdoor Solar Solar Garden Led Light

High brightness: The lighting range of LED lamp beads is about 100-500㎡. Built-in large capacity battery. After fully charged for 6-8 hours, it can provide stable and bright lighting within 12-24 hours. No flash frequency.

Payment :
T/T, Paypal, Western Union
Color :
Black
Lead Time :
3~5 days for samples;15~20 days for bulk
Port Of Dispatch :
Qingdao
Infrared senor :
No
Battery Type :
Lithium LiFePO4 Battery
Solar Panel Power :
36V 160W
LED Power :
40W
LED brand :
LEADRAY
Model No. :
LBA-40W

Inquiry now

Product Details

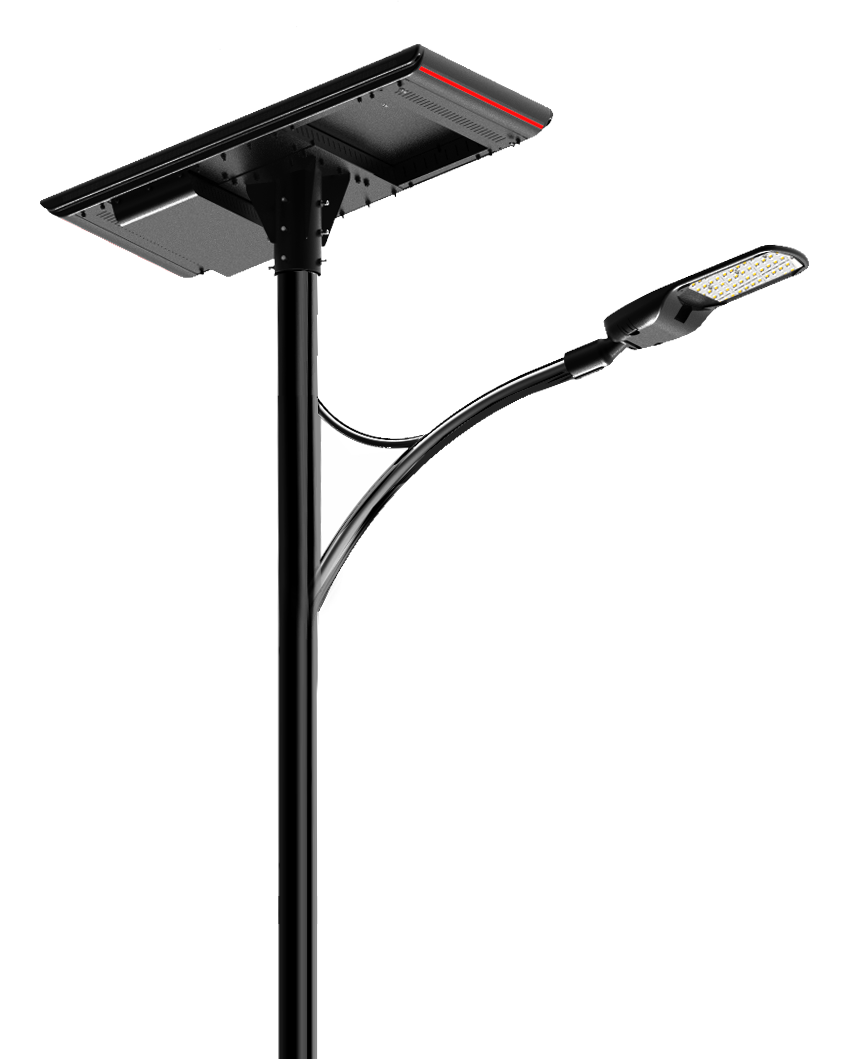

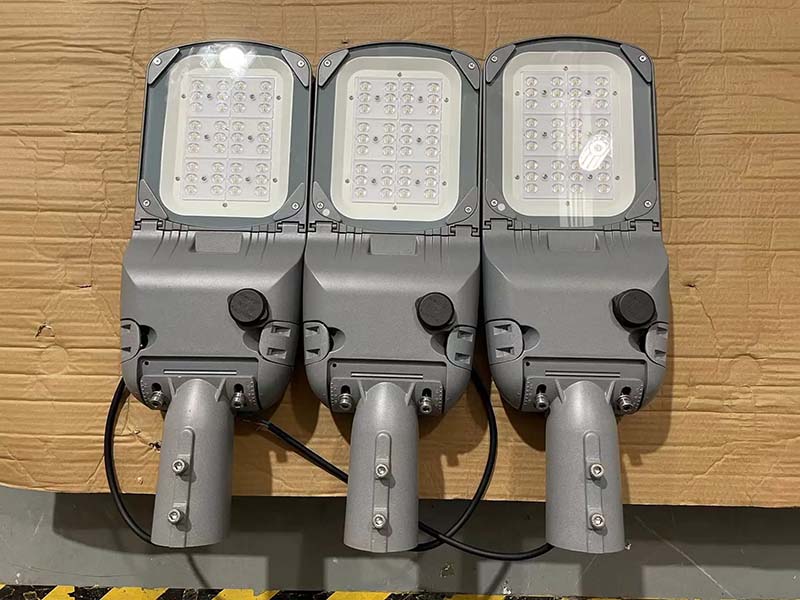

LBA series semi-split solar street light is a street lamp system integrating high conversion rate solar panel, ultra-long life LiFePO4 battery pack, efficient intelligent controller and die-cast aluminum alloy LED street lamp.

It is not only the most cost-effective solution to build a new solar street lamp system , but also the best solution to update and replace the existing old solar street lamp system.

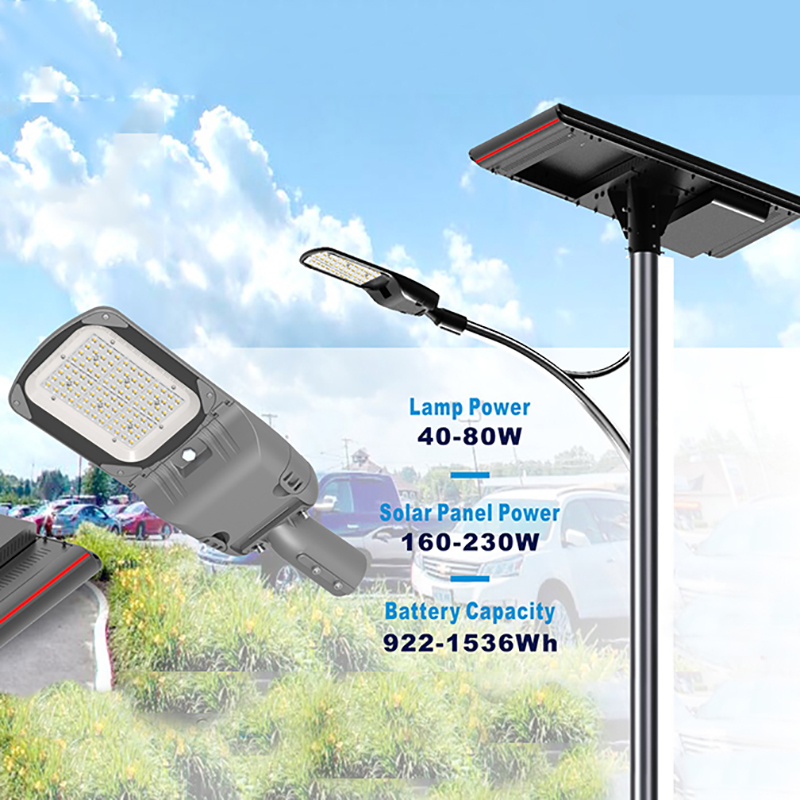

Lamp Power:40-80W

Solar Panel Power:160-230W

Battery Capacity:922-1536Wh

Outdoor road Lighting

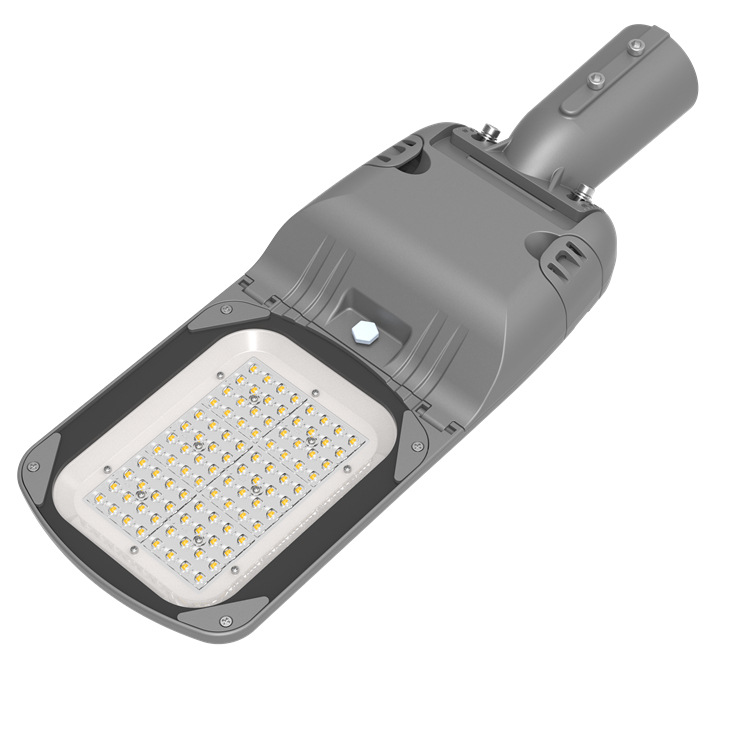

LED street lamp

Luminous efficency	130lm/w, 150lm/w, 160lm/w available
CRI	85

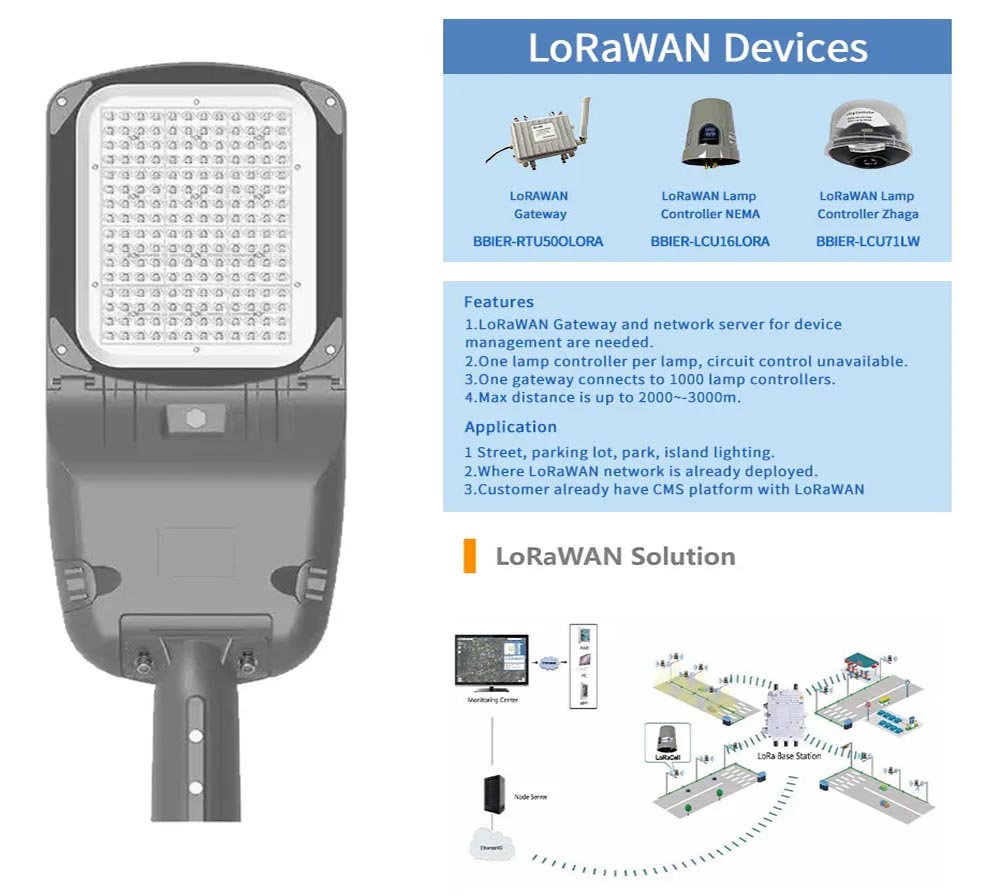

Sensor	Timer control, motion sensor, photoelectric sensor, three-in-one dimming, Wifi Zigbee connection, photoelectric + timer control, 3-step dimming, GPRS, 3G/4G, Bluetooth, PLC and smart motion sensors. microwave sensor
default setting	The brightness is 100%, the microwave sensitivity is 75%, and the holding time is 5 minutes. Start illumination 50LUX, continuous brightness 30%, duration 30 minutes.
Model	BB-LD-XXXW-S3
Product size	560x200x98mm/610x245x98mm/660x245x98mm/714x340x98mm

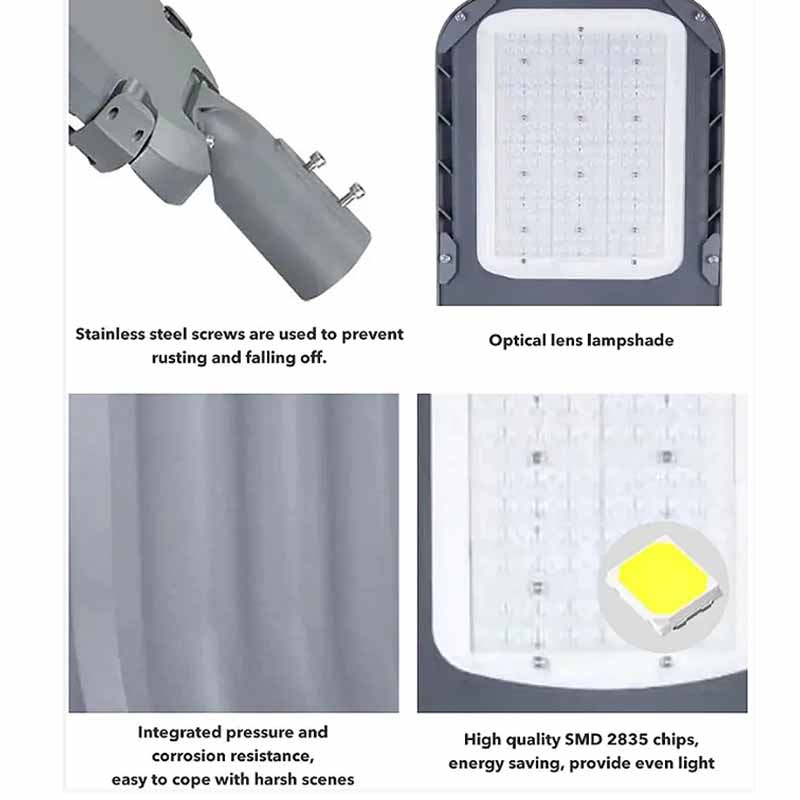

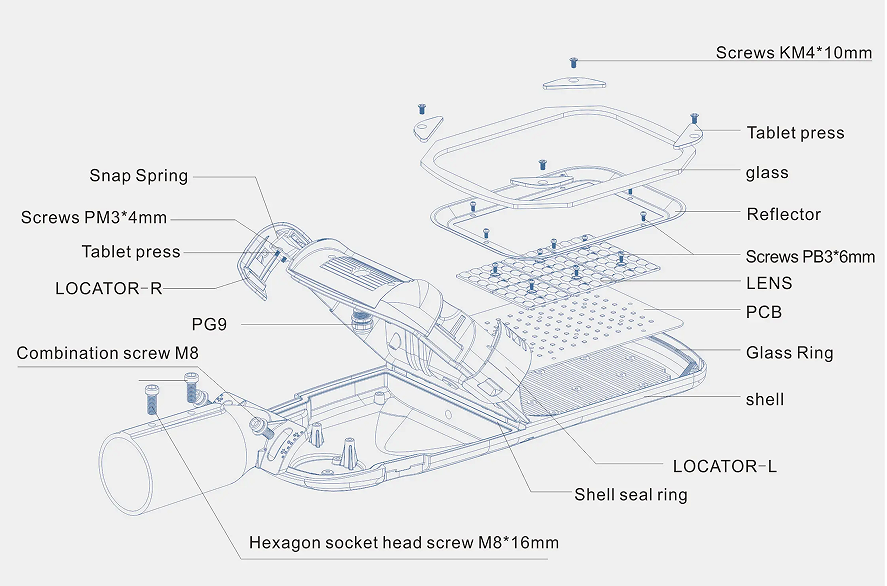

Material	Die-cast aluminum + tempered glass + 316 stainless steel screws

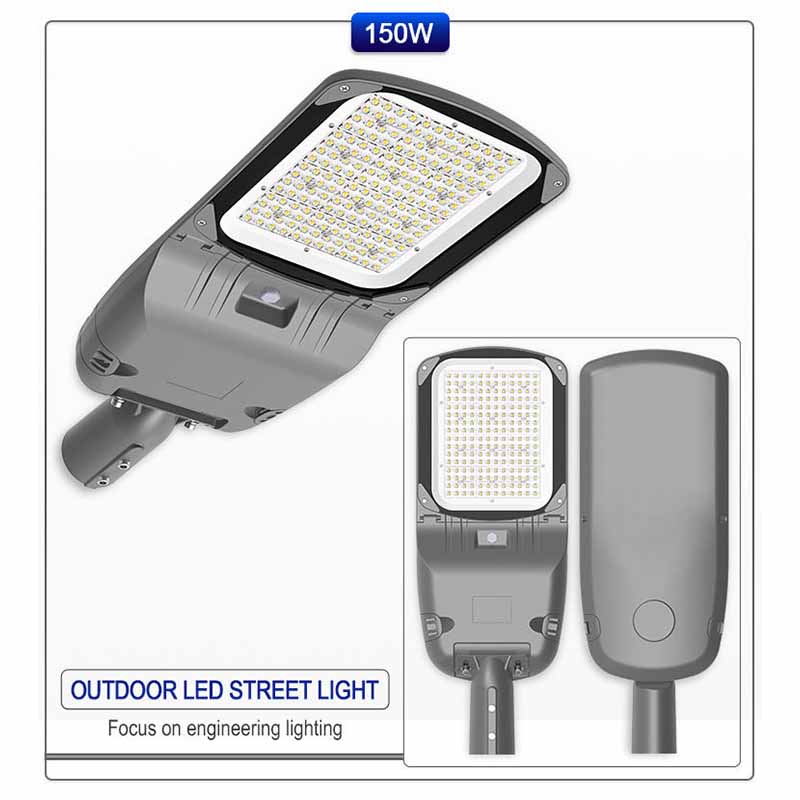

outdoor Pole Solar shoebox LED Street Light 50w 100w 150w 200w street light photocell

High-Quality Materials and Durability: This LED street light is made from a durable aluminum alloy and tempered glass, ensuring a long lifespan of up to 50,000 hours at 25°C, and a wide operating temperature range of -40 to 50°C.

Energy Efficiency and Versatility: Available in various wattages (30W, 50W, 80W, 100W, 150W, 200W, 320W), this smart outdoor lighting solution offers adjustable beam angles (T2M, T3M, T4M, T5M) and dimming capabilities to suit various user needs.

Certified and Reliable: This product is certified by ROHS, ENEC, CE, CB, and IP, ensuring compliance with international safety standards and regulations.

Long-Lasting Performance: With a lifespan of up to 50,000 hours at 25°C, this LED street light provides reliable performance for years to come, reducing maintenance and replacement costs for the user.

Customization and Support: The product offers various lighting solutions services, including lighting and circuitry design, onsite metering, and project installation, ensuring a tailored solution for the user's specific needs.

outdoor Pole Solar shoebox LED Street Light 50w 100w 150w 200w street light photocell IP66 outdoor Pole Solar shoebox LED Street Light

Outdoor road Lighting

outdoor Pole Solar shoebox LED Street Light 50w 100w 150w 200w street light photocell

Outdoor road Lighting

Model	LBA-40W	LBA-60W	LBA-80W
Physical Parameters
LED Brand	PHILIPS	PHILIPS	PHILIPS
LED Qty(pcs)	96	144	144
Power of PV Module(W)	36V 160W	36V 180W	36V 230W
LIFEPO4 Battery Capacity(Ah)	25.6V 922Wh	25.6V 1229Wh	25.6V 1536Wh
Light Mode	Time Control	Time Control	Time Control

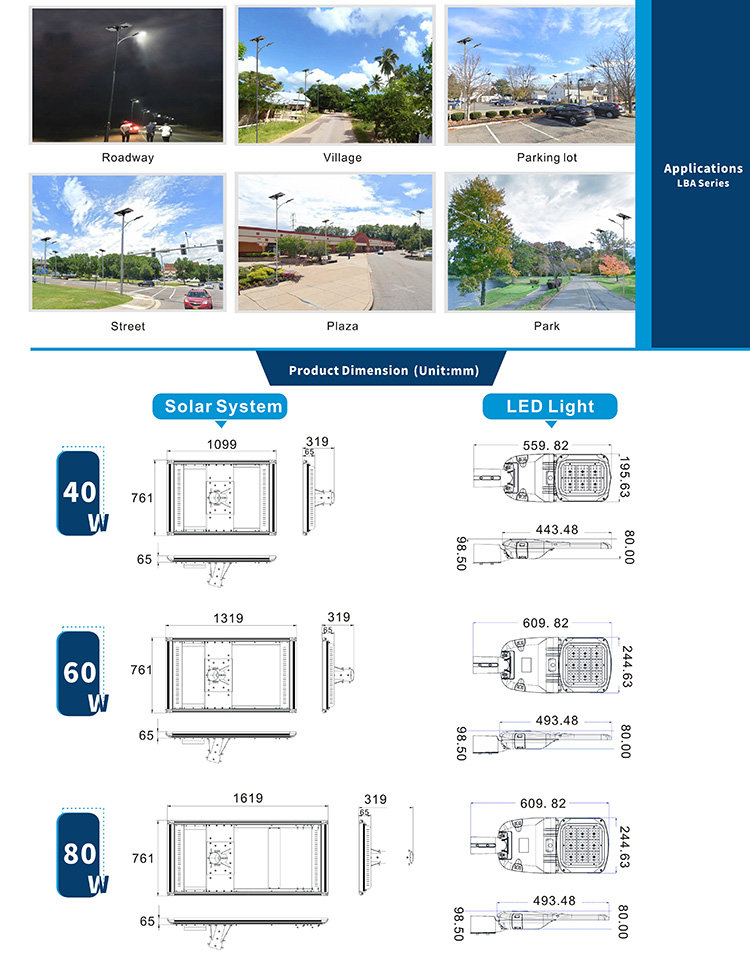

Product Dimension(mm)	109976165	131976165	161976165
Product N.W.(kg)	38	40	45
Package #1 Dimension(mm)& G.W. (1 Lamp/CTN)	1160825225 (25KG)	1380825225 (30KG)	1680825225 (35KG)
Package #2 Dimension(mm)& G.W. (1 Lamp/CTN)	395405310 (7KG)
Package #3 Dimension(mm)& G.W. (1 Bracket/CTN)	645275160 (15KG)
Light Parameters
Light Power(W)	40W	60W	80W
Typical Liminous Flux(Lm)	6400	9600	12800
LED Light Effect(Lm/W)	210Lm/W
Color Temperature(K)	2700-6500
Beam Angle(°)	90° / 75°x 150°
Rainy Days(D)	3~5	3~5	3~5
Environment Parameters
Charging Temperature(℃)	0 ℃ to +60 ℃
Discharging Temperature(℃)	-20 ℃ to +60 ℃
Storage Temperature(℃)	-20 ℃ to +45 ℃

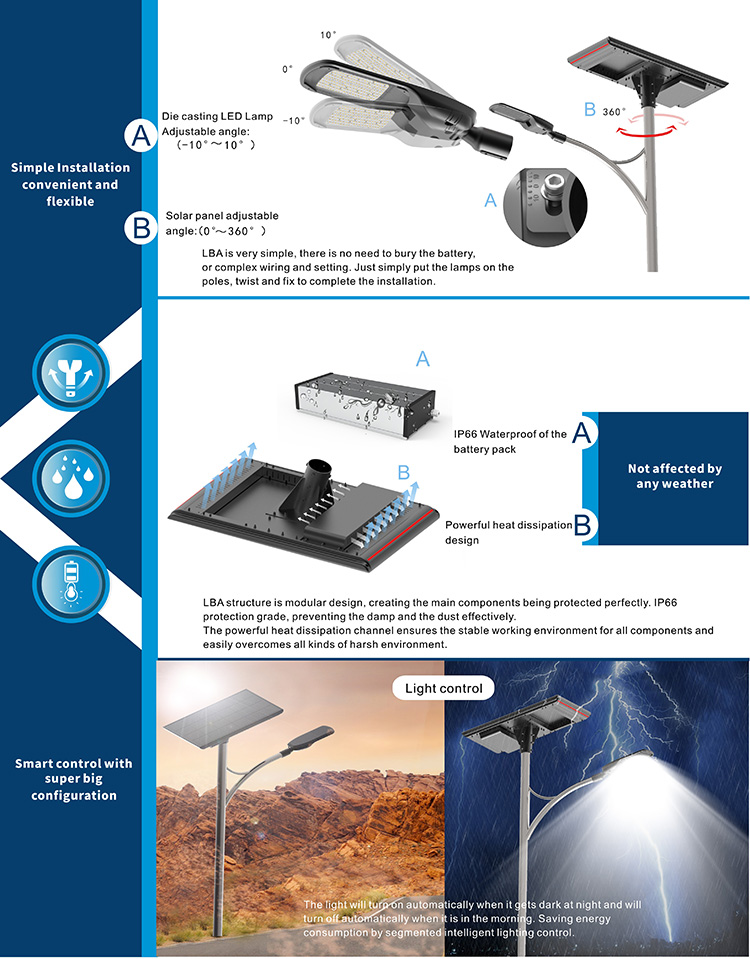

Installation
Dia. of Top Pole (mm)	89~105	89~105	89~105
Installation Height(m)	6~8	7~9	10~12
Installation Distance (m)	35~40	35~40	40~45

outdoor Pole Solar shoebox LED Street Light 50w 100w 150w 200w street light photocell

Outdoor road Lighting outdoor Pole Solar shoebox LED Street Light 50w 100w 150w 200w street light photocell

Discharge Time	Die-cast aluminum + tempered glass + 316 stainless steel screws
Operation Temp	-40-+50℃
CCT	2700K/3000K/4100K/5000K/6500K

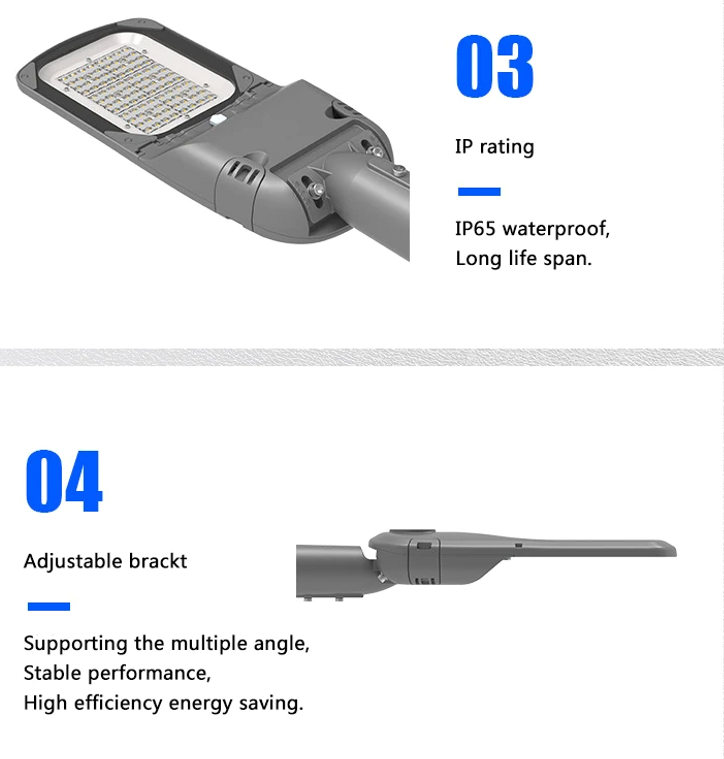

IP	IP66/IP68
Beam Angle	T2/T3/T4/T5

outdoor Pole Solar shoebox LED Street Light 50w 100w 150w 200w street light photocell

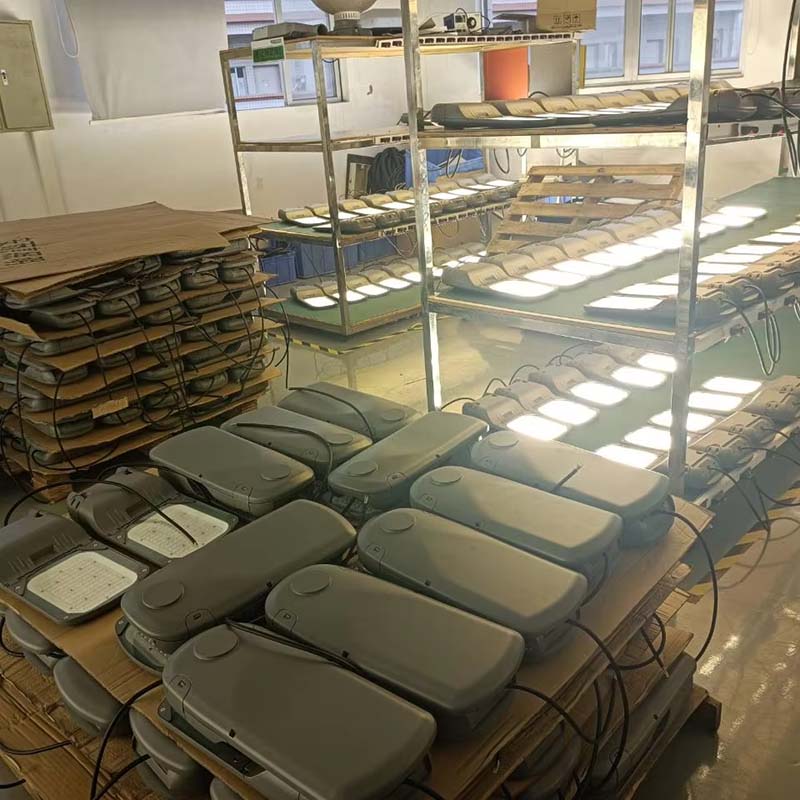

18 Years Production Experience In The Industry

One light two mode function key (remote control switch): Mode one (new charging indicator light) will automatically turn on the dim mode at dark, all people come on, and people leave dim light, and the lights will automatically turn off at dawn. Mode two (remote control always on + timing + light control) with memory function, automatic light on at dark (100% full light) automatic light off at dawn without human body induction.
Multiple control: the remote control distance can reach 40 feet. You can set the automatic mode, 9 levels of brightness, 3/5/8 hours timing mode. Easy to use.

No charge: Solar street lights use solar power. It not only saves energy, but also saves money. IP65 can work normally even in rainy days.

Application: No wiring is required, so you can install solar street lights anywhere. Ideal for streets and paths, courtyards, parks, squares, private gardens, courtyards, etc.
