Solar lighting industry's first military qualified enterprises
Home Products Other Products Split Solar Street Light LBA Series

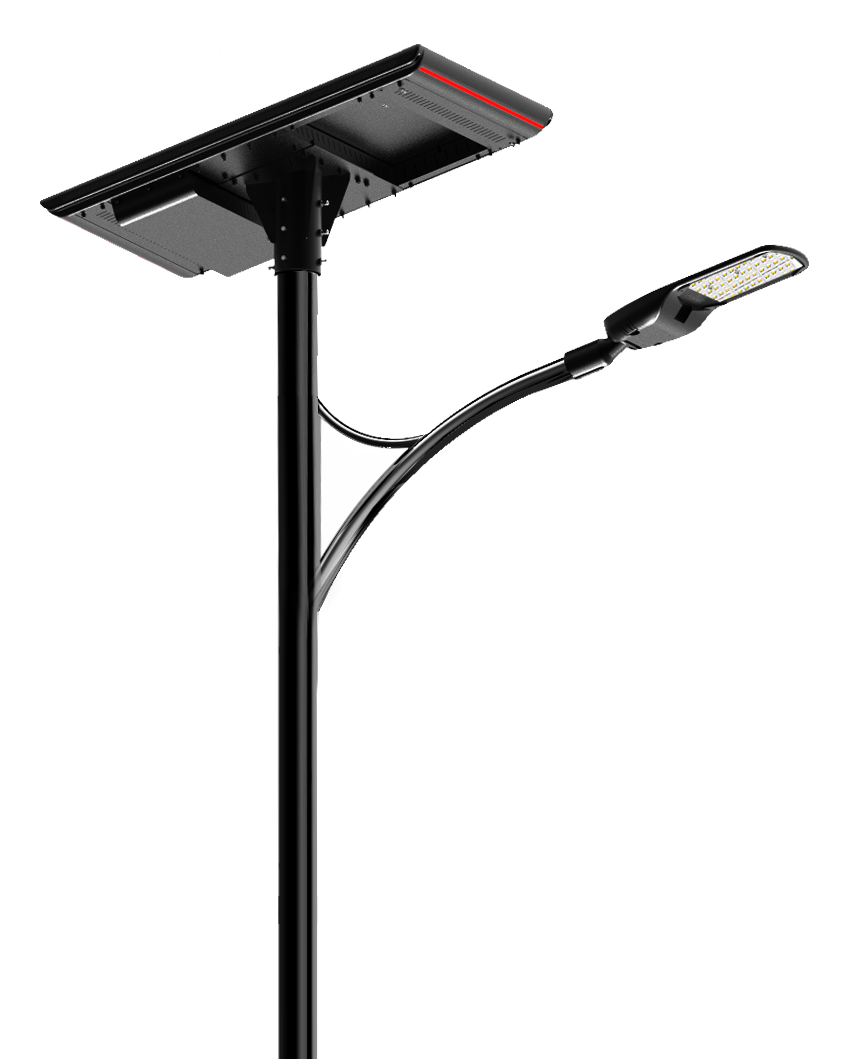

Outdoor die-cast aluminum alloy LED street lamp Charge Controller Split 60w Solar Street Light

Outdoor die-cast aluminum alloy LED street lamp Charge Controller Split 60w Solar Street Light

N ew solar street lamp system, but also the best solution to update and replace the existing old solar street lamp system .
  • Payment :

    T/T, Paypal, Western Union
  • Color :

    Black
  • Lead Time :

    3~5 days for samples;15~20 days for bulk
  • Port Of Dispatch :

    Qingdao
  • Infrared senor :

    No
  • Battery Type :

    Lithium LiFePO4 Battery
  • Solar Panel Power :

    36V 180W
  • LED Power :

    40W
  • LED brand :

    LEADRAY
  • Model No. :

    LBA-60W
Inquiry now

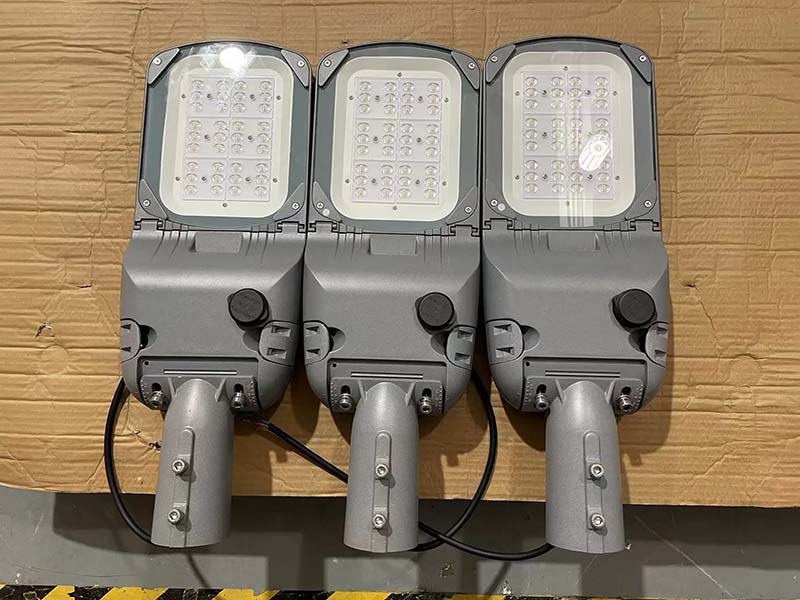

led street light

led street light

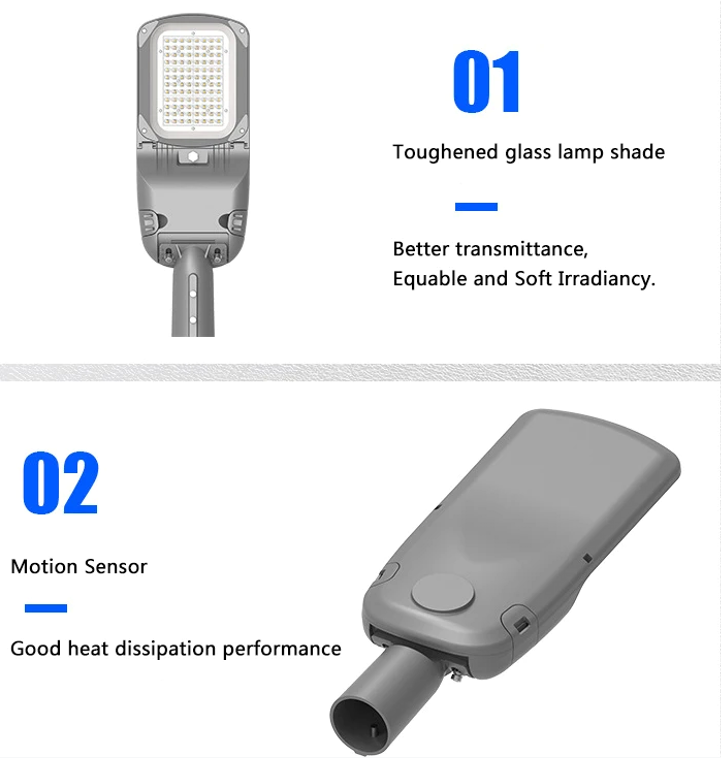

CE/ENEC/ROSH/IP/IK/CB certidicate led street light

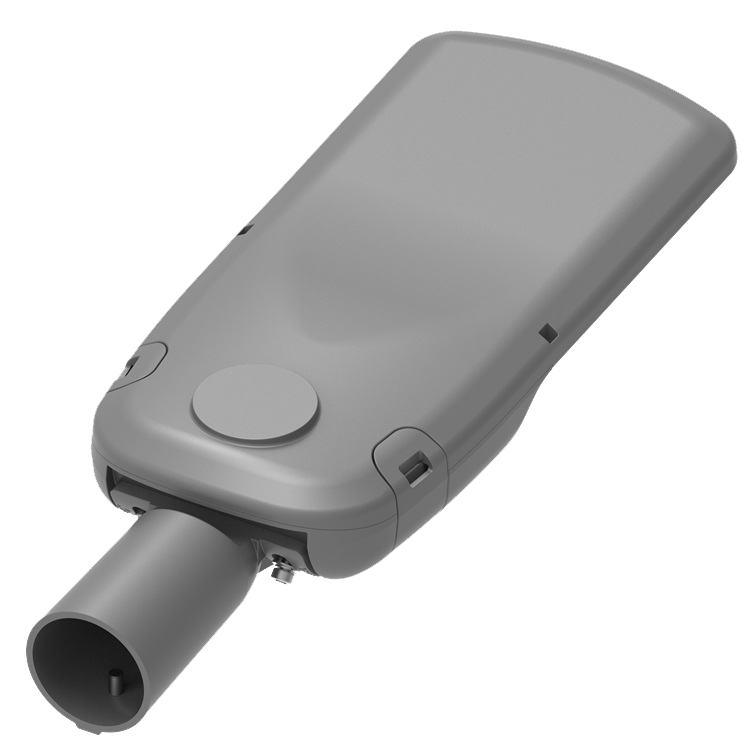

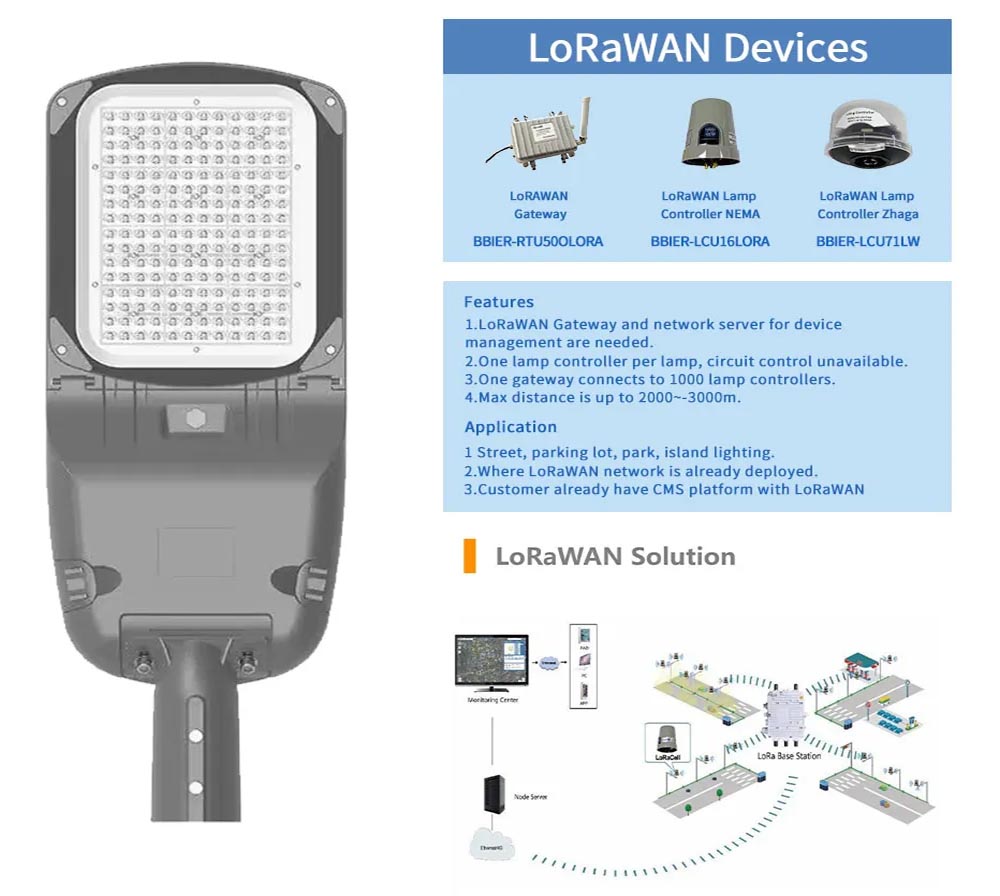

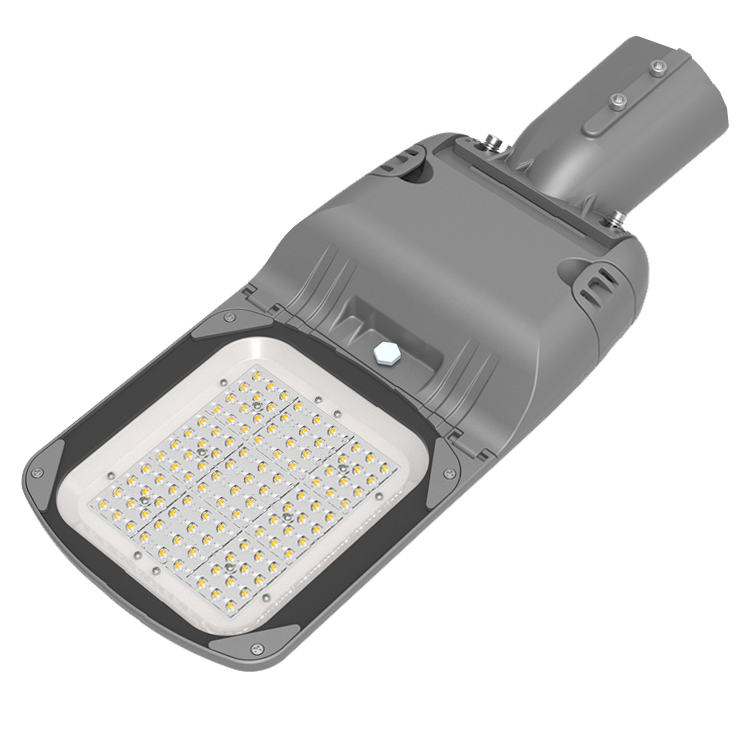

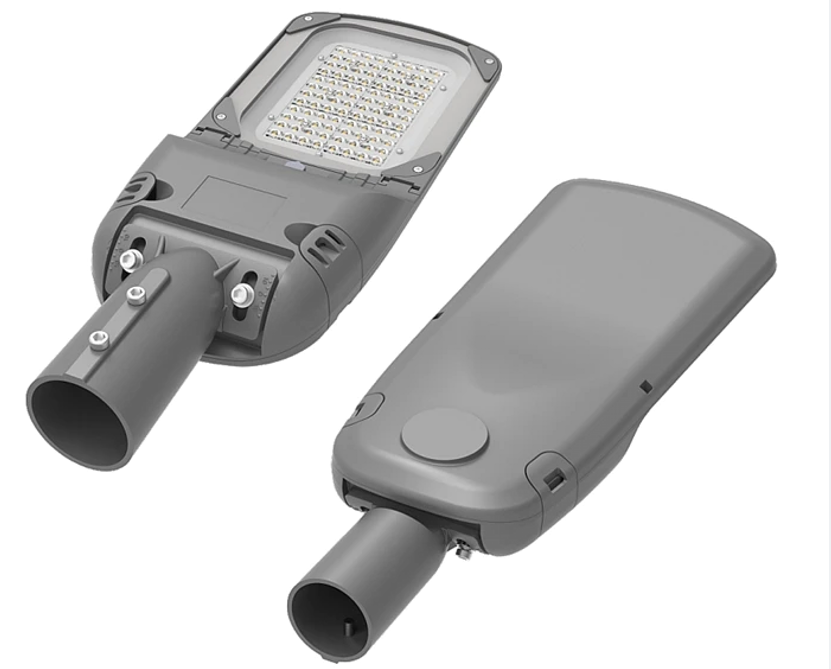

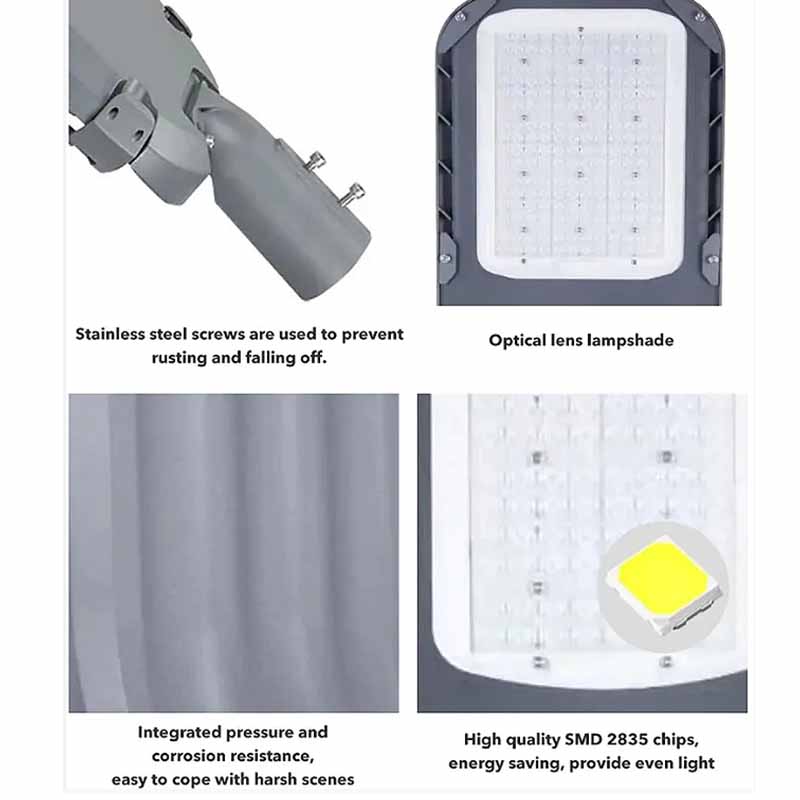

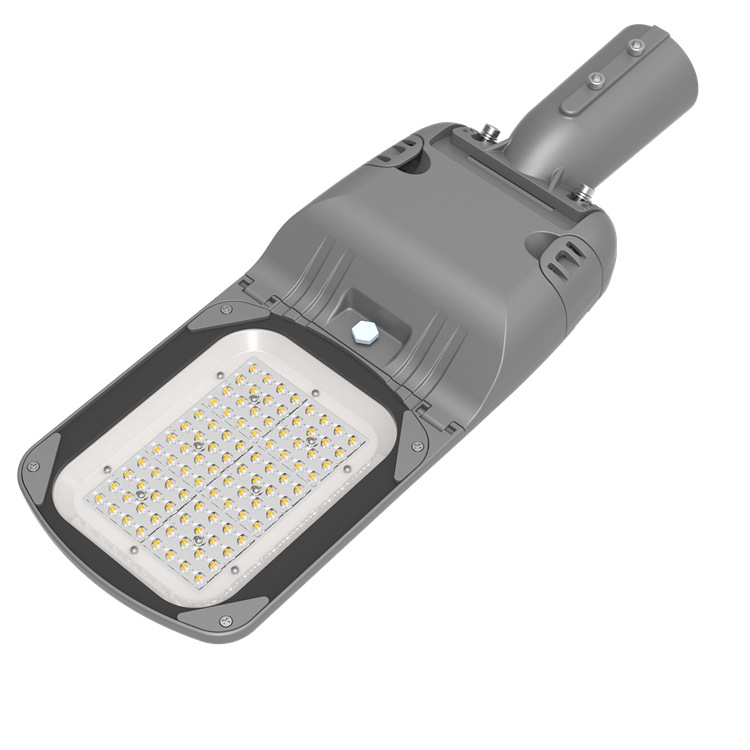

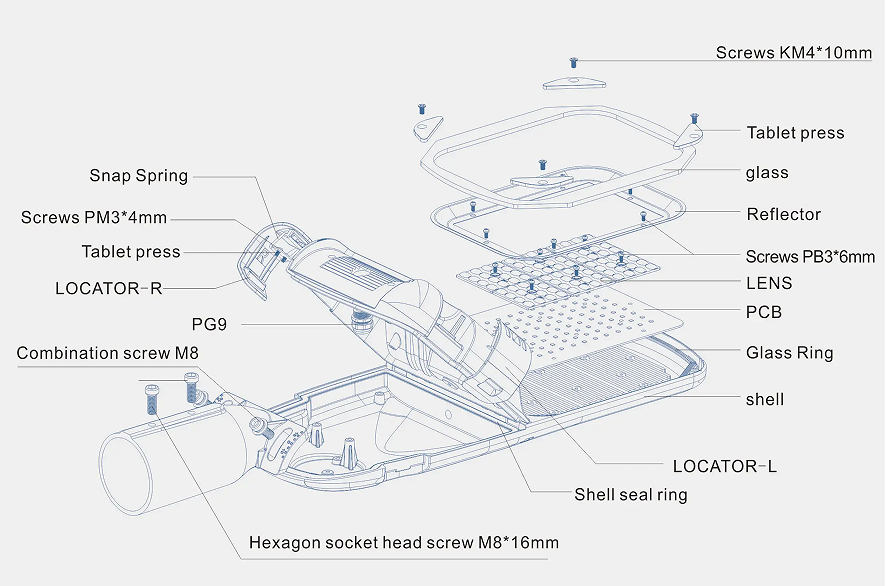

Die-cast aluminum led street light, tempered glass led street light, 316 stainless steel screws led street light, smart led street light

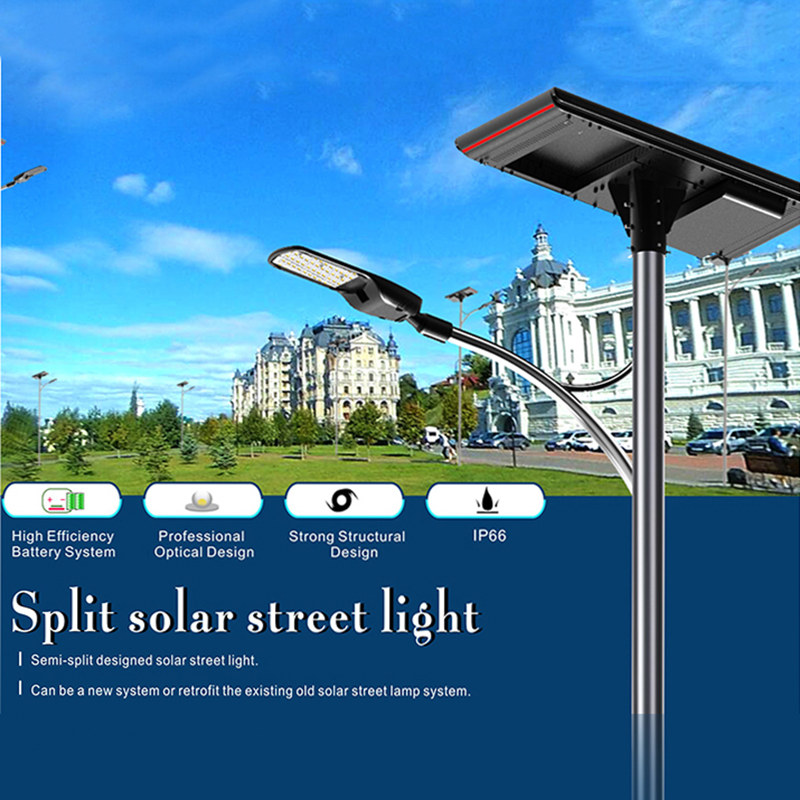

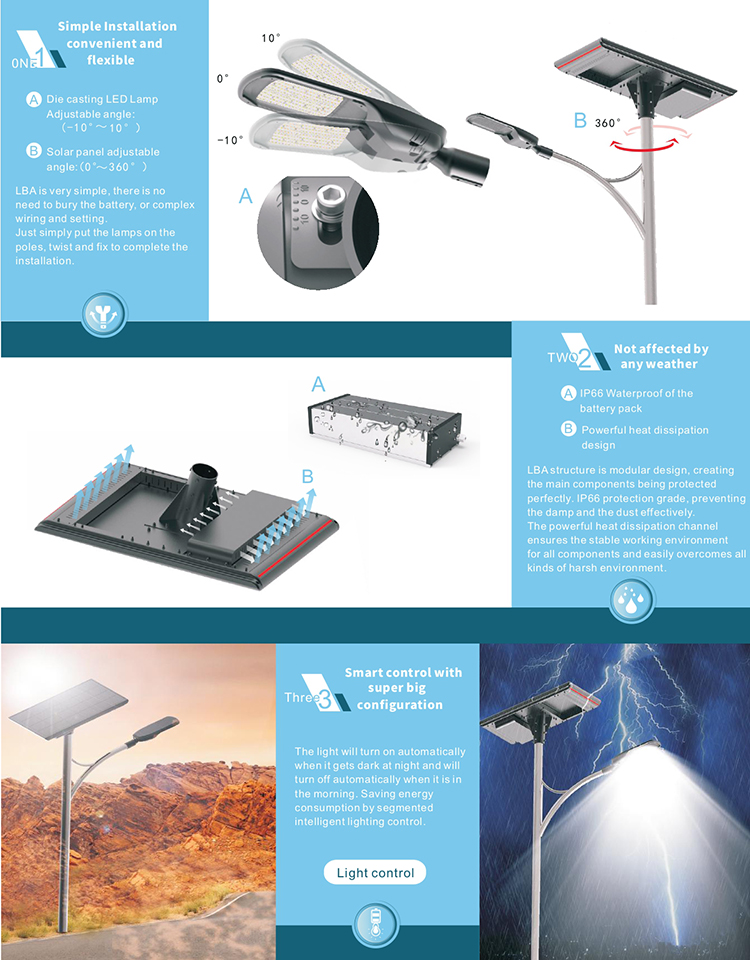

LBA series semi-split solar street light is a street lamp system integrating high conversion rate solar panel, ultra-long life LiFePO4 battery pack, efficient intelligent controller and die-cast aluminum alloy LED street lamp .

It is not only the most cost-effective solution to build a new solar street lamp system , but also the best solution to update and replace the existing old solar street lamp system.


led street light outdoor

Lamp Power:40-80W

Solar Panel Power:160-230W

Battery Capacity:922-1536Wh

Lighting Mode
Motion sensor,timer,or ODM

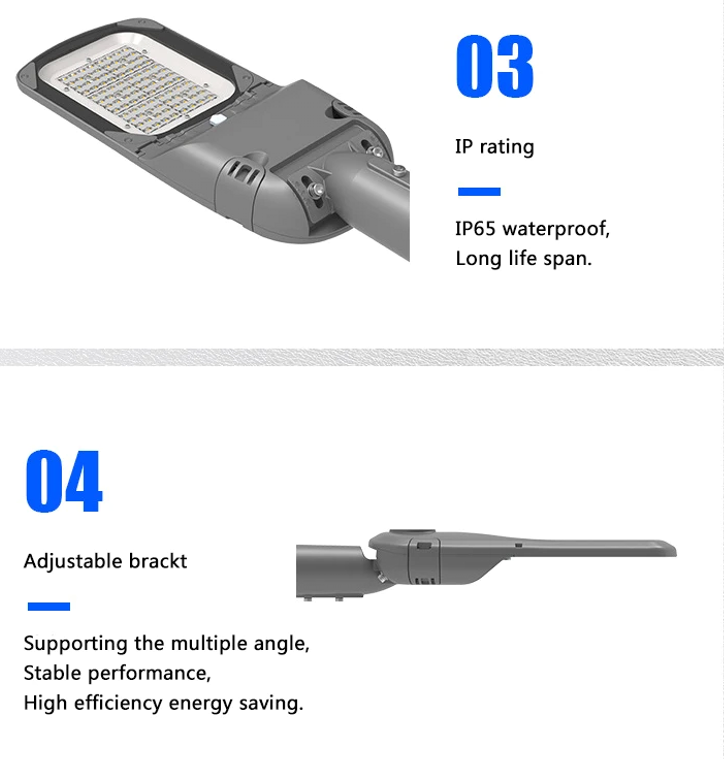

Waterproof
IP65
Warranty
3 Years
Application
Courtyard/Garden/ garage door/ warehouse/stable/gateway/escape trunk/corridor etc.

Solar street lights use solar power

IP66 outdoor Pole Solar shoebox LED Street Light 50w 100w 150w 200w street lamp



led Solar Street Lights Outdoor



led Solar Street Lights Outdoor

led Solar Street Lights Outdoor

Model LBA-40W LBA-60W LBA-80W
Physical Parameters
LED Brand PHILIPS PHILIPS PHILIPS
LED Qty(pcs) 96 144 144
Power of PV Module(W) 36V 160W 36V 180W 36V 230W
LIFEPO4 Battery Capacity(Ah) 25.6V 922Wh 25.6V 1229Wh 25.6V 1536Wh
Light Mode Time Control Time Control Time Control

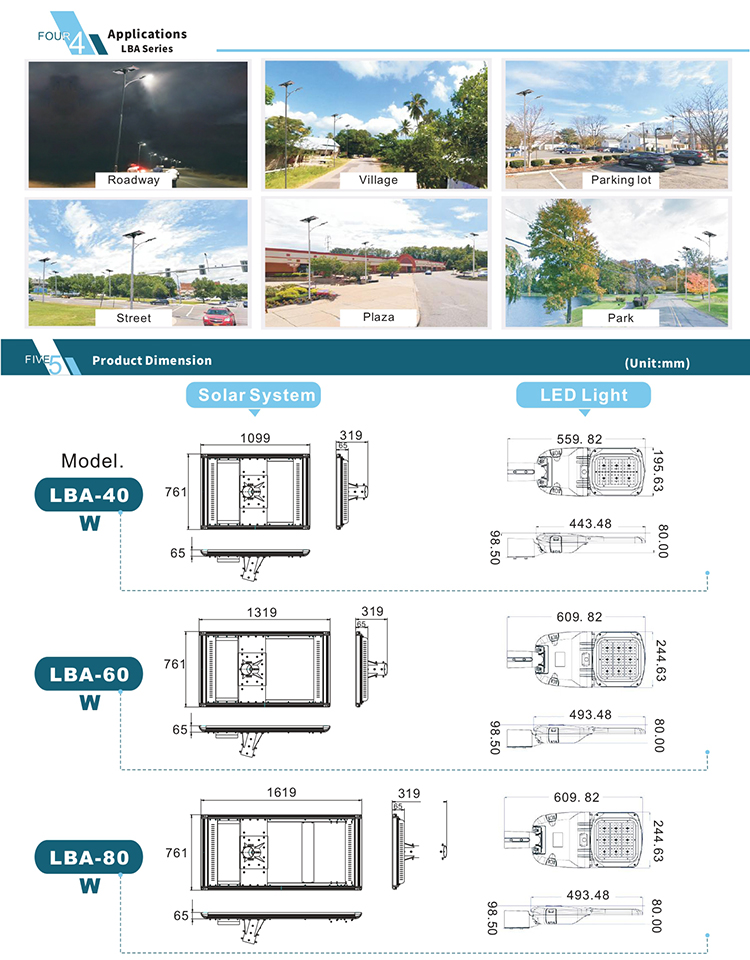

Product Dimension(mm) 1099*761*65 1319*761*65 1619*761*65
Product N.W.(kg) 38 40 45
Package #1
Dimension(mm)& G.W.
(1 Lamp/CTN)
1160*825*225
(25KG)
1380*825*225
(30KG)
1680*825*225
(35KG)
Package #2
Dimension(mm)& G.W.
(1 Lamp/CTN)

395*405*310

(7KG)

Package #3
Dimension(mm)& G.W.
(1 Bracket/CTN)

645*275*160

(15KG)

Light Parameters
Light Power(W) 40W 60W 80W
Typical Liminous Flux(Lm) 6400 9600 12800
LED Light Effect(Lm/W) 210Lm/W
Color Temperature(K) 2700-6500
Beam Angle(°) 90° / 75°x 150°
Rainy Days(D) 3~5 3~5 3~5
Environment Parameters
Charging
Temperature(℃)
0 ℃ to +60 ℃
Discharging
Temperature(℃)
-20 ℃ to +60 ℃
Storage
Temperature(℃)
-20 ℃ to +45 ℃

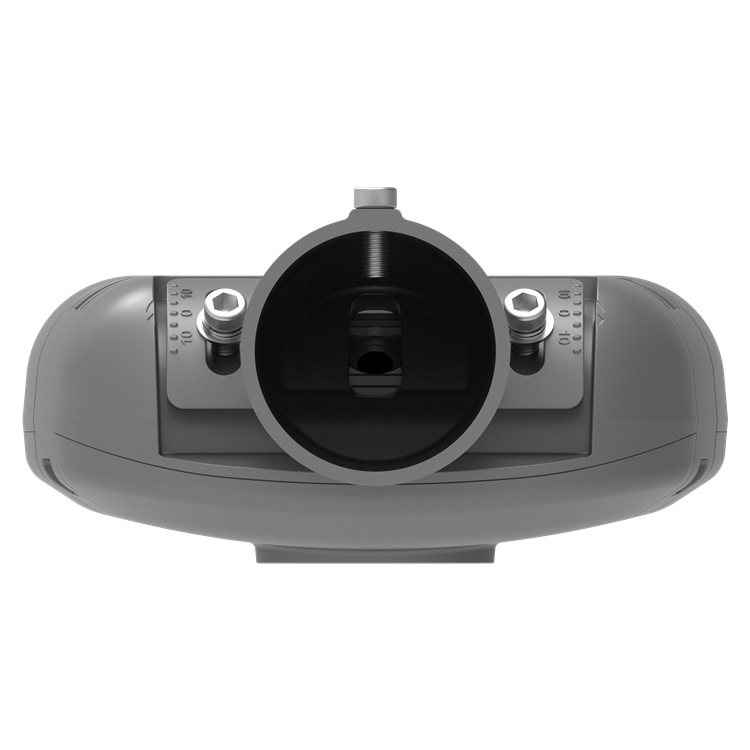

Installation
Dia. of Top Pole (mm) 89~105 89~105 89~105
Installation Height(m) 6~8 7~9 10~12
Installation Distance (m) 35~40 35~40 40~45


Solar street lights use solar power

Solar street lights use solar power

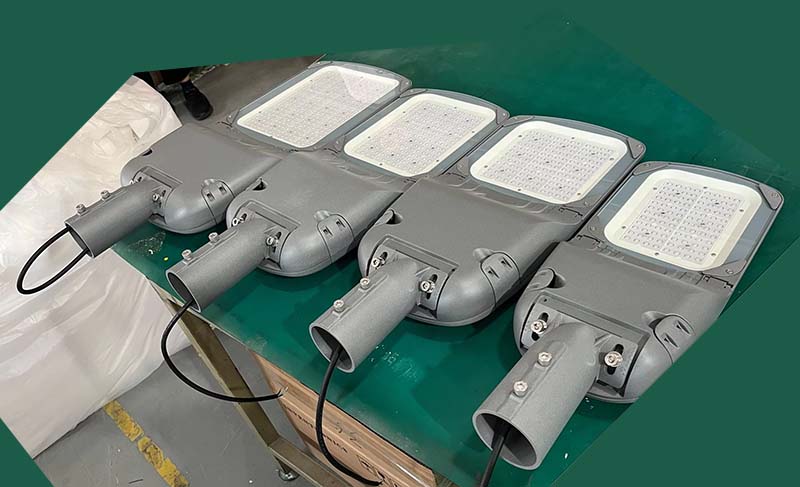

led street light

led Solar Street Lights Outdoor

led Solar Street Lights Outdoor

50W smart led street light

LED street light#smart led street light#parking lot street light

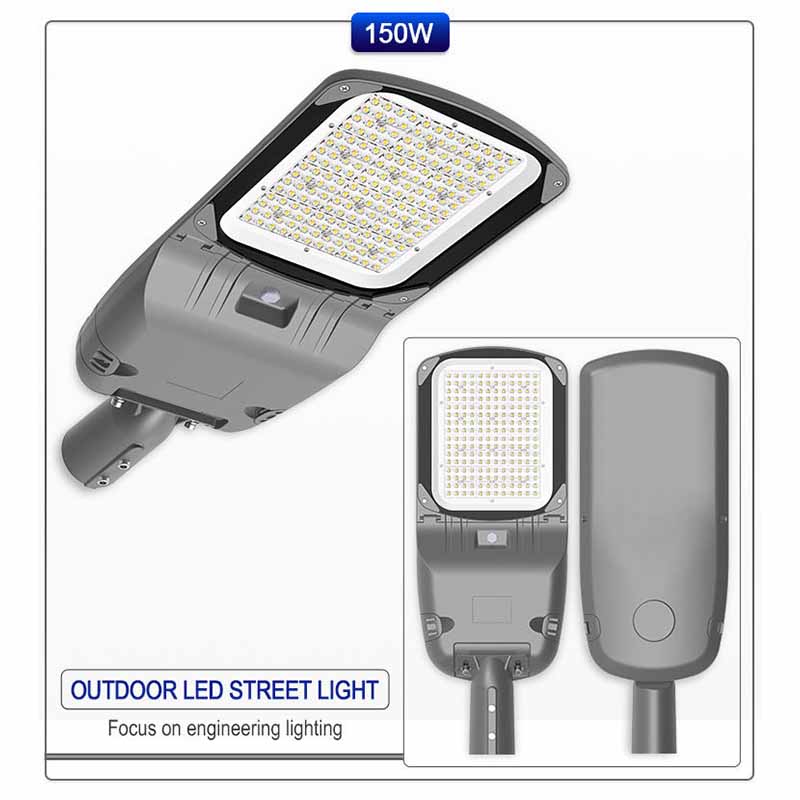

outdoor Pole Solar shoebox LED Street Light 50w 100w 150w 200w street light photocell

led street light

50W Aluinmium led street light# LED street lighting

led street light

led street light

Anti-corrosion, waterproof street light

led street light





18 Years Production Experience In The Industry
High brightness: The lighting range of LED lamp beads is about 100-500㎡. Built-in large capacity battery. After fully charged for 6-8 hours, it can provide stable and bright lighting within 12-24 hours. No flash frequency.

One light two mode function key (remote control switch): Mode one (new charging indicator light) will automatically turn on the dim mode at dark, all people come on, and people leave dim light, and the lights will automatically turn off at dawn. Mode two (remote control always on + timing + light control) with memory function, automatic light on at dark (100% full light) automatic light off at dawn without human body induction.
Multiple control: the remote control distance can reach 40 feet. You can set the automatic mode, 9 levels of brightness, 3/5/8 hours timing mode. Easy to use.

No charge: Solar street lights use solar power. It not only saves energy, but also saves money. IP65 can work normally even in rainy days.

Application: No wiring is required, so you can install solar street lights anywhere. Ideal for streets and paths, courtyards, parks, squares, private gardens, courtyards, etc.
