Factory Outdoor Roof Top Advertising Trivision Billboard 36W LED with Solar Power Source IP65 Rated EMC Certified

Factory Outdoor Roof Top Advertising Trivision Billboard 36W LED with Solar Power Source IP65 Rated EMC Certified

Solar spotlight led projector outdoor expressway intersection anti-aircraft billboard

Patent Design， Global First.
Water-proof & Multi-layer optical system design.
Waterproof and temperature control battery protection design

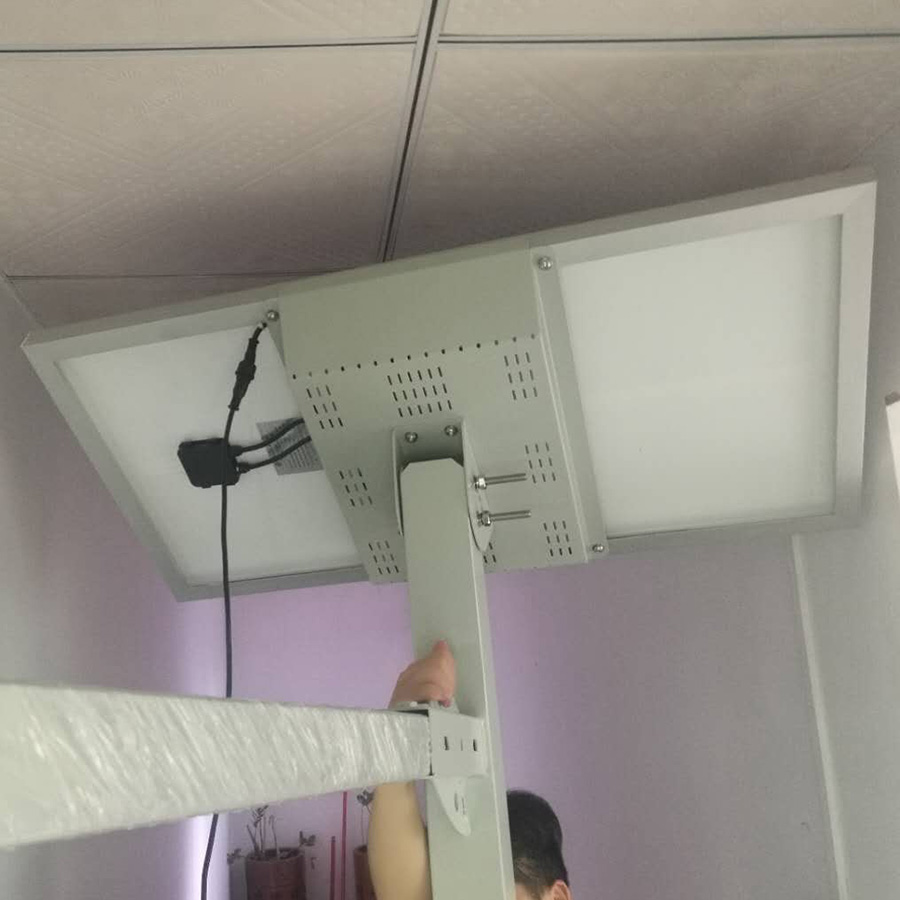

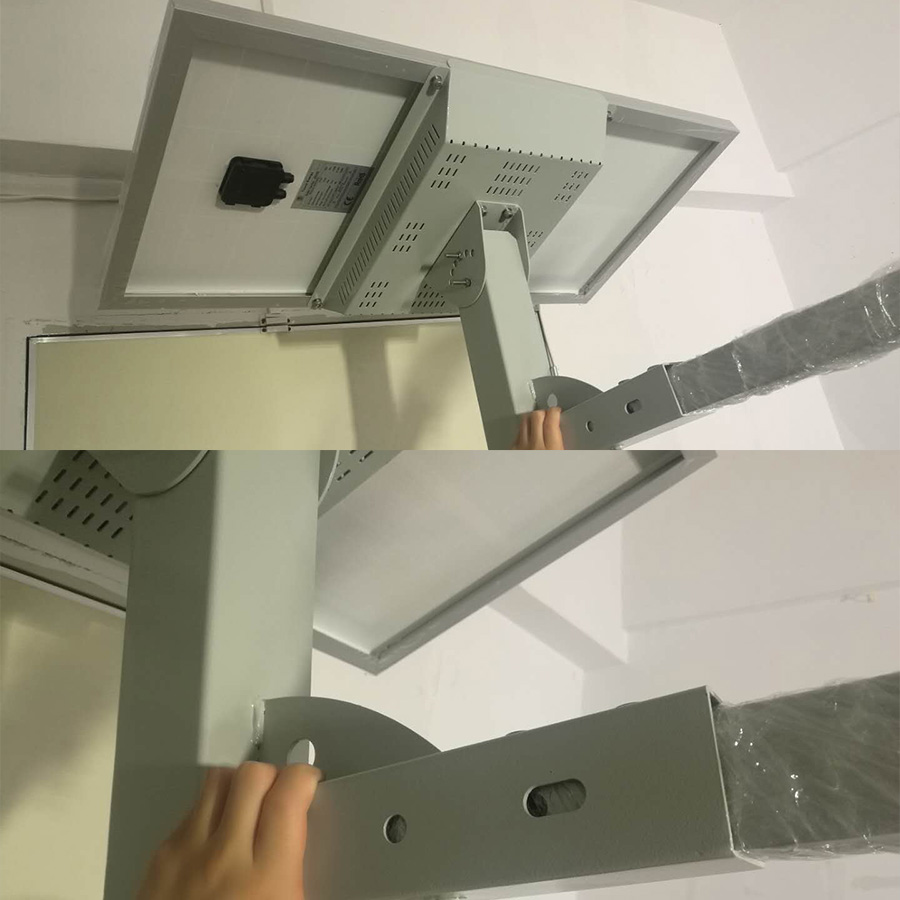

Adjustable angle solar panel.

Payment :
T/T, Paypal, Western Union
Color :
Silver
Lead Time :
3~5 days for samples;15~20 days for bulk
Original Region :
China
Port Of Dispatch :
Qingdao
Infrared senor :
No
Battery Type :
Lithium LiFePO4 Battery
Solar Panel Power :
36W
LED Power :
36W
LED brand :
LEADRAY
Model No. :
LFB36W

Inquiry now

Product Details

Integrated telescopic structure design LED flood solar billboard lights for outdoor billboard advertising signboard project.Factory Supply Professional Solar Led Flood Light for Outdoor Billboard.Professional Manufacturer Outdoor 2700 To 6500k Billboard Solar Light For Advertising Sign.

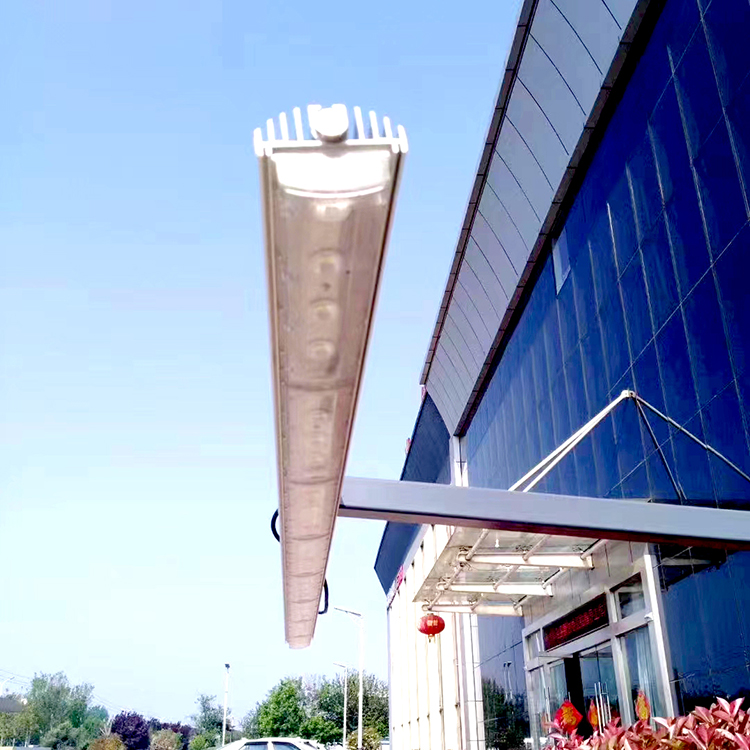

LED flood solar billboard lights

Model Number: LFB36W

Application: ROAD

Solar Panel Max Power: 18V 80W
Type: LED Flood Solar Lighting For Advertising
Lamp Luminous Flux(lm): 5040Lm(TYP)

Color Temperature(CCT): 2700-6500K
Lighting Time: 1hrs 50% light + 4 hrs 100% light + 1 hrs 30% light

Material: Superior aviation aluminum AL6063-T5

Battery Type: Lithium 12V 40AH

Features & Specification
Solar Panel	Max Power	18V 80W
Solar Panel	Lifespan	25 years
Battery	Type	Lithium 12V 40AH
Battery	Lifespan	8-10 years
LED Source	Max Power	12V 36W

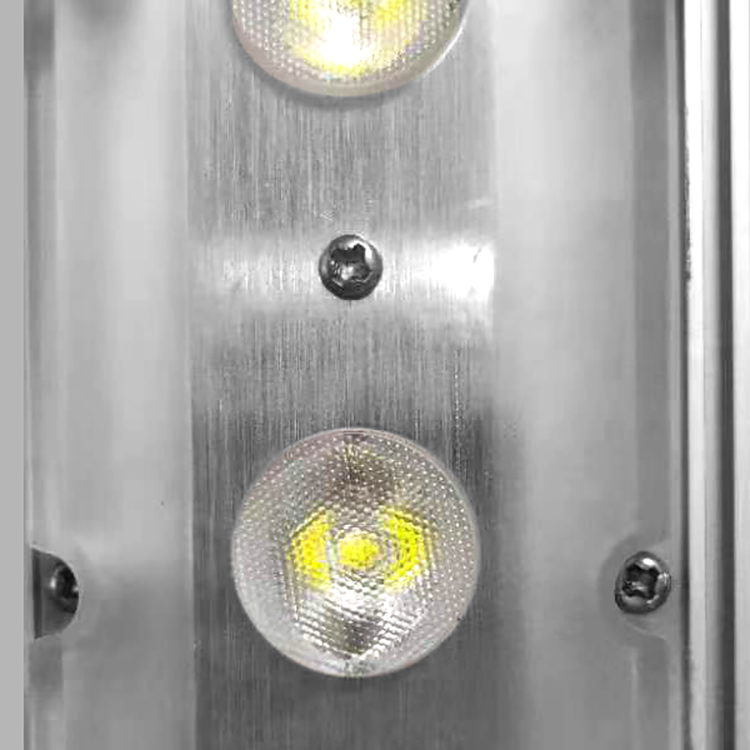

	Led Chip Brand	CREE LED
	Luminous Flux	5040Lm(TYP)
	Lifespan	50,000hrs
	Color Temperature	2700-6500K
	CRI	>75Ra
Charge Time	By Strong Sunshine	6-8 hours
Lighting Time	1hrs 50% light + 4 hrs 100% light + 1 hrs 30% light
Environment Parameter	Discharing temperature	-20 ℃ to +60 ℃
	Charging Temperature	0 ℃ to +60 ℃
	Storage temperature	-20 ℃ to +45 ℃
Material	Superior aviation aluminum AL6063-T5
Certification	CE RoHs SASO IEC
IP Rating	IP65
Warranty	2 years

LED flood solar billboard lights

Model No.	LFB36W
Light Source Power	36W
Typical Luminous Flux (Lm)	5040LM
Luminous Efficiency	≥140Lm/W
Color Temperature (K)	6500-7000K
CRI	≥75
Power of PV Module (W)	80W/18V monocrystal
Battery Capacity (Ah)	40AH 12.8V
Working time(Hours)	4-6hours

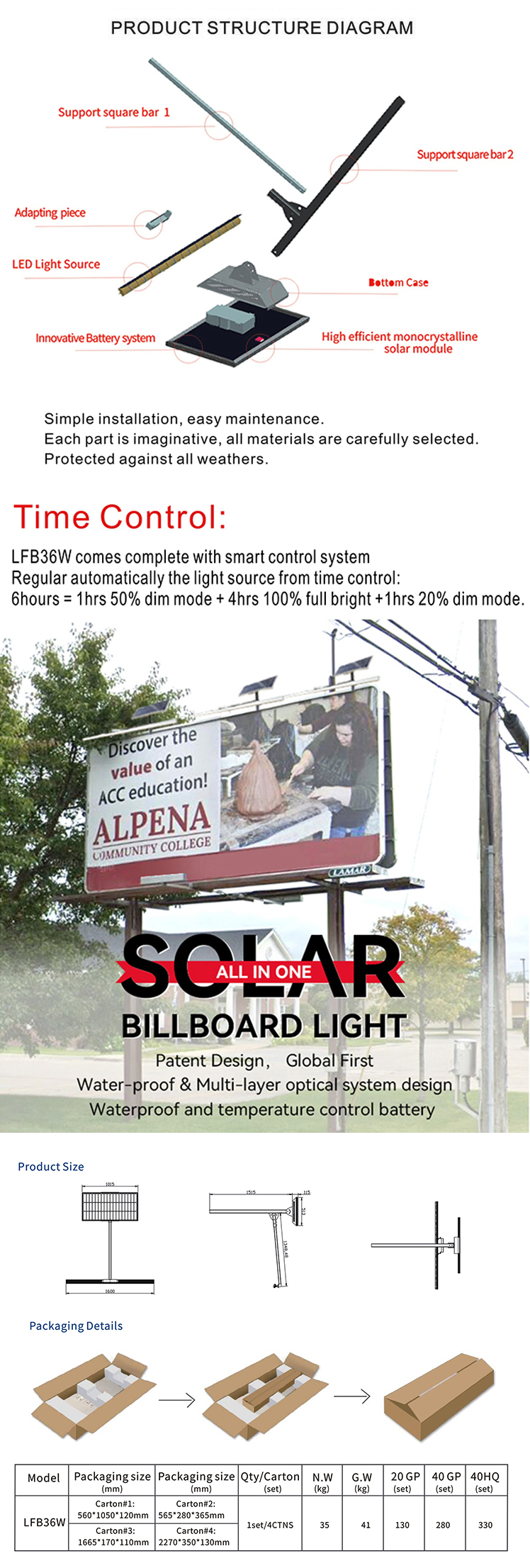

Light Mode	Time Control: 6hours = 1hrs 50% dim mode + 4hrs 100% full bright +1hrs 20% dim mode
Working temperature	-20°~+60°
Working humidity	10%-90%
Lamp body and lamp cover material	Aluminum alloy 6063-T5/Q235/3003/PC
Waterproof level	IP65
Net weight (including installation parts)	35kg
Gross weight	41kg
Carton #1	5601050120mm
Carton #2	565280365 mm
Carton #3	1665170110 mm
Carton #4	2270350130 mm
