12V 40Ah LED Solar Billboard Sign Light Outdoor High Way 80W White Advertising IP65 Rating Integrated Solar LED Billboard Light
Infrared senor :
NOBattery Type :
Lithium LiFePO4 BatterySolar Panel Power :
36WLED Power :
36WLED brand :
LEADRAYModel No. :
LFB36W12V 40Ah LED Solar Billboard Sign Light Outdoor High Way 80W White Advertising IP65 Rating Integrated Solar LED Billboard Light
Model Number: LFB36W
Application: ROAD
Solar Panel Max Power:
18V 80W
Type:
LED Flood Solar Lighting For Advertising
Lamp Luminous Flux(lm):
5040Lm(TYP)
Color Temperature(CCT):
2700-6500K
Lighting Time:
1hrs 50% light + 4 hrs 100% light + 1 hrs 30% light
Material: Superior aviation aluminum AL6063-T5
Battery Type: Lithium 12V 40AH
Features & Specification
|
||
Solar Panel
|
Max Power
|
18V 80W
|
Lifespan
|
25 years
|
|
Battery
|
Type
|
Lithium 12V 40AH
|
Lifespan
|
8-10 years
|
|
LED Source
|
Max Power
|
12V 36W
|
Led Chip Brand
|
CREE LED
|
|
Luminous Flux
|
5040Lm(TYP)
|
|
Lifespan
|
50,000hrs
|
|
Color Temperature
|
2700-6500K
|
|
CRI
|
>75Ra
|
|
Charge Time
|
By Strong Sunshine
|
6-8 hours
|
Lighting Time
|
1hrs 50% light + 4 hrs 100% light + 1 hrs 30% light
|
|
Environment Parameter
|
Discharing temperature
|
-20 ℃ to +60 ℃
|
Charging Temperature
|
0 ℃ to +60 ℃
|
|
Storage temperature
|
-20 ℃ to +45 ℃
|
|
Material
|
Superior aviation aluminum AL6063-T5
|
|
Certification
|
CE RoHs SASO IEC
|
|
IP Rating
|
IP65
|
|
Warranty
|
2 years
|

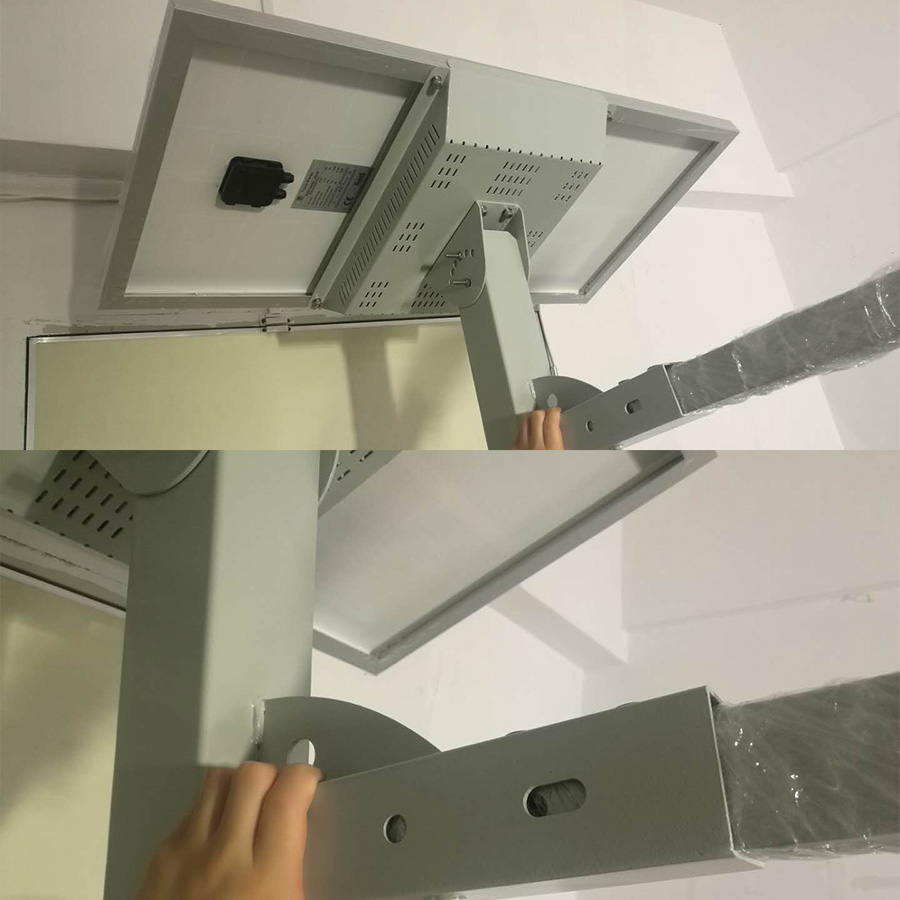

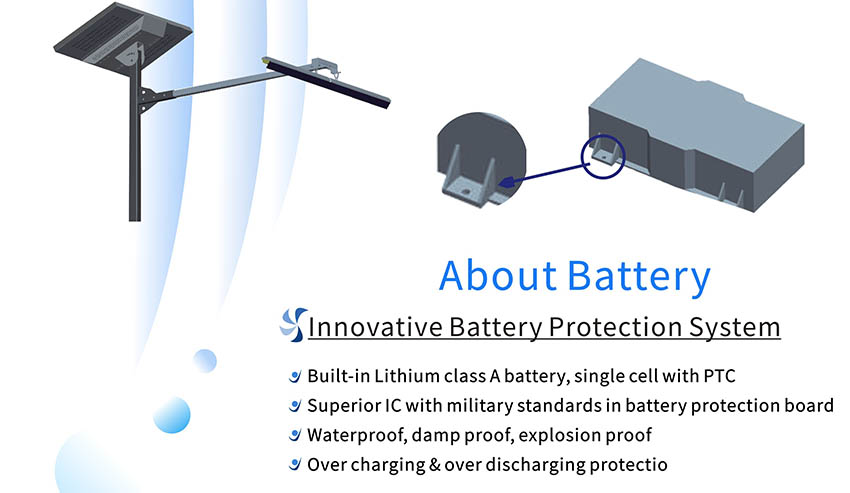

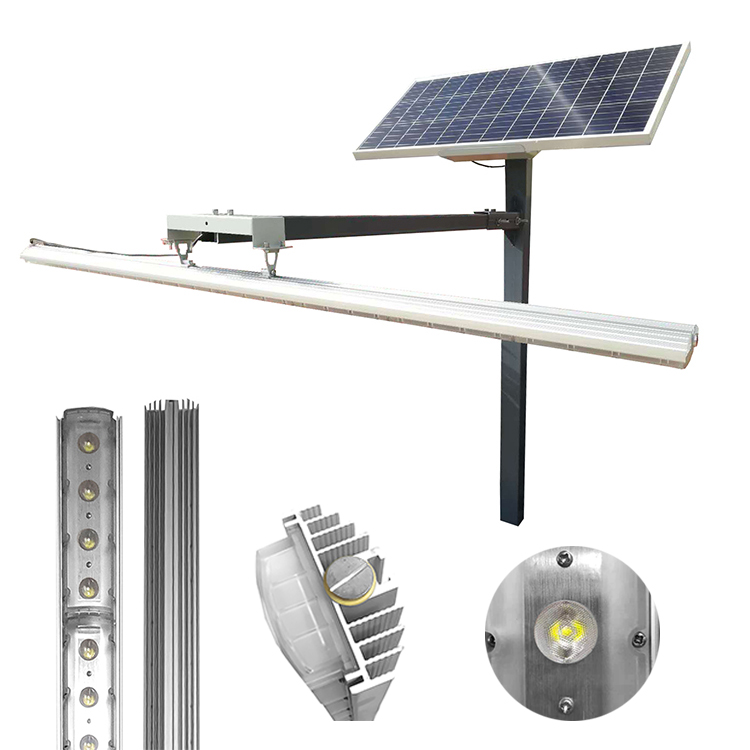

Patent Design, Global First Water-proof & Multi-layer optical system design Waterproof and temperature control battery protection design Adjustable angle solar panel Feature:
1. CREE LED without gold wire packaging, creates a first-class light source140Lm/W, 30% brighter than other similar products.
2. Longer working hours, 15% longer than other similar products.
3. Rectangular beam design, with bat wing light distribution.
4. The well optimized light distribution, made for a more uniform and wider lighting area.
5. Lens with exhaust valve, prevent water vapor gathered & makes longer lifespan.
6. Original thermal system design, innovative heat sink with IP67 PG head.

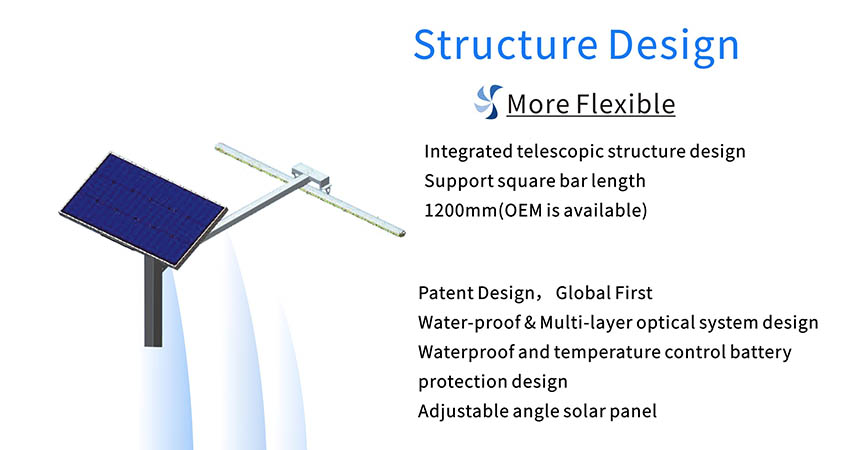

7. Integrated telescopic structure design Support square bar length 1200mm(OEM is available).
