80watt Solar street light monocrystalline silicon

High-capacity LiFePO4 battery 80watt Solar street light monocrystalline silicon Philips LED 5050 technology

Engineered for reliable outdoor illumination in commercial, industrial, and public areas, this 80W solar street light combines Philips' premium 5050 LED technology with a high-capacity LiFePO4 battery 512Wh, delivering exceptional brightness, energy efficiency, and all-weather durability. Ideal for roads, parking lots, parks, campuses, and remote areas without grid access.

Inquiry now

Product Details

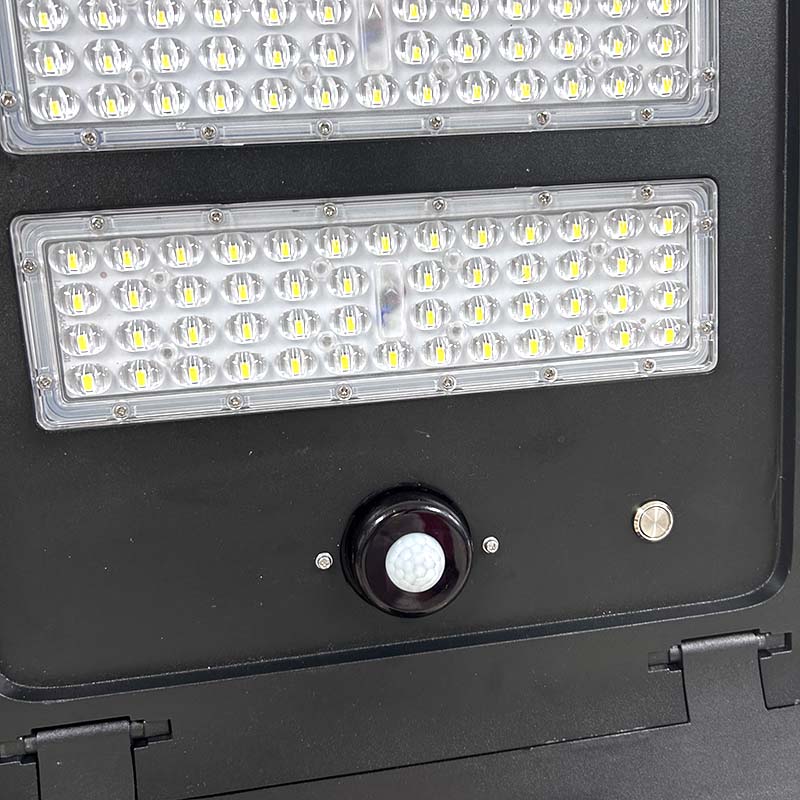

Philips Original LED Performance: Adopts authentic Philips 5050 LED chips with luminous efficacy up to 240lm/W, providing ultra-bright, uniform illumination (coverage area up to 200㎡) while reducing energy consumption by 60% compared to traditional street lights.

High-Capacity LiFePO4 Battery: 512Wh LiFePO4 battery offers superior safety (no thermal runaway risk) and long-term reliability, supporting 3-5 consecutive nights of lighting even in cloudy weather.

Adjustable: Installation angle can be adjusted tomake more effective use of sunlight.

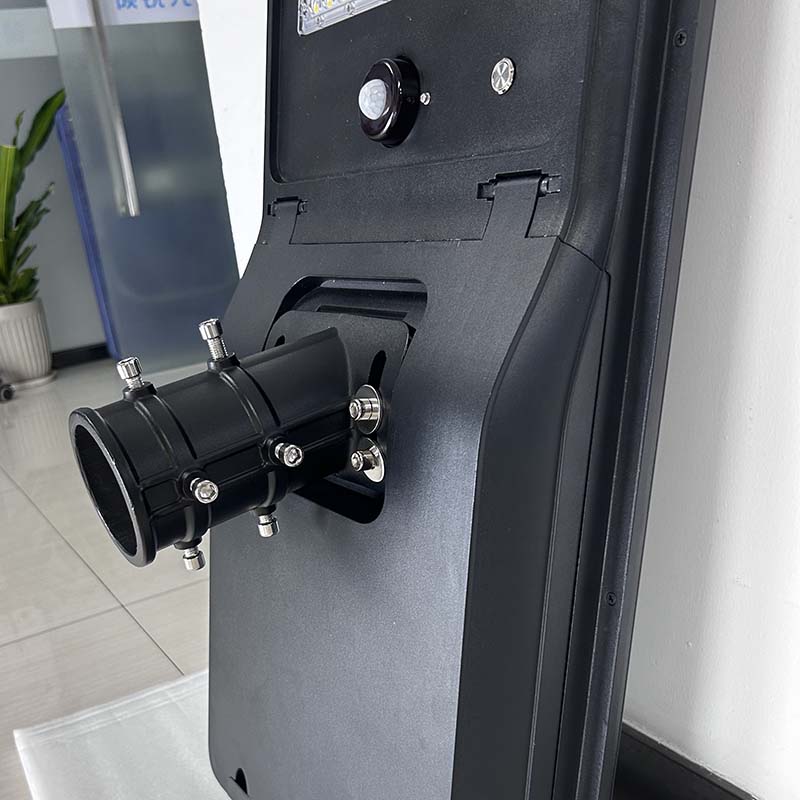

Strong Base: More secure and safe, Anti-Typhoon/Hurricane Anti-rust treatment, can beused in harsh environments such aslslands, Coasts.

Dual Intelligent Control Modes: PIR motion sensor (detection range 8-12m, angle 120°) + time control, balancing energy savings and lighting needs. Auto-on at dusk, auto-off at dawn, or customizable via remote control.

Rugged All-Weather Design: Integrated aluminum base ensures efficient heat dissipation (LED junction temperature ≤60℃), while the sealed optical lens achieves IP67 waterproof rating—resistant to rain, snow, dust, and extreme temperatures (-30℃~65℃).

IP67 (Dustproof, Waterproof, Suitable for -30℃~65℃ Working Environment)

Model	LA2-60W	LA2-80W	LA2-100W	LA2-120W
Physical Parameters
LED Brand	Philips 5050	Philips 5050	Philips 5050	Philips 5050
LED Qty(pcs)	150	200	250	250
Power of PV Module(W)	18V 80W	18V 100W	18V 120W	18V 140W
LIFEPO4 Battery Capacity(Ah)	385Wh	512Wh	615Wh	768Wh
Light Mode	PIR/Time Control	PIR/Time Control	PIR/Time Control	PIR/Time Control
Product Dimension(mm)	94042091	107042091	121042091	166542091
Product N.W.(kg)	13.5	15	16.5	19.8
Package #1 Dimension(mm)& G.W.(kg) (1 Lamp/CTN)	1040460160 14.5	1170460160 16.2	1250460160 17.5	1705460160 21.5
Package #2 Dimension(mm)& G.W.(kg) (1 Bracket/CTN)	265265175 1.42
Light Parameters
Light Power(W)	60W	80W	100W	120W
Typical Liminous Flux(Lm)	12600	16800	21000	25200
LED Light Effect(Lm/W)	240Lm/W
Color Temperature(K)	2700-6500
Beam Angle(°)	T3 150*80°
Rainy Days(D)	3~5
Environment Parameters
Charging Temperature (°C)	0°C to~ +60°C
Discharging Temperature (°C)	-20°C to~ +60°C
Storage Tempertaure (°C)	-20°C to~ +45°C
Installation
Dia. of Top Pole (mm)	76	76	76	76
Installation Height(m)	6~8	8~10	10~12	10~12
Installation Distance (m)	20~25	25~30	30~35	30~35

* Built-in LiFePO4 class A battery, single cell with PTC,

* Exclusive patented waterproof sealed box, up to lP66.

* Over charging & over discharging protection.

Superior IC with military standards in battery protection board.

80watt Solar street light

* Adopt original Philips LED chips, single lumen value up to 240lm/W.

* Integrated aluminum base and sealed lens for excellent heatdissipation and waterproof performance.

* Optical lens with light transmittance up to 93% and the welloptimized light distribution, making more uniform illumin-ation and wider lighting area.

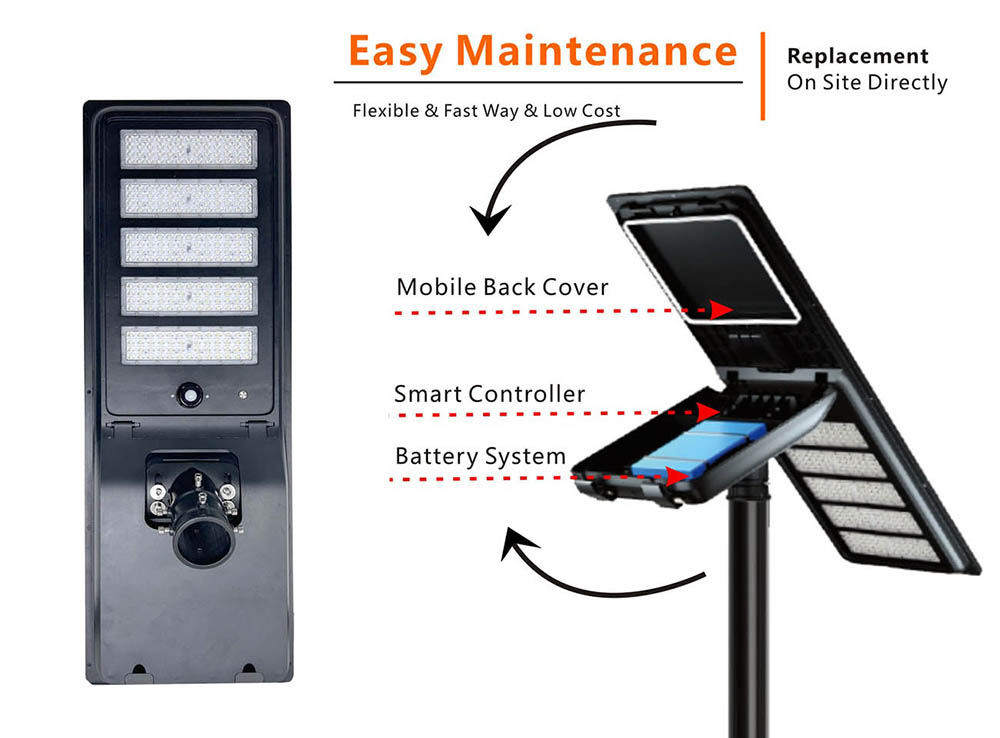

The integrated street lamp adopts a highly compact design, integrating components such as lamp posts, lamps, control systems, and energy storage devices together. Its structure is more compact and simple. The shell is made of high-strength and corrosion-resistant aluminum alloy. It adopts energy-saving LED light source, intelligent control system, and has light sensing control and time control functions.

The internal structure has been carefully designed and optimized, with tightly connected components that can effectively resist natural disasters such as strong winds, reduce the frequency of failures caused by environmental factors, and extend the service life.

Application Scenarios

Urban/Suburban Roads & Sidewalks.

Commercial Parking Lots & Industrial Yards.

Parks, Gardens, & Residential Complexes.

School Campuses & University Grounds.

Remote Areas (Construction Sites, Rural Roads, Border Posts)

Public Squares & Recreational Facilities.

Why Choose This Solar Street Light?

✅ No Grid Dependence: Off-grid design eliminates wiring costs and grid electricity fees, perfect for areas with unstable power supply.

✅ Long-Term Cost Savings: High-efficiency components reduce replacement and maintenance frequency—total cost of ownership 70% lower than grid-connected street lights over 5 years.

✅ Reliable Performance: Tested to withstand harsh weather conditions (hurricanes, heavy snow, extreme temperatures) with IP67 protection and robust aluminum construction.

✅ Easy Installation: All-in-one design simplifies mounting (tools included), enabling quick setup in 30 minutes per unit.

For Global Partners

Customizable PV module power, battery capacity, and lighting modes to meet regional market needs.

CE, RoHS, FCC, and ISO certifications—compliant with international quality and safety standards.

OEM/ODM services available (logo printing, packaging customization, user manual localization).
