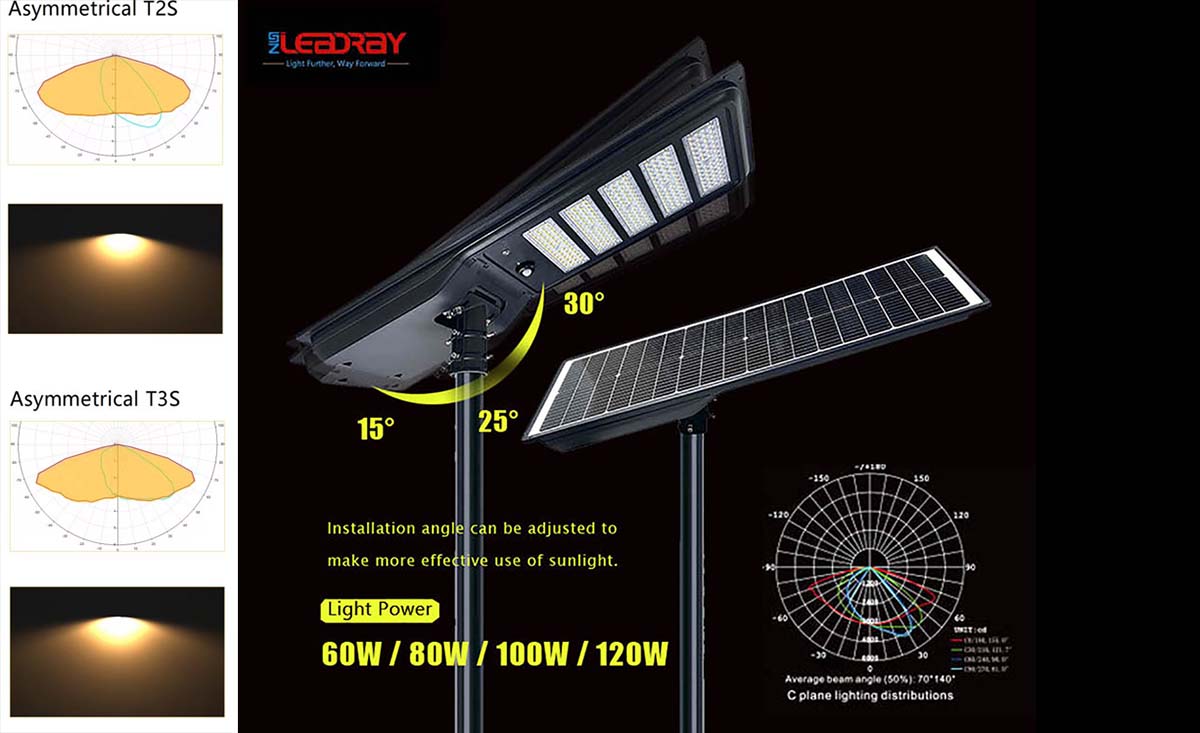

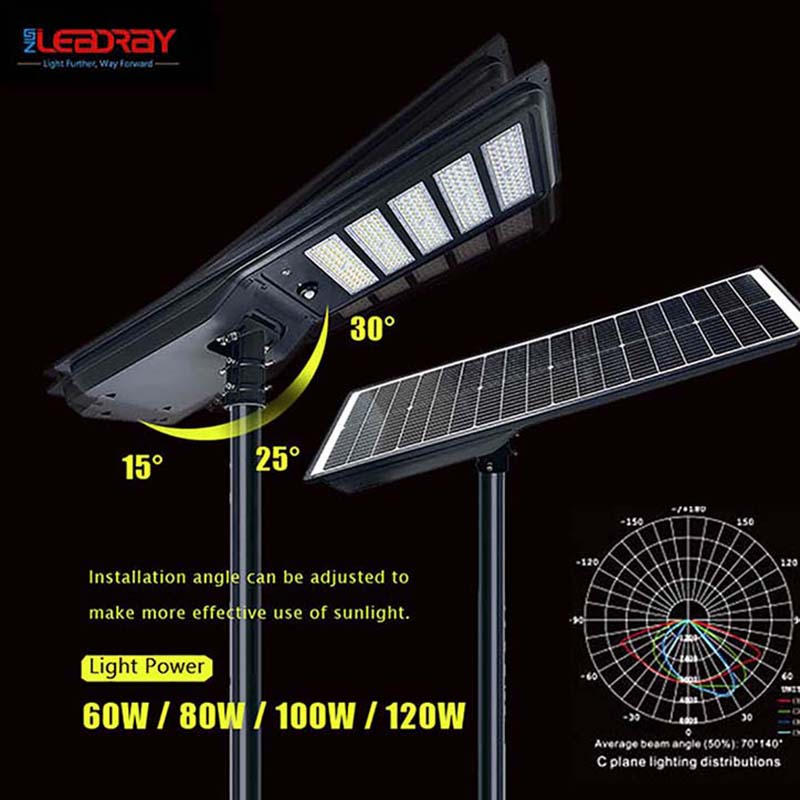

Integrated die cast aluminum motion sensor solar outdoor parking pole solar street lamp 60w
1. 18v 80W solar power supply, equipped with 60W LED light source, high luminous efficiency, can efficiently convert solar energy into light energy. The 60W solar street lamp of Philips 5050 brand has a luminous efficiency of 260lm/w and a luminous flux of 9200lm.

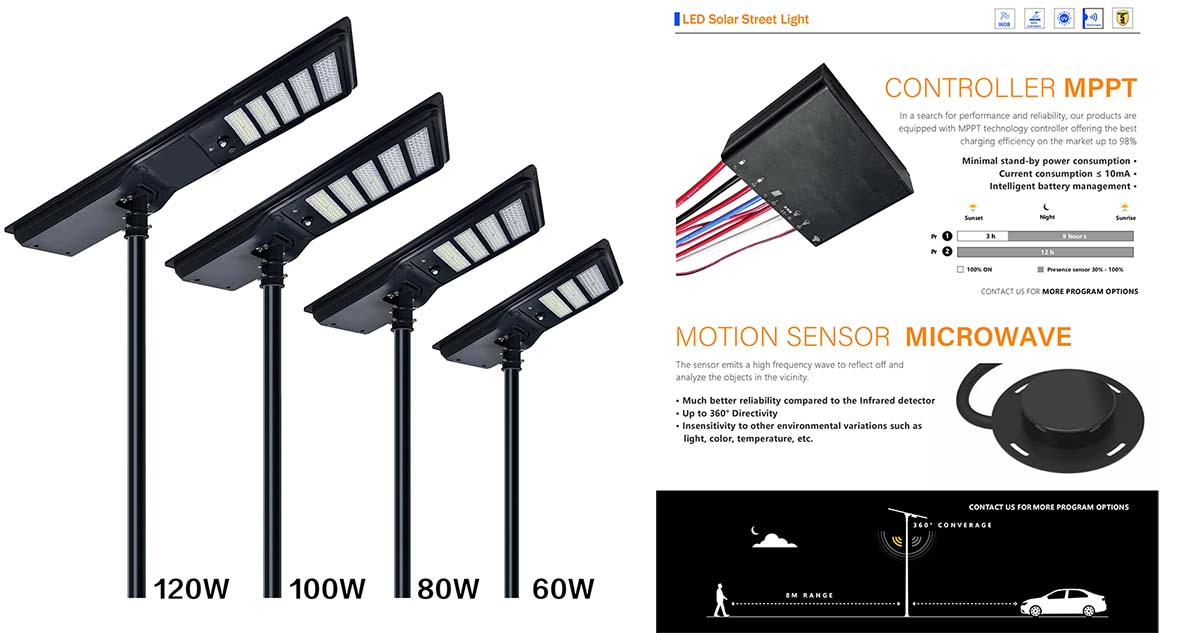

2. Integrated motion sensor and PIR human body sensor can realize the functions of light on when people come and light off when people walk. At the same time, it has the functions of light control and time control. The working mode of lighting has two options: human infrared sensing and time control.
3. Lamp body is made of die cast aluminum, which has good heat dissipation and corrosion resistance, and can adapt to the harsh outdoor environment. Waterproof grade IP66, which can effectively prevent rainwater intrusion.
4. Integrated design, which integrates solar panels, lithium batteries, LED lights and controllers, without complex wiring. It is easy to install and suitable for installation in open areas such as parking lots.

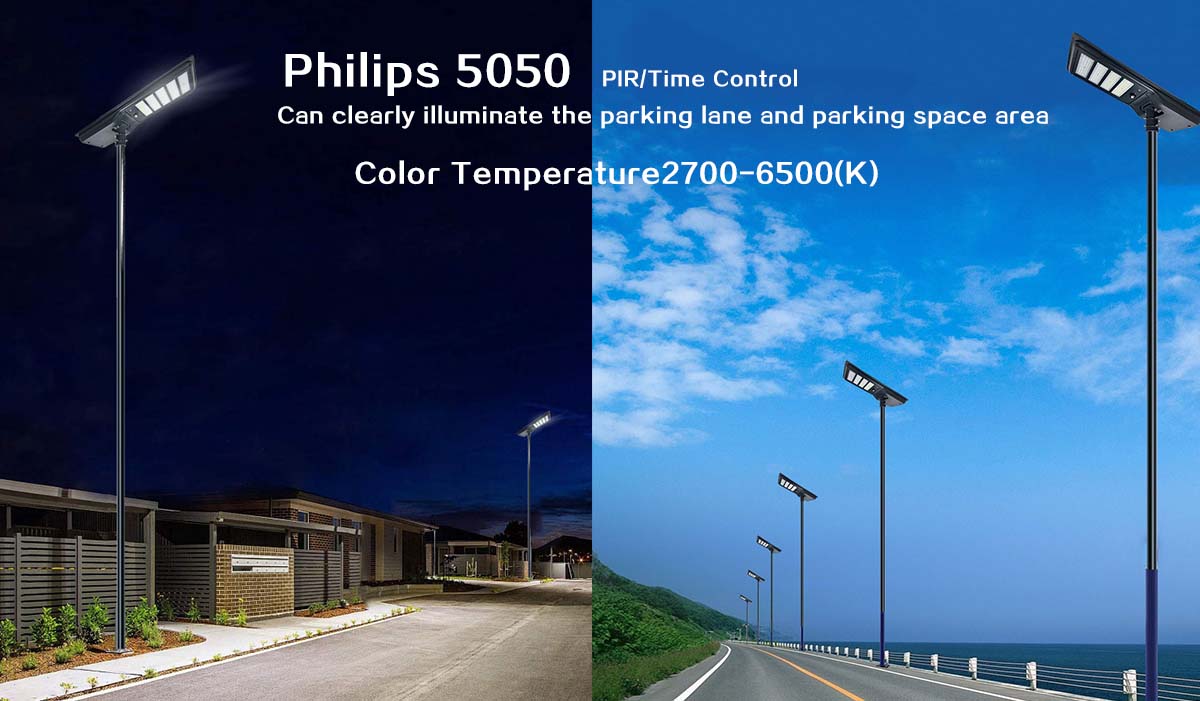

The 5050 model bright LED chips of Philips brand are used, ranging from 52 to 80. The lumen performance is excellent, the luminous efficiency is 260lm/w, and the luminous flux of the whole lamp is 9200-18400lm, which can clearly illuminate the parking lane and parking space area.
The color temperature can be customized between 2700k and 6500k to meet the atmosphere requirements of different scenes.

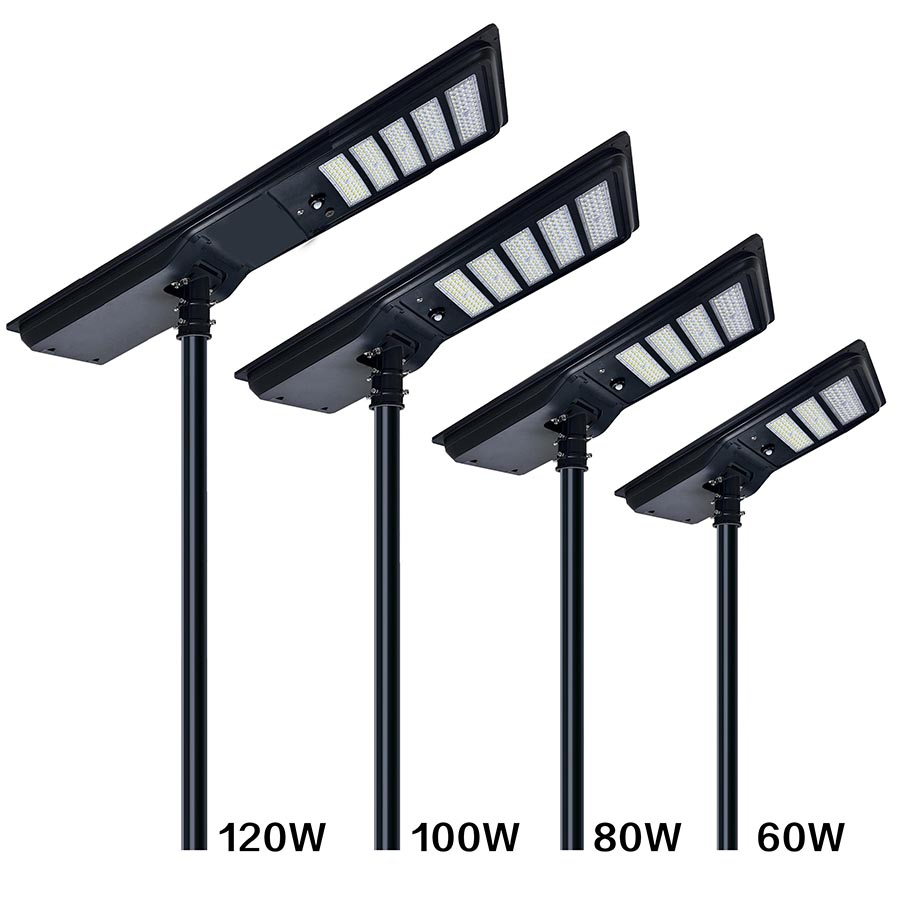

| Model | LA2-60W | LA2-80W | LA2-100W | LA2-120W |
| Physical Parameters | ||||
| LED Brand | Philips 5050 | Philips 5050 | Philips 5050 | Philips 5050 |
| LED Qty(pcs) | 150 | 200 | 250 | 250 |
| Power of PV Module(W) | 18V 80W | 18V 100W | 18V 120W | 18V 140W |
| LIFEPO4 Battery Capacity(Ah) |
385Wh | 512Wh | 615Wh | 768Wh |
| Light Mode | PIR/Time Control | PIR/Time Control | PIR/Time Control | PIR/Time Control |
| Product Dimension(mm) | 940*420*91 | 1070*420*91 | 1210*420*91 | 1665*420*91 |
| Product N.W.(kg) | 13.5 | 15 | 16.5 | 19.8 |
| Package #1 Dimension(mm)& G.W.(kg) (1 Lamp/CTN) |
1040*460*160 14.5 |
1170*460*160 16.2 |
1250*460*160 17.5 |
1705*460*160 21.5 |
| Package #2 Dimension(mm)& G.W.(kg) (1 Bracket/CTN) |
265*265*175 1.42 |
|||
| Light Parameters | ||||
| Light Power(W) | 60W | 80W | 100W | 120W |
| Typical Liminous Flux(Lm) | 9200 | 11500 | 14900 | 18400 |
| LED Light Effect(Lm/W) | 260Lm/W | |||
| Color Temperature(K) | 2700-6500 | |||
| Beam Angle(°) | T3 | |||
| Rainy Days(D) | 3~5 | |||
| Environment Parameters | ||||
| Charging Temperature (°C) | 0°C to~ +60°C | |||
| Discharging Temperature (°C) | -20°C to~ +60°C | |||
| Storage Tempertaure (°C) | -20°C to~ +45°C | |||
| Installation | ||||
| Dia. of Top Pole (mm) | 76 | 76 | 76 | 76 |
| Installation Height(m) | 6~8 | 8~10 | 10~12 | 10~12 |
| Installation Distance (m) | 20~25 | 25~30 | 30~35 | 30~35 |
The lighting products are equipped with 12.8v/385wh lithium iron phosphate battery, which can ensure a certain endurance in cloudy days.
Under the full power state, the full power lighting time can reach more than 12 hours, and the intelligent mode can work for 3-5 days.
It is used in the outdoor parking lot to provide sufficient lighting for the parking lot and ensure the safety of vehicles and personnel. It can also be used in industrial park roads, rural roads, squares and other places that need outdoor lighting and sunlight.

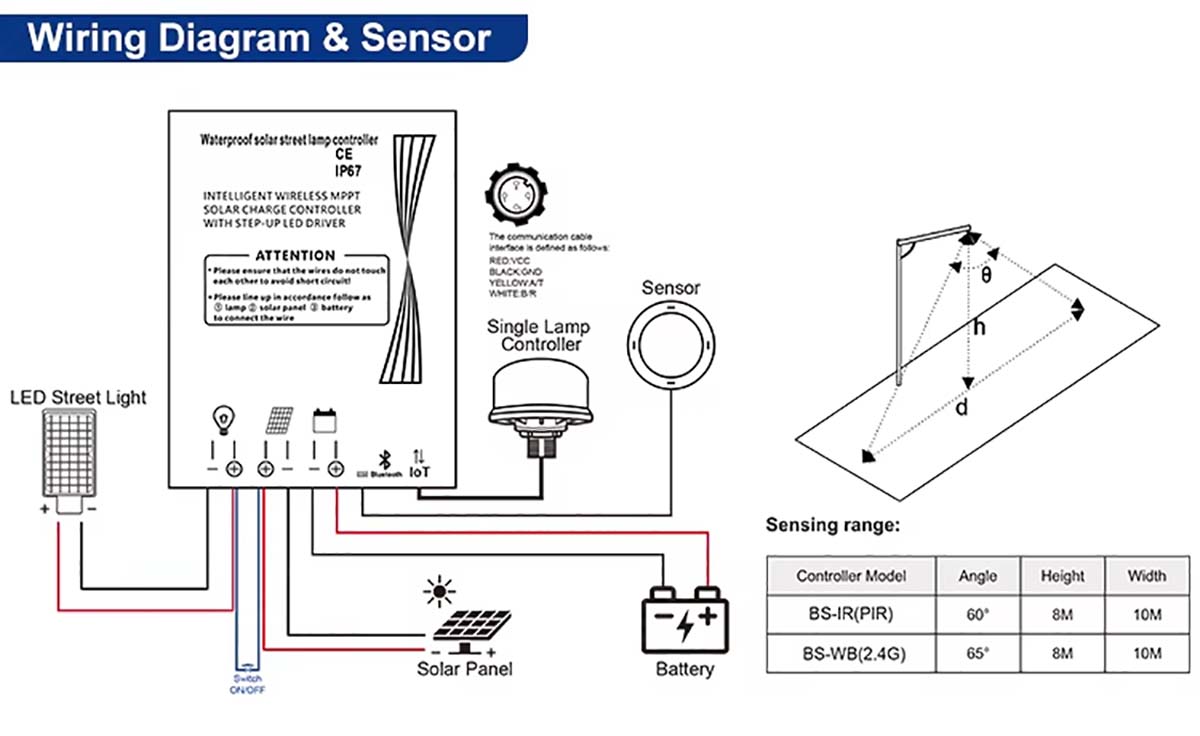

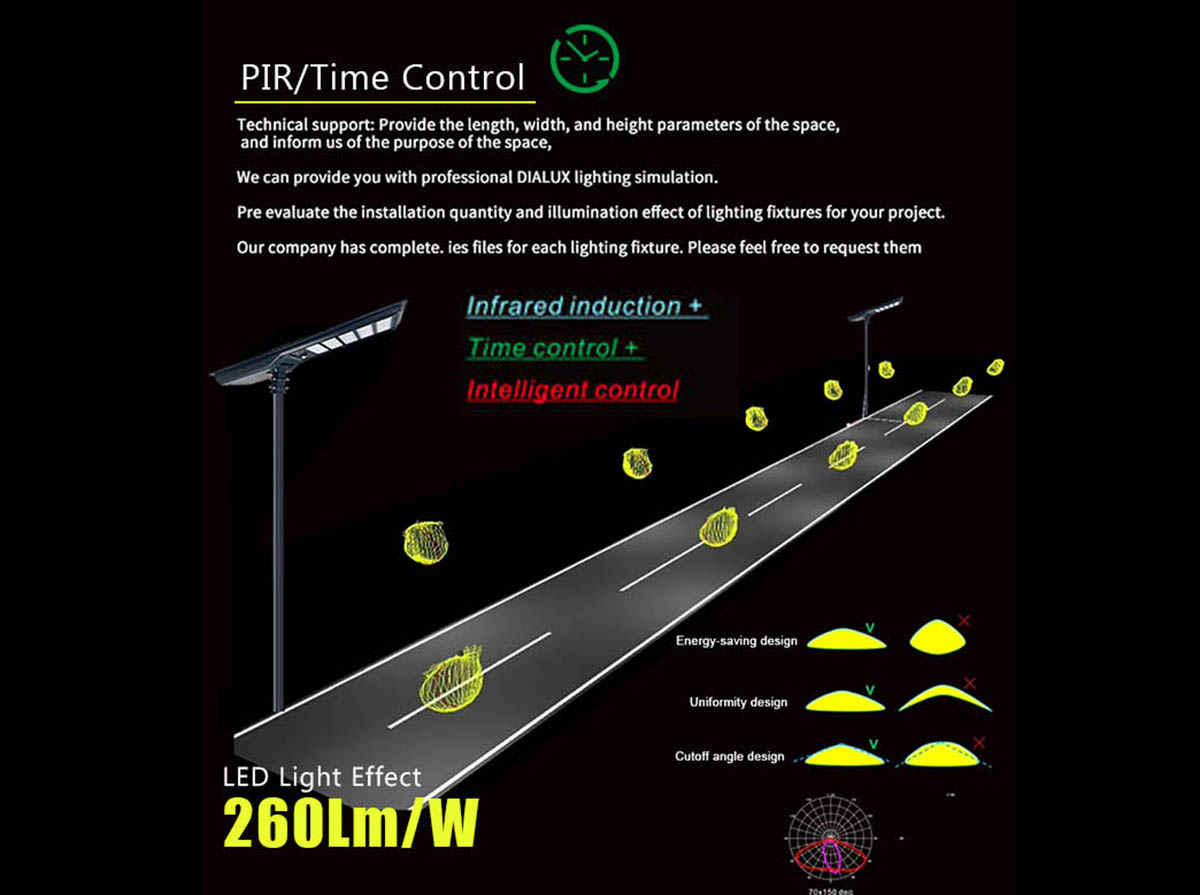

PIR human body sensor, when the sensor detects the movement of a person or object, the light will automatically light up. After the person or object leaves, the light will automatically turn off after a certain time, which can effectively save electric energy. It is suitable for gardens, passages and other places requiring temporary lighting.

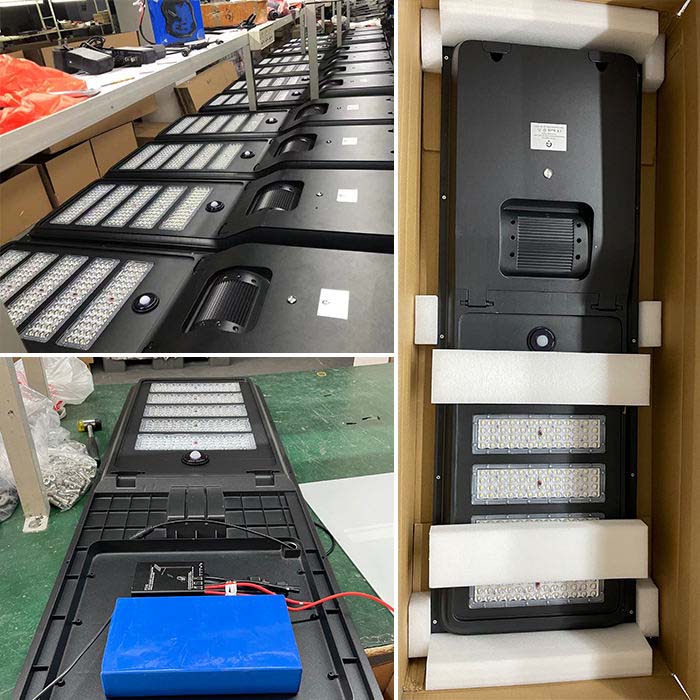

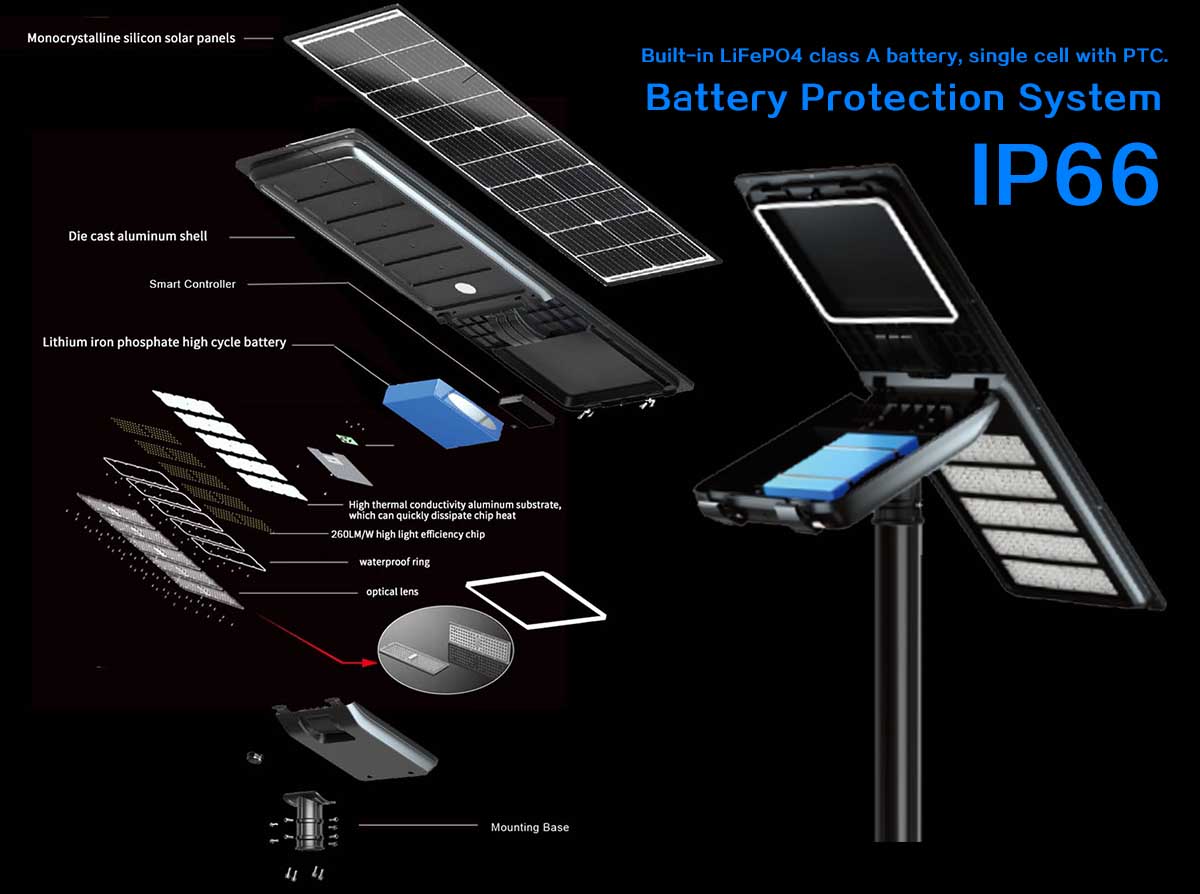

*Built in LiFeP04 class a battery, single cell PTC.
*Exclusive patent waterproof sealed box, up to lp66.
*Overcharge and discharge protection.
Superior to military standards in battery protection panels.
The 12.8v lithium iron phosphate battery has a capacity of 385-768ah. Most of the solar panels are made of 18V monocrystalline silicon, with a service life of 25 years. The photoelectric conversion efficiency is stable at more than 80%.
The street lamp can be fully charged in sunny days after charging for about 6 hours. The full power lighting duration is more than 12 hours. It can last for 3-7 days in intelligent sensing mode, and it can cope with no pressure in rainy days.
The lamp body is made of die-casting aluminum or 6063 aviation aluminum, with high mechanical strength, resistance to grade 16 wind and salt fog, and can cope with the complex outdoor environment of the parking lot.

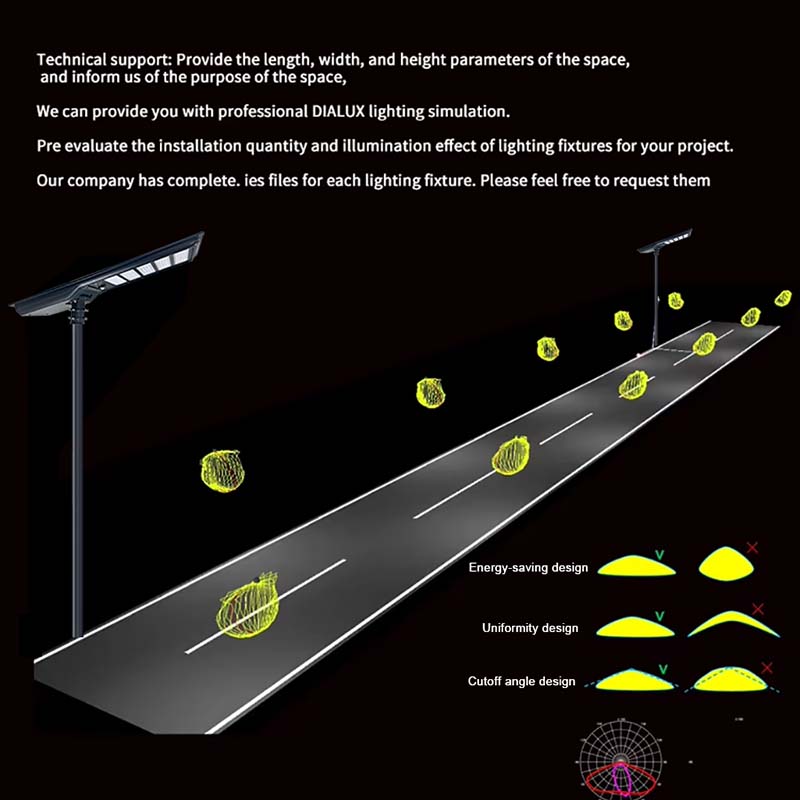

The installation height of the lamp pole is recommended to be 6-8 meters, the pole diameter is 76mm, and the spacing of the lamp poles is controlled at 20-25 meters.
The lighting coverage has no dead angle, and the integrated design does not need wiring. The installation can be completed in about 20 minutes.
1. 18v 80W solar power supply, equipped with 60W LED light source, high luminous efficiency, can efficiently convert solar energy into light energy. The 60W solar street lamp of Philips 5050 brand has a luminous efficiency of 260lm/w and a luminous flux of 9200lm. 2. Integrated motion sensor and PIR human body sensor can realize the functions of light on when people come and light off when people walk. At the same time, it has the functions of light control and time control. The working mode of lighting has two options: human infrared sensing and time control. 3. Lamp body is made of die cast aluminum, which has good heat dissipation and corrosion resistance, and can adapt to the harsh outdoor environment. Waterproof grade IP66, which can effectively prevent rainwater intrusion. 4. Integrated design, which integrates solar panels, lithium batteries, LED lights and controllers, without complex wiring. It is easy to install and suitable for installation in open areas such as parking lots.
