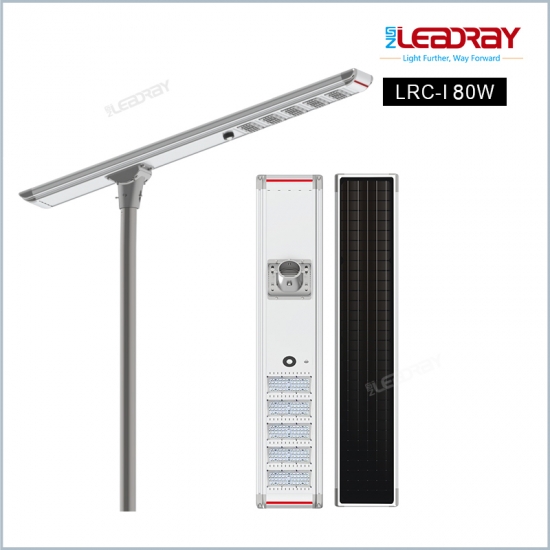

80w led Integrated street light solar outdoor PIR (Personal Identifier) technology for remote control via mobile APP
* 80W high power output with 8000-10000 lumens, providing wide lighting coverage and strong penetration;
* Intelligent PIR sensor for automatic energy saving + APP remote full-function control, balancing convenience and energy efficiency;
* Integrated, wiring-free design for efficient installation, long battery and LED lifespan, and low maintenance costs;
* Solar power supply with zero electricity costs, using environmentally friendly and safe lithium iron phosphate batteries, in line with low-carbon principles;
* IP65 high protection + wide temperature adaptability, suitable for various harsh outdoor environments.
This 80W LED smart integrated solar outdoor street light combines high-power lighting, precise PIR sensing, and remote control via a mobile app. Its integrated design eliminates wiring hassles and provides green power with zero electricity costs.
With its superior brightness, long battery life, and intelligent adaptability, it has become the preferred solution for outdoor lighting and security in various scenarios such as roads, parks, and courtyards, completely revolutionizing the practicality and convenience of outdoor lighting.

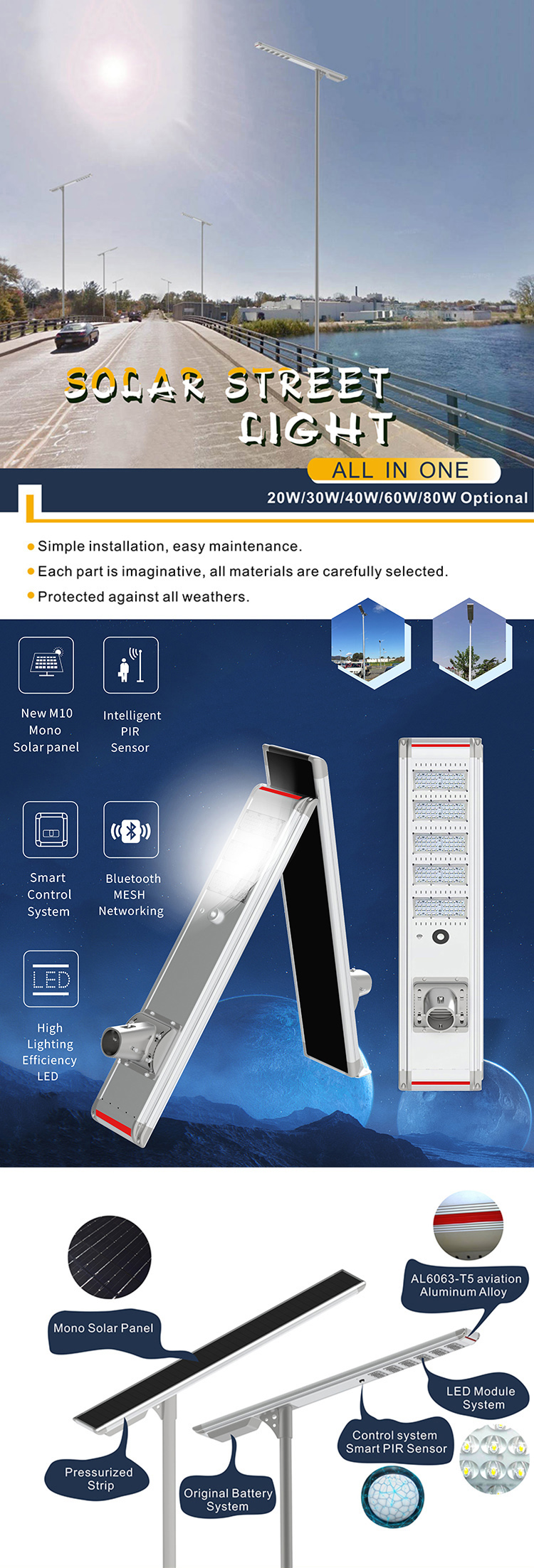

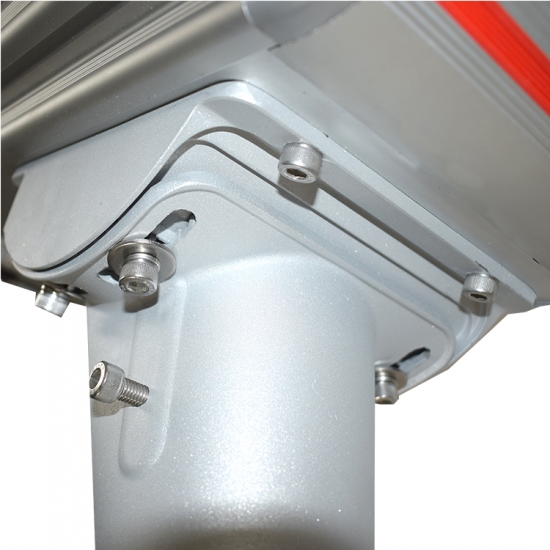

Featuring an integrated structure combining solar panel, light source, battery, and controller, it eliminates the need for additional power and signal cables, significantly reducing construction costs and time. It supports various installation methods including pole mounting (compatible with 60-70mm diameter poles), wall mounting, and ceiling mounting. The lamp bracket is flexibly adjustable in angle.
During installation, simply align the solar panel south (or optimize the light-gathering angle according to the local latitude). Two people can complete a single lamp installation in 20 minutes; no professional construction team is required, and individuals can easily operate it.
Product Application Area:
Courtyard/Garden/Park/Street/Roadway/pathway/ParkingLot/Private road/Sidewalk/Public
square/plaza/Campus/Airfield/Farm & Ranch/Perimeter Security/ Wildlife area/Remote Area/Military Base
Feature：
1. Original integrated concept, double arc streamline element design;New generation of battery cell, power of same area increased by 20%;
|
Features & Specification
|
||
|
Solar Panel
|
Max Power
|
90W
|
|
Type
|
Monocrystalline
|
|
|
Lifespan
|
25 years
|
|
|
Battery
|
Type
|
Lithium LiFePO4 battery
|
|
Capacity
|
460.8Wh
|
|
|
Lifespan
|
8-10 years
|
|
|
Charge Time
|
By Strong Sunshine
|
6-8 hours
|
|
Lighting Time
|
Full Power
|
12-14hours
|
|
30% saving mode
|
39 hours (3~5 rainy days)
|
|
|
Lighting Mode
|
Timer Control: 1hrs 30% lighting + 2hrs 100% lighting + 2hrs 50% lighting + 7hrs 20% lighting =12hours
|
|
|
Environment Parameter
|
Discharing temperature
|
-20 ℃ to +60 ℃
|
|
Charging Temperature
|
0 ℃ to +60 ℃
|
|
|
Storage temperature
|
-20 ℃ to +45 ℃
|
|
|
Installation
|
Mounting Height
|
7-9m
|
|
Top pole diameter
|
60-76mm
|
|
|
Space Between Lights
|
30-40m
|
|
|
Material
|
Superior aviation aluminum AL6063-T5
|
|
|
Certification
|
CE RoHs SASO IEC
|
|
|
IP Rating
|
IP65
|
|

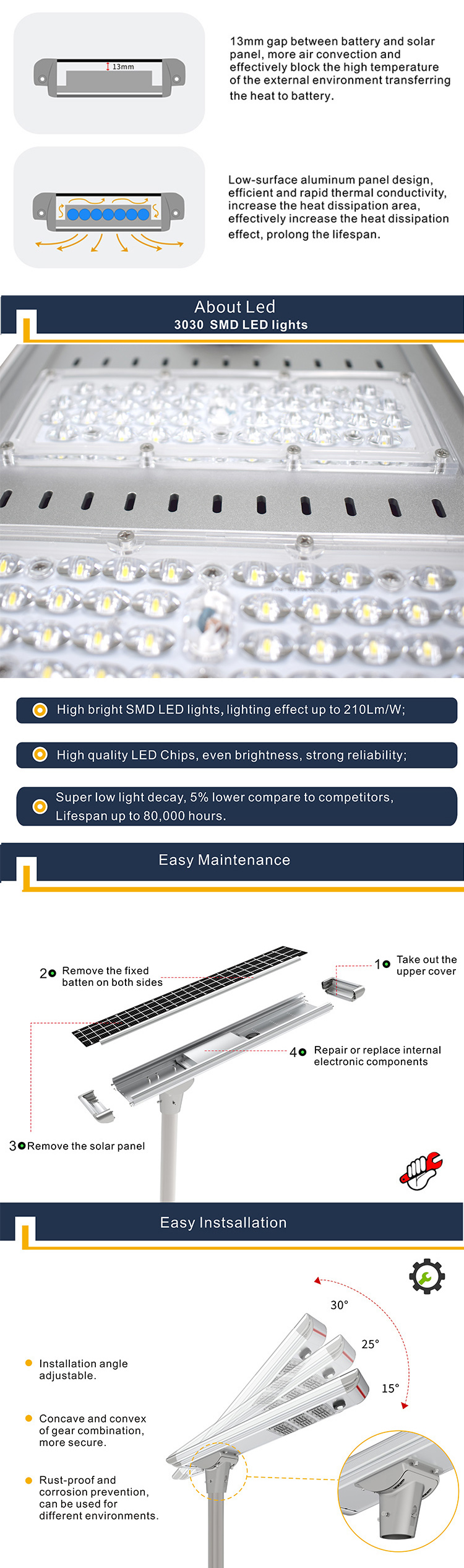

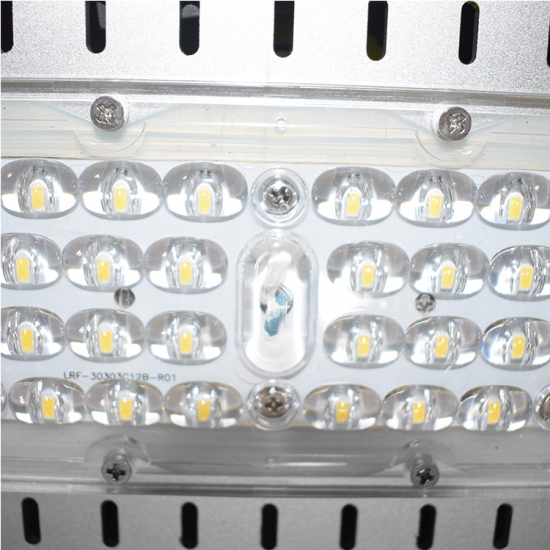

Equipped with an 80W high-power LED light source, using high-quality LED chips such as Philips 5050 or SMD 5730 (some models have 96-192 chips), the luminous efficacy reaches 210lm/W, and the total luminous flux can reach 9000-12800 lumens.
The light has strong penetration and uniform distribution, far exceeding traditional lighting equipment. Featuring a patented optical lens and scientific light distribution design, the beam angle covers an ultra-wide range of 80°×150° to 155°. With a recommended installation height of 7-12 meters, the single-lamp coverage radius can reach 18-25 meters, and the installation spacing can be extended to 25-30 meters, effectively covering open areas such as rural roads, large parking lots, and main roads in industrial parks.
The color temperature supports multiple adjustments from 3000K warm white to 6500K daylight white, with a color rendering index (RA) greater than 80, providing high light reproduction and a clear and bright visual experience for both nighttime traffic and security monitoring.
The LED chip has a lifespan of over 100,000 hours, exhibits slow light decay, and maintains stable brightness even after long-term use.
New Design ip65 80w solar led street light outdoor all in one integrated led solar street light Garden highway
New Design ip65 80w solar led street light outdoor all in one integrated led solar street light Garden highway
led street light 30w-80w street light All in one solar street light price

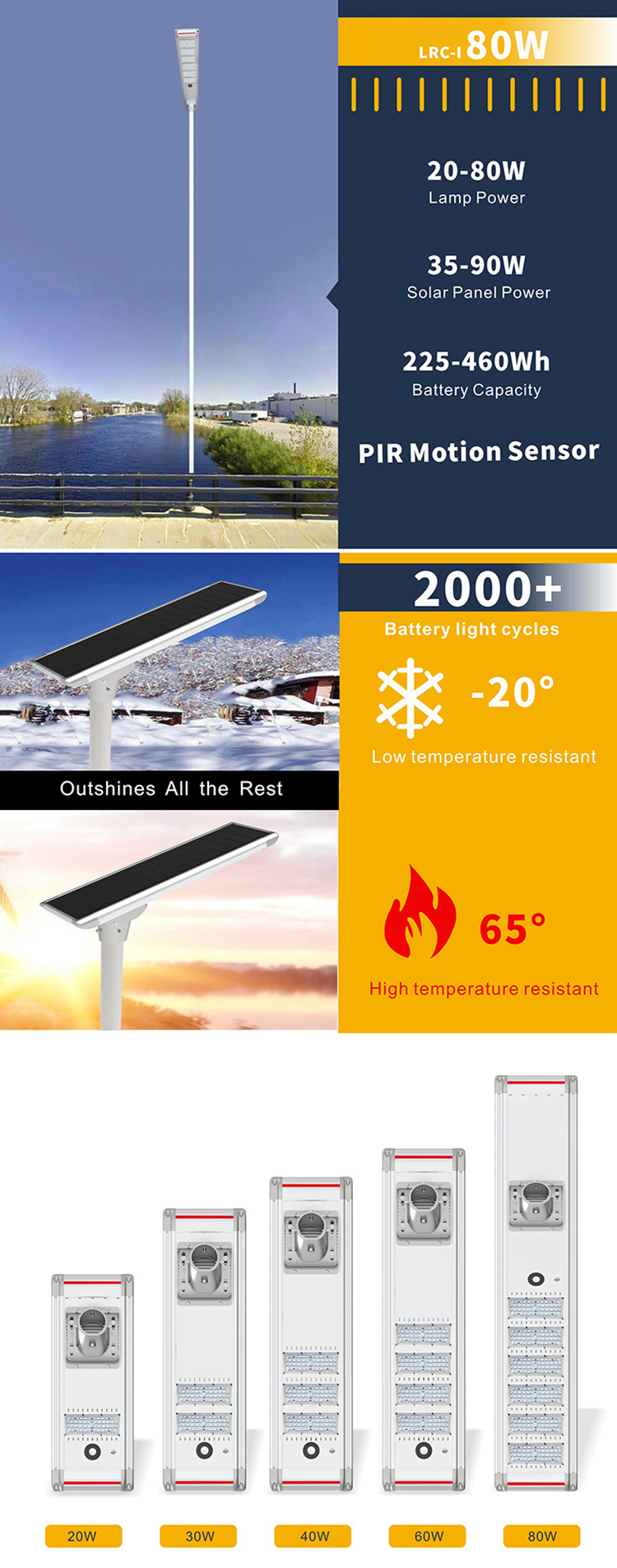

| Model | LRC-I20W | LRC-I30W | LRC-I40W | LRC-I60W | LRC-I80W |
| Physical Parameters | |||||
| LED Brand | PHILIPS | PHILIPS | PHILIPS | PHILIPS | PHILIPS |
| LED Qty(pcs) | 36 | 72 | 108 | 144 | 180 |
| Power of PV Module(W) | 35W | 50W | 60W | 70W | 90W |
|
LiFePO4
Battery Capacity
|
225Wh | 307Wh | 346Wh | 46.8Wh | 460.8 Wh |
| Light Mode | PIR/Time Control | PIR/Time Control | PIR/Time Control | PIR/Time Control | PIR/Time Control |
| Product Dimension (mm) | 67 9.5*258*65 | 859.5*258*65 | 1589.5*258*65 | 999.5*258*65 | 1229.5*258*65 |
| Product N.W.(kg) | 9.3 | 10.3 | 11.3 | 13.3 | 15.3 |
|
Package #1 Dimension(mm)& G.W. (1 Lamps/CTN) |
735*315*200
(10.6KG) |
915*315*200
(11.5KG) |
1055*315*200
(12.6KG) |
1285*315*200
(15KG) |
1645*315*200
(17KG) |
|
Package #2 Dimension(mm)& G.W. (1 Bracket/CTN) |
215*215*210
(1.3KG) |
||||
| Light Parameter | |||||
| Light Power(W) | 20W | 30W | 40W | 60W | 80W |
|
Tyical Liminous
Flux(Lm)
|
3200 | 4800 | 6400 | 9600 | 12800 |
|
LED Light E ff ect (Lm/W) |
210Lm/W | ||||
| Color Temperature(K) | 2700-6500 | ||||
| Beam Angle(°) | 150°x 80° | ||||
| Rainy Days(D) | 3~5 | ||||
| Environment Parameter | |||||
|
Charging
Temperaure( ℃ )
|
0 ℃ ~ +60 ℃ | ||||
| Discharging Temperature(℃) |
-20 ℃ to +60 ℃ | ||||
|
Storage
Temperature( ℃ )
|
-20 ℃ to +45 ℃ | ||||
| Installations | |||||
| Dia. of Top Pole (mm) | 60~76 | 60~76 | 60~76 | 60~76 | 60~76 |
| Installation Height(m) | 3~5 | 4~6 | 5~7 | 7~8 | 7~59 |
|
Installation Distance (m)
|
10~20 | 15~25 | 20~30 | 25~35 | 30~40 |
Constant current driving , Stable current output；
Mobile phone APP control , with BEL5 . 0 MESH networking function，Neighboring devices form their own LAN and communicate with each other and achieving ultra remote control ( optional ).
| Quantity(pieces) | 1 - 5 | 6 - 200 | 201 - 1000 | >1000 |
| Est. Time(days) | 10 | 20 | 25 | To be negotiated |
* 80W high power output with 8000-10000 lumens, providing wide lighting coverage and strong penetration; * Intelligent PIR sensor for automatic energy saving + APP remote full-function control, balancing convenience and energy efficiency; * Integrated, wiring-free design for efficient installation, long battery and LED lifespan, and low maintenance costs; * Solar power supply with zero electricity costs, using environmentally friendly and safe lithium iron phosphate batteries, in line with low-carbon principles; * IP65 high protection + wide temperature adaptability, suitable for various harsh outdoor environments.
Read More

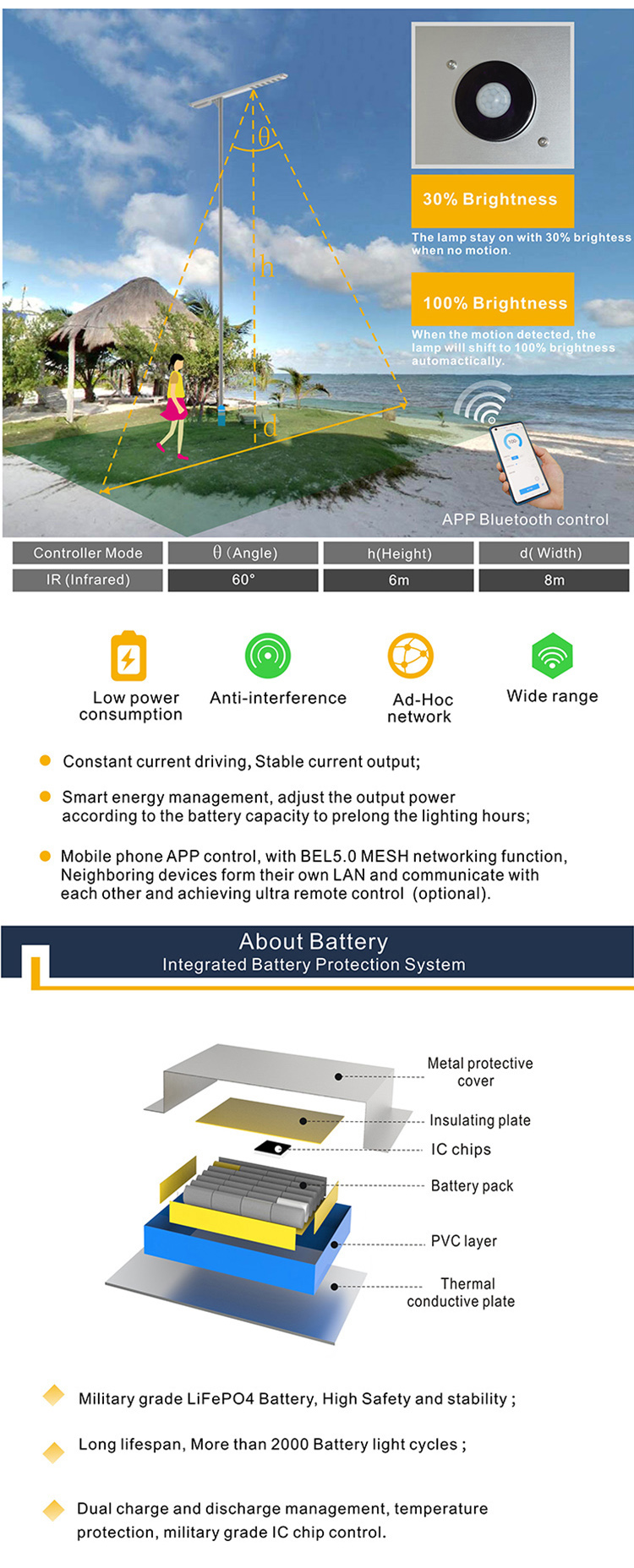

Featuring a built-in high-sensitivity PIR human body sensor and infrared motion sensor, with a detection angle of 120°-150° and a maximum detection distance of approximately 8 meters, it accurately detects human or vehicle movement signals. Supports automatic start/stop via light control. During the day, when there is sufficient light, it automatically turns off the lighting to fully charge, and automatically starts working at night, requiring no manual intervention.
