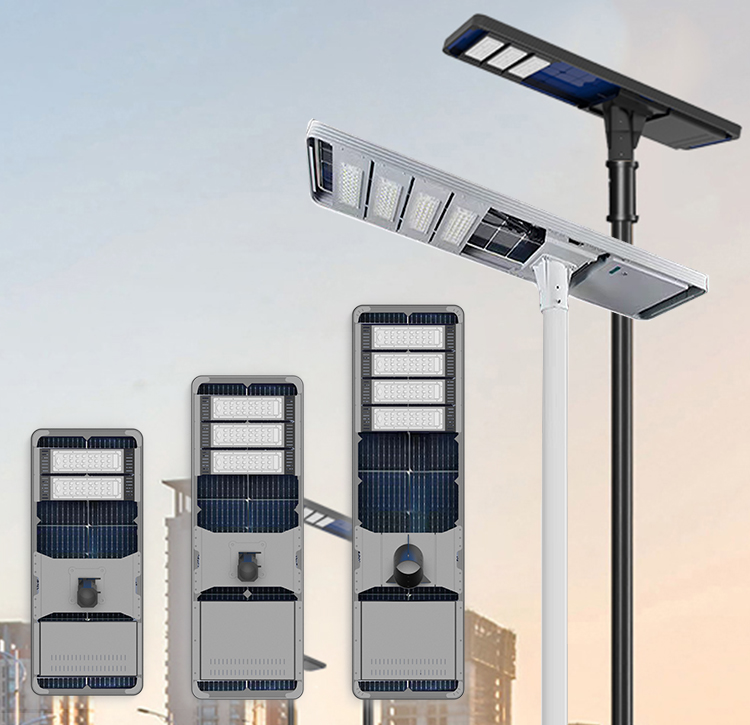

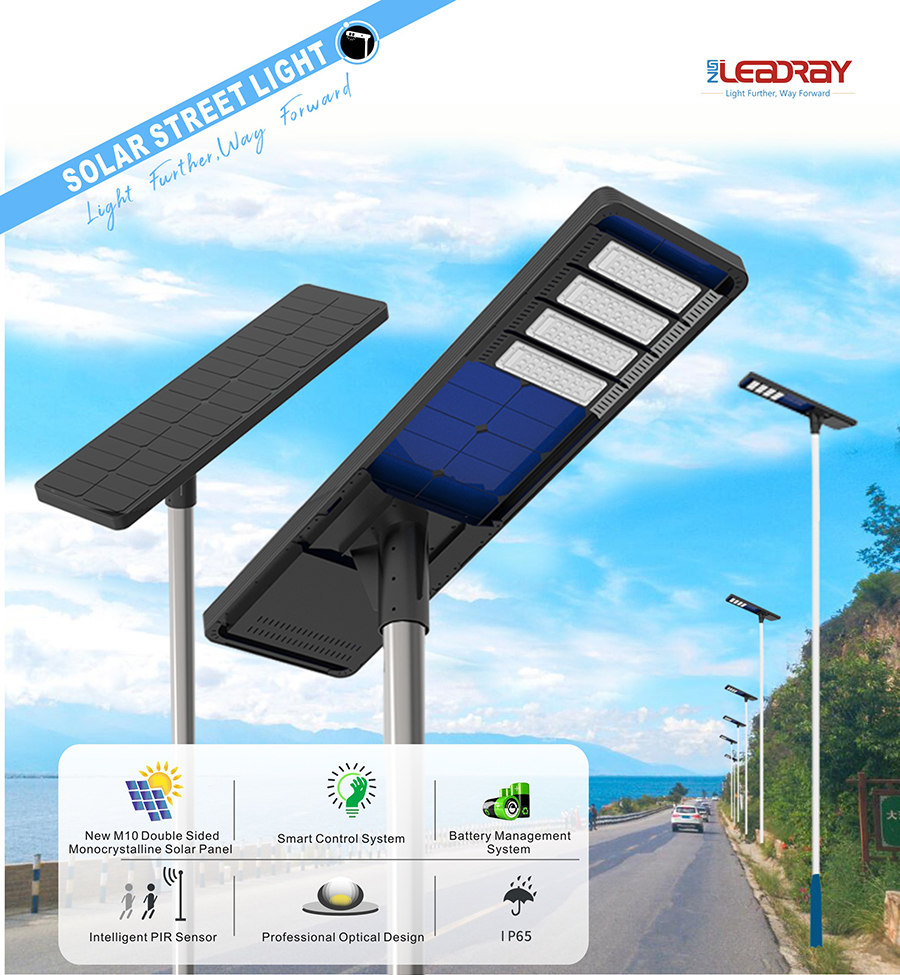

2024 Lighting Integrated Motion Sensor Outdoor All In One Street Light 60w 80W 120W solar led street light

Name: 2024 Lighting Integrated Motion Sensor Outdoor All In One Street Light 60w 80W 120W solar led street light
Availability: InStock

Motion Sensor Outdoor All In One Street Light 60w 80W 120W solar led street light

Outdoor Waterproof Ip65 All In One Solar Led Street Light LED

Inquiry now

2024 Lighting Integrated Motion Sensor Outdoor All In One Street Light 60w

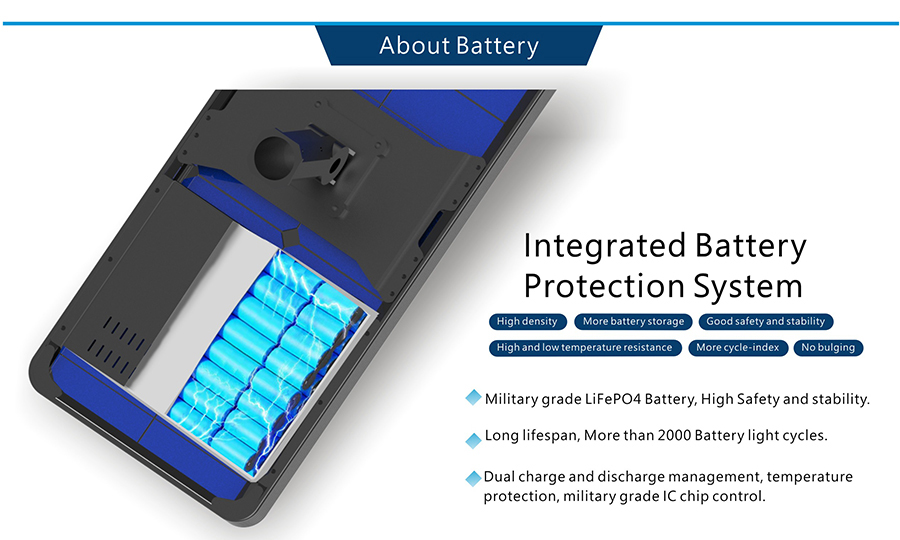

Integrated Battery Protection System

Time Control

1.The lamp will stay on according to above metioned hours and lighting percentage (12H).

2.It will shift and turn on/off automactically.

Integrated Battery Protection System

Super Bright LEDS

1.Up to date Super Bright LEDs, Lighting effect up to 210Lm/W.

2. Drive by low current, more energy efficient, Lighting efficiency increased by 40%.

3. Ultra-low light decay, lifespan up to 80,000 hours.

LED Modular System Design

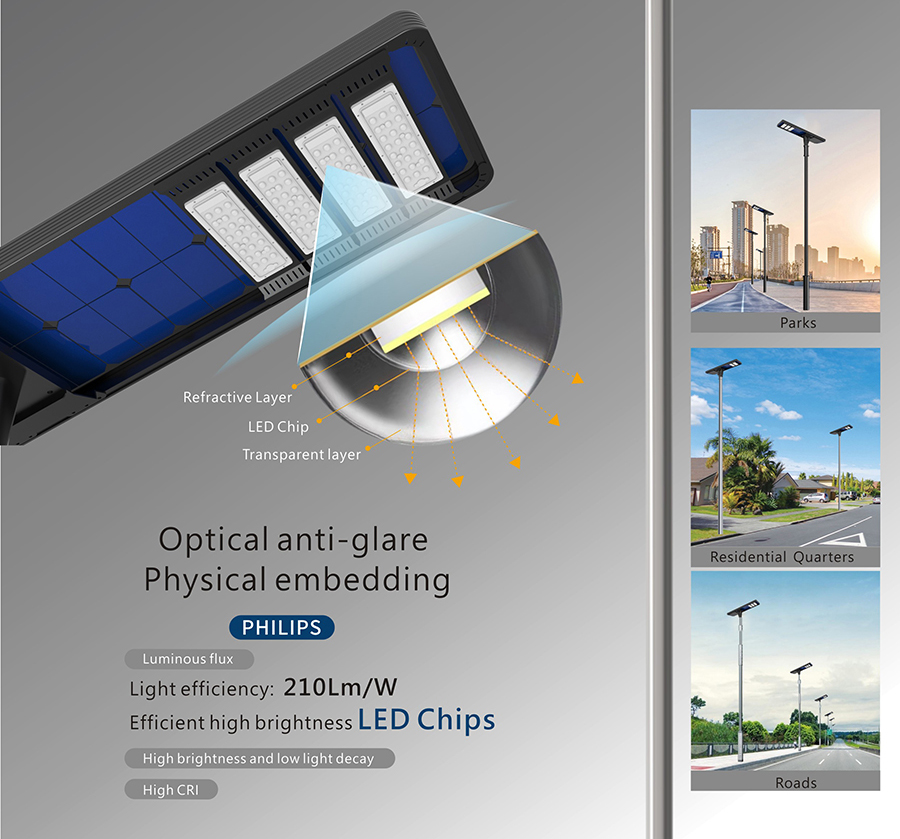

1. Rectangular bat wing light distribution for road lighting Optimized light distribution for a more uniform and wider lighting area.

2. Integrated optical lens design, Light transmittance up to 93%.

3. Customized heat sink, better heat dissipation and waterproof ability.

Integrated Battery Protection System

Shenzhen Leadray Optoelectronic Co., Ltd. Multispecialty supplier 19 yrs

Integrated Battery Protection System

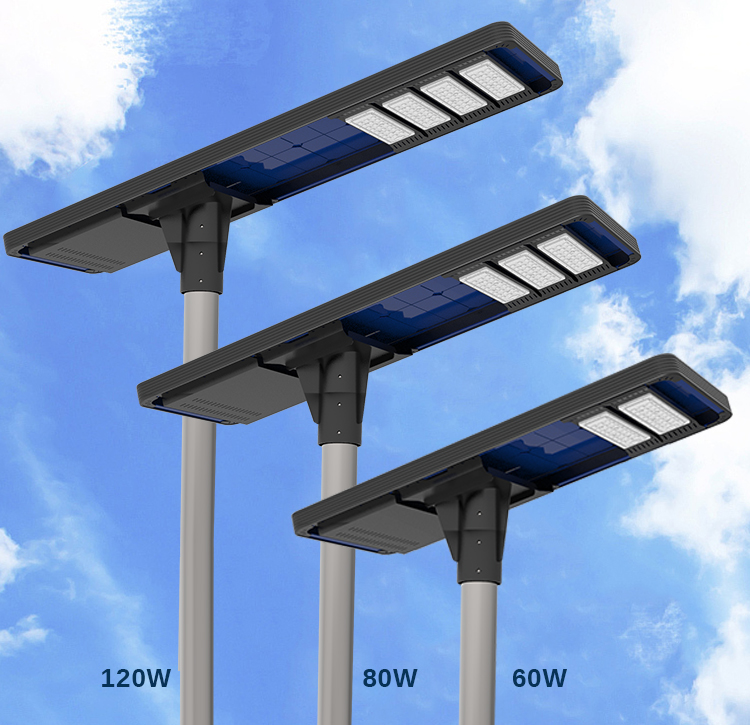

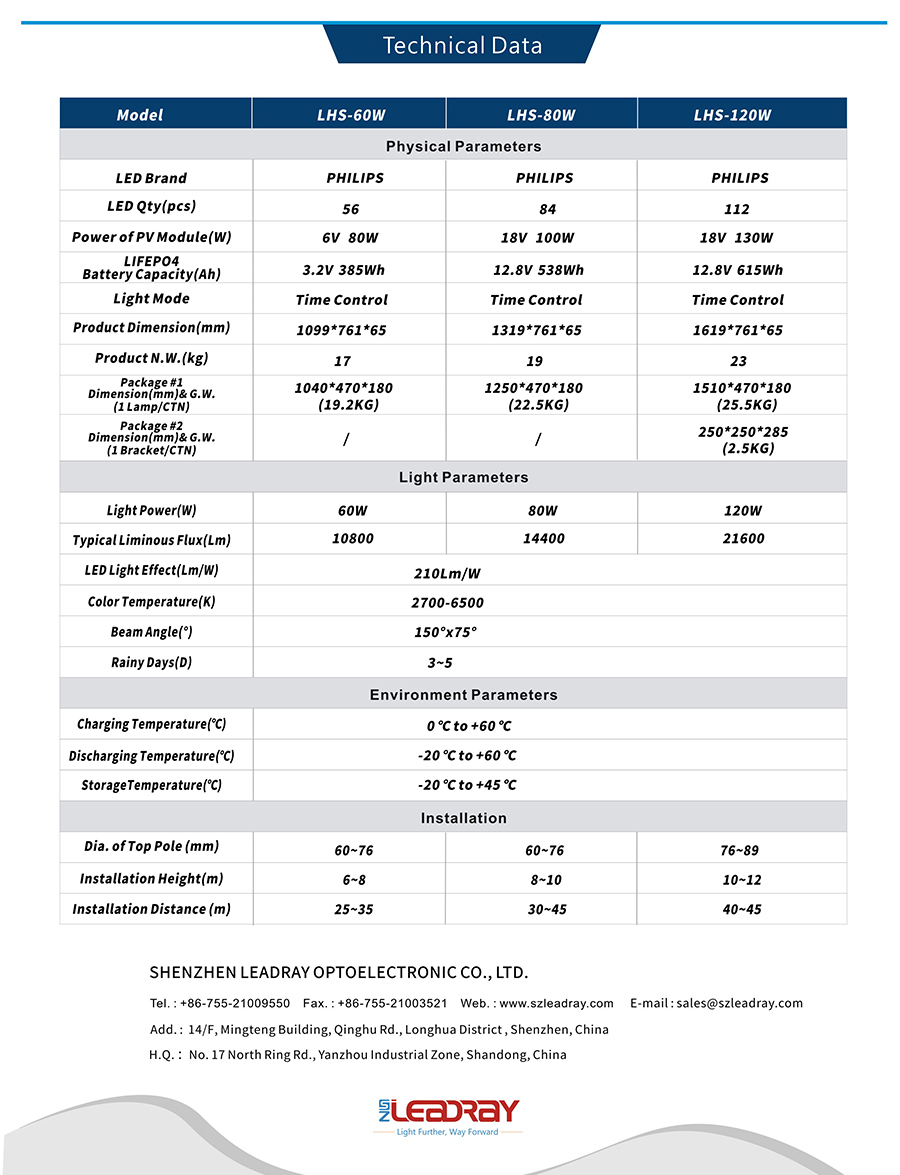

Model	LHS-60W	LHS-80W	LHS-120W
Physical Parameters
LED Brand	PHILIPS	PHILIPS	PHILIPS
LED Qty (pcs)	56	84	112

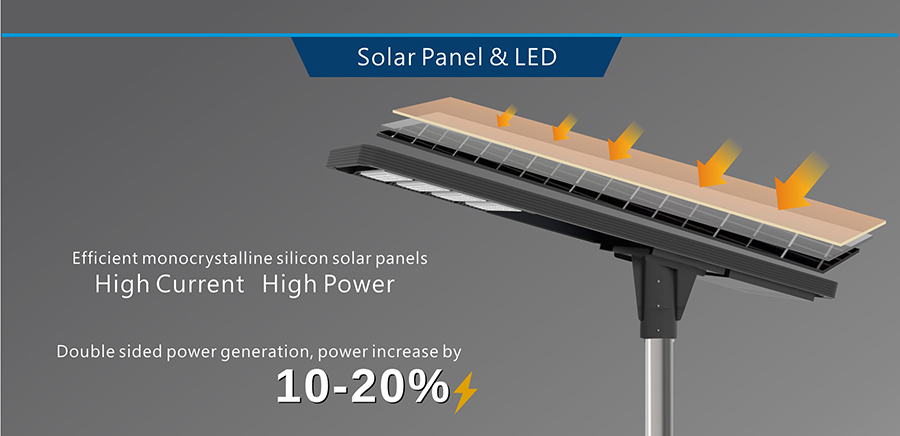

Power of PV Module (W)	6V 80W	18V 100W	18V 130W
LIFEPO4 Battery Capacity (Ah)	3.2V 385Wh	12.8V 538Wh	12.8V 615Wh
Light Mode	Time Control	Time Control	Time Control

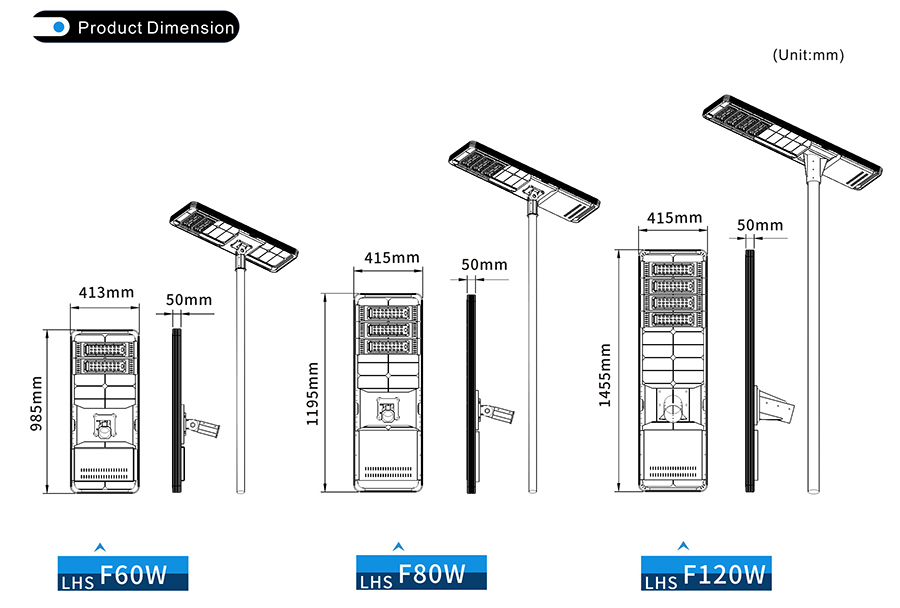

Product Dimension (mm)	109976165	131976165	161976165
Product N.W. (kg)	17	19	23
Package #1 Dimension (mm) & G.W. (1 Lamp/CTN)	1040470180 (19.2KG)	1250470180 (22.5KG)	1510470180 (25.5KG)
Package #2 Dimension (mm) & G.W. (1 Bracket/CTN)	/	/	250250285 (2.5KG)
Light Parameters
Light Power (W)	60W	80W	120W

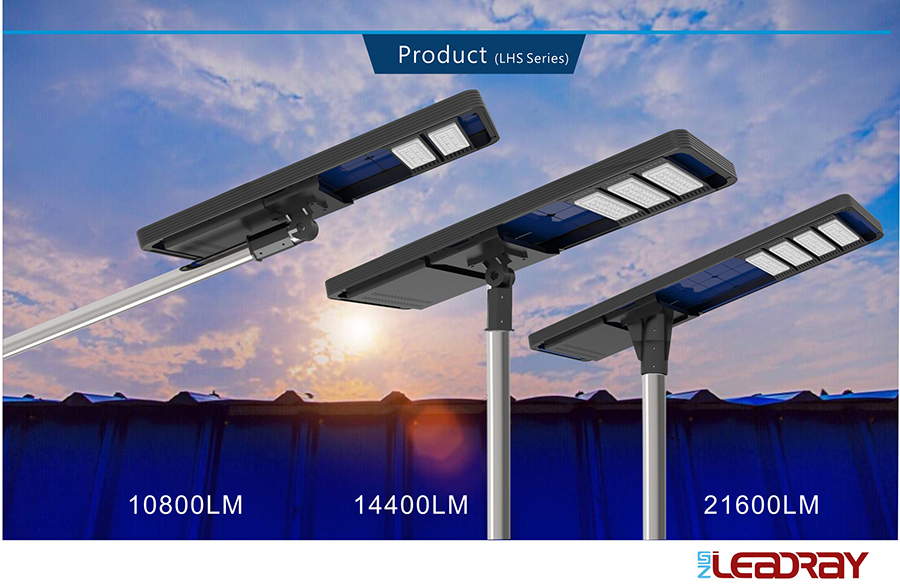

Typical Luminous Flux (Lm)	10800	14400	21600
LED Light Effect (Lm/W)	210Lm/W

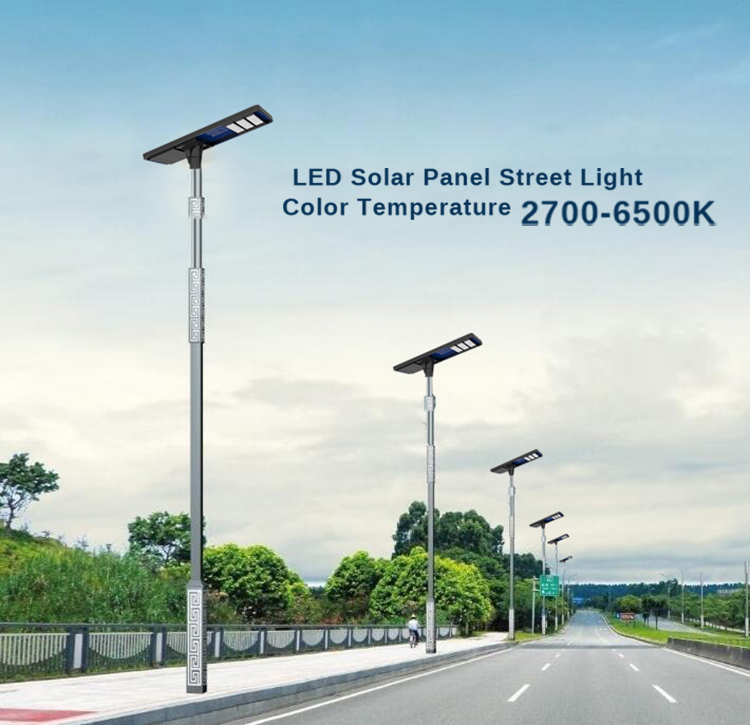

Color Temperature (K)	2700–6500
Beam Angle (°)	150°×75°
Rainy Days (D)	3–5
Environment Parameters
Charging Temperature (°C)	0°C to +60°C
Discharging Temperature (°C)	-20°C to +60°C
Storage Temperature (°C)	-20°C to +45°C
Installation
Dia. of Top Pole (mm)	60–76	60–76	76–89
Installation Height (m)	6–8	8–10	10–12
Installation Distance (m)	25–35	30–45	40–45
