Solar Energy Storage Battery Rack Mounted
48V100Ah 200Ah solar battery pack LiFePO4 energy storage system rack mount battery for residential ESS 48V100Ah 200Ah solar battery pack LiFePO4 energy storage system rack mount battery for residential ESS 48V100Ah 200Ah solar battery pack LiFePO4 energy storage system rack mount battery for residential ESS 48V100Ah 200Ah solar battery pack LiFePO4 energy storage system rack mount battery for residential ESS 48V100Ah 200Ah solar battery pack LiFePO4 energy storage system rack mount battery for residential ESS 48V100Ah 200Ah solar battery pack LiFePO4 energy storage system rack mount battery for residential ESS 48V100Ah 200Ah solar battery pack LiFePO4 energy storage system rack mount battery for residential ESS
48V100Ah 200Ah solar battery pack LiFePO4 energy storage system rack mount battery for residential ESS

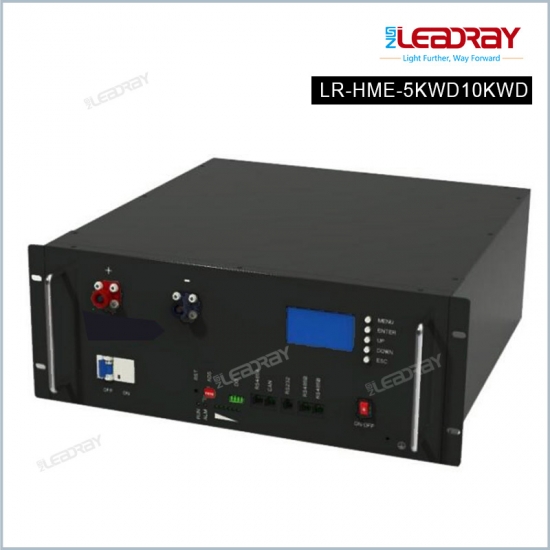

  • Model No. :

    LR-HME-5KWD10KWD
  • LED brand :

    LEADRAY
  • LED Power :

    0.2W
  • Solar Panel Power :

    0.77W
  • Battery Type :

    Lithium LiFePO4 Battery
  • Infrared senor :

    No
  • Color :

    Black
  • Port Of Dispatch :

    Shenzhen
  • Payment :

    T/T, Westunion, Paypal, Credit Card
  • Original Region :

    China
  • Lead Time :

    3~5 days for samples;15~20 days for bulk
Contact Us
description

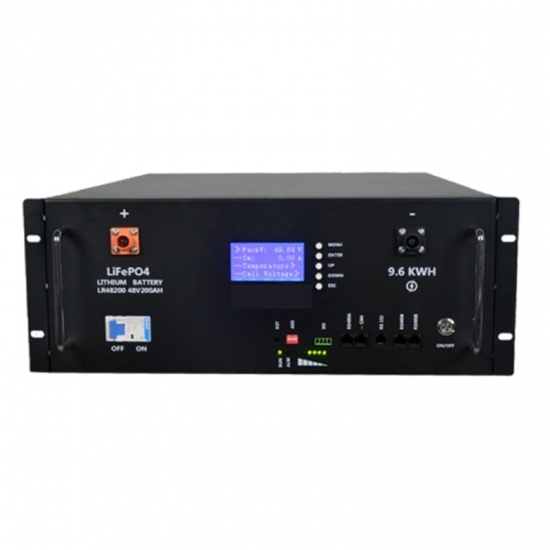

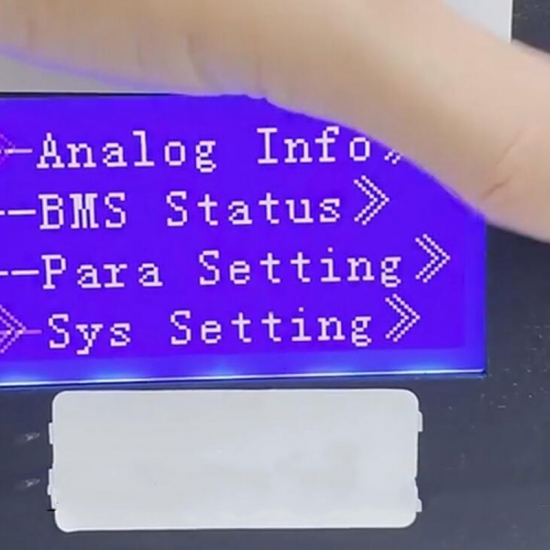

OEM LCD DIsplay Smart BMS phosphate lithium battery 5kw 6kw 10kw 12v 48v 100ah 200ah lifepo4 battery pack


1.Lithium Ion solar battery 10kwh 48v 100ah 200ah lifepo4 battery pack for solar energy system.

2.Solar Energy Storage Systems Lithium Batteries Pack 48V 100ah 200ah Lifepo4 Lithium ion Battery for Solar Panel.

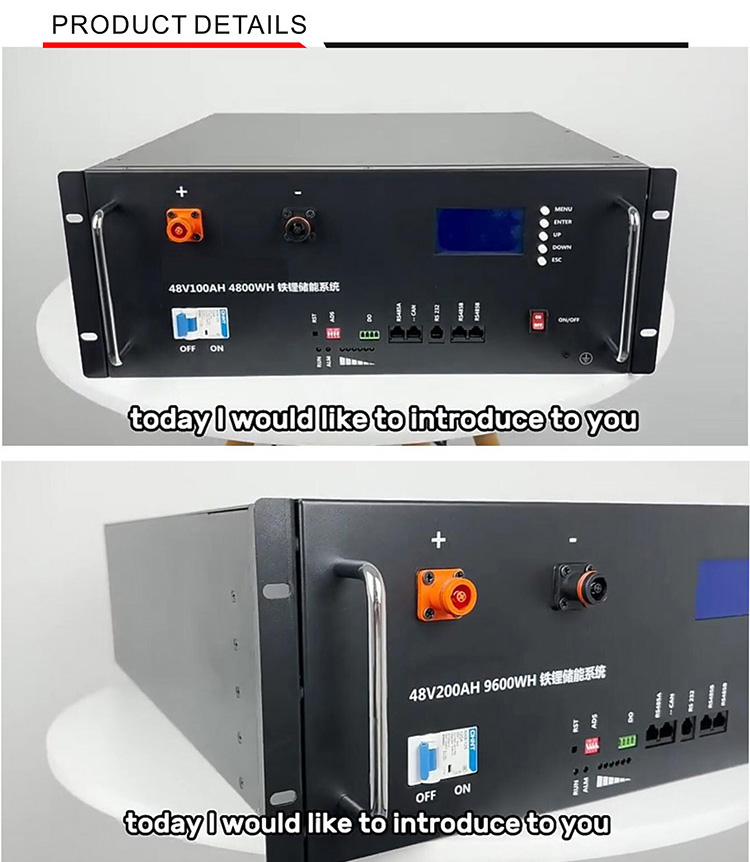

Household solar inverter lithium iron phosphate battery rack mounting battery


Model Number:LR-HME-5KWD(51.2v )

Power Source:AC Adaptor, Car, Gas Generator, Solar Panel
Battery Type:LiFePO4
Inverter Type:Modified Sine Wave
Special Features:Type C, Flashlight, External Battery
Recommended Charge Voltage(V):57.6V
BMS Discharge Cut-Off Voltage(V):43.2V

MAX Continuous Discharging Current(A):100A


Rack Mounted

Household solar inverter lithium iron phosphate battery rack mounting battery


Specification
Battery Voltage(V)
51.2V
Battery Capacity(Ah)
100Ah (5120Wh )
Recommended Charge Voltage(V)
57.6V
BMS Discharge Cut-Off Voltage(V)
43.2V
MAX Continuous Discharging Current(A)
100A
Recommended Charge Current(A)
30A
Resistance
≤50mΩ@50%SOC
Efficiency
>96%

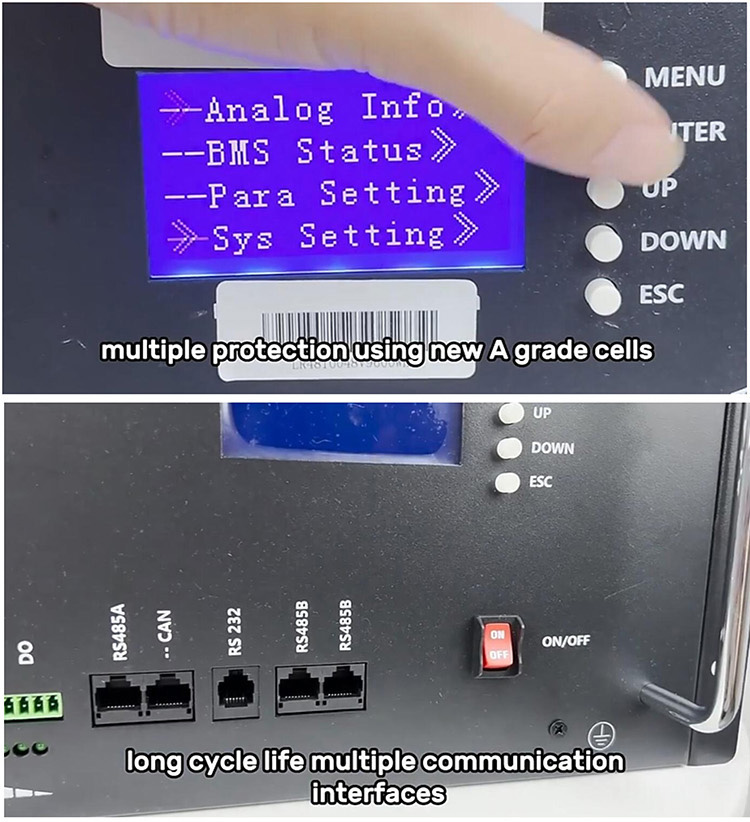

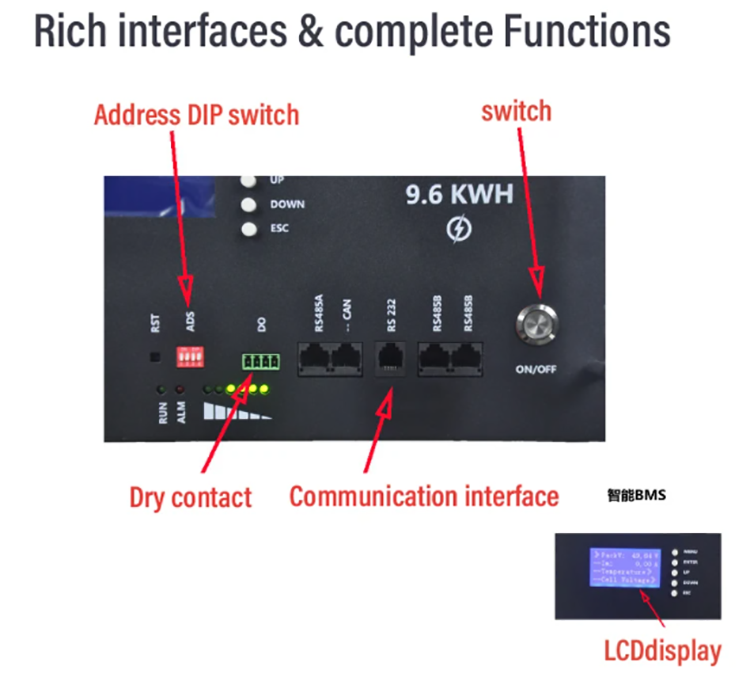

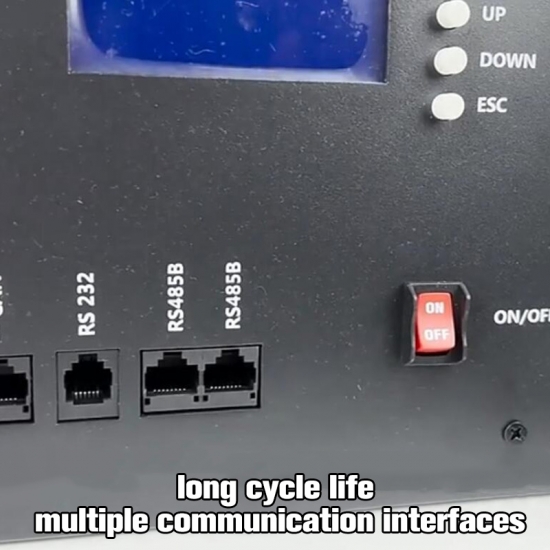

Communication Interface
CAN,RS232,RS485
Cycle Lifespan
>3000,80%
Product Size
460*442*177mm
N.W.
49KG
Number of packages
1PC

Household solar inverter lithium iron phosphate battery rack mounting battery

Household solar inverter lithium iron phosphate battery rack mounting battery

Model
48v 50ah
48v100ah
48v200ah
Standard voltage(V)
51.2v
51.2v
51.2v
Rated capacitance (V)
50ah
100ah
200ah
Energy(Kwh)
2.56
5.12
10.24
Size(MM)
445*385*155mm
546*430*200mm
510*442*246mm
cycle Life
6000 25°c
6000 25°c
6000 25°c
Maximum charging voltage (V)
58.4v
58.4v
58.4v
Maximum discharge voltage (V)
40v
40v
40v
Lithium Battery Standard
UL1642, IEC62619, UN38.3, ROHS,CE-EMC
Operating temperature
-20~60
-20~60
-20~60
Storage temperature
-20~60
-20~60
-20~60

Household solar inverter lithium iron phosphate battery rack mounting battery

Household solar inverter lithium iron phosphate battery rack mounting battery

Household solar inverter lithium iron phosphate battery rack mounting battery

Household solar inverter lithium iron phosphate battery rack mounting battery

Household solar inverter lithium iron phosphate battery rack mounting battery

Household solar inverter lithium iron phosphate battery rack mounting battery

Household solar inverter lithium iron phosphate battery rack mounting battery

Solar Panel Solar Energy Storage Systems Lithium Batteries Pack 48V 100ah 200ah Lifepo4 Lithium ion Battery



Household solar inverter lithium iron phosphate battery rack mounting battery

Household solar inverter lithium iron phosphate battery rack mounting battery

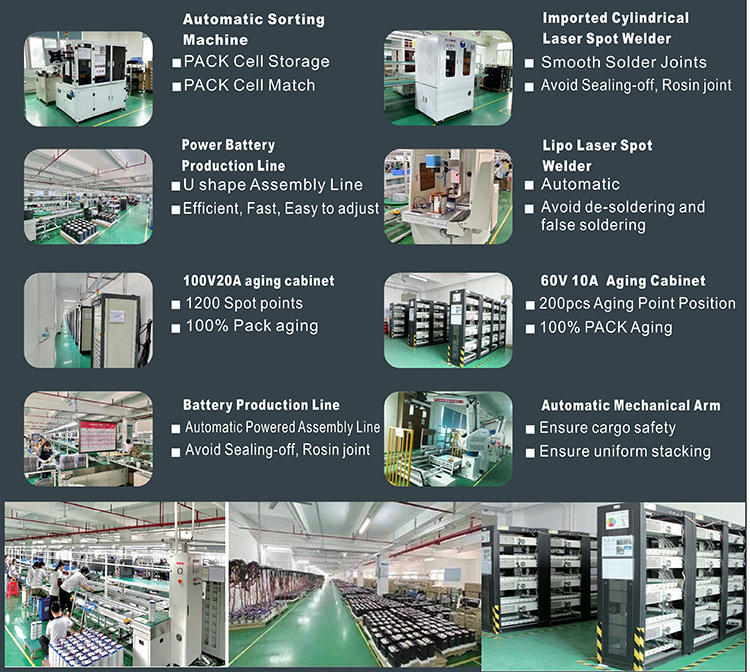

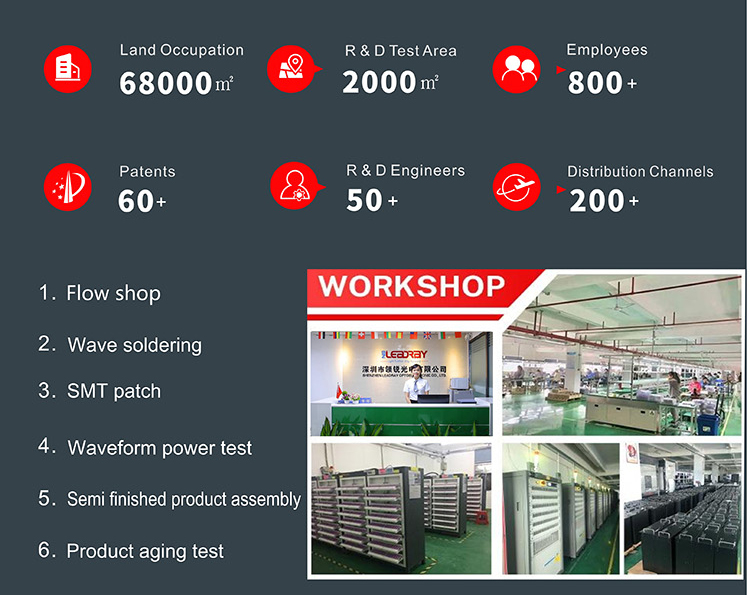

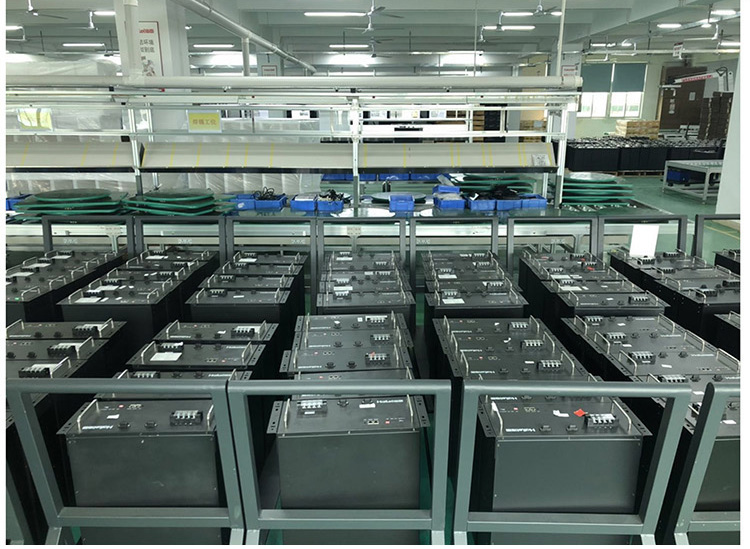

The company has 26,000 square meters of battery PACK production linethe use ofadvanced Mes production execution system, to achieve accurate management from parts to finished product delivery; With more than200 sets of professional production equipment, such as automatic laserspotweldingmachine,automatic sorting machine, the daily output of10000 sets,the annual output can reach 2.56GWH;
With an independent laboratory and nearly 30 sets of experimental equipment, we can conduct comprehensive performance testing of products to ensure that theproducts meet the design standards. With more than 1600 points,thebattery pack burn-in equipment can realize the full inspection burn-in test of every battery pack delivered to the customer.

Household solar inverter lithium iron phosphate battery rack mounting battery
The company has a professional doctor led research and development team, independent research and development design of "LEADRAY" brand power and energy storage battery products.
We have passed lS09001:2015 quality management system and lso 14001:2015 Environmental management system certification and OHSAS 18001: products have passed the international certification and obtained 8 invention patents, 17 utility model patents,2 appear ance patents and 11 software Copyrights, and won the 2021 Guangdong Province specialized new enter prise.

Quality control advantages

1. In line with the principle that meeting the needs ofcustomers is our mission, the whole team of
LEADRAY will devote themselves to meeting the needs of customers.

With years ofexperience in lithium battery manufacturing, and alarge number of test equipment.
2. It can better guarantee the quality of products, and can prevent bad products from being in the
factory. Reduce customer complaint rate and make customers worry-free.

3. The experienced after-sales team can provide after-sales service in both Chinese and English
to ensure that the after-sales service can be responded and resolved within 24 hours.
