48V100Ah 200Ah solar battery pack LiFePO4 energy storage system rack mount battery for residential ESS
Lithium Iron Phosphate Batteries Pack Lifepo4 50Ah 75Ah Rechargeable Life
1.Factory Price Wholesale 10kwh lifepo4 51.2v battery pack 10kw 51.2v 200ah lithium battery.

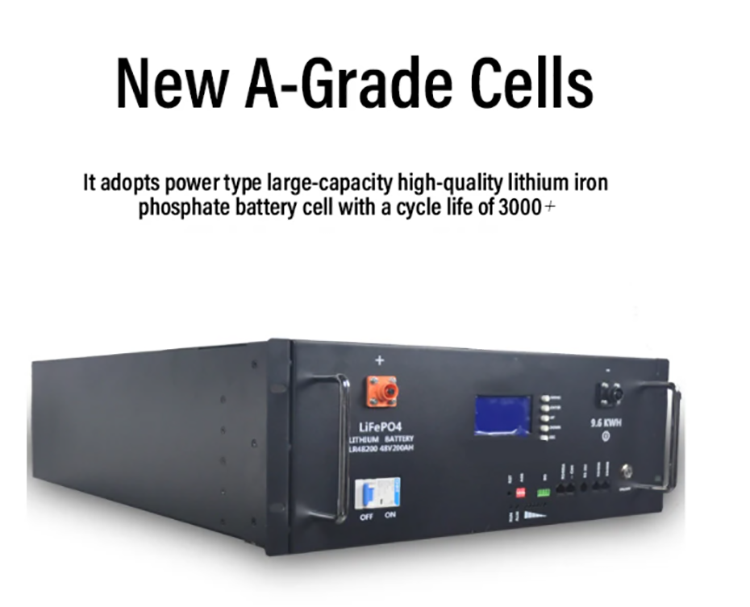

2.Long cycle life, using high quality LiFePO4 battery cells, cycle life more than 3000 times .
3.Supports multiple communication protocols such as RS485 for more efficient battery maintenance.

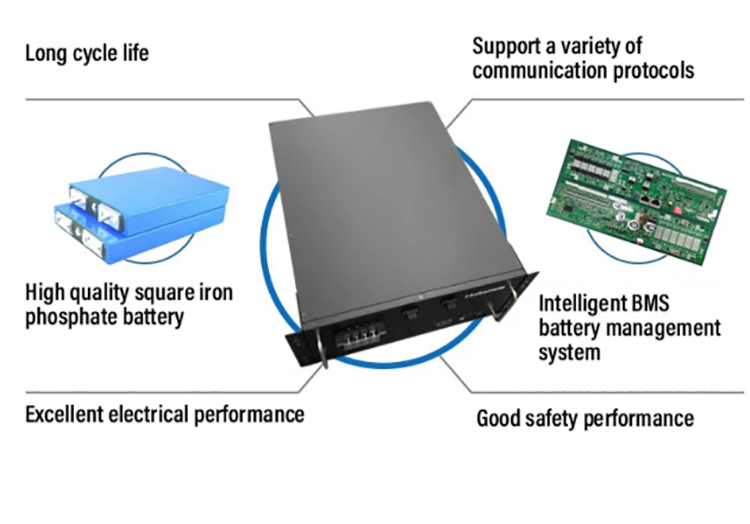

4.A grade LiFePO4 battery cells, Bluetooth, Wifi module can be added with good safety performance, in the ultimate performance safety test, the battery does not fire, no explosion, no leakage, more safer in use.
Payment :
T/T, Westunion, Paypal, Credit CardColor :
BlackLead Time :
3~5 days for samples;15~20 days for bulkOriginal Region :
ChinaPort Of Dispatch :
ShenzhenInfrared senor :
NoBattery Type :
Lithium LiFePO4 BatterySolar Panel Power :
0.77WLED Power :
0.2WLED brand :
LEADRAYModel No. :
LR-HME-5KWD10KWD

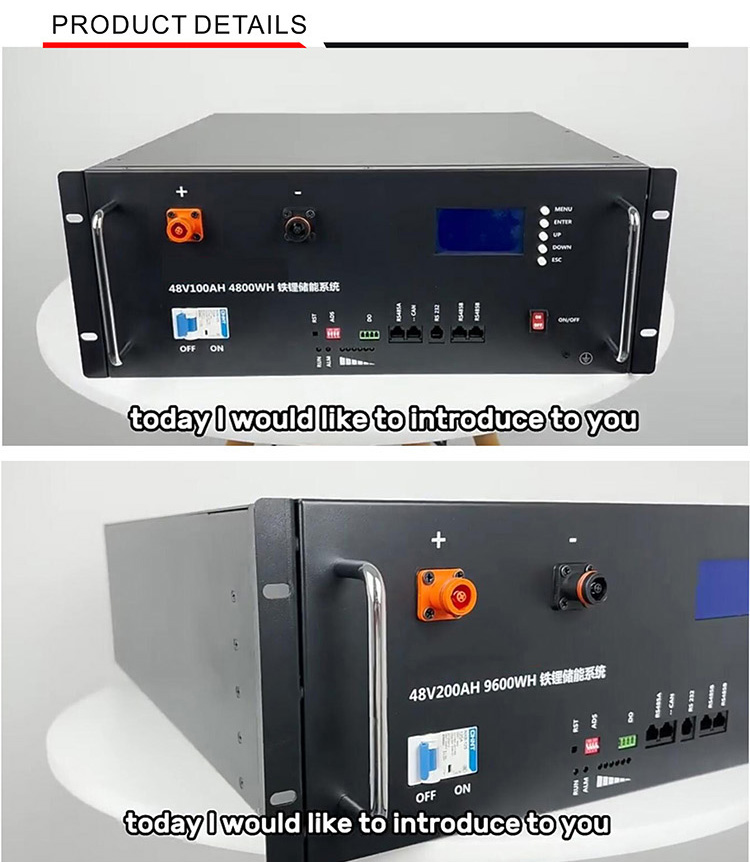

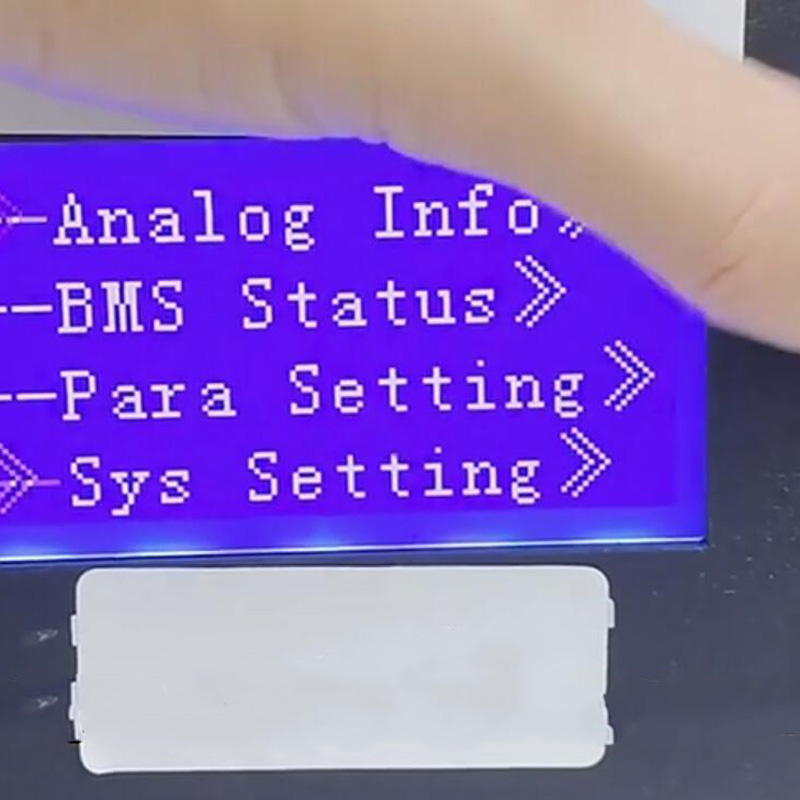

OEM LCD DIsplay Smart BMS phosphate lithium battery 5kw 6kw 10kw 12v 48v 100ah 200ah lifepo4 battery pack
1. Lithium Ion solar battery 10kwh 48v 100ah 200ah lifepo4 battery pack for solar energy system.
2. Solar Energy Storage Systems Lithium Batteries Pack 48V 100ah 200ah Lifepo4 Lithium ion Battery for Solar Panel.
Model Number:LR-HME-5KWD(51.2v )
Power Source:AC Adaptor, Car, Gas Generator, Solar PanelMAX Continuous Discharging Current(A):100A
|
Battery Voltage(V)
|
51.2V
|
|
Battery Capacity(Ah)
|
100Ah (5120Wh )
|
|
Recommended Charge Voltage(V)
|
57.6V
|
|
BMS Discharge Cut-Off Voltage(V)
|
43.2V
|
|
MAX Continuous Discharging Current(A)
|
100A
|
|
Recommended Charge Current(A)
|
30A
|
|
Resistance
|
≤50mΩ@50%SOC
|
|
Efficiency
|
＞96%
|
|

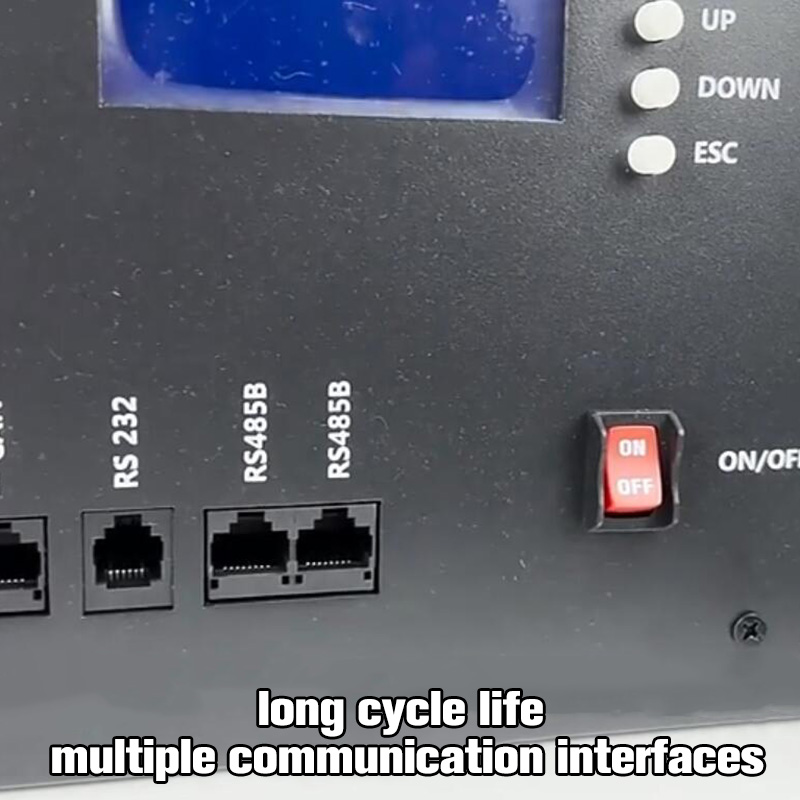

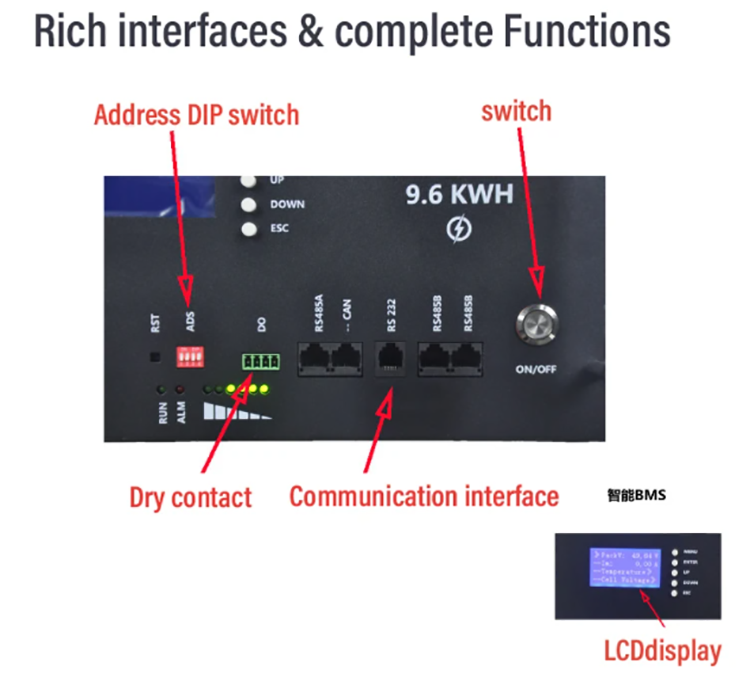

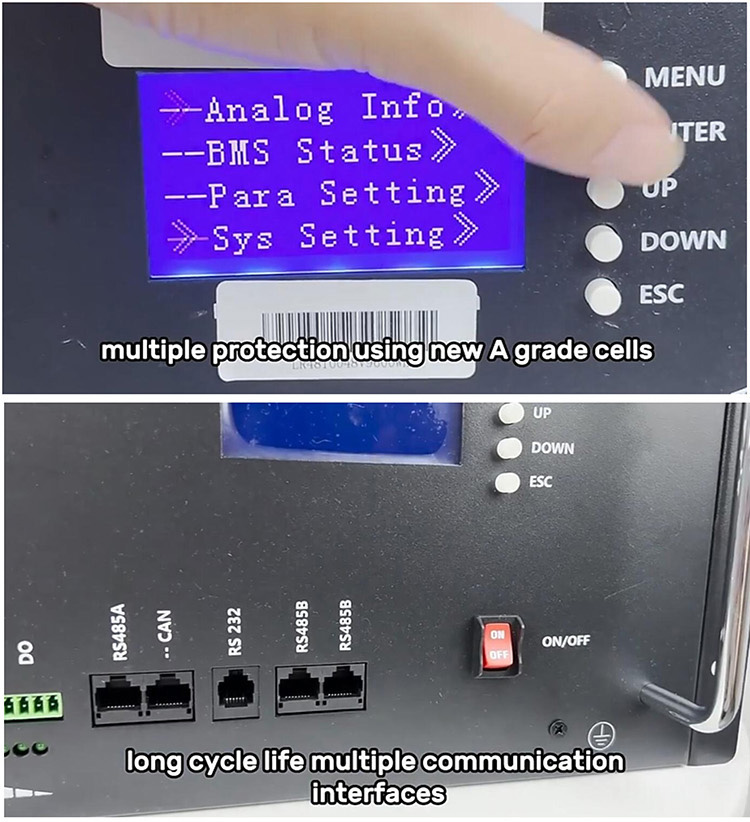

Communication Interface
|
CAN,RS232,RS485
|
|
Cycle Lifespan
|
＞3000,80%
|
|
Product Size
|
460*442*177mm
|
|
N.W.
|
49KG
|
|
Number of packages
|
1PC
|
|
Model
|
48v 50ah
|
48v100ah
|
48v200ah
|
|
Standard voltage(V)
|
51.2v
|
51.2v
|
51.2v
|
|
Rated capacitance (V)
|
50ah
|
100ah
|
200ah
|
|
Energy（Kwh）
|
2.56
|
5.12
|
10.24
|
|
Size（MM)
|
445*385*155mm
|
546*430*200mm
|
510*442*246mm
|
|
cycle Life
|
6000 25°c
|
6000 25°c
|
6000 25°c
|
|
Maximum charging voltage (V)
|
58.4v
|
58.4v
|
58.4v
|
|
Maximum discharge voltage (V)
|
40v
|
40v
|
40v
|
|
Lithium Battery Standard
|
UL1642, IEC62619, UN38.3, ROHS,CE-EMC
|
||
|
Operating temperature
|
-20~60
|
-20~60
|
-20~60
|
|
Storage temperature
|
-20~60
|
-20~60
|
-20~60
|

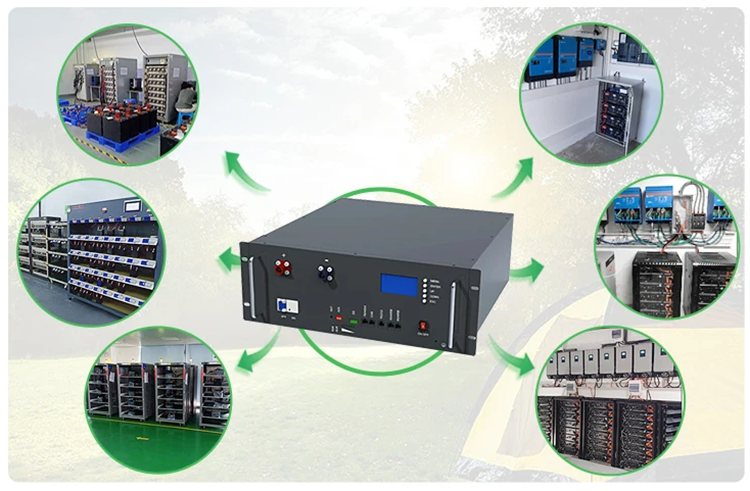

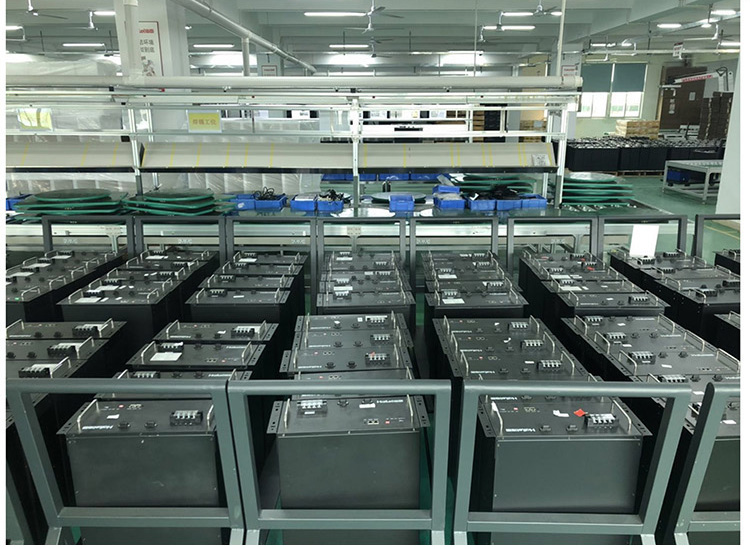

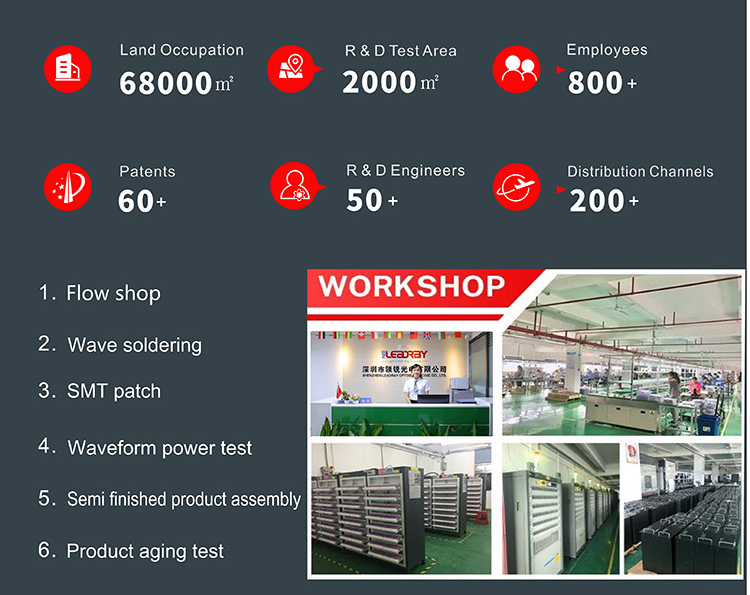

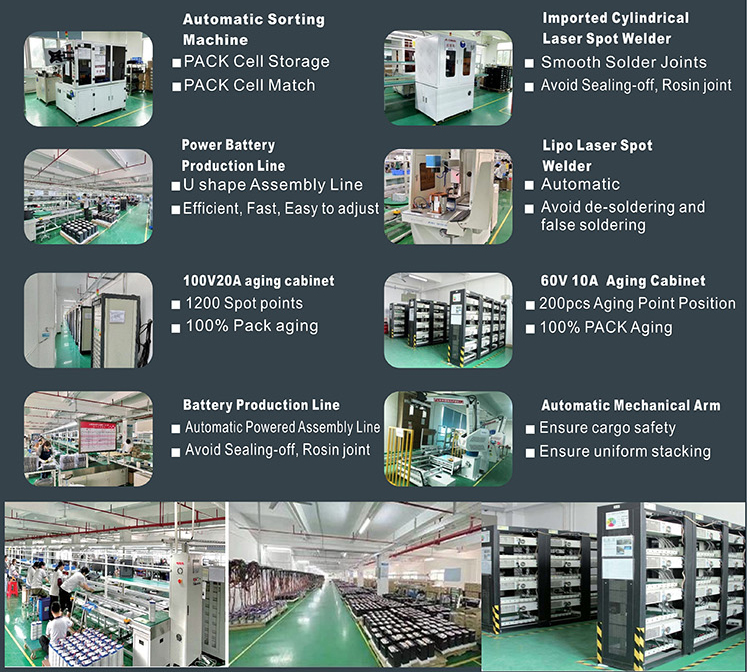

The company has 26,000 square meters of battery PACK production linethe use ofadvanced Mes production execution system, to achieve accurate management from parts to finished product delivery; With more than200 sets of professional production equipment, such as automatic laserspotweldingmachine,automatic sorting machine, the daily output of10000 sets,the annual output can reach 2.56GWH;

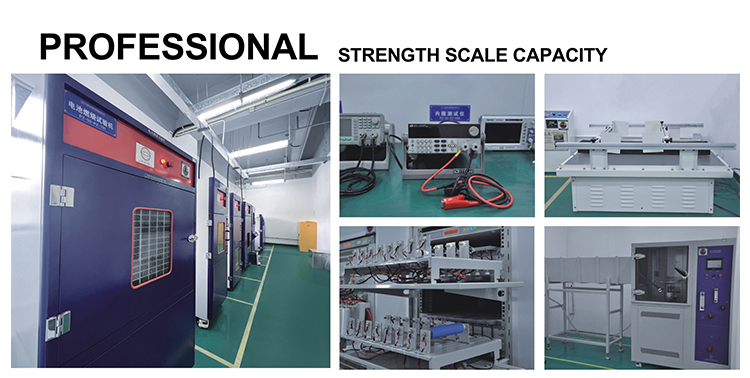

With an independent laboratory and nearly 30 sets of experimental equipment, we can conduct comprehensive performance testing of products to ensure that theproducts meet the design standards. With more than 1600 points,thebattery pack burn-in equipment can realize the full inspection burn-in test of every battery pack delivered to the customer.
The company has a professional doctor led research and development team， independent research and development design of "LEADRAY" brand power and energy storage battery products.
We have passed lS09001:2015 quality management system and lso 14001:2015 Environmental management system certification and OHSAS 18001: products have passed the international certification and obtained 8 invention patents, 17 utility model patents,2 appear ance patents and 11 software Copyrights, and won the 2021 Guangdong Province specialized new enter prise.
Quality control advantages
1. In line with the principle that meeting the needs ofcustomers is our mission, the whole team of
LEADRAY will devote themselves to meeting the needs of customers.
With years ofexperience in lithium battery manufacturing, and alarge number of test equipment.
2. It can better guarantee the quality of products, and can prevent bad products from being in the
factory. Reduce customer complaint rate and make customers worry-free.
