2, Suitable for 1 and 3 phase, hybrid and off grid inverters
3, Compatible with mainstream inverters
4, Expandable nominal voltage up to 409.6V
3, Compatible with mainstream inverters
4, Expandable nominal voltage up to 409.6V

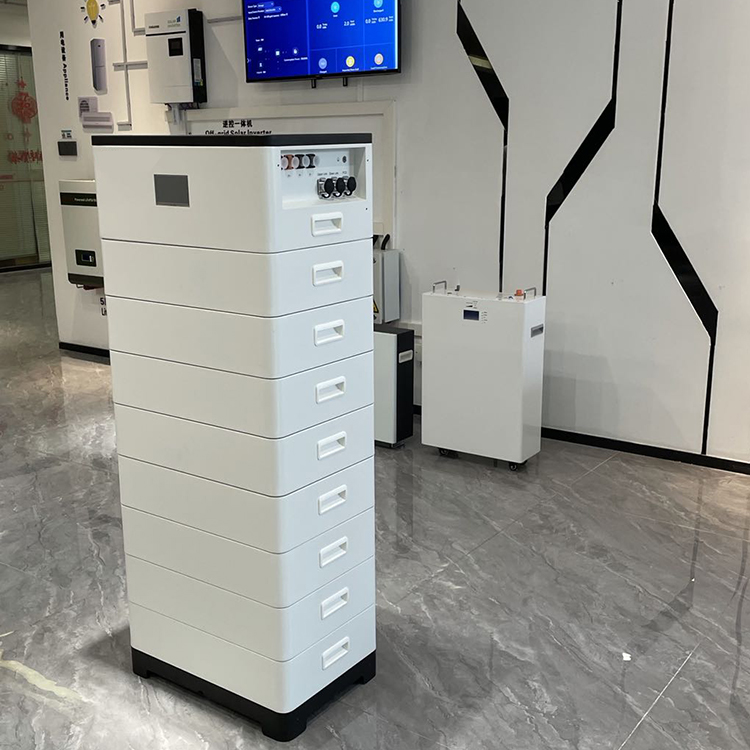

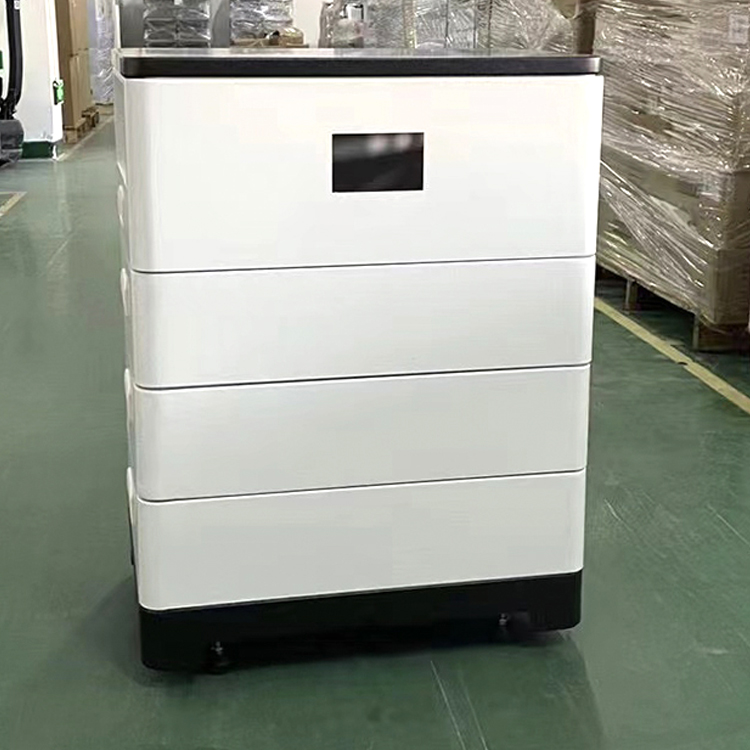

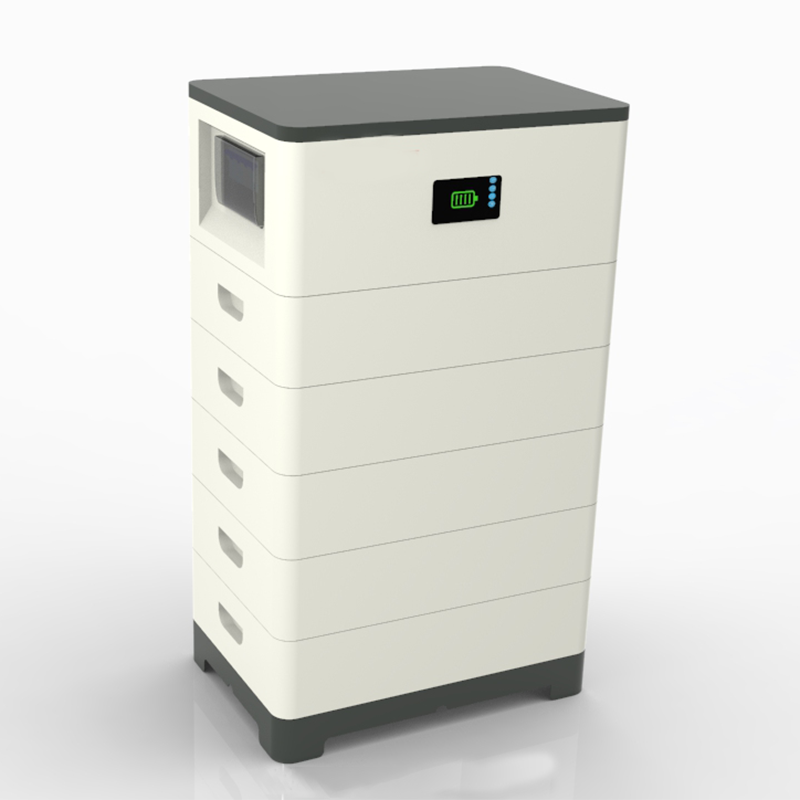

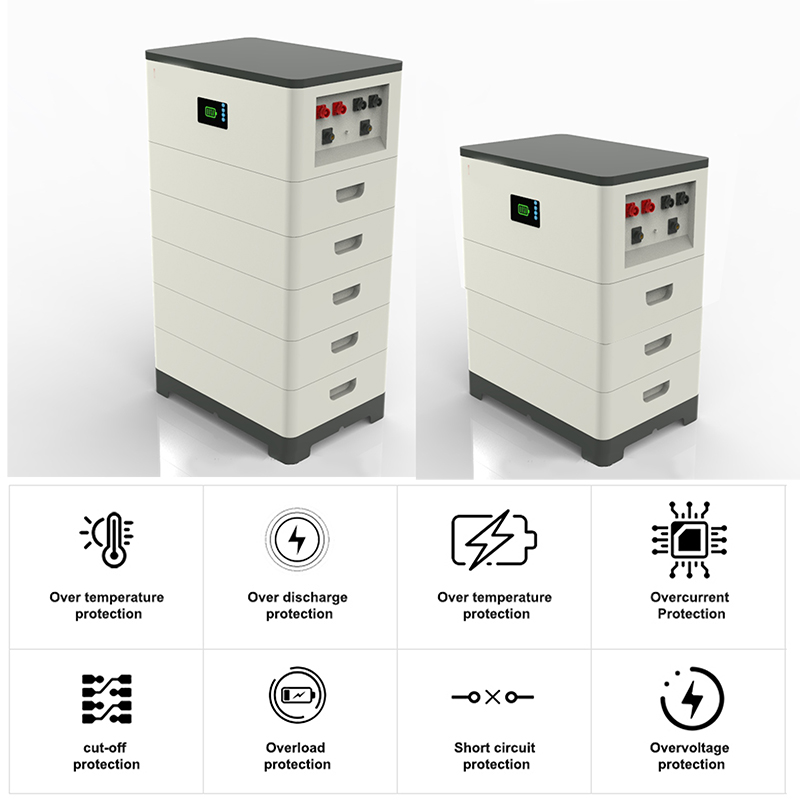

Factory Direct Sales High Voltage Stacked Module Storage Battery Intelligent Battery Management System Modular Free Stacking
1. Latest high voltage battery 256V Stackable system 12.8kWh LiFePO4 battery for residential solar system.
2. A set of 15.36KWh modular 307.2V high voltage LiFePO4 batteries to solve the whole house electricity home energy storage system.
3. 3 years Warranty stacked high voltage Lithium Ion Batteries Home Energy Storage Battery System Capacity 20.48KWh 409.6V

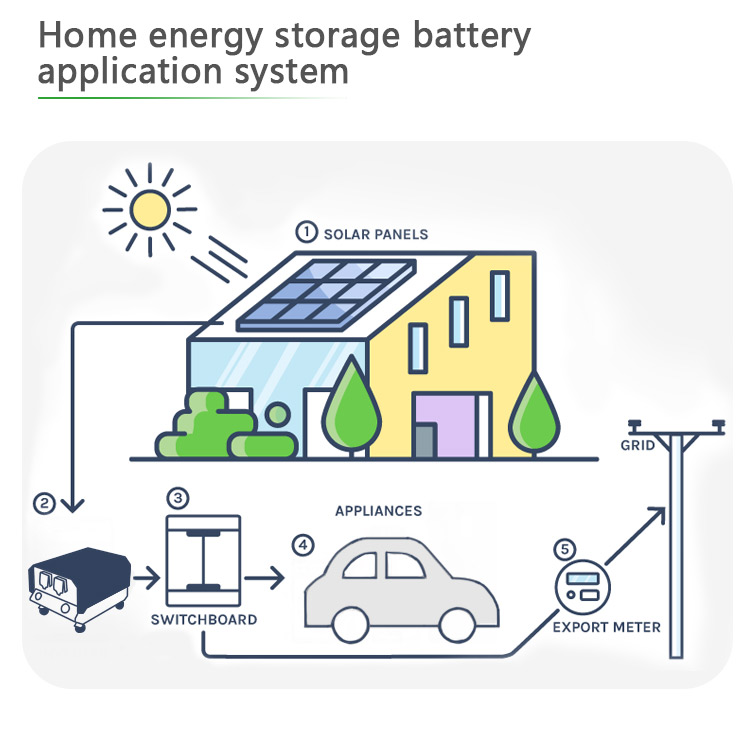

Apllication: Solar Power Energy Storage
Payment :
T/T, Paypal, Western UnionColor :
SilverLead Time :
3~5 days for samples;15~20 days for bulkOriginal Region :
ChinaPort Of Dispatch :
QingdaoInfrared senor :
NoBattery Type :
Lithium LiFePO4 BatterySolar Panel Power :
0.77WLED Power :
0.2WLED brand :
LEADRAYModel No. :
LR-HME-2.56KWC
Solar Storage Energy Battery Lifepo4 For Home System Energy Storage Battery Power Kit Solar System Lithium Pv
Place of Origin: Shandong, China
Brand Name: OEMInstallation method: Floor Type

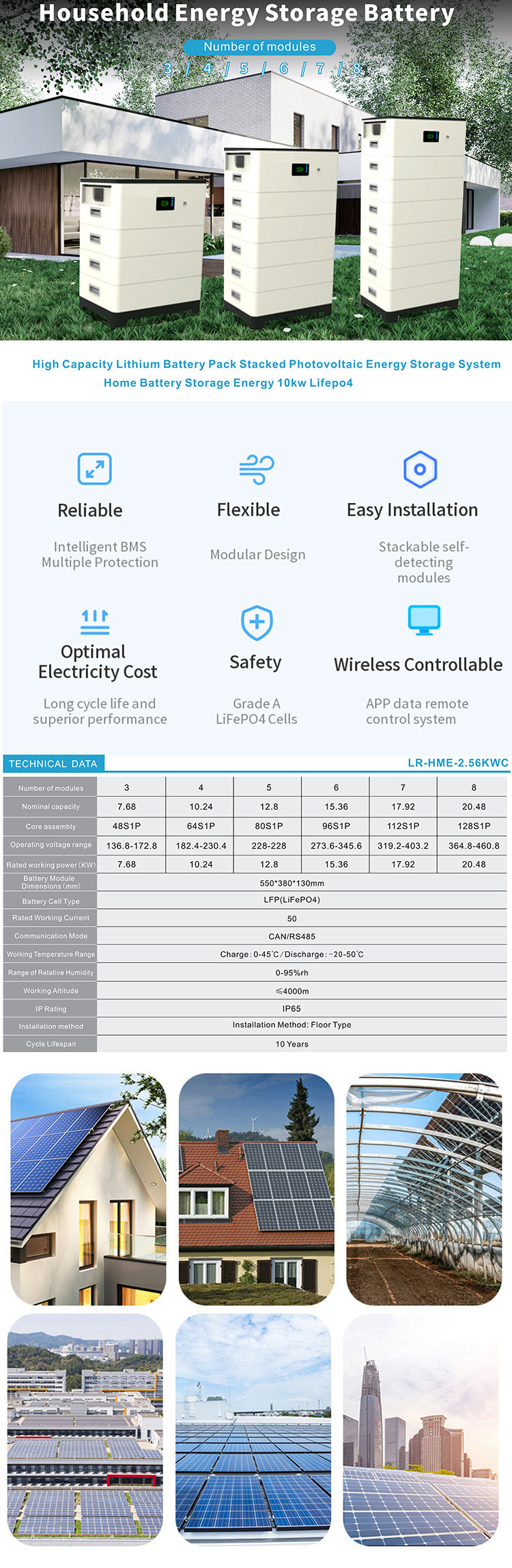

Specification
|
Number of modules
|
3
|
4
|
5
|
6
|
7
|
8
|
|
Nominal capacity
|
7.68
|
10.24
|
12.8
|
15.36
|
17.92
|
20.48
|
|
Core assembly
|
48S1P
|
64S1P
|
80S1P
|
96S1P
|
112S1P
|
128S1P
|
|
Operating voltage range
|
136.8-172.8
|
182.4-230.4
|
228-228
|
273.6-345.6
|
319.2-403.2
|
364.8-460.8
|
|
Rated working power(KW)
|
7.68
|
10.24
|
12.8
|
15.36
|
17.92
|
20.48
|
|
Battery Module Dimensions(mm)
|
550*380*130mm
|
|||||
|
Battery cell Type
|
LFP(LiFePO4)
|
|||||
|
Rated Working Current
|
50
|
|||||
|
Communication Mode
|
CAN/RS485
|
|||||
|
Working Temperature Range
|
Charge:0-45°/Discharge;-20-50°
|
|||||
|
Range of Relative Humidity
|
0-95%rh
|
|||||
|
IP Rating
|
IP65
|
|||||
|
Installation method
|
Installation:Floor Type
|
|||||
|
Cycle Lifespan
|
10years
|
|||||

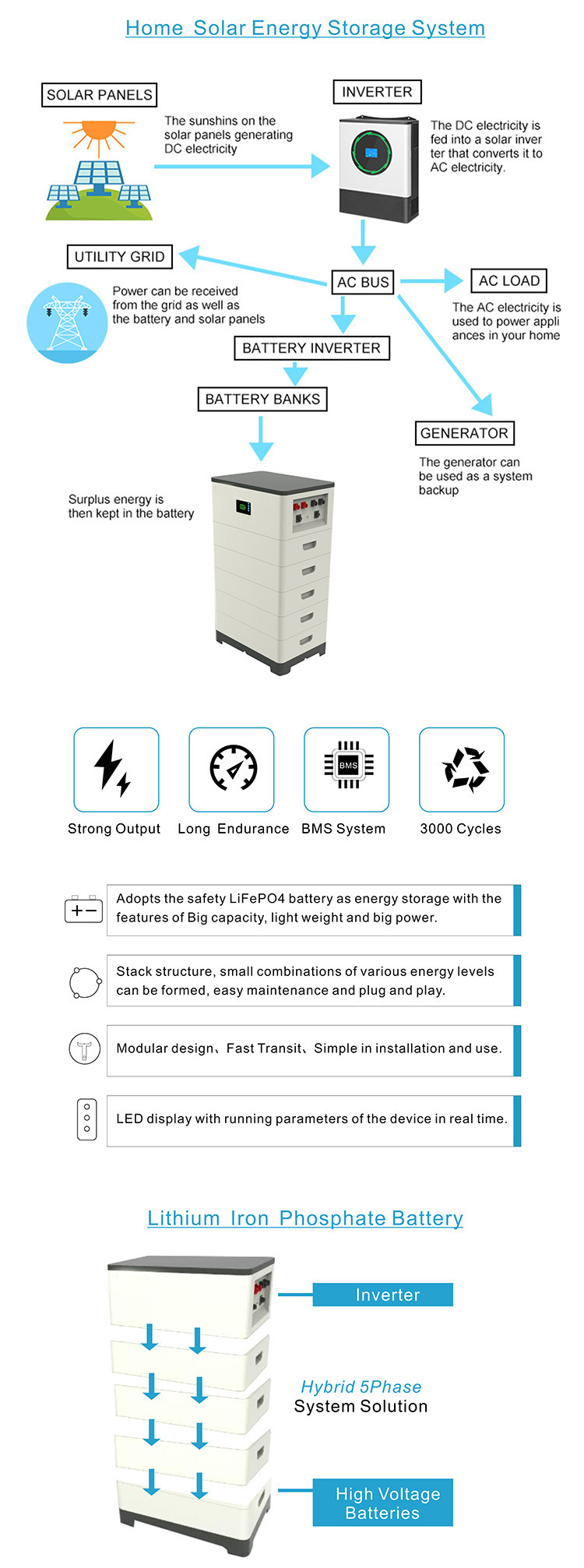

Adopts the safety LiFePO4 battery as energy storage with the features of Big capacity, light weight and big power.
Stack structure, small combinations of various energy levels can be formed, easy maintenance and plug and play.
Modular design、Fast Transit、Simple in installation and use.
LED display with running parameters of the device in real time.
4, 5 years product & performance warranty

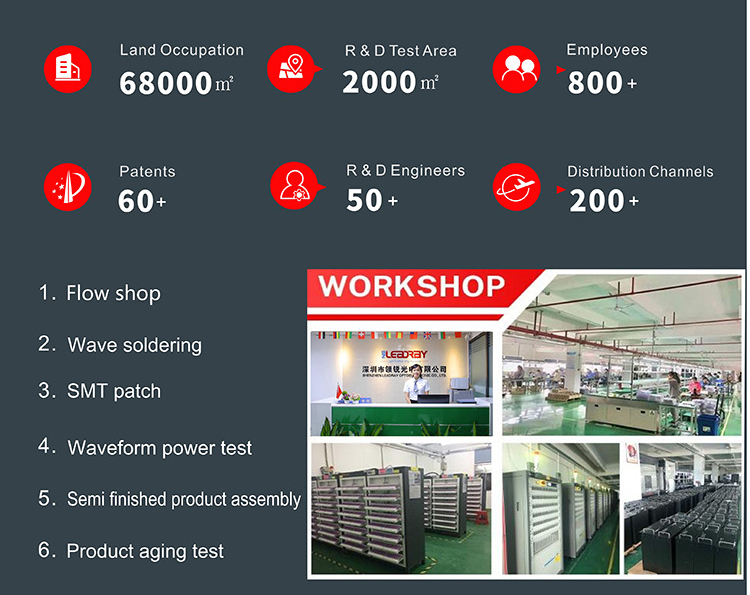

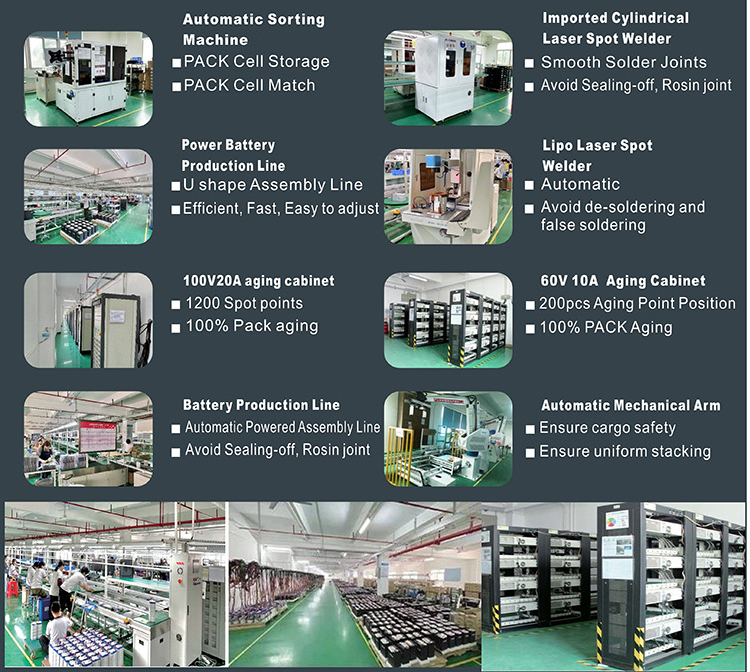

The company has 26,000 square meters of battery PACK production linethe use ofadvanced Mes production execution system, to achieve accurate management from parts to finished product delivery; With more than200 sets of professional production equipment, such as automatic laserspotweldingmachine,automatic sorting machine, the daily output of10000 sets,the annual output can reach 2.56GWH;

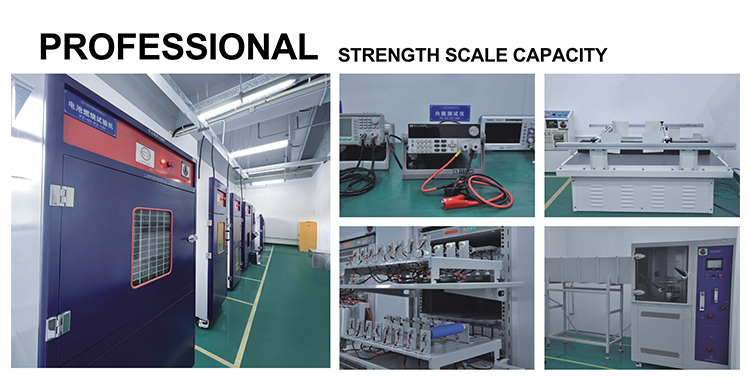

With an independent laboratory and nearly 30 sets of experimental equipment, we can conduct comprehensive performance testing of products to ensure that theproducts meet the design standards. With more than 1600 points,thebattery pack burn-in equipment can realize the full inspection burn-in test of every battery pack delivered to the customer.
The company has a professional doctor led research and development team， independent research and development design of "LEADRAY" brand power and energy storage battery products.
We have passed lS09001:2015 quality management system and lso 14001:2015 Environmental management system certification and OHSAS 18001: products have passed the international certification and obtained 8 invention patents, 17 utility model patents,2 appear ance patents and 11 software Copyrights, and won the 2021 Guangdong Province specialized new enter prise.
Quality control advantages
1. In line with the principle that meeting the needs ofcustomers is our mission, the whole team of
LEADRAY will devote themselves to meeting the needs of customers.
With years ofexperience in lithium battery manufacturing, and alarge number of test equipment.
2. It can better guarantee the quality of products, and can prevent bad products from being in the
factory. Reduce customer complaint rate and make customers worry-free.
