Single-phase All in One Battery Inverter Lithium Battery Lithium Ion MPPT Monocrystalline Silicon Ground Mounting 24 H 4800 31.2
Portable power station with energy storage system for home 5KW-10.24KWH MPPT solar Hybrid Inverter
10.24kWh 200Ah Vertical solar power back up power station household solar energy storage system with Lifepo4 Battery Pack
Payment :
T/T, Westunion, Paypal, Credit CardColor :
SilverLead Time :
3~5 days for samples;15~20 days for bulkOriginal Region :
ChinaPort Of Dispatch :
QingdaoInfrared senor :
NoBattery Type :
Lithium LiFePO4 BatterySolar Panel Power :
0.77WLED Power :
0.2WLED brand :
LEADRAYModel No. :
LR-HME-5KWE/10KWE

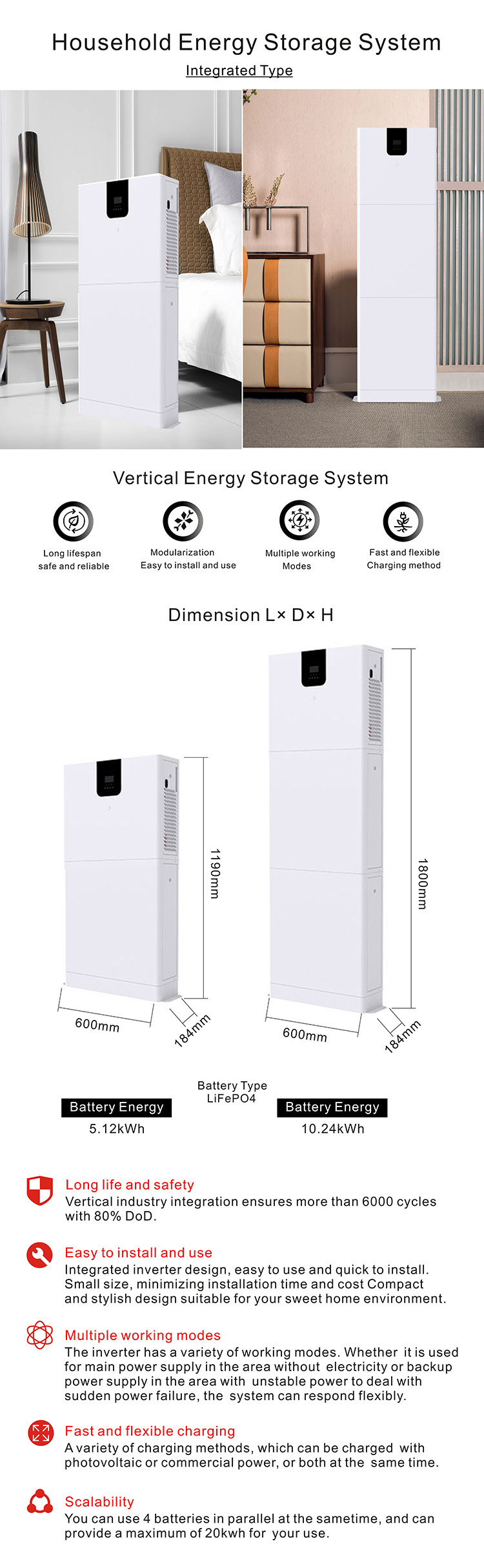

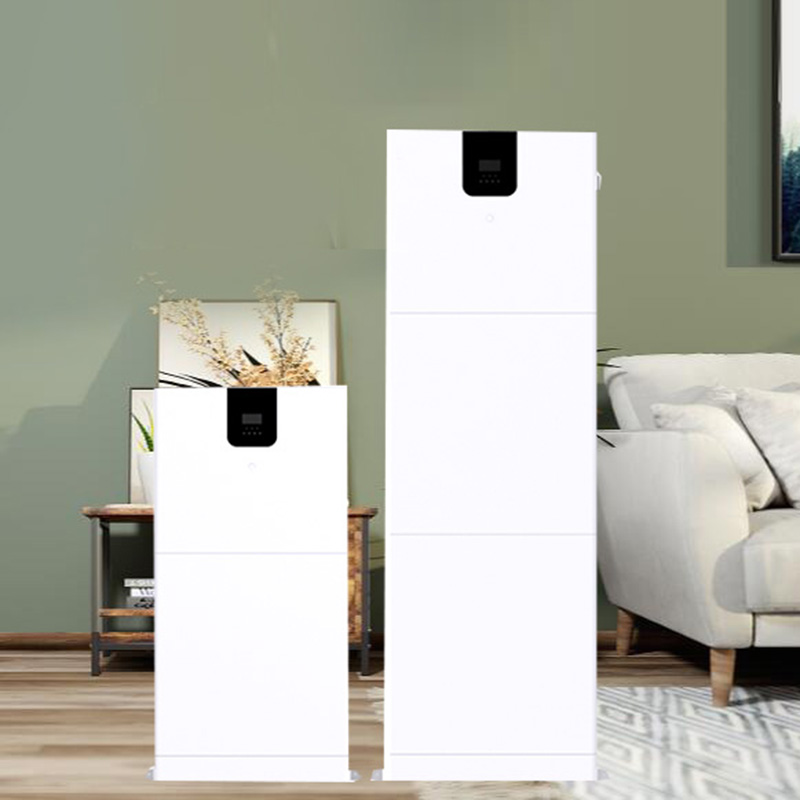

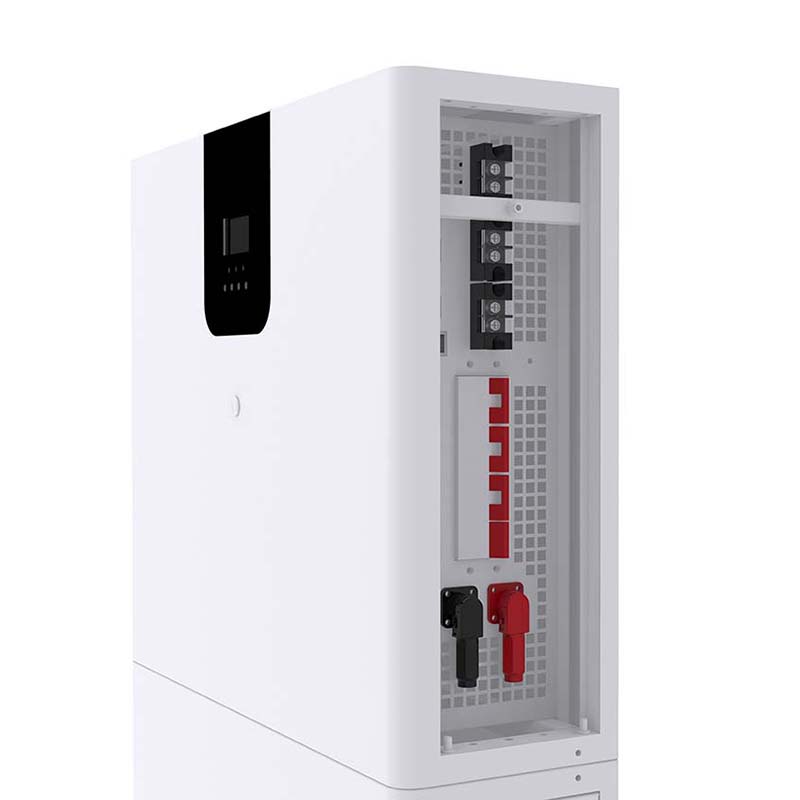

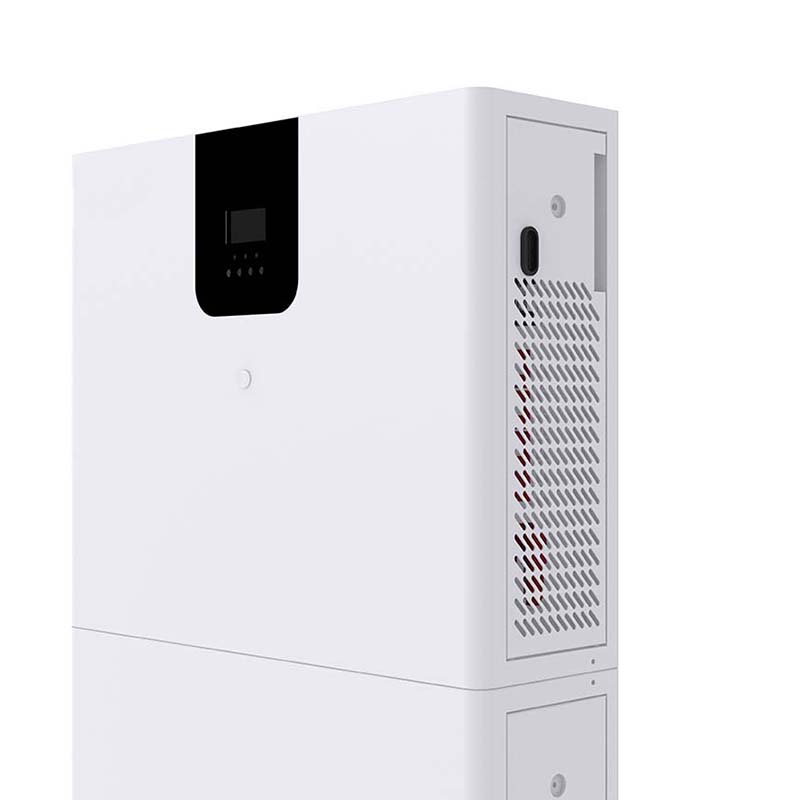

Model Number: LR-HME-10KWE， 10.24kWh 200Ah Vertical solar power back up power station household solar energy storage system with Lifepo4 Battery Pack.
Model Number: LR-HME-5KWE， Solar power back up power station household solar energy storage system, 5KWE 10KWE LiFePO4 with 5.12KWh hybrid solar inverter.
Warranty : 3years
Free installation service: NOOutput Frequency: 50Hz
Communication: RS485/CAN/WIFI
LR-HME-10KWE Specification
|
Number of batteries(PCS)
|
2PCS
|
|
Battery Capacity(Ah)
|
200Ah (10240Wh )
|
|
Battery Rated Voltage(V)
|
51.2V
|
|
Battery Working Voltage Range(V)
|
44.8-57.6V
|
|
Max. Charging/Discharging Current(A)
|
100A
|
|
Solar Charge Type
|
MPPT
|
|
PV Maximum Output Power(W)
|
5000W
|
|
PV Charging Current Range(A)
|
0-80A
|
|
PV Operating Voltage Range(V)
|
120-500V(120-450V/MPPT Voltage Range)
|
|
AC Maximum Charge Power(W)
|
3150W
|
|
AC Charging Current Range(A)
|
0-60A
|
|
Rated Input Voltage(V)
|
220/230Vac
|
|
Input Voltage Range(V)
|
90-280Vac
|
|
Rated Output Power(W)
|
5000W
|
|
Maximum Output Current(A)
|
30A
|
|
Frequency
|
50Hz
|
|
Overload Current(A)
|
35A
|
|
Rated Output Power(W)
|
5000W
|
|
Maximum Peak Power(W)
|
10KVA
|
|
Power Factor
|
1
|
|
Rated Output Voltage (V)
|
230Vac
|
|
Frequency
|
50Hz
|
|
Auto Switch Period
|
＜15ms
|
|
Communication
|
RS485/CAN/WIFI
|
|
Noise
|
60dB(A)
|
|
Designed Life-span
|
6000
|
|

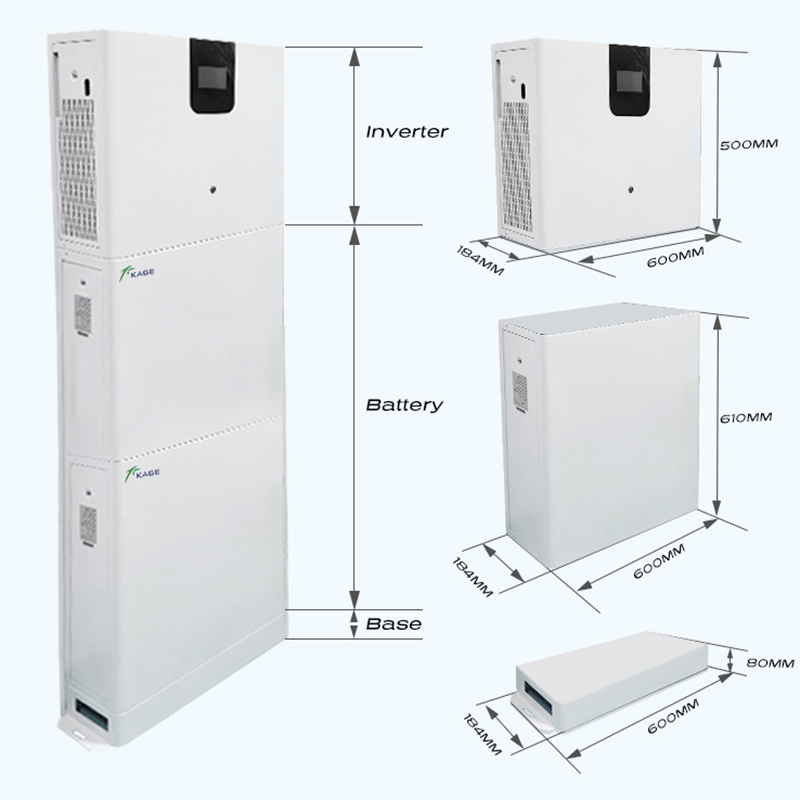

Product Size
|
1800*600*184mm
|
|
N.W.
|
140KG
|
|
G.W.
|
0KG
|
|
Number of batteries(PCS)
|
1PCS
|
|
Battery Capacity(Ah)
|
100Ah (5120Wh )
|
|
Battery Rated Voltage(V)
|
51.2V
|
|
Battery Working Voltage Range(V)
|
44.8-57.6V
|
|
Max. Charging/Discharging Current(A)
|
100A
|
|
Solar Charge Type
|
MPPT
|
|
PV Maximum Output Power(W)
|
5000W
|
|
PV Charging Current Range(A)
|
0-80A
|
|
PV Operating Voltage Range(V)
|
120-500V(120-450V/MPPT Voltage Range)
|
|
AC Maximum Charge Power(W)
|
3150W
|
|
AC Charging Current Range(A)
|
0-60A
|
|
Rated Input Voltage(V)
|
220/230Vac
|
|
Input Voltage Range(V)
|
90-280Vac
|
|
Rated Output Power(W)
|
5000W
|
|
Maximum Output Current(A)
|
30A
|
|
Frequency
|
50Hz
|
|
Overload Current(A)
|
35A
|
|
Rated Output Power(W)
|
5000W
|
|
Maximum Peak Power(W)
|
10KVA
|
|
Power Factor
|
1
|
|
Rated Output Voltage (V)
|
230Vac
|
|
Frequency
|
50Hz
|
|
Auto Switch Period
|
＜15ms
|
|
Communication
|
RS485/CAN/WIFI
|
|
Noise
|
60dB(A)
|
|
Designed Life-span
|
6000
|
|
Product Size
|
1190*600*184mm
|
|
Package Size
|
0mm
|
|
N.W.
|
80KG
|
51.2V Vertical Home Storage Battery Energy Storage System 200Ah 10.24KWH with inverter for Solar Energy Storage Systems

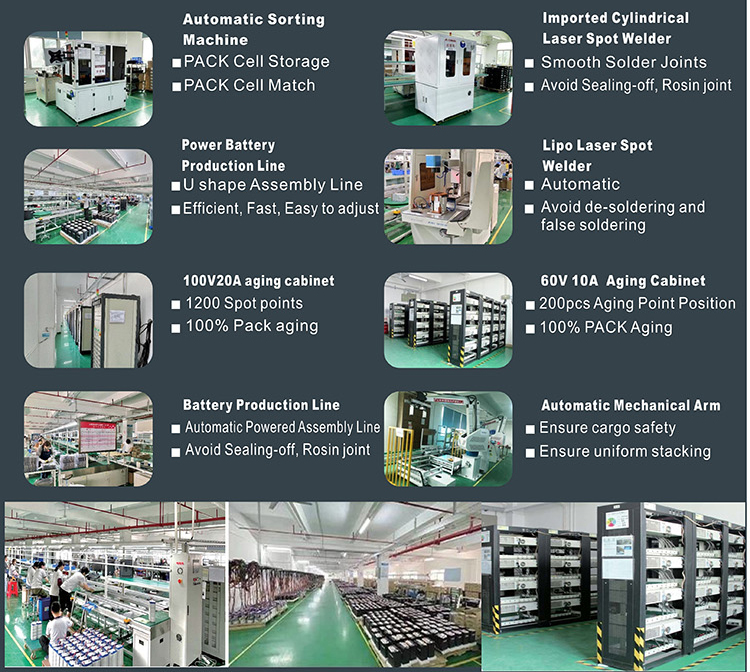

The company has 26,000 square meters of battery PACK production linethe use ofadvanced Mes production execution system, to achieve accurate management from parts to finished product delivery; With more than200 sets of professional production equipment, such as automatic laserspotweldingmachine,automatic sorting machine, the daily output of10000 sets,the annual output can reach 2.56GWH;

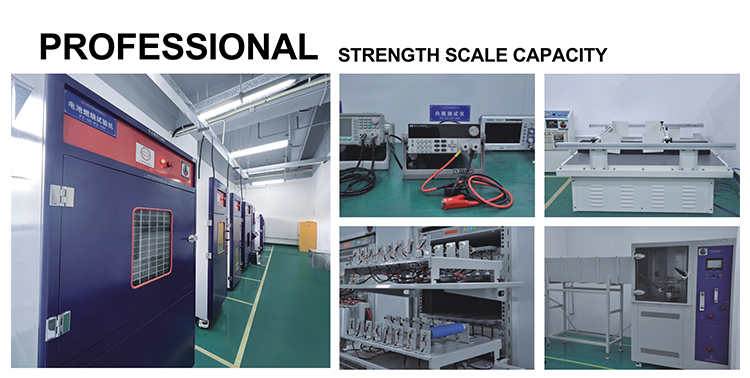

With an independent laboratory and nearly 30 sets of experimental equipment, we can conduct comprehensive performance testing of products to ensure that theproducts meet the design standards. With more than 1600 points,thebattery pack burn-in equipment can realize the full inspection burn-in test of every battery pack delivered to the customer.
The company has a professional doctor led research and development team， independent research and development design of "LEADRAY" brand power and energy storage battery products.
We have passed lS09001:2015 quality management system and lso 14001:2015 Environmental management system certification and OHSAS 18001: products have passed the international certification and obtained 8 invention patents, 17 utility model patents,2 appear ance patents and 11 software Copyrights, and won the 2021 Guangdong Province specialized new enter prise.
Quality control advantages
1. In line with the principle that meeting the needs ofcustomers is our mission, the whole team of
LEADRAY will devote themselves to meeting the needs of customers.
With years ofexperience in lithium battery manufacturing, and alarge number of test equipment.
2. It can better guarantee the quality of products, and can prevent bad products from being in the
factory. Reduce customer complaint rate and make customers worry-free.
