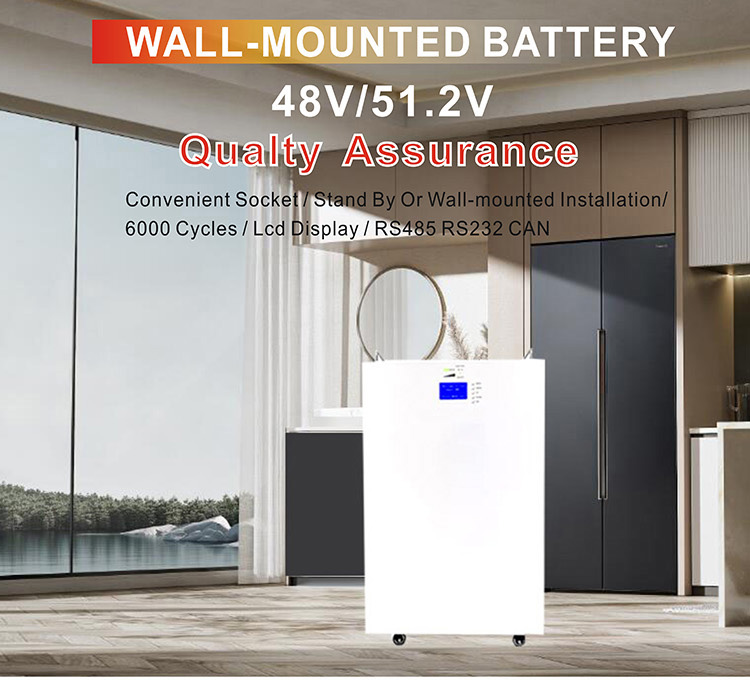

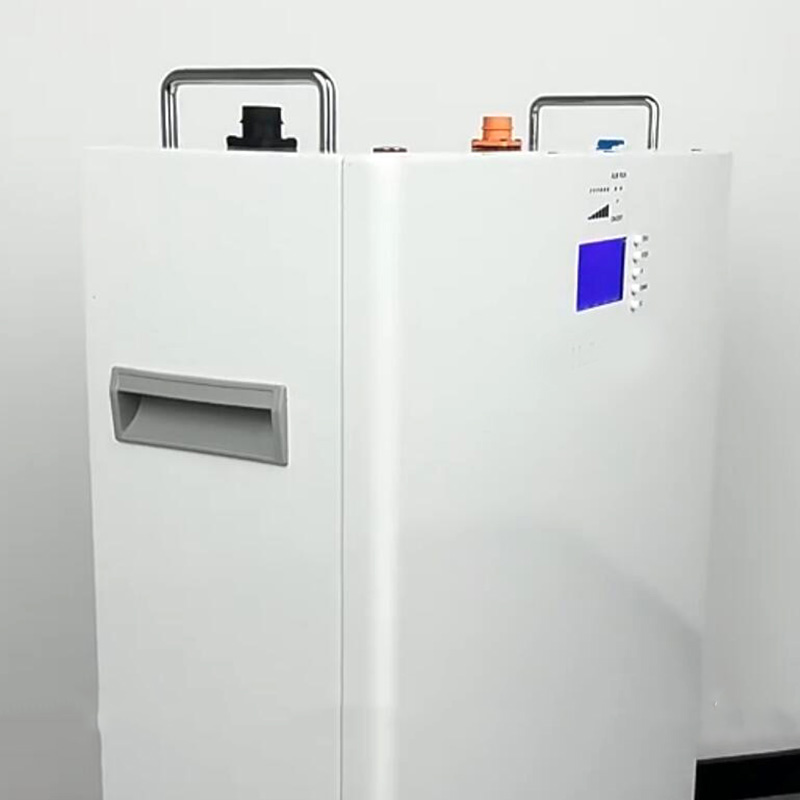

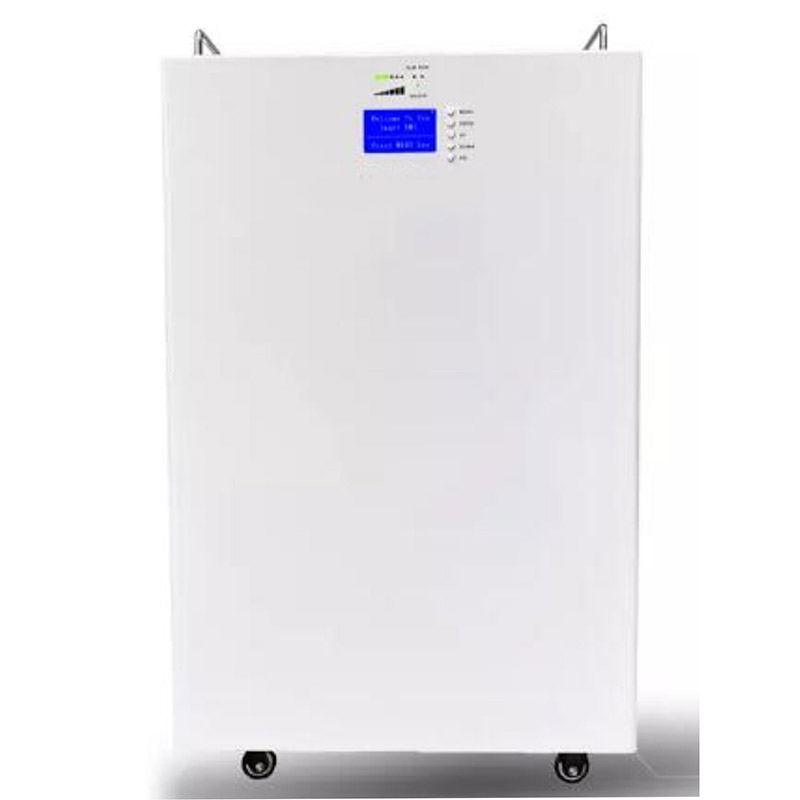

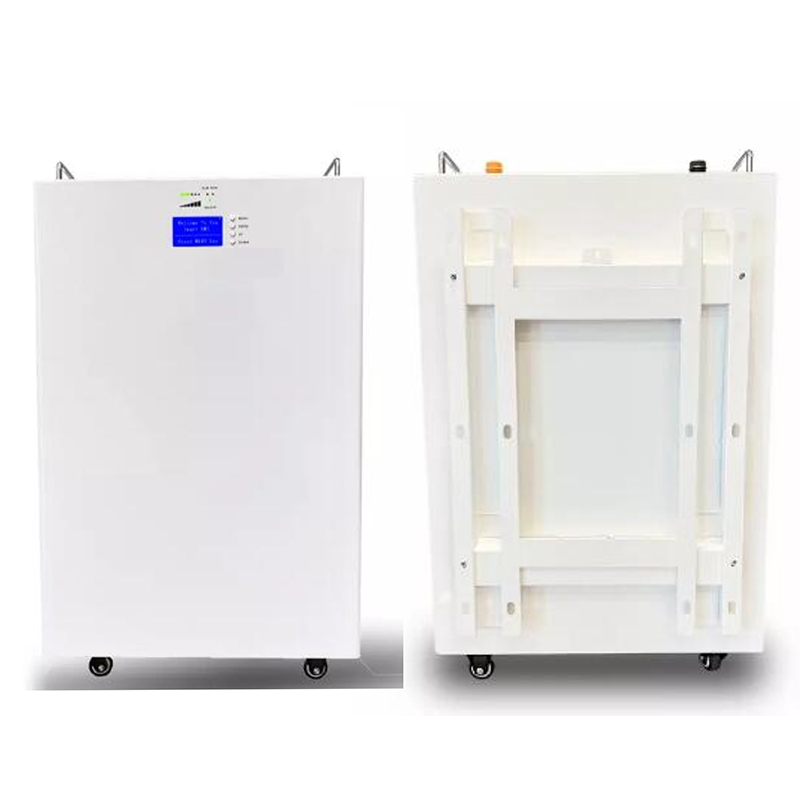

Support Wall-mounted and stand by install. With small wheels, easy to move， can also fix the wheels and stand stably on the ground
Bluetooth Smart Solar System Wall Power 200 Ah Lifepo4 Wall-mounted Price Energy Storage Lithium System 10Kwh Battery
2.Bluetooth and WiFi module can be added to support multiple communication protocols. Support RS485, CAN and other communication protocols, battery maintenance is more efficient.
Payment :
T/T, Paypal, Western UnionColor :
WhiteLead Time :
3~5 days for samples;15~20 days for bulkPort Of Dispatch :
QingdaoInfrared senor :
NoBattery Type :
Lithium LiFePO4 BatterySolar Panel Power :
0.77WLED Power :
0.2WLED brand :
LEADRAYModel No. :
LR-HME-5KWB10KWBModel Number: LR-HME-10KWB(51.2V)
Brand Name: Leadray Place of Origin: Shandong, China
Recommended Charge Voltage(V): 57.6V
|
Electrical
Characteristics
|
Nominal Voltage
|
51.2V
|
|
Nominal Capacity
|
200Ah
|
|
|
Energy
|
10240Wh
|
|
|
Internal Impedance
|
≤180mΩ
|
|
|
Battery Delivery Voltage
|
51.2V~55.2V
|
|
|
Cycle life
|
6000 cycles
|
|
|
Standard
Charge&Discharge |
Standard
Charge&Discharge |
100A
|
|
Max discharge current
|
100A(continuous)
|
|
|
Standard discharging method
|
50A constant current discharge to 40V
|
|
|
Charge voltage
|
58.4V±0.05V
|
|
|
Others
|
Communication Port
|
RS232,RS485,CAN
|
|
Working Temperature/°C
|
Charge 0~45℃, Discharge -20~60℃
|
|
|
Battery Type
|
Lithium iron phosphate
|
|
|
Weight
|
92KG
|
|
|
Dimension
|
675*485*190mm
|
1. lithium-ion batteries 48v , higher energy density,smaller volumn for household.
2. Grade a lifepo4 battery 48v 100ah,high quality battery cell.
3. Support customization,5kw/10kw/15kw/20kw power wall, support Connected in parallel mode for expansion.
5. Home solar energy system:this battery pack is designed for household solar energy storage systems.

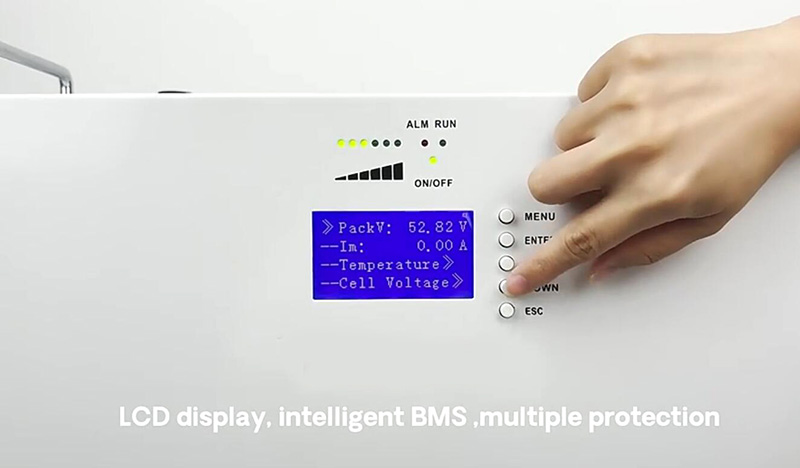

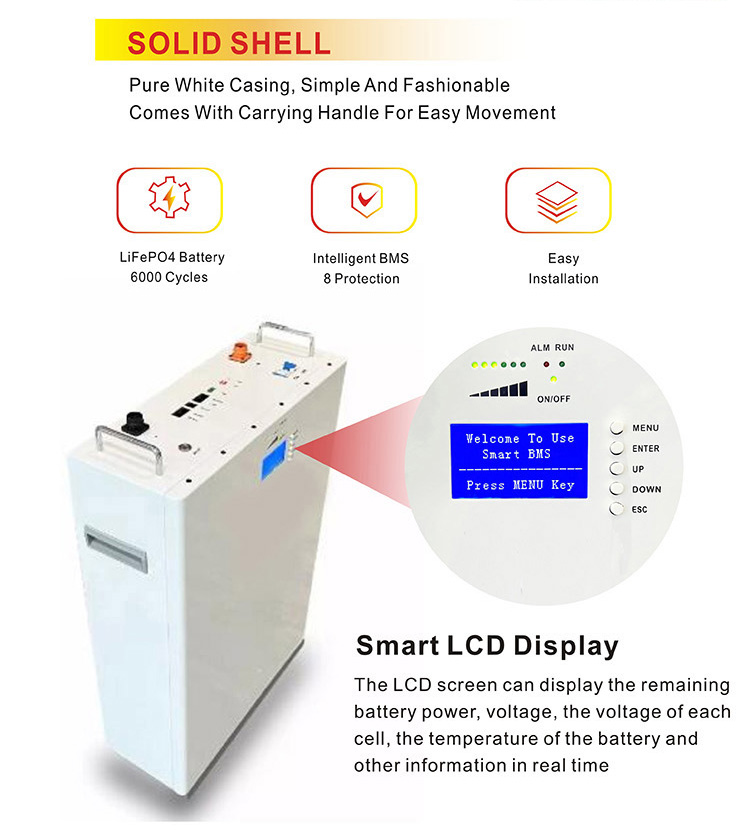

6. BMS:the battery packs built-in BMS monitors its operation and prevents the battery from operating,give the battery multiple protection.
What are the details of power wall lifepo4 battery pack？

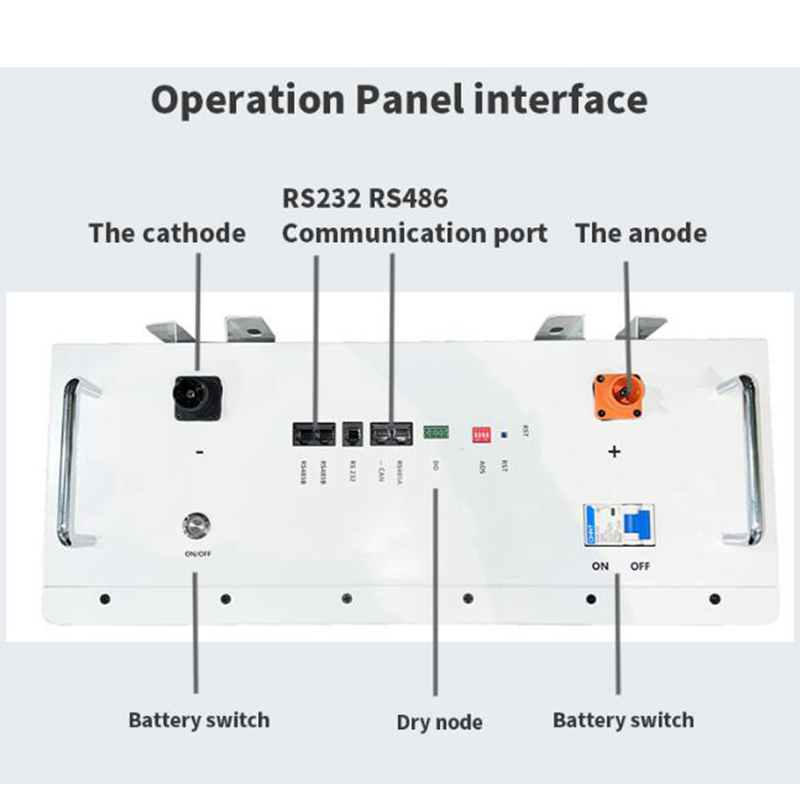

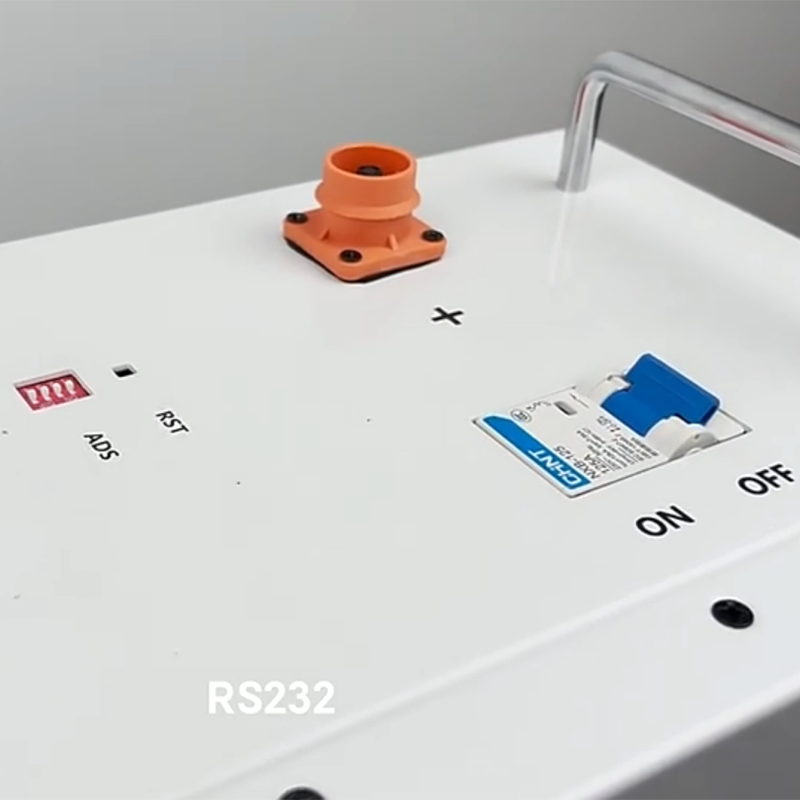

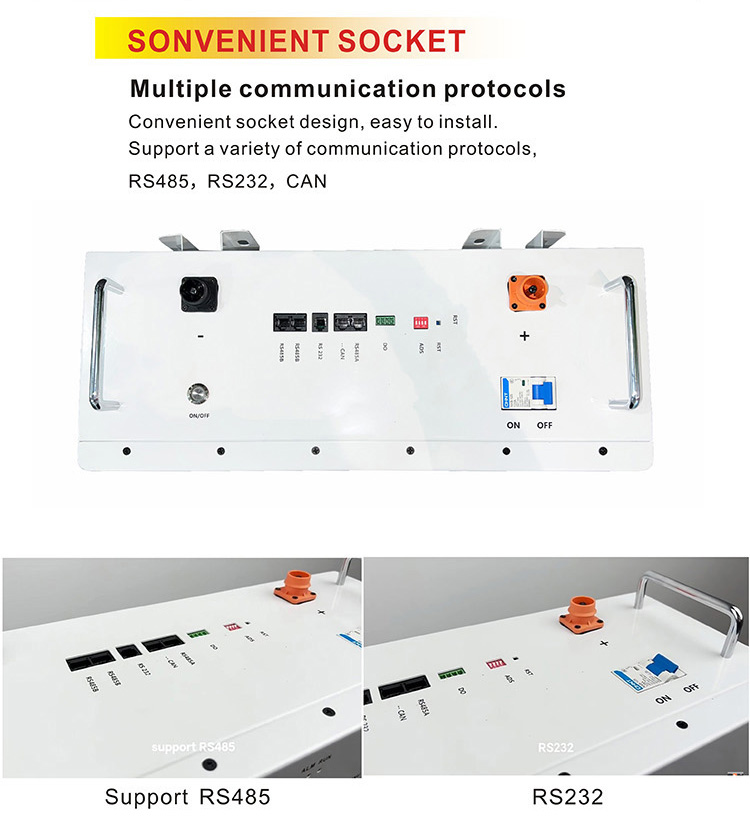

Convenient socket design, easy to install. Support a variety of communication protocols,RS485，RS232，CAN
1.Wall Power 51.2v 100ah LiFePO4 battery for Solar Energy Storage System.
2. Wall Mounted Solar System Lithium Iron Phosphate Battery 48 v Lithium Ion battery.
3. Power Storage 51.2v 200ah Wall Home Lifepo4 Lithium Battery For Solar Storage.

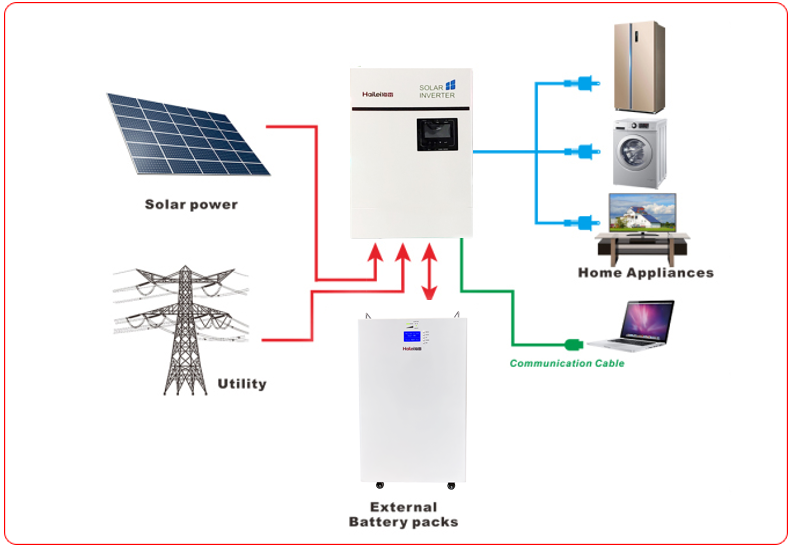

A Set of energy storage system -
Smart Solar System Wall Power 200 Ah Lifepo4 Wall-mounted Price Energy Storage Lithium System 10Kwh Battery
Wall mount lithium battery Application-
Off-grid solar power system 48v 5kwh 10kwh home energy storage manufacturer lifep04 batteries

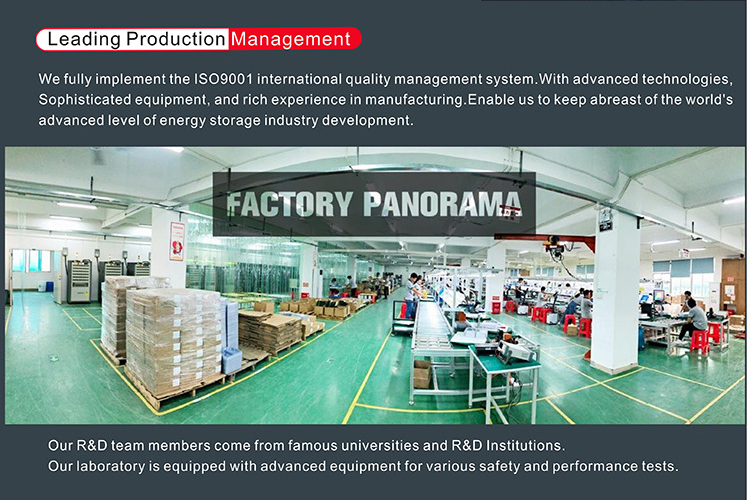

The company has 26,000 square meters of battery PACK production linethe use ofadvanced Mes production execution system, to achieve accurate management from parts to finished product delivery; With more than200 sets of professional production equipment, such as automatic laserspotweldingmachine,automatic sorting machine, the daily output of10000 sets,the annual output can reach 2.56GWH;
With an independent laboratory and nearly 30 sets of experimental equipment, we can conduct comprehensive performance testing of products to ensure that theproducts meet the design standards. With more than 1600 points,thebattery pack burn-in equipment can realize the full inspection burn-in test of every battery pack delivered to the customer.
The company has a professional doctor led research and development team， independent research and development design of "LEADRAY" brand power and energy storage battery products.
We have passed lS09001:2015 quality management system and lso 14001:2015 Environmental management system certification and OHSAS 18001: products have passed the international certification and obtained 8 invention patents, 17 utility model patents,2 appear ance patents and 11 software Copyrights, and won the 2021 Guangdong Province specialized new enter prise.
Quality control advantages
1. In line with the principle that meeting the needs ofcustomers is our mission, the whole team of
LEADRAY will devote themselves to meeting the needs of customers.
With years ofexperience in lithium battery manufacturing, and alarge number of test equipment.
2. It can better guarantee the quality of products, and can prevent bad products from being in the
factory. Reduce customer complaint rate and make customers worry-free.
