Timer Control Lighting 100W Outdoor Dimmable Integrated All In One Led Solar Street Light

Timer Control Lighting 100W Outdoor Dimmable Integrated All In One Led Solar Street Light

Name: Timer Control Lighting 100W Outdoor Dimmable Integrated All In One Led Solar Street Light
Availability: InStock

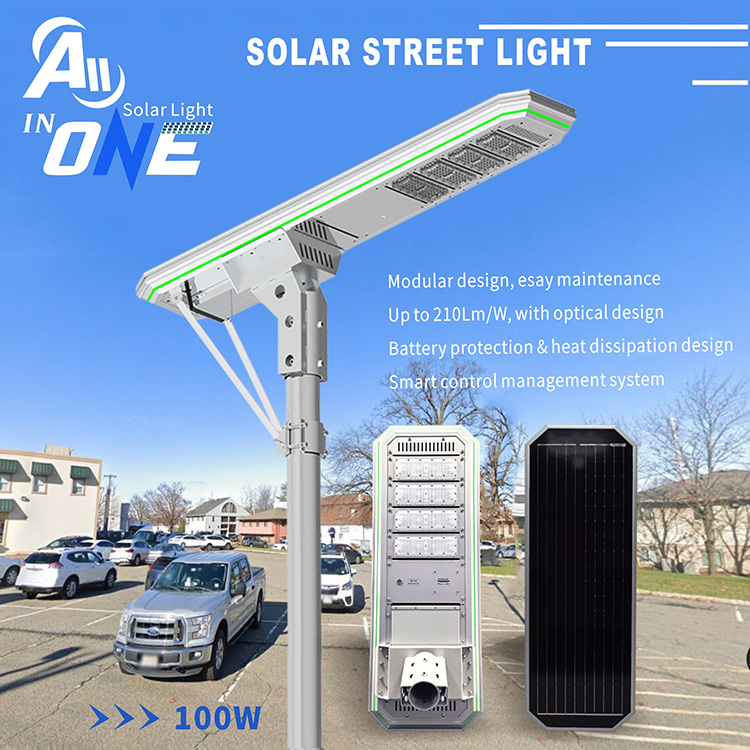

Leadray IP65 Waterproof Solar LED Street Light 30W 40W 60W 80W 100W 120W All In One Integrated Solar Street Light system with Motion Sensor

1.Modular design,easy maintenance

2.Up to 210Lm/W,with optical design

3.Battery protection &heat dissipation design

4.Smart control management system

Payment :
T/T, Westunion, Paypal, Credit Card
Color :
Silver
Lead Time :
3~5 days for samples;15~20 days for bulk
Original Region :
China
Port Of Dispatch :
Qingdao
Infrared senor :
No
Battery Type :
Lithium LiFePO4 Battery
Solar Panel Power :
36V 120W
LED Power :
100W
LED brand :
LEADRAY
Model No. :
LRC-H100W

Inquiry now

Product Details

New design Ip65 100W Outdoor All In One Solar Street Lamp 60W 80W 100W 120W Integrated Led Solar Street Light

All In One Solar Street Light: Integrated design/Free maintenance/Easy installation/Environmental Friendly

Solar Street Light One LED Solar Street Lightaterproof IP65

Model No: LRC-H100W

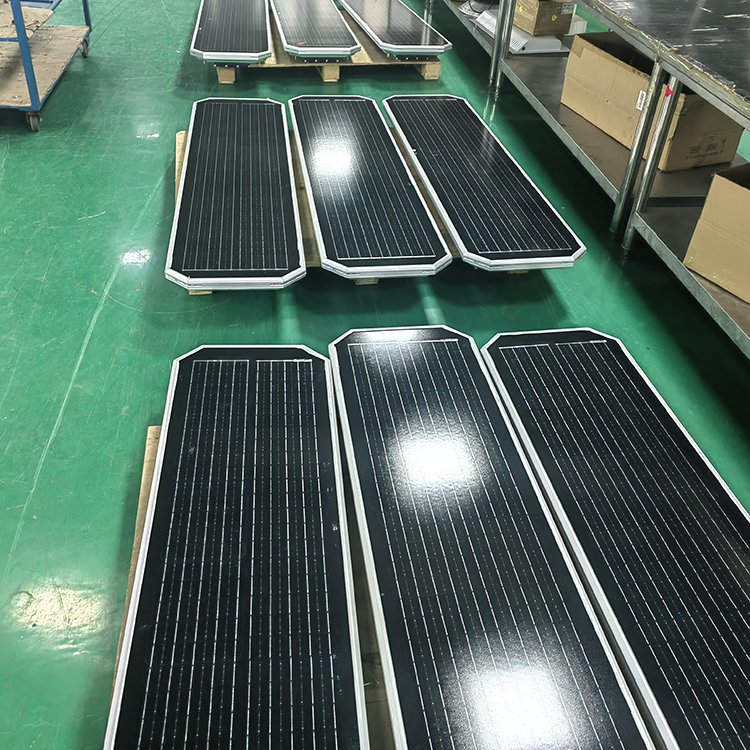

Solar Panel Power: 36V 120W (High efficiency monocrystalline silicon)

Battery Type: High efficiency LiFePO4 Battery

LED Brand: PHILIPS

LED Power: 100W

Luminous Flux: 18000Lm(TYP)

Lifespan: 50,000hrs

Beam Angel: 150x70°

Charging Time: 6-8 hours

Lighting Time(Full Power): 12-14hours

Lighting Time(30% saving mode): 39 hours (3~5 rainy days)

Color temperature: 2700~6500K

Discharing temperature: -20 ℃ to +60 ℃

Charging Temperature: 0 ℃ to +60 ℃

Storage temperature: -20 ℃ to +45 ℃

Mounting Height: 6-8m

Suggested Distance Between Lights: 25-30m

Material: Superior aviation aluminum AL6063-T5

Warranty: 3-5 years

street solar light

Application : street/roadway/parking lot/community/Industry park/playground

Model	LRC-H30W	LRC-H40W	LRC-H60W	LRC-H80W	LRC-H100W	LRC-H120W
	Physical Parameter
LED Brand	PHILIPS	PHILIPS	PHILIPS	PHILIPS	PHILIPS	PHILIPS
LED Qty(pcs)	72	108	144	256	256	384
Power of PV Module(W)	18V 60W	18V 70W	18V 90W	18V 110W	36V 120W	36V 160W
LiFePO4 Battery Capacity	12.8V 307.2Wh	12.8V 384Wh	12.8V 460.8Wh	12.8V 537.6Wh	25.6V 768Wh	25.6V 921.6Wh
Light Mode	PIR/Time Control	PIR/Time Control	PIR/Time Control	Time Control	Time Control	Time Control
Product Dimension(mm)	75337360	89337360	112337360	117342360	141342360	171342360
Product N.W.(kg)	12	14	17	22	24	32.8
Package #1 Dimension(mm)& G.W. (2 Lamps/CTN)	820260460 (20.7KG)	960260460 (24.2KG)	1190260460 (29.5KG)	1240260510 (37.5KG)	1480330510 (46.1KG)	1780330510 (50.85KG)
Package #2 Dimension(mm)& G.W. (2 Bases/CTN)	380380190 (7KG)	380380190 (7KG)	380380320 (10.93KG)	430380320 (10.93KG)	510430450 (20.85KG)	510430450 (20.85KG)
	Light Parameter
Light Power(W)	30W	40W	60W	80W	100W	120W
Tyical Liminous Flux(Lm)	5400	7200	10800	14400	18000	21600
LED Light E ﬀ ect(Lm/W)	200Lm/W
Color Temperature(K)	2700-6500
Beam Angle(°)	150°x 80°
Rainy Days(D)	3~5
	Environment Parameter
Charging Temperaure( ℃ )	0 ℃ ~ +60 ℃
Discharging Temperature( ℃ )	-20 ℃ to +60 ℃
Storage Temperature( ℃ )	-20 ℃ to +45 ℃
	Installations
Dia. of Top Pole (mm)	50~60	50~60	70~80	70~80	90~100	90~100
Installation Height(m)	4~6	5~7	6~8	8~10	9~11	10~12
Installation Distance (m)	15~25	20~30	25~35	30~40	35~45	40~50

LRC-H Series LED Solar Street Light Features:

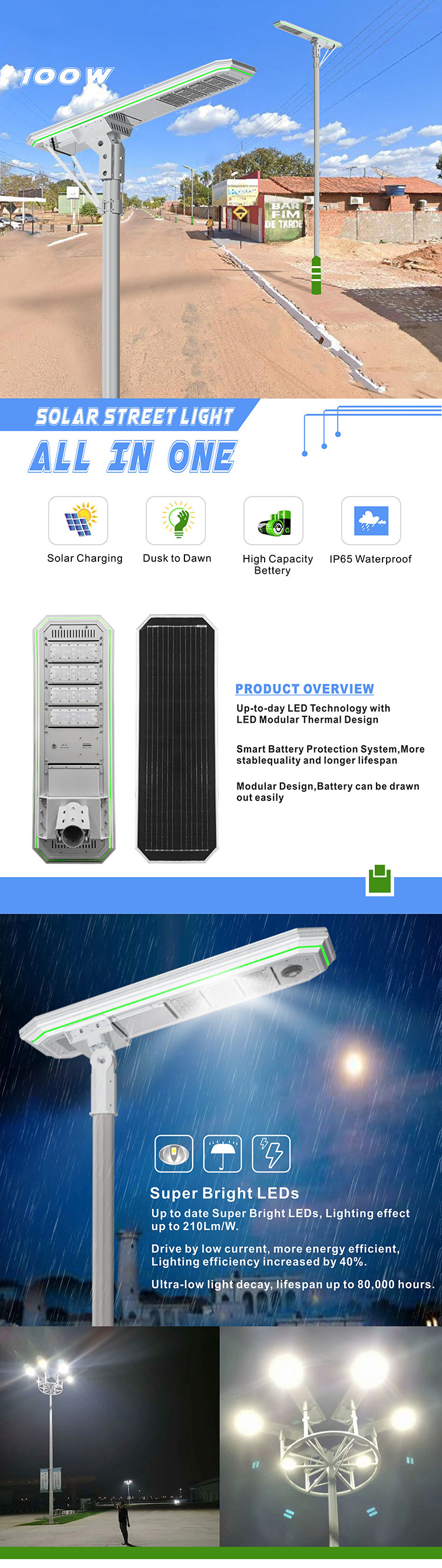

PRODUCT OVERVIEW

1. Up-to-day LED Technology with LED Modular Thermal Design.

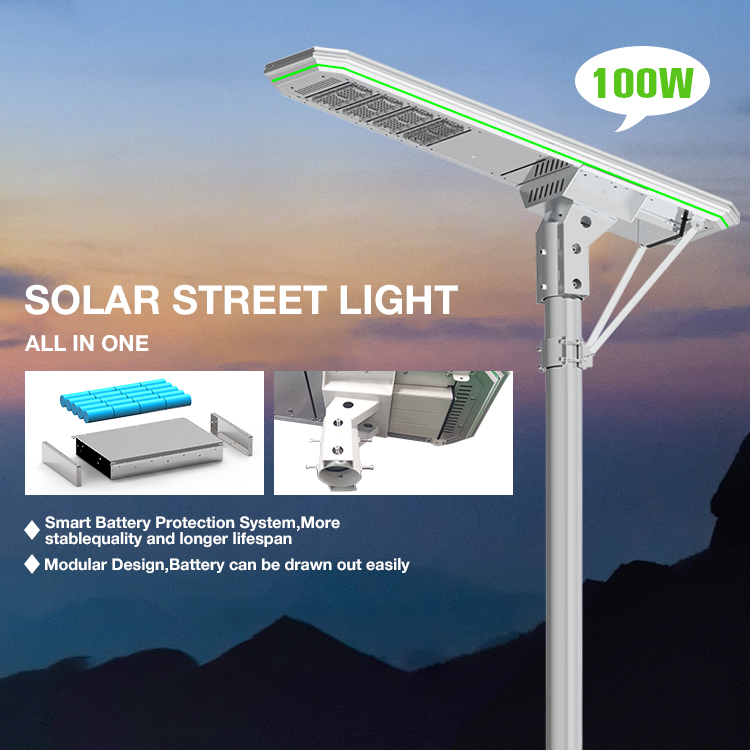

2. Smart Battery Protection System, More stablequality and longer lifespan.

3. Modular Design,Battery can be drawn out easily .

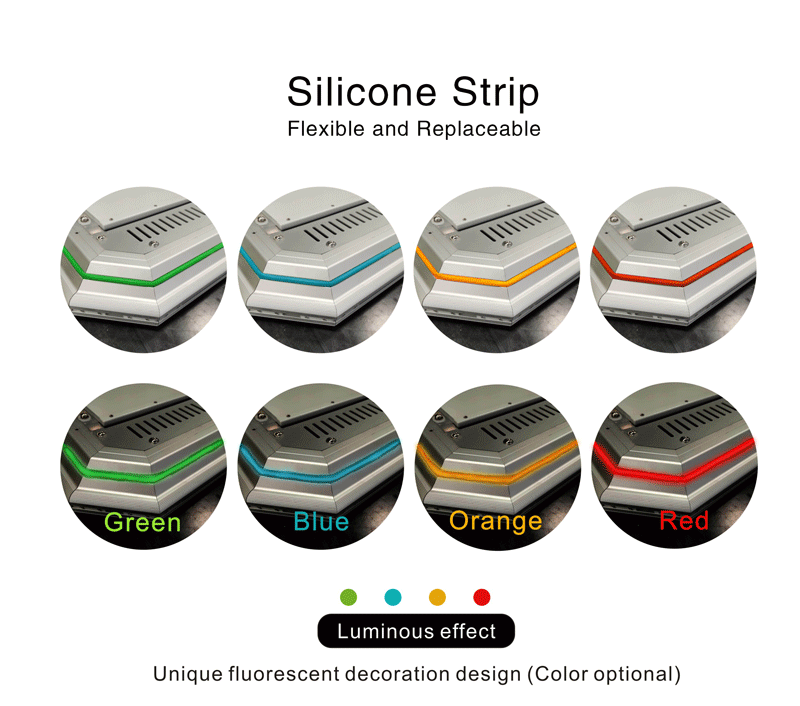

4.Unique fluorescent decoration design (Color optional)：Green / Red / Blue / Orange.

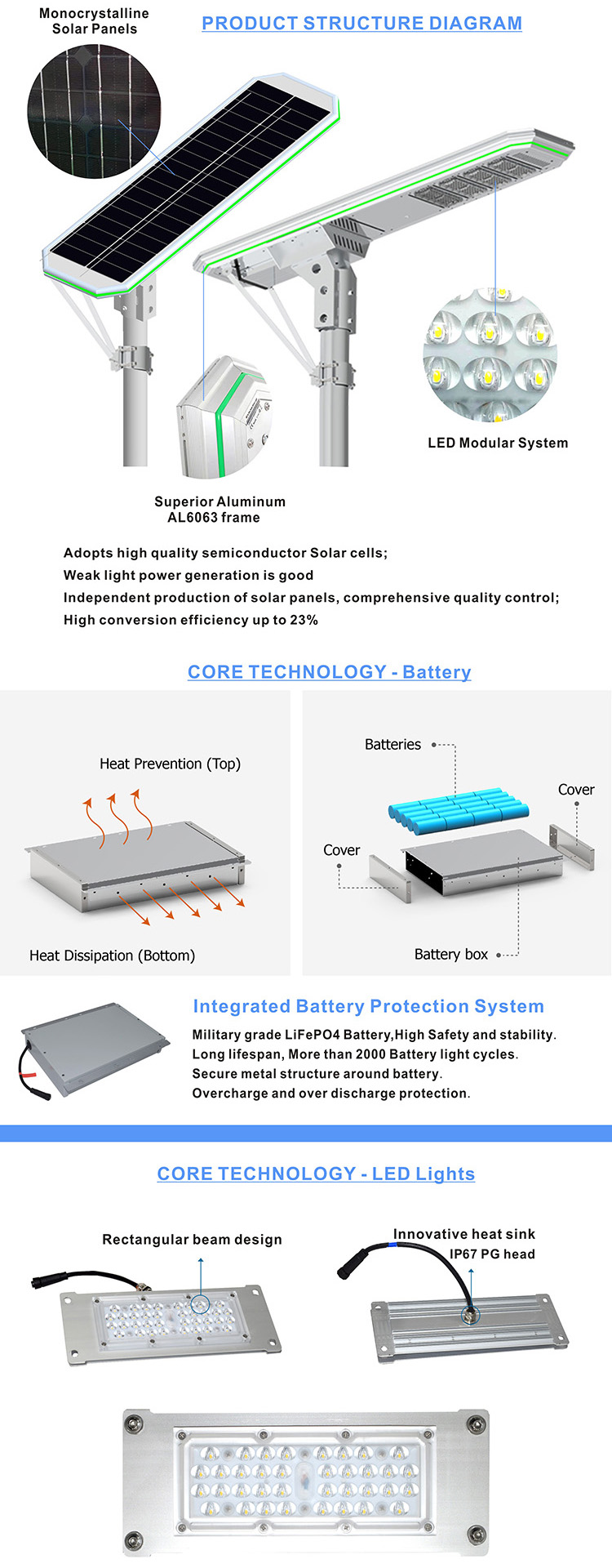

Integrated Battery Protection System

Military grade LiFePO4 Battery,High Safety and stability

Long lifespan, More than 2000 Battery light cycles

Secure metal structure around battery

Overcharge and over discharge protection

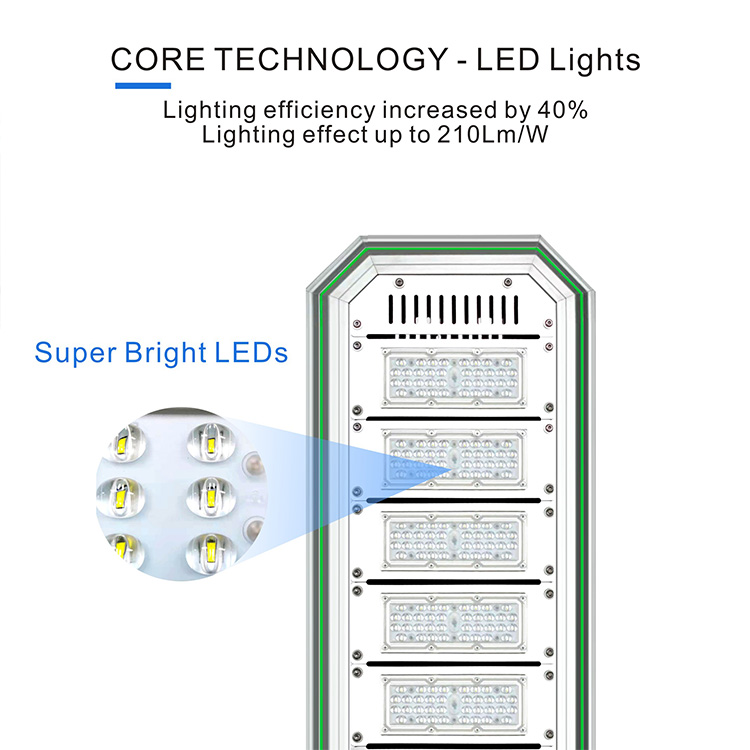

Super Bright LEDS

1.Up to date Super Bright LEDs, Lighting effect up to 210Lm/W.

2. Drive by low current, more energy efficient, Lighting efficiency increased by 40%.

3. Ultra-low light decay, lifespan up to 80,000 hours.

LED Modular System Design

1. Rectangular bat wing light distribution for road lighting Optimized light distribution for a more uniform and wider lighting area.

2. Integrated optical lens design, Light transmittance up to 93%.

3. Customized heat sink, better heat dissipation and waterproof ability.

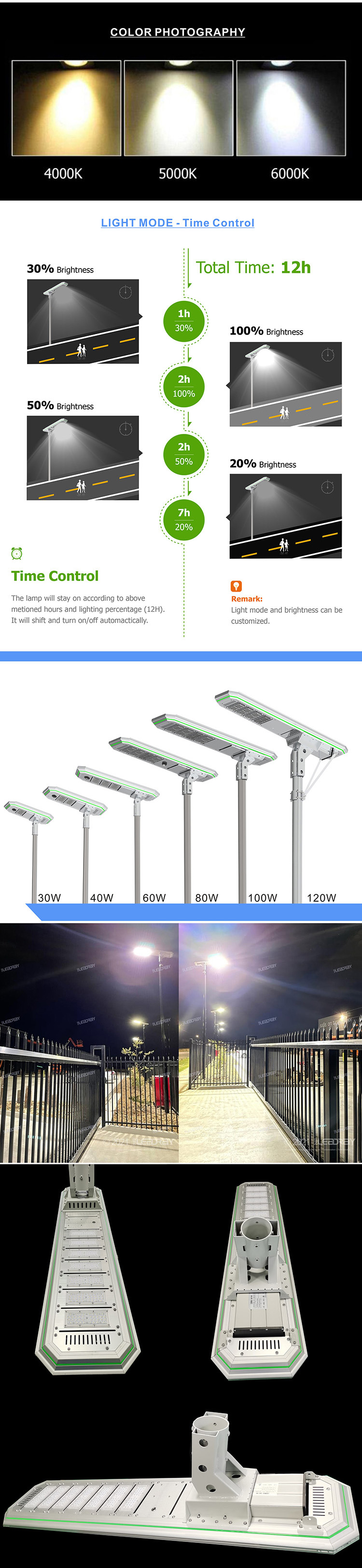

Time Control

1.The lamp will stay on according to above metioned hours and lighting percentage (12H).

2.It will shift and turn on/off automactically.

Outdoor Aluminum Road Solar LED Street Lights

Features & Specification
Solar Panel	Max Power	36V 120W
	Type	Monocrystalline
	Lifespan	25 years
Battery	Type	Lithium LiFePO4 battery
	Capacity	25.6V 768Wh
	Lifespan	8-10 years
Charge Time	By Strong Sunshine	6-8 hours
Lighting Time	Full Power	12-14hours
Lighting Time	30% saving mode	39 hours (3~5 rainy days)
Lighting Mode	Timer Control: 1hrs 30% lighting + 2hrs 100% lighting + 2hrs 50% lighting + 7hrs 20% lighting =12hours
Environment Parameter	Discharing temperature	-20 ℃ to +60 ℃
	Charging Temperature	0 ℃ to +60 ℃
	Storage temperature	-20 ℃ to +45 ℃
Installation	Mounting Height	9-11m
	Top pole diameter	90-100mm
	Space Between Lights	35-45m
Material	Superior aviation aluminum AL6063-T5
Features	1.Modular design,easy maintenance 2.Up to 210Lm/W,with optical design 3.Battery protection &heat dissipation design 4.Smart control management system
IP Rating	IP65

FAQ

Q1. Can I customize the light hours and brightness of the all in one LED solar street light product?

A1: Yes, our professional engineers will make the setting according to your requirements.

Q2. Can I have the all in one LED solar street light product without the sensor?

A2: Yes, All the LED solar street lights in all wattage can be made without the sensor, we will set timer-control for the lamps.

Q3. Can I use the all in one LED solar street light product on the islands?

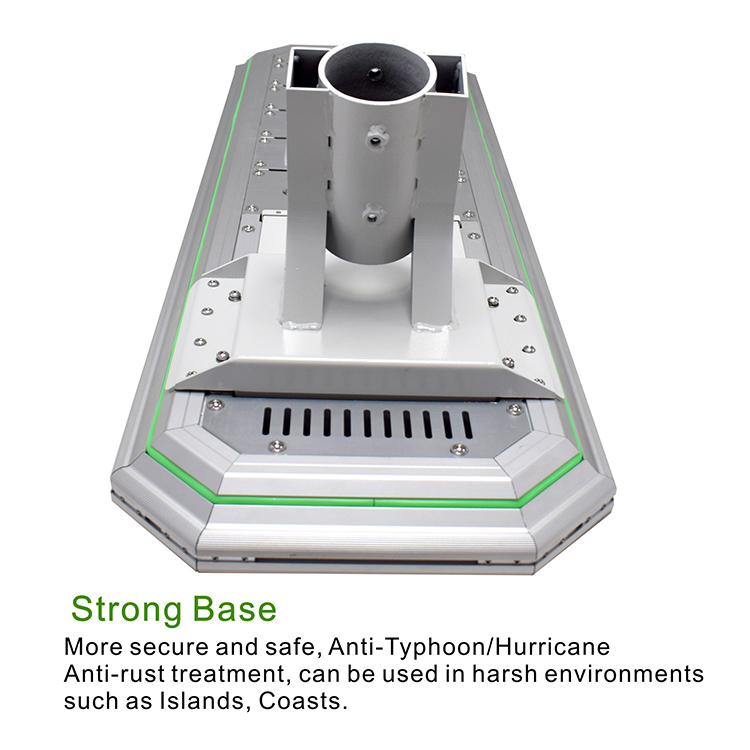

A3: Yes, they are Anti-Tyhpoon/hurricane design with anti-rust treatment, which can be used in harsh environments such as islands, coasts, and lakeside.

Q4. Can I have a sample order for the all in one LED solar street light product?

A4: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q5. What about the lead time?

A5: We could send sample for you within 7 working days, mass production time needs 1-2 weeks for order quantity more than 200pcs.

Q6: Do you offer guarantee for the products?

A6: Yes, we offer a standard 3-year warranty to our all in one LED solar street light product, a 5-year warranty is optional.

OEM & ODM Service

Brand, Logo,Color, Product Manual, Packaging etc....

18+ Years experience of Solar LED Lighting

Brand, Logo, Lighting mode, Brightness, Product Manual, Packaging, etc.
