lithium battery 30w outdoor new design all in one integrated led solar street light

lithium battery 30w outdoor new design all in one integrated led solar street light

Name: lithium battery 30w outdoor new design all in one integrated led solar street light
Availability: InStock

LRC-H Series LED Solar Street Light Features:

PRODUCT OVERVIEW

1. Up-to-day LED Technology with LED Modular Thermal Design.

2. Smart Battery Protection System, More stablequality and longer lifespan.

3. Modular Design,Battery can be drawn out easily .

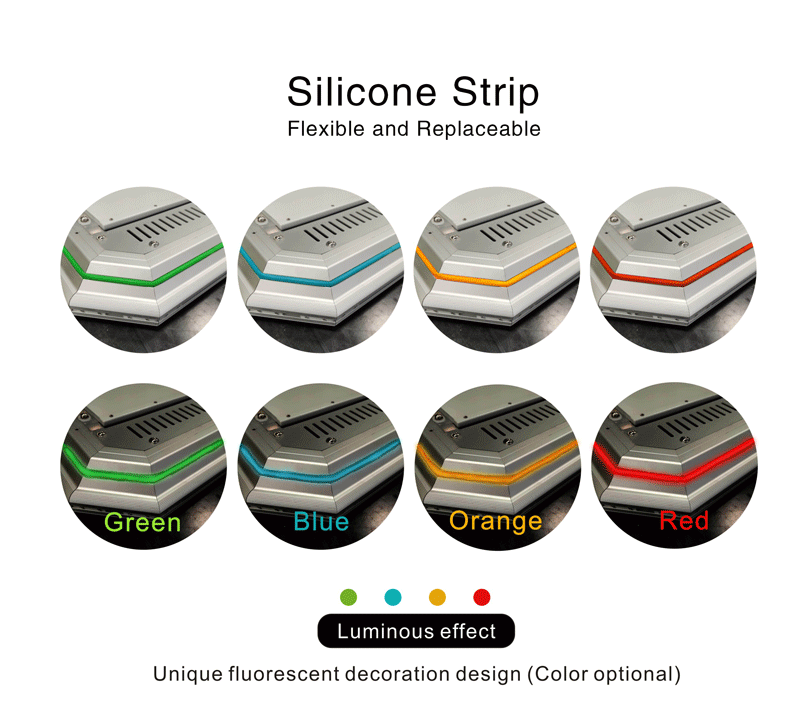

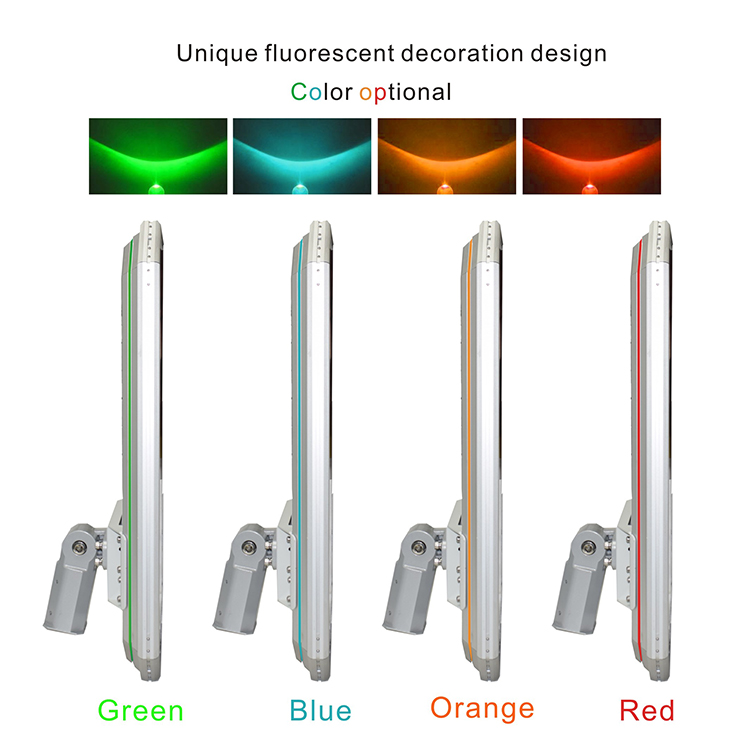

4.Unique fluorescent decoration design (Color optional)：Green / Red / Blue / Orange.

Integrated Battery Protection System

Military grade LiFePO4 Battery,High Safety and stability

Long lifespan, More than 2000 Battery light cycles

Secure metal structure around battery

Overcharge and over discharge protection

Payment :
T/T, Paypal, Western Union
Color :
Silver
Lead Time :
3~5 days for samples;15~20 days for bulk
Original Region :
China
Port Of Dispatch :
Qingdao
Infrared senor :
Available
Battery Type :
Lithium LiFePO4 Battery
Solar Panel Power :
18V 60W
LED Power :
30W
LED brand :
LEADRAY
Model No. :
LRC-H30W

Inquiry now

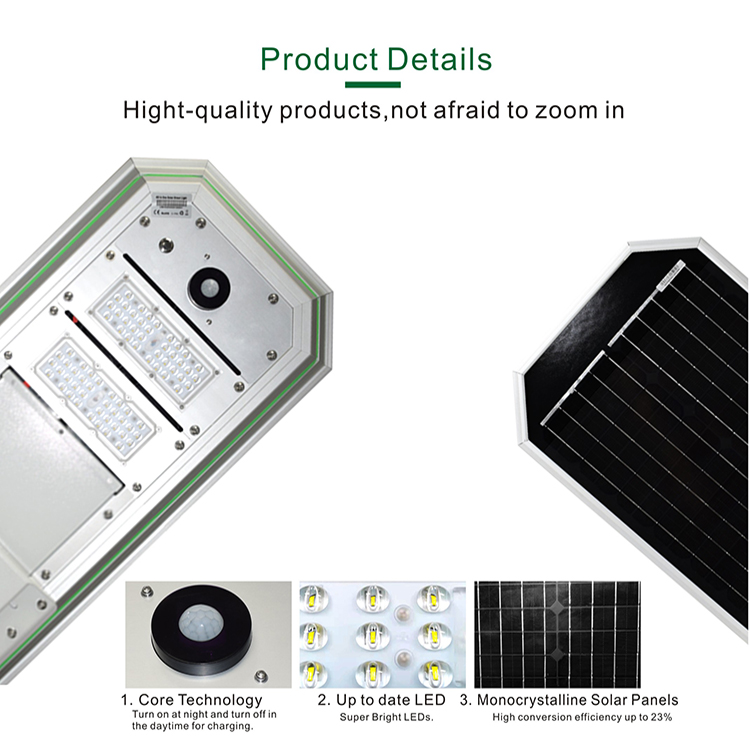

Product Details

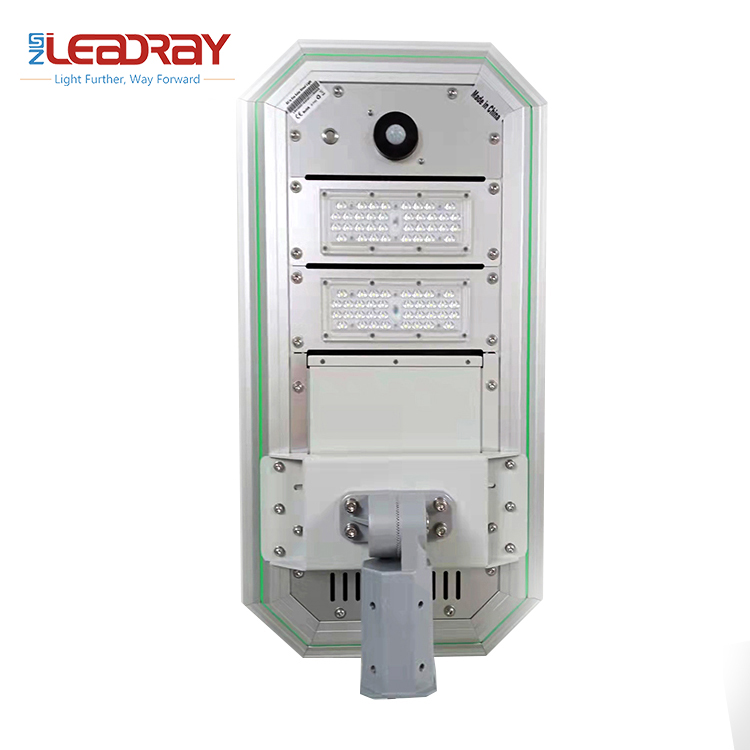

30W All In One Solar Street Light

All In One Solar Street Light: Integrated design/Free maintenance/Easy installation/Environmental Friendly

Model No: LRC-H30W

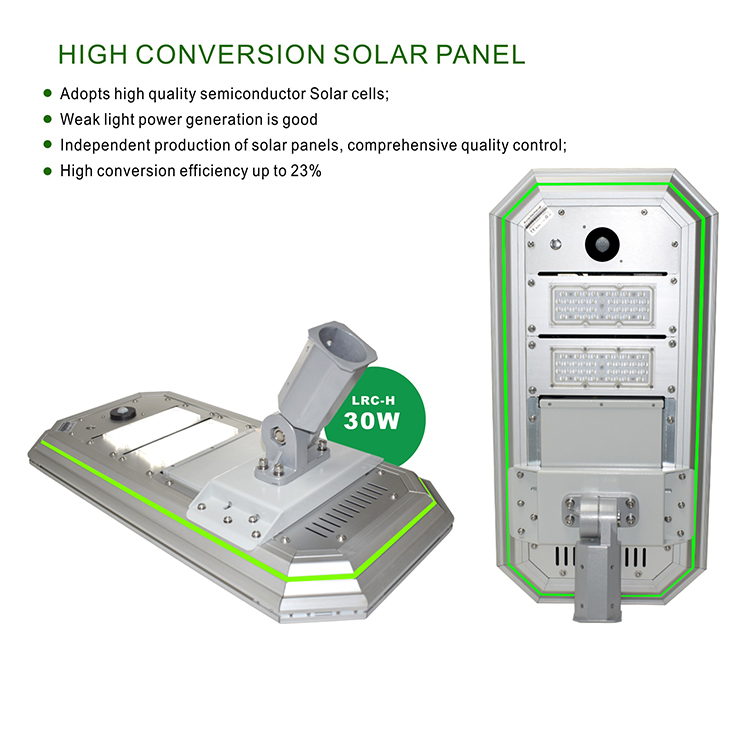

Solar Panel Power: 18V 60W (High efficiency monocrystalline silicon)

Battery Type: High efficiency LiFePO4 Battery

LED Brand: PHILIPS

LED Power: 30W

Luminous Flux: 12000Lm(TYP)

Lifespan: 50,000hrs

Beam Angel: 150x70°

Charging Time: 6-8 hours

Lighting Time(Full Power): 12-14hours

Lighting Time(30% saving mode): 39 hours (3~5 rainy days)

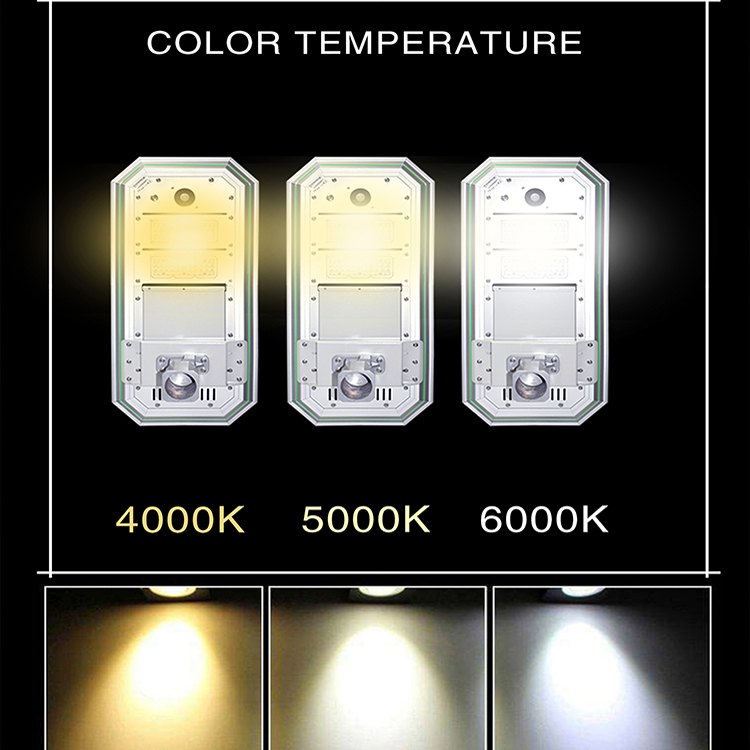

Color temperature: 2700~6500K

Discharing temperature: -20 ℃ to +60 ℃

Charging Temperature: 0 ℃ to +60 ℃

Storage temperature: -20 ℃ to +45 ℃

Mounting Height: 6-8m

Suggested Distance Between Lights: 25-30m

Material: Superior aviation aluminum AL6063-T5

Warranty: 3-5 years

led solar street light all in one

All In One Solar Street Light

Application : street/roadway/parking lot/community/Industry park/playground

Leadray Ip65 Outdoor Waterproof Road Streetlight Smd 30w 40w 60w 80w 100w 120w Integrated All in One Led Solar Street Light

Model	LRC-H30W	LRC-H40W	LRC-H60W	LRC-H80W	LRC-H100W	LRC-H120W
	Physical Parameter
LED Brand	PHILIPS	PHILIPS	PHILIPS	PHILIPS	PHILIPS	PHILIPS
LED Qty(pcs)	72	108	144	256	256	384
Power of PV Module(W)	18V 60W	18V 70W	18V 90W	18V 110W	36V 120W	36V 160W
LiFePO4 Battery Capacity	12.8V 307.2Wh	12.8V 384Wh	12.8V 460.8Wh	12.8V 537.6Wh	25.6V 768Wh	25.6V 921.6Wh
Light Mode	PIR/Time Control	PIR/Time Control	PIR/Time Control	Time Control	Time Control	Time Control
Product Dimension(mm)	75337360	89337360	112337360	117342360	141342360	171342360
Product N.W.(kg)	12	14	17	22	24	32.8
Package #1 Dimension(mm)& G.W. (2 Lamps/CTN)	820260460 (20.7KG)	960260460 (24.2KG)	1190260460 (29.5KG)	1240260510 (37.5KG)	1480330510 (46.1KG)	1780330510 (50.85KG)
Package #2 Dimension(mm)& G.W. (2 Bases/CTN)	380380190 (7KG)	380380190 (7KG)	380380320 (10.93KG)	430380320 (10.93KG)	510430450 (20.85KG)	510430450 (20.85KG)
	Light Parameter
Light Power(W)	30W	40W	60W	80W	100W	120W
Tyical Liminous Flux(Lm)	5400	7200	10800	14400	18000	21600
LED Light E ﬀ ect(Lm/W)	200Lm/W
Color Temperature(K)	2700-6500
Beam Angle(°)	150°x 80°
Rainy Days(D)	3~5
	Environment Parameter
Charging Temperaure( ℃ )	0 ℃ ~ +60 ℃
Discharging Temperature( ℃ )	-20 ℃ to +60 ℃
Storage Temperature( ℃ )	-20 ℃ to +45 ℃
	Installations
Dia. of Top Pole (mm)	50~60	50~60	70~80	70~80	90~100	90~100
Installation Height(m)	4~6	5~7	6~8	8~10	9~11	10~12
Installation Distance (m)	15~25	20~30	25~35	30~40	35~45	40~50

integrated led solar street light outdoorLRC-H 30W Solar Street Lights All-in-one Solar

solar all in one street light

solar street lights for sale

Solar Street Light

Outdoor Aluminum Road Solar LED Street Lights

Solar Street Light

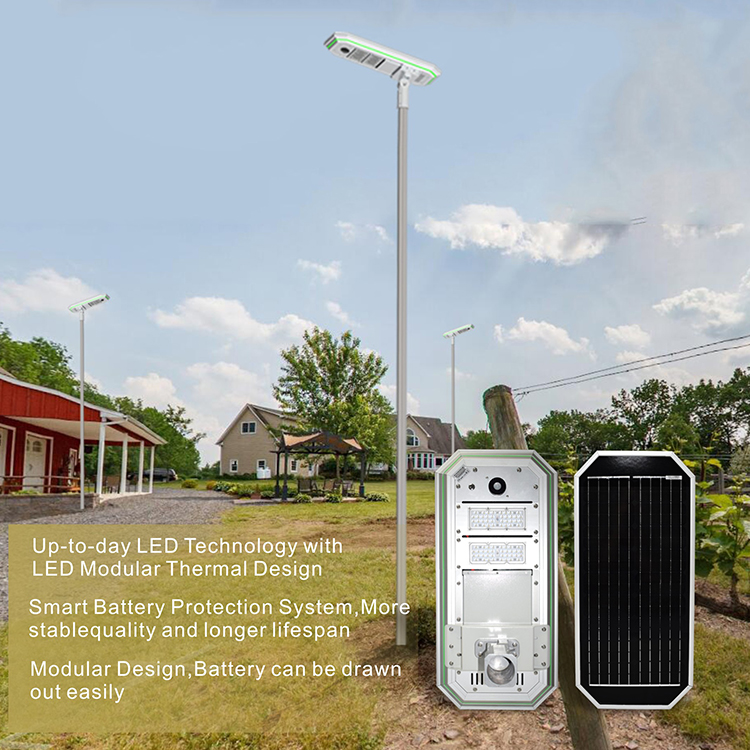

1. Up-to-day LED Technology with LED Modular Thermal Design.

2. Smart Battery Protection System, More stablequality and longer lifespan.

3. Modular Design,Battery can be drawn out easily .

4.Unique fluorescent decoration design (Color optional)：Green / Red / Blue / Orange.

Integrated Battery Protection System

Military grade LiFePO4 Battery,High Safety and stability

Long lifespan, More than 2000 Battery light cycles

Secure metal structure around battery

Overcharge and over discharge protection

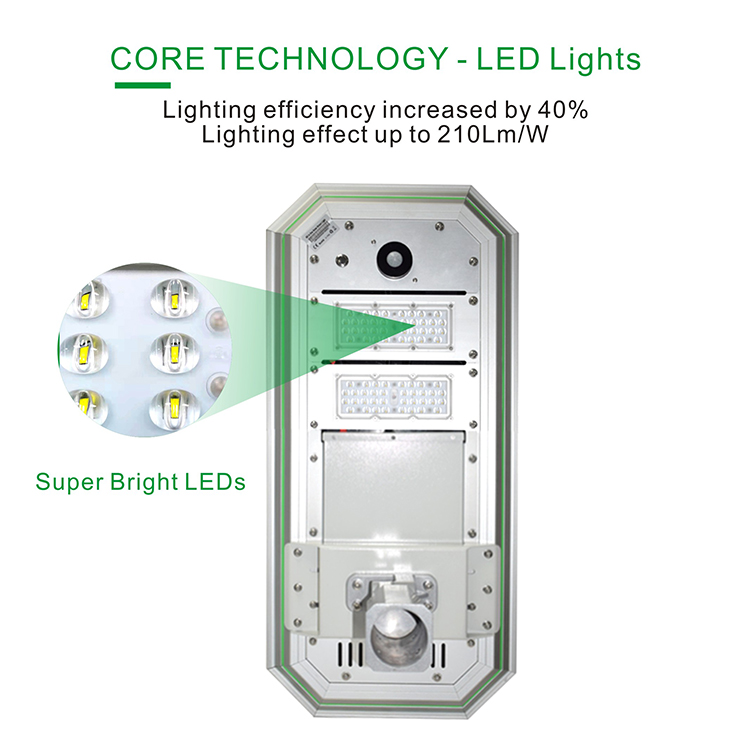

Super Bright LEDS

1.Up to date Super Bright LEDs, Lighting effect up to 210Lm/W.

2. Drive by low current, more energy efficient, Lighting efficiency increased by 40%.

3. Ultra-low light decay, lifespan up to 80,000 hours.

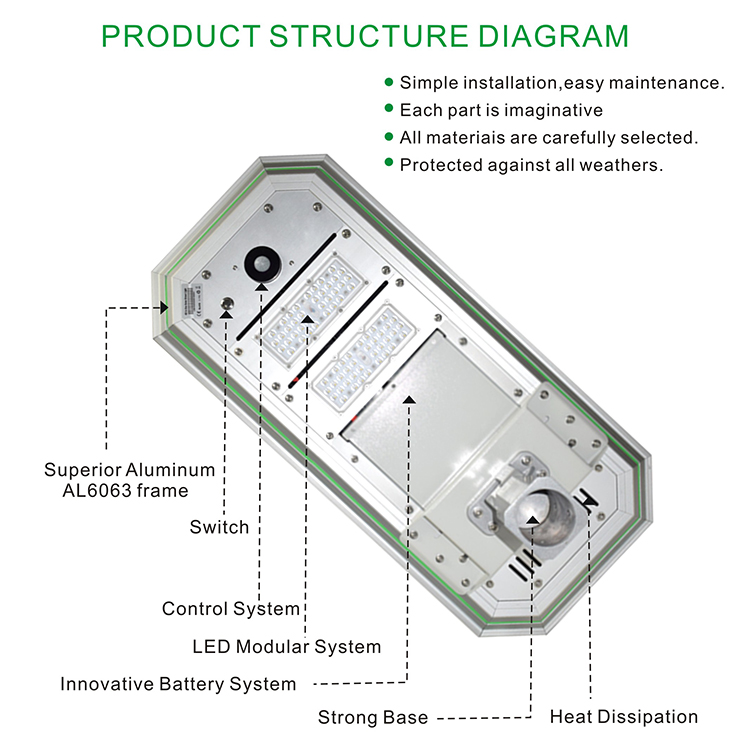

LED Modular System Design

1. Rectangular bat wing light distribution for road lighting Optimized light distribution for a more uniform and wider lighting area.

2. Integrated optical lens design, Light transmittance up to 93%.

3. Customized heat sink, better heat dissipation and waterproof ability.

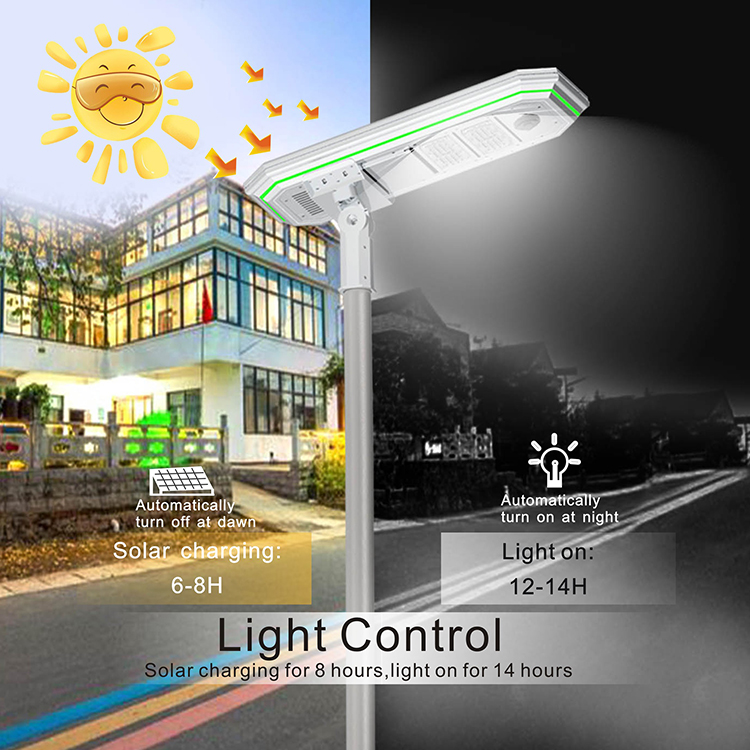

Time Control

1.The lamp will stay on according to above metioned hours and lighting percentage (12H).

2.It will shift and turn on/off automactically.

FAQ

Q1. Can I customize the light hours and brightness of the all in one LED solar street light product?

A1: Yes, our professional engineers will make the setting according to your requirements.

Q2. Can I have the all in one LED solar street light product without the sensor?

A2: Yes, All the LED solar street lights in all wattage can be made without the sensor, we will set timer-control for the lamps.

Q3. Can I use the all in one LED solar street light product on the islands?

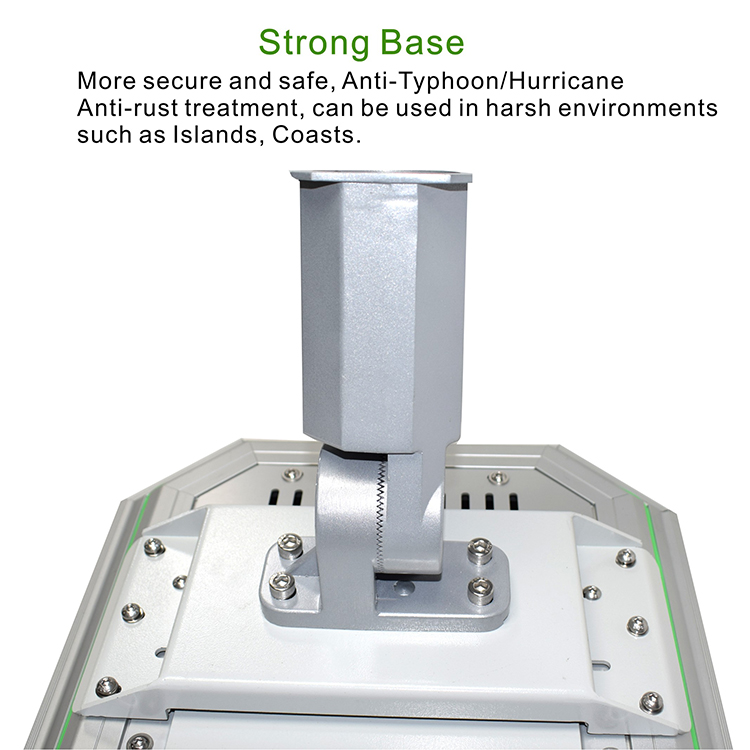

A3: Yes, they are Anti-Tyhpoon/hurricane design with anti-rust treatment, which can be used in harsh environments such as islands, coasts, and lakeside.

Q4. Can I have a sample order for the all in one LED solar street light product?

A4: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q5. What about the lead time?

A5: We could send sample for you within 7 working days, mass production time needs 1-2 weeks for order quantity more than 200pcs.

Q6: Do you offer guarantee for the products?

A6: Yes, we offer a standard 3-year warranty to our all in one LED solar street light product, a 5-year warranty is optional.

Q7. How do you ship the goods and how long does it take to arrive?

A7: We usually ship by DHL, UPS, FedEx or TNT for sample orders. It usually takes 3-5 days to arrive. Airline and sea shipping is preferable for bulk order.

Q8. How to proceed an order for all in one LED solar street light?

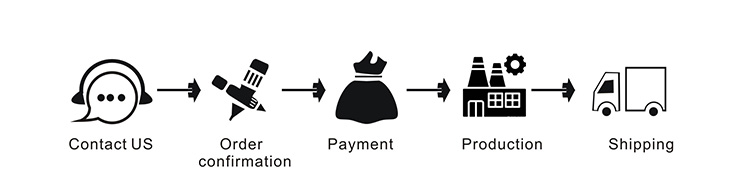

A8: Firstly, Let us know the mode number and the quantity you want to order or tell us your requirements on the all in one LED solar street light. Secondly, We will quote accordingly.Thirdly, a proforma invoice(PI) will be sent to you after you confirm the item and quantity so you can arrange the payment. Fourthly, We arrange the production and make shipment.

Q9. Is it OK to print my logo on the all in one LED solar street light product?

A9: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q10: How to deal with the faulty?

A10: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.1%. Secondly, during the guarantee period, we will send new lights or parts with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
