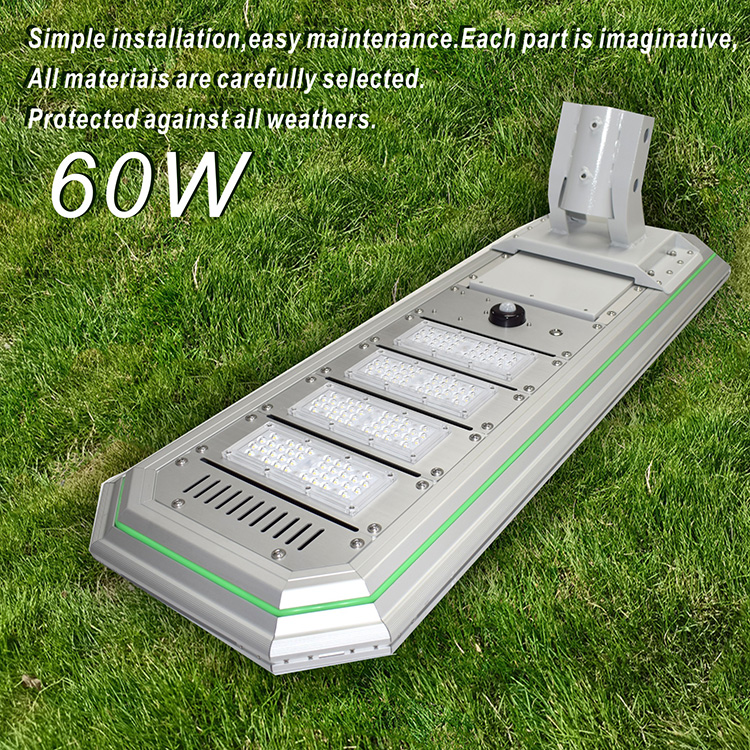

IP65 Waterproof Luminous Flux 10800Lm 30W-120W Outdoor Solar Street Light System
All In One Solar Street Light: Integrated Design/Free Maintenance/Easy Installation/Environmental Friendly.
Payment :
T/T, Paypal, Western UnionColor :
SilverLead Time :
3~5 days for samples;15~20 days for bulkOriginal Region :
ChinaPort Of Dispatch :
QingdaoInfrared senor :
AvailableBattery Type :
Lithium LiFePO4 BatterySolar Panel Power :
18V 90WLED Power :
60WLED brand :
LEADRAYModel No. :
LRC-H60W
High temperature IP65 30W 40W 60W 80W 100W 120W Outdoor farola solar All In One Integrated led solar street light
Solar Street light poles for street lighting
All In One Solar Street Light: Integrated design/Free maintenance/Easy installation/Environmental Friendly
Warranty: 3-5 years
| Physical Parameter | ||||||
| LED Brand | PHILIPS | PHILIPS | PHILIPS | PHILIPS | PHILIPS | PHILIPS |
| LED Qty(pcs) | 72 | 108 | 144 | 256 | 256 | 384 |
| Power of PV Module(W) | 18V 60W | 18V 70W | 18V 90W | 18V 110W | 36V 120W | 36V 160W |
|
LiFePO4
Battery Capacity
|
12.8V 307.2Wh | 12.8V 384Wh | 12.8V 460.8Wh | 12.8V 537.6Wh | 25.6V 768Wh | 25.6V 921.6Wh |
| Light Mode | PIR/Time Control | PIR/Time Control | PIR/Time Control | Time Control | Time Control | Time Control |
| Product Dimension(mm) | 753*373*60 | 893*373*60 | 1123*373*60 | 1173*423*60 | 1413*423*60 | 1713*423*60 |
| Product N.W.(kg) | 12 | 14 | 17 | 22 | 24 | 32.8 |
| Package #1 Dimension(mm)& G.W. (2 Lamps/CTN) | 820*260*460 (20.7KG) | 960*260*460 (24.2KG) | 1190*260*460 (29.5KG) | 1240*260*510 (37.5KG) | 1480*330*510 (46.1KG) | 1780*330*510 (50.85KG) |
| Package #2 Dimension(mm)& G.W. (2 Bases/CTN) | 380*380*190 (7KG) | 380*380*190 (7KG) | 380*380*320 (10.93KG) | 430*380*320 (10.93KG) | 510*430*450 (20.85KG) | 510*430*450 (20.85KG) |
| Light Parameter | ||||||
| Light Power(W) | 30W | 40W | 60W | 80W | 100W | 120W |
|
Tyical Liminous
Flux(Lm)
|
5400 | 7200 | 10800 | 14400 | 18000 | 21600 |
| LED Light E ff ect(Lm/W) | 200Lm/W | |||||
| Color Temperature(K) | 2700-6500 | |||||
| Beam Angle(°) | 150°x 80° | |||||
| Rainy Days(D) | 3~5 | |||||
| Environment Parameter | ||||||
|
Charging
Temperaure( ℃ )
|
0 ℃ ~ +60 ℃ | |||||
|
Discharging
Temperature( ℃ )
|
-20 ℃ to +60 ℃ | |||||
|
Storage
Temperature( ℃ )
|
-20 ℃ to +45 ℃ | |||||
| Installations | ||||||
| Dia. of Top Pole (mm) | 50~60 | 50~60 | 70~80 | 70~80 | 90~100 | 90~100 |
| Installation Height(m) | 4~6 | 5~7 | 6~8 | 8~10 | 9~11 | 10~12 |
|
Installation
Distance (m)
|
15~25 | 20~30 | 25~35 | 30~40 | 35~45 | 40~50 |

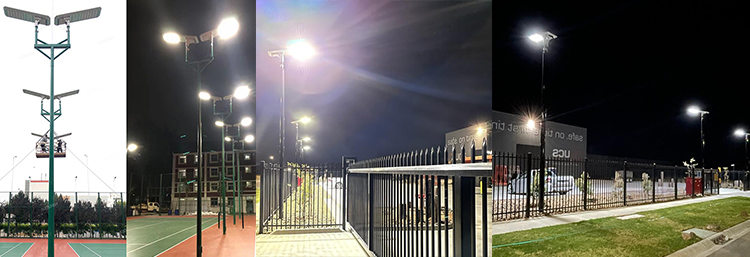

Application： street/roadway/parking lot/community/Industry park/playground
Application : street/roadway/parking lot/community/Industry park/playground

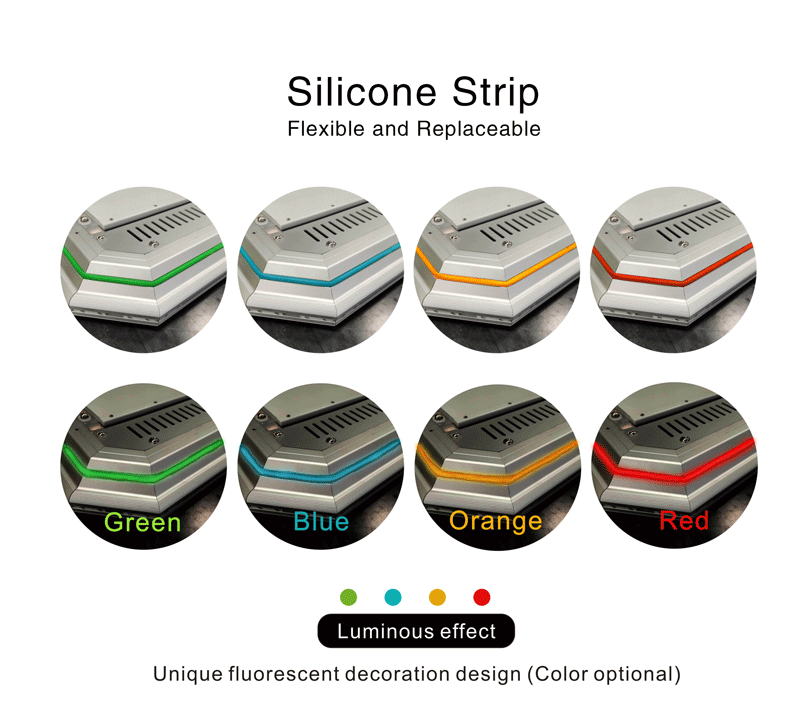

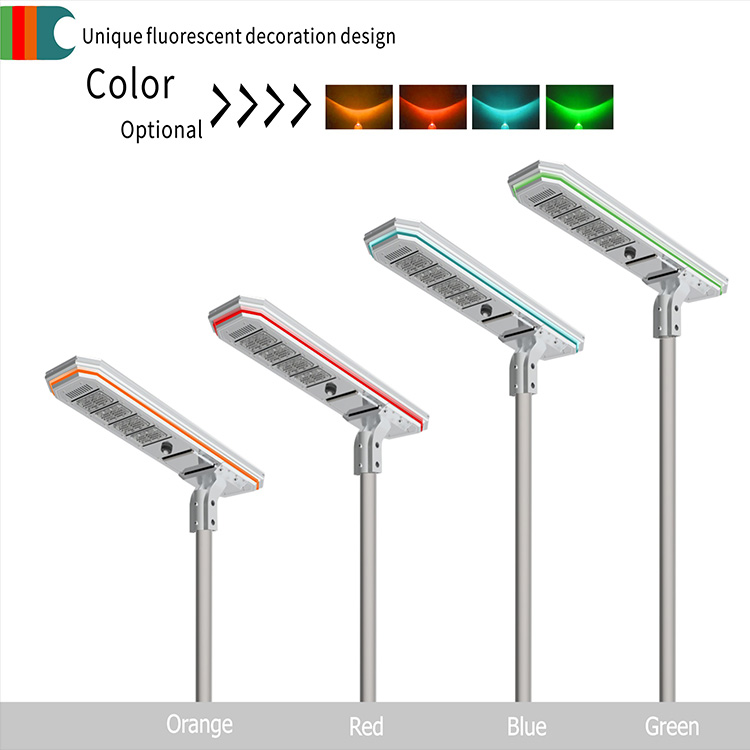

4.Unique fluorescent decoration design (Color optional)：Green / Red / Blue / Orange.
Overcharge and over discharge protection
Super Bright LEDS
3. Ultra-low light decay, lifespan up to 80,000 hours.

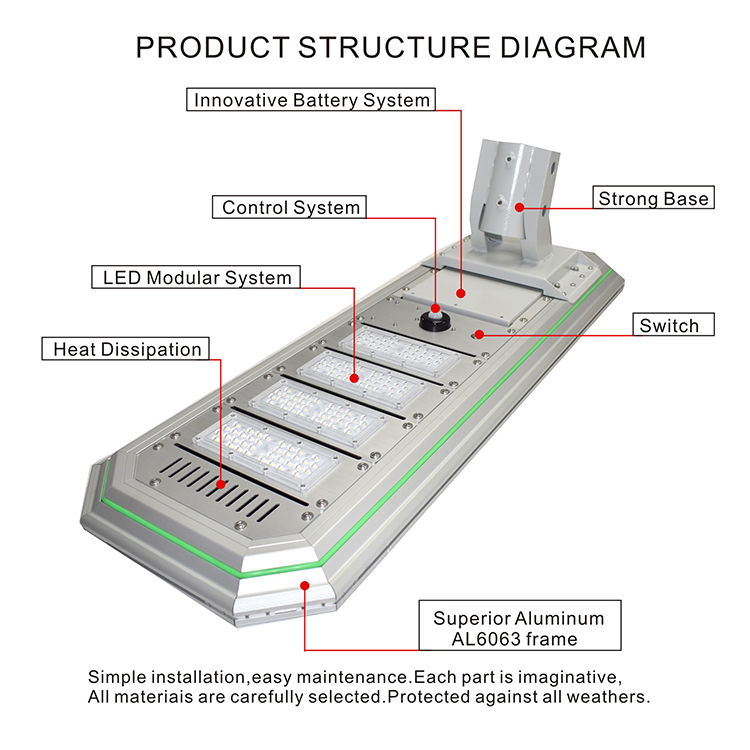

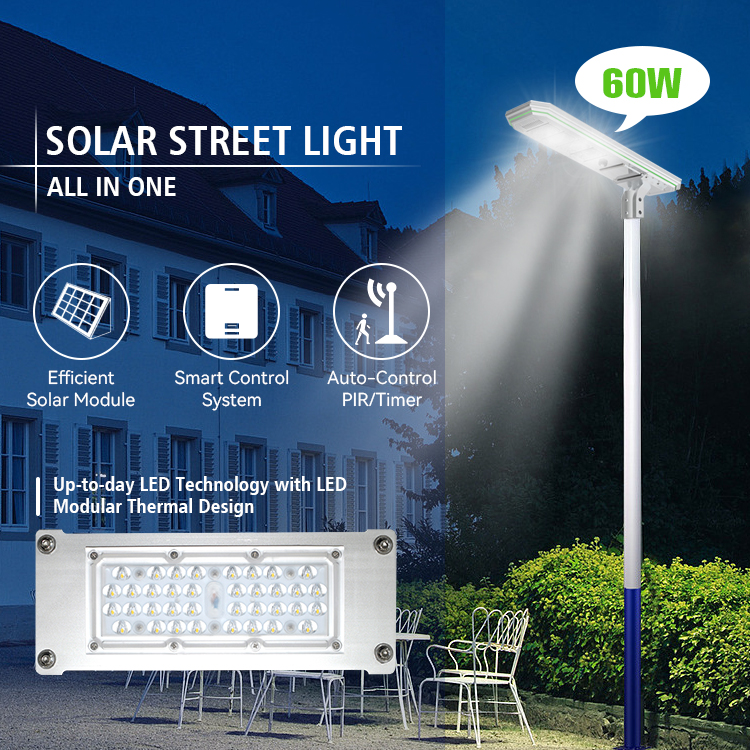

LED Modular System Design
3. Customized heat sink, better heat dissipation and waterproof ability.
Time Control
2.It will shift and turn on/off automactically.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
A1: Yes, our professional engineers will make the setting according to your requirements.
Q2. Can I have the all in one LED solar street light product without the sensor?
A2: Yes, All the LED solar street lights in all wattage can be made without the sensor, we will set timer-control for the lamps.
Q3. Can I use the all in one LED solar street light product on the islands?

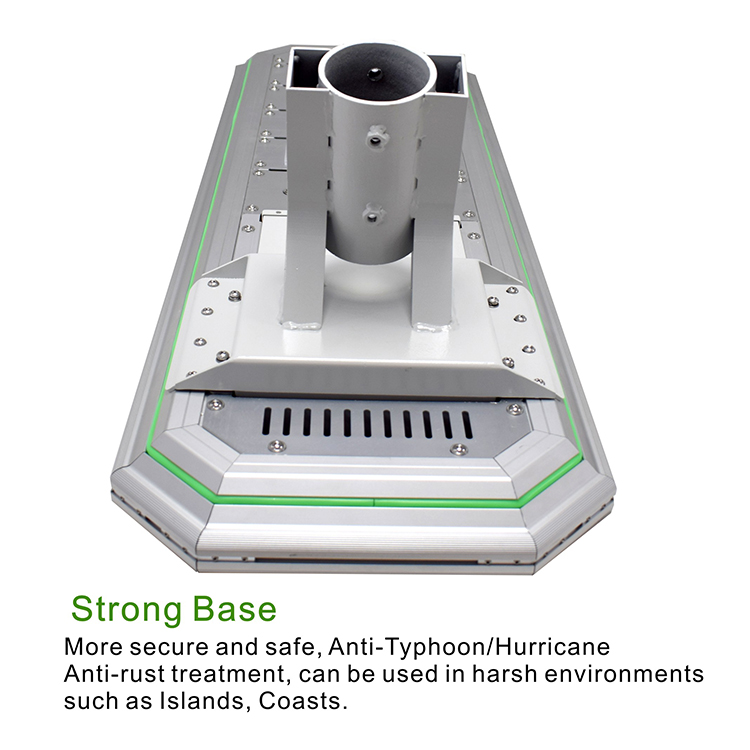

A3: Yes, they are Anti-Tyhpoon/hurricane design with anti-rust treatment, which can be used in harsh environments such as islands, coasts, and lakeside.
Q4. Can I have a sample order for the all in one LED solar street light product?
A4: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q5. What about the lead time?
A5: We could send sample for you within 7 working days, mass production time needs 1-2 weeks for order quantity more than 200pcs.
Q6: Do you offer guarantee for the products?
A6: Yes, we offer a standard 3-year warranty to our all in one LED solar street light product, a 5-year warranty is optional.
