120W Waterproof Integrated Outdoor Luminaria Garden Solar Street Lights

120W Waterproof Integrated Outdoor Luminaria Garden Solar Street Lights

Name: 120W Waterproof Integrated Outdoor Luminaria Garden Solar Street Lights
Availability: InStock

Quick Details

Place of Origin:Shandong, China

Application:Roadway

IP Rating:IP65

Beam Angle(°):150*80°

CRI (Ra>):75

Input Voltage(V):DC 12V

Lamp Luminous Efficiency(lm/w):210

Lamp Luminous Flux(lm):21600Lm(TYP)

Payment :
T/T, Paypal, Western Union
Color :
Silver
Lead Time :
3~5 days for samples;15~20 days for bulk
Original Region :
China
Port Of Dispatch :
Qingdao
Infrared senor :
No
Battery Type :
Lithium LiFePO4 Battery
Solar Panel Power :
36V 160W
LED Power :
120W
LED brand :
LEADRAY
Model No. :
LRC-H120W

Inquiry now

Product Details

Quality Long Lifespan 120w IP65 Solar Light Waterproof 30W 40W 60W 80W 100w 120w Outdoor Aluminum Road Solar LED Street Lights

All In One Solar Street Light: Integrated design/Free maintenance/Easy installation/Environmental Friendly

solar energy system street lights

Model No: LRC-H120W

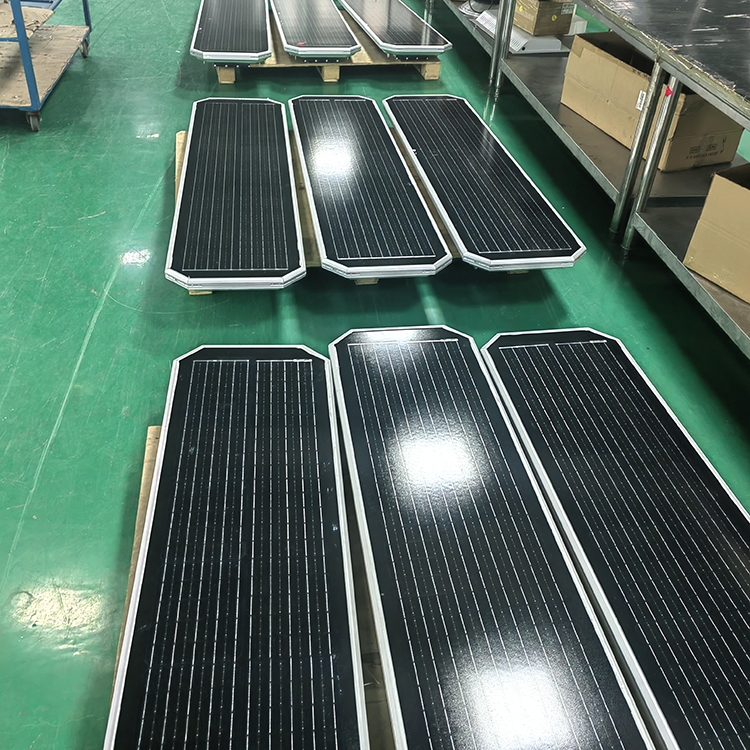

Solar Panel Power: 36V 160W (High efficiency monocrystalline silicon)

Battery Type: High efficiency LiFePO4 Battery

LED Brand: PHILIPS

LED Power: 120W

Luminous Flux: 21600Lm(TYP)

Lifespan: 50,000hrs

Beam Angel: 150x70°

Charging Time: 6-8 hours

Lighting Time(Full Power): 12-14hours

Lighting Time(30% saving mode): 39 hours (3~5 rainy days)

Color temperature: 2700~6500K

Discharing temperature: -20 ℃ to +60 ℃

Charging Temperature: 0 ℃ to +60 ℃

Storage temperature: -20 ℃ to +45 ℃

Mounting Height: 10-12m

Suggested Distance Between Lights: 40-50m

Material: Superior aviation aluminum AL6063-T5

Warranty: 3-5 years

Support Dimmer:Yes

Lighting solutions service:Lighting hours and brightness adjustable

Product Weight（kg）:32.85

LED Lights Quantity:72pcs/108pcs/144pcs/256pcs/256pcs/384pcs

Battery Capacity 1:30W=12.8V, 307.2Wh; 40W=12.8V, 384Wh; 60W=12.8V, 460.8Wh

Battery Capacity 2:80W=12.8V, 537.6Wh; 100W=25.6V, 768Wh; 120W=25.6V, 921.6Wh;

Light Mode:PIR Motion Sensor/Timer Control

Solar Panel Lifespan:25 years

Lighting Mode PIR Sensor:30% brightness when no motion, 100% Brightness whe motion dectected.

Battery Capacity:25.6V 921.6Wh

Supply Ability:3000 Set/Sets per Month

All In One Solar Street Light

120w Super Bright Solar Lights led IP65 Outdoor Indoor With Adjustable Head Wide Lighting Angle Solar Street Light

Model	LRC-H30W	LRC-H40W	LRC-H60W	LRC-H80W	LRC-H100W	LRC-H120W
	Physical Parameter
LED Brand	PHILIPS	PHILIPS	PHILIPS	PHILIPS	PHILIPS	PHILIPS
LED Qty(pcs)	72	108	144	256	256	384
Power of PV Module(W)	18V 60W	18V 70W	18V 90W	18V 110W	36V 120W	36V 160W
LiFePO4 Battery Capacity	12.8V 307.2Wh	12.8V 384Wh	12.8V 460.8Wh	12.8V 537.6Wh	25.6V 768Wh	25.6V 921.6Wh
Light Mode	PIR/Time Control	PIR/Time Control	PIR/Time Control	Time Control	Time Control	Time Control
Product Dimension(mm)	75337360	89337360	112337360	117342360	141342360	171342360
Product N.W.(kg)	12	14	17	22	24	32.8
Package #1 Dimension(mm)& G.W. (2 Lamps/CTN)	820260460 (20.7KG)	960260460 (24.2KG)	1190260460 (29.5KG)	1240260510 (37.5KG)	1480330510 (46.1KG)	1780330510 (50.85KG)
Package #2 Dimension(mm)& G.W. (2 Bases/CTN)	380380190 (7KG)	380380190 (7KG)	380380320 (10.93KG)	430380320 (10.93KG)	510430450 (20.85KG)	510430450 (20.85KG)
	Light Parameter
Light Power(W)	30W	40W	60W	80W	100W	120W
Tyical Liminous Flux(Lm)	5400	7200	10800	14400	18000	21600
LED Light E ﬀ ect(Lm/W)	200Lm/W
Color Temperature(K)	2700-6500
Beam Angle(°)	150°x 80°
Rainy Days(D)	3~5
	Environment Parameter
Charging Temperaure( ℃ )	0 ℃ ~ +60 ℃
Discharging Temperature( ℃ )	-20 ℃ to +60 ℃
Storage Temperature( ℃ )	-20 ℃ to +45 ℃
	Installations
Dia. of Top Pole (mm)	50~60	50~60	70~80	70~80	90~100	90~100
Installation Height(m)	4~6	5~7	6~8	8~10	9~11	10~12
Installation Distance (m)	15~25	20~30	25~35	30~40	35~45	40~50

LRC-H Series LED Solar Street Light Features:

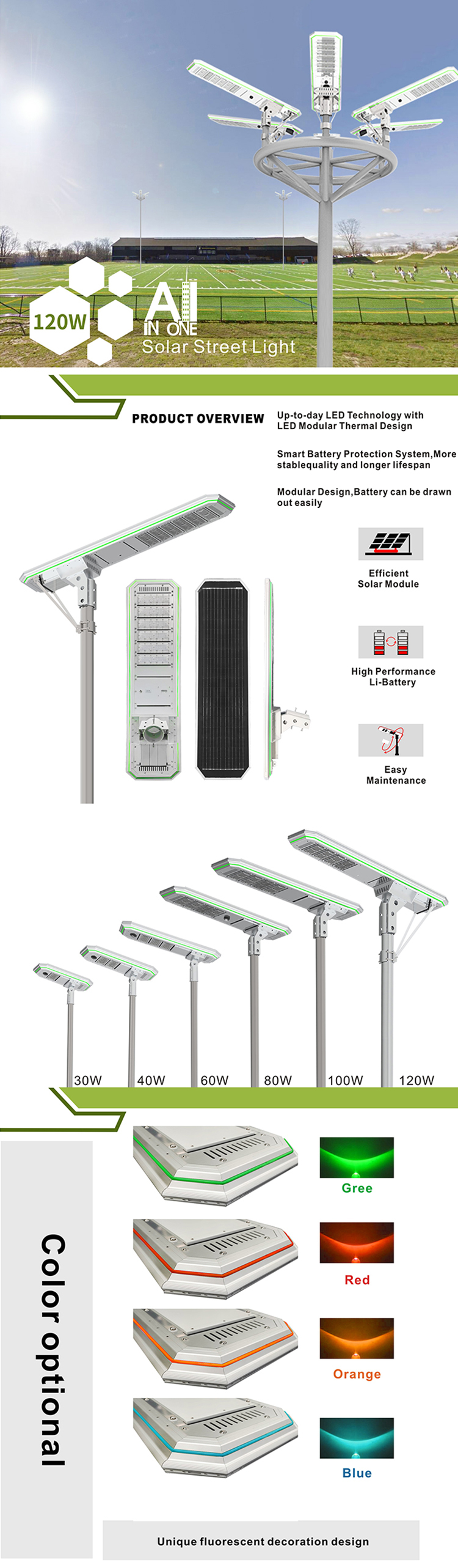

PRODUCT OVERVIEW

1. Up-to-day LED Technology with LED Modular Thermal Design.

2. Smart Battery Protection System, More stablequality and longer lifespan.

3. Modular Design,Battery can be drawn out easily .

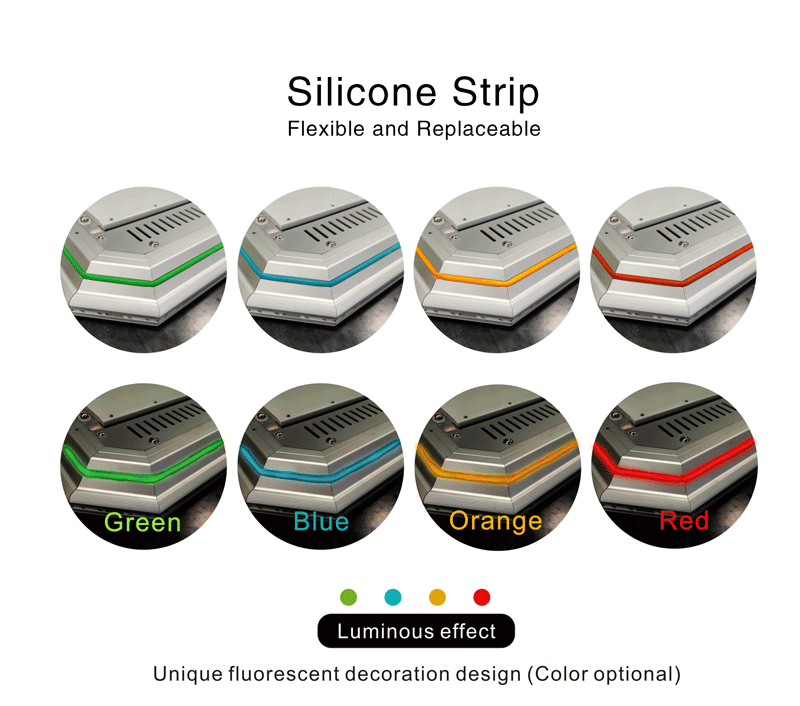

4.Unique fluorescent decoration design (Color optional)：Green / Red / Blue / Orange.

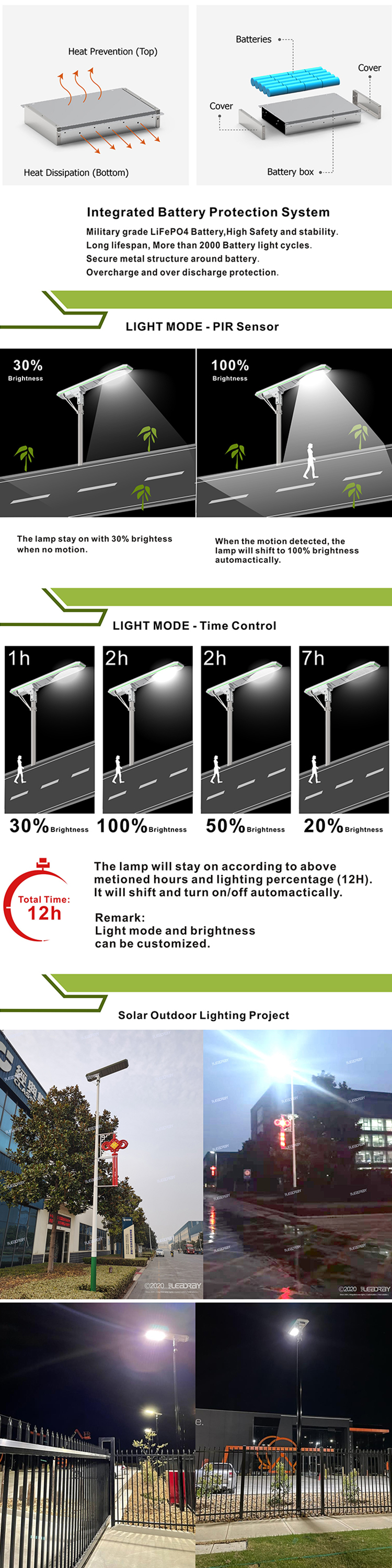

Integrated Battery Protection System

Military grade LiFePO4 Battery,High Safety and stability

Long lifespan, More than 2000 Battery light cycles

Secure metal structure around battery

Overcharge and over discharge protection

Super Bright LEDS

1.Up to date Super Bright LEDs, Lighting effect up to 210Lm/W.

2. Drive by low current, more energy efficient, Lighting efficiency increased by 40%.

3. Ultra-low light decay, lifespan up to 80,000 hours.

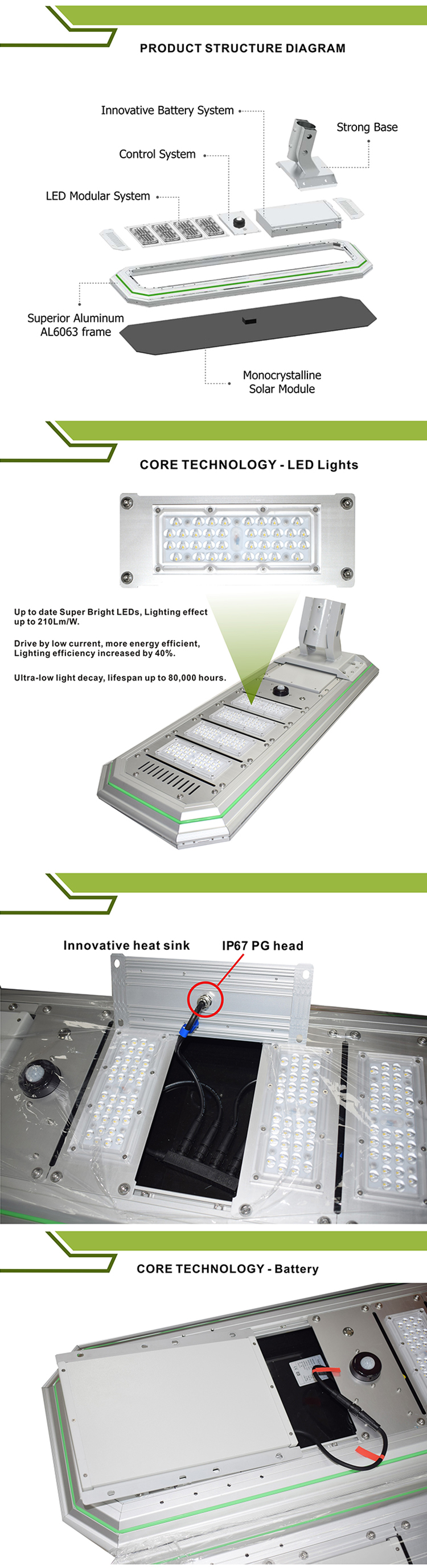

LED Modular System Design

1. Rectangular bat wing light distribution for road lighting Optimized light distribution for a more uniform and wider lighting area.

2. Integrated optical lens design, Light transmittance up to 93%.

3. Customized heat sink, better heat dissipation and waterproof ability.

Time Control

1.The lamp will stay on according to above metioned hours and lighting percentage (12H).

2.It will shift and turn on/off automactically.

Outdoor Aluminum Road Solar LED Street Lights

Application : street/roadway/parking lot/community/Industry park/playground

Features & Specification
Solar Panel	Max Power	36V 160W
	Type	Monocrystalline
	Lifespan	25 years
Battery	Type	Lithium LiFePO4 battery
	Capacity	25.6V 921.6Wh
	Lifespan	8-10 years
LED Source	Max Power	24V 120W
	Luminous Flux	21600Lm(TYP)
	Lifespan	50,000hrs
	Color Temperature	2700-6500K
	CRI	>75Ra
	Beam Angle	150x80°
Charge Time	By Strong Sunshine	6-8 hours
Lighting Time	Full Power	12-14hours
Lighting Time	30% saving mode	39 hours (3~5 rainy days)
Lighting Mode	Timer Control: 1hrs 30% lighting + 2hrs 100% lighting + 2hrs 50% lighting + 7hrs 20% lighting =12hours
Environment Parameter	Discharing temperature	-20 ℃ to +60 ℃
	Charging Temperature	0 ℃ to +60 ℃
	Storage temperature	-20 ℃ to +45 ℃
Installation	Mounting Height	10-12m
	Top pole diameter	90-100mm
	Space Between Lights	40-50m
Material	Superior aviation aluminum AL6063-T5
Certification	CE RoHs SASO IEC
Features	1.Modular design,esay maintenance 2.Up to 210Lm/W,with optical design 3.Battery protection &heat dissipation design 4.Smart control management system

FAQ

Q1. Can I customize the light hours and brightness of the all in one LED solar street light product?

A1: Yes, our professional engineers will make the setting according to your requirements.

Q2. Can I have the all in one LED solar street light product without the sensor?

A2: Yes, All the LED solar street lights in all wattage can be made without the sensor, we will set timer-control for the lamps.

Q3. Can I use the all in one LED solar street light product on the islands?

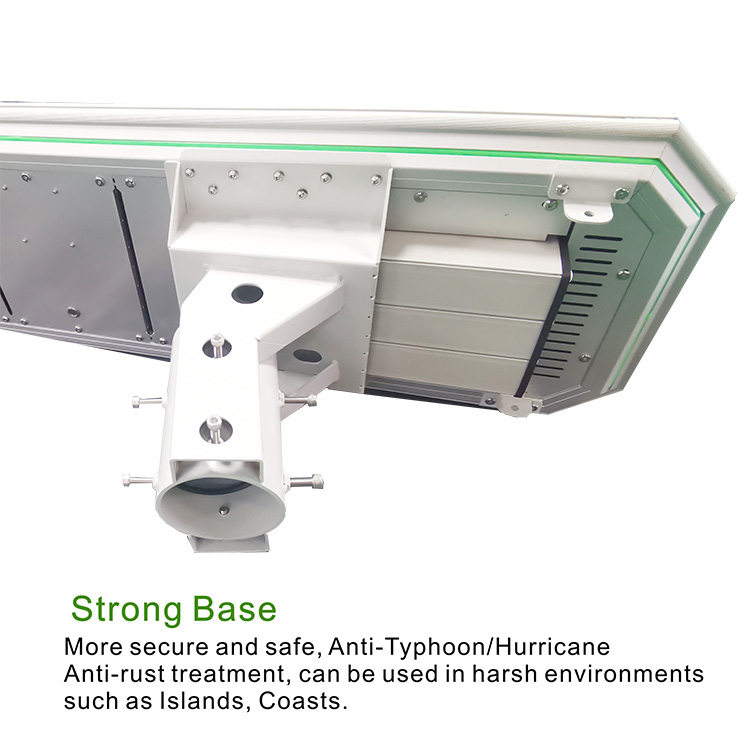

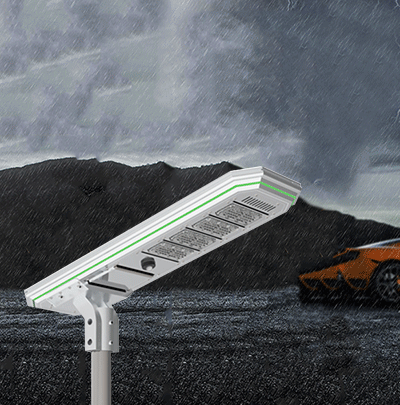

A3: Yes, they are Anti-Tyhpoon/hurricane design with anti-rust treatment, which can be used in harsh environments such as islands, coasts, and lakeside.

Q4. Can I have a sample order for the all in one LED solar street light product?

A4: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q5. What about the lead time?

A5: We could send sample for you within 7 working days, mass production time needs 1-2 weeks for order quantity more than 200pcs.

Q6: Do you offer guarantee for the products?

A6: Yes, we offer a standard 3-year warranty to our all in one LED solar street light product, a 5-year warranty is optional.

OEM & ODM Service

Brand, Logo,Color, Product Manual, Packaging etc....

18+ Years experience of Solar LED Lighting

Brand, Logo, Lighting mode, Brightness, Product Manual, Packaging, etc.
