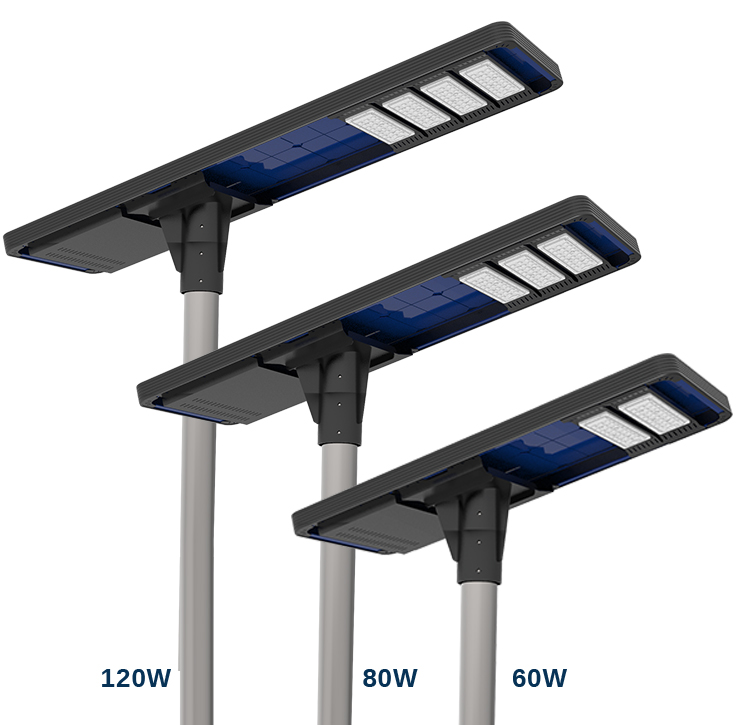

Integrated Solar LED All In One Street Lamp Solar Street Light 60W 80W 120W High Conversion Solar Panel Solar Lamp With Remote Control
Infrared senor :
NOBattery Type :
Lithium LiFePO4 batterySolar Panel Power :
120WLED Power :
18V 130WLED brand :
LEADRAYModel No. :
LHS-120W
Shenzhen Leadray Optoelectronic Co., Ltd.
Multispecialty supplier 19
yrs
3. Ultra-low light decay, lifespan up to 80,000 hours.

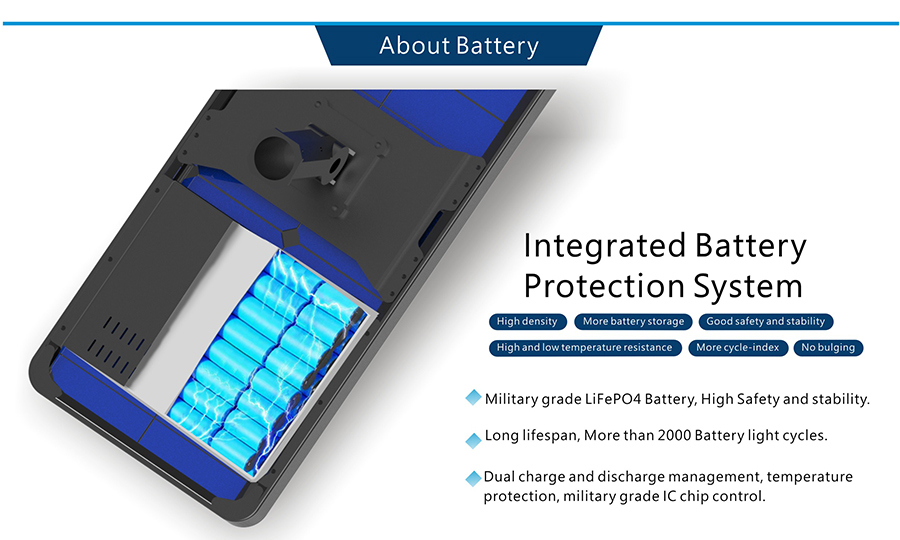

Military grade LiFePO4 Battery, High Safety and stability.
Long lifespan, More than 2000 Battery light cycles.
Dual charge and discharge management, temperature
protection, military grade IC chip control.

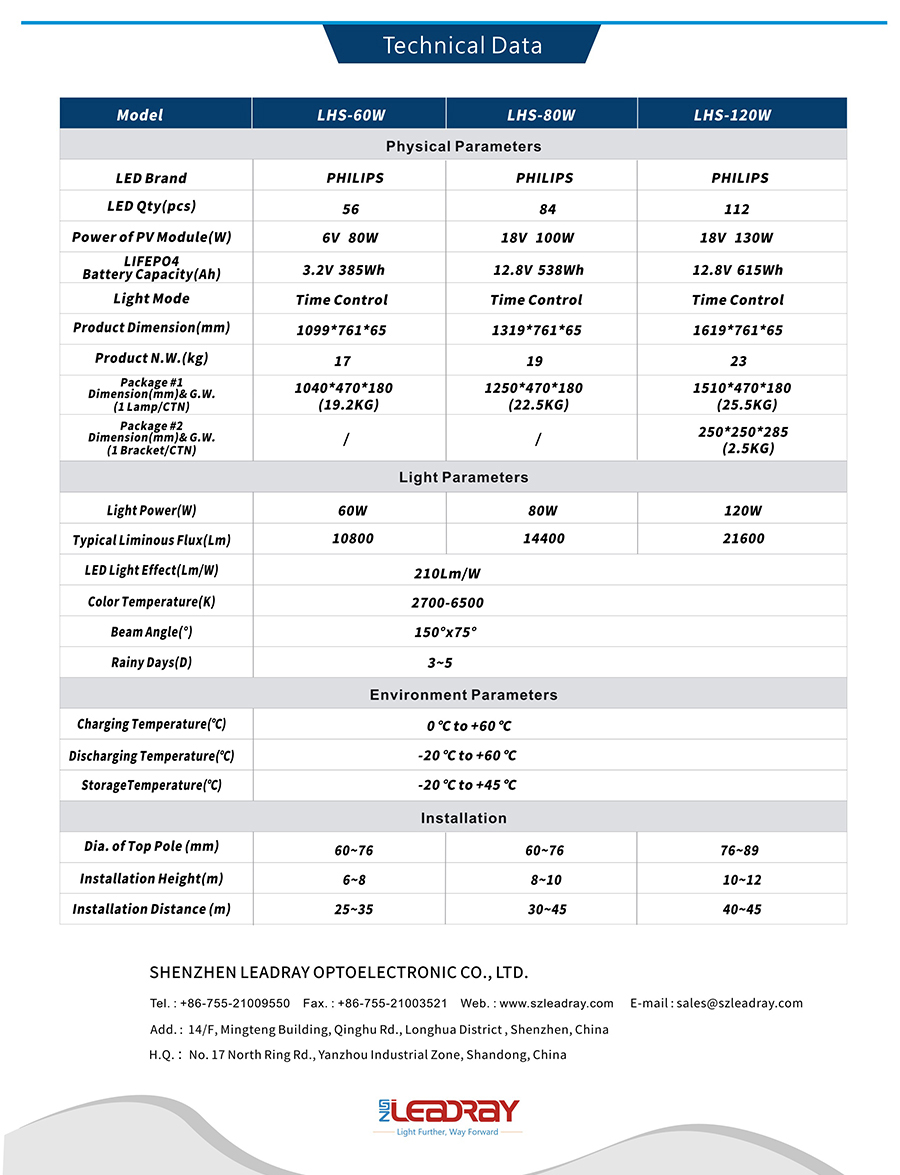

| Model | LHS-60W | LHS-80W | LHS-120W |
| Physical Parameters | |||
| LED Brand | PHILIPS | PHILIPS | PHILIPS |
| LED Qty (pcs) | 56 | 84 | 112 |
| Power of PV Module (W) | 6V 80W | 18V 100W | 18V 130W |
| LiFePO4 Battery Capacity | 3.2V 385Wh | 12.8V 538Wh | 12.8V 615Wh |
| Light Mode | Time Control | Time Control | Time Control |

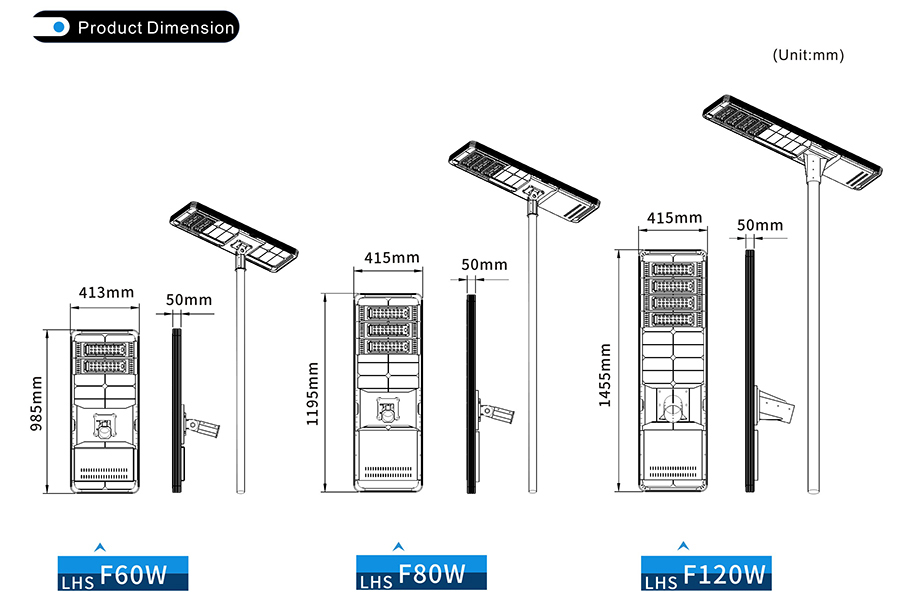

| Product Dimension (mm) | 1099*761*65 | 1319*761*65 | 1619*761*65 |
| Product N.W. (kg) | 17 | 19 | 23 |
| Package #1 Dimension (mm) & G.W. (1 Lamp/CTN) | 1040* 470* 180 (19.2KG) | 1250* 470* 180 (22.5KG) | 1510* 470* 180 (25.5KG) |
| Package #2 Dimension (mm) & G.W. (1 Bracket/CTN) | / | / | 250* 250* 285 (2.5KG) |
| Light Parameters | |||
| Light Power (W) | 60W | 80W | 120W |
| Typical Luminous Flux (Lm) | 10800 | 14400 | 21600 |

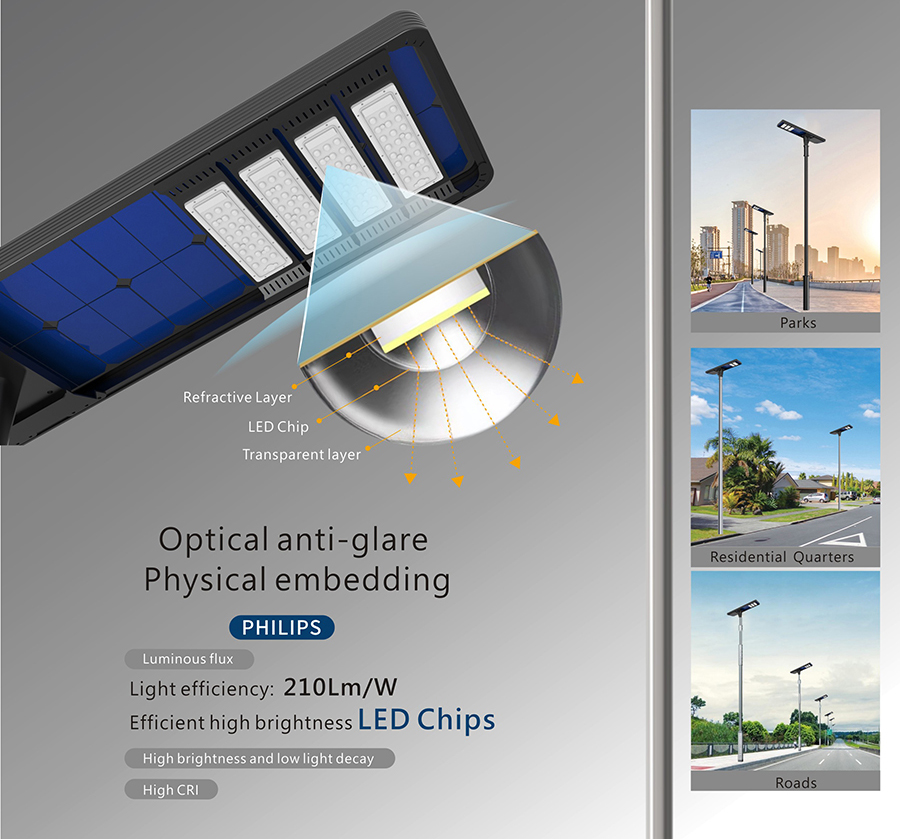

| LED Light Effect (Lm/W) | 210Lm/W | ||

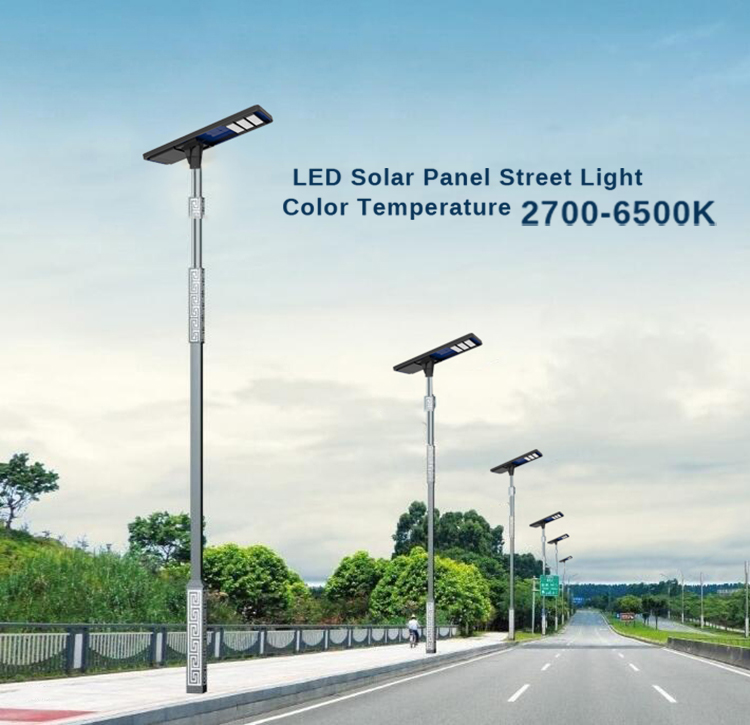

| Color Temperature (K) | 2700–6500 | ||
| Beam Angle (°) | 150°×75° | ||
| Rainy Days (D) | 3–5 | ||
| Environment Paramete rs | |||
| Charging Temperature (°C) | 0°C to +60°C | ||
| Discharging Temp (°C) | -20°C to +60°C | ||
| Storage Temperature (°C) | -20°C to +45°C | ||
| Installation | |||
| Dia. of Top Pole (mm) | 60–76 | 60–76 | 76–89 |
| Installation Height (m) | 6–8 | 8–10 | 10–12 |
| Installation Distance (m) | 25–35 | 30–45 | 40–45 |
