60W integrated solar street light 230Lm/W ultra-high energy efficiency LED chip color temperature 5000K

Name: 60W integrated solar street light 230Lm/W ultra-high energy efficiency LED chip color temperature 5000K
Availability: InStock

60W All In One Solar Street Light 230Lm/W High Efficiency LED Road Lamp with Military LiFePO4 Battery.

MPPT intelligent charge controller (95% charging efficiency)+constant current driver>95% efficiency.

230Lm/W High Bright LED, 80000H long lifespan, 2700-6500K adjustable color temp.

Grade A Mono Solar Panel, 23% high conversion rate, 25 years service life.

Military LiFePO4 battery, >2000 cycles, BMS overcharge/overdischarge protection.

14H full power /46H low power lighting, perfect for off-grid rural road, garden, parking lot.

30Lux Auto Light Sensor, 14H full brightness /46H dim mode for bad weather.

Item No :
LRC-H60W
Order(MOQ) :
56
Battery Type :
12.8V 36ah
Solar Panel Power :
80W 18V
LED Power :
60W

Inquiry now

Product Details

All-in-one integrated design (solar panel+LED+battery integrated in one fixture), easy installation without cable layout & AC power supply, zero electricity cost after installation, perfect for off-grid areas.

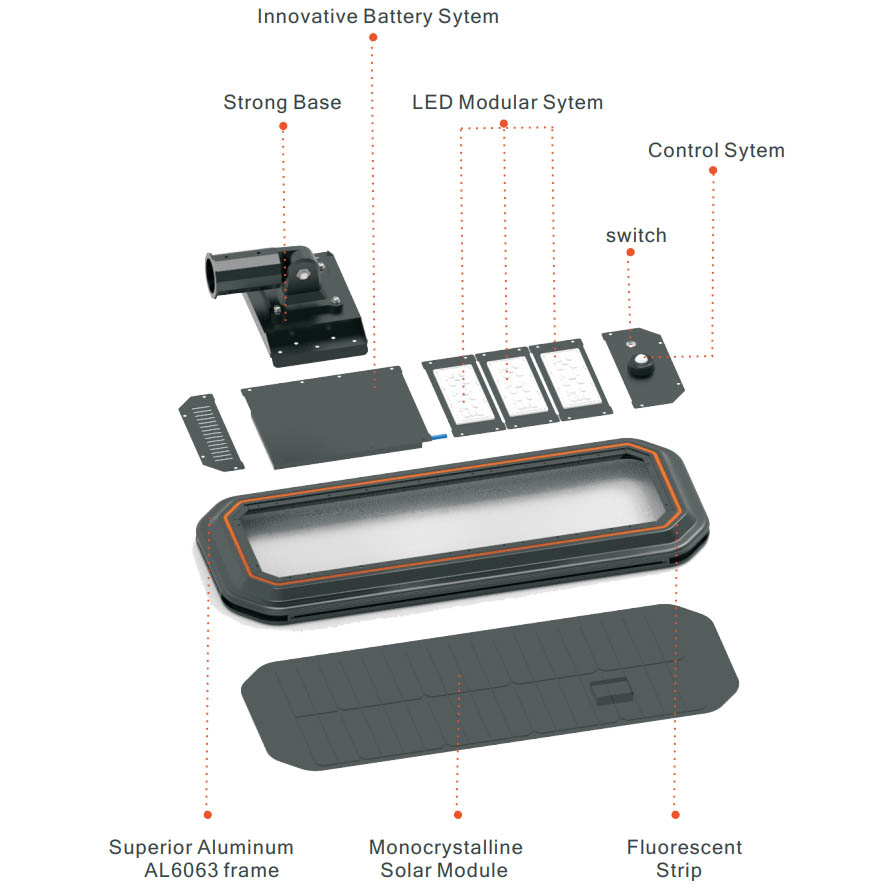

Modular Split Structure Design

Full modular assembly with split components of solar panel, LED light modules, driver & sensor.

Easy field installation & component replacement for maintenance, no whole-lamp replacement needed;

High-strength selected aluminum housing, excellent weatherproof performance against rain, high temperature & frost;

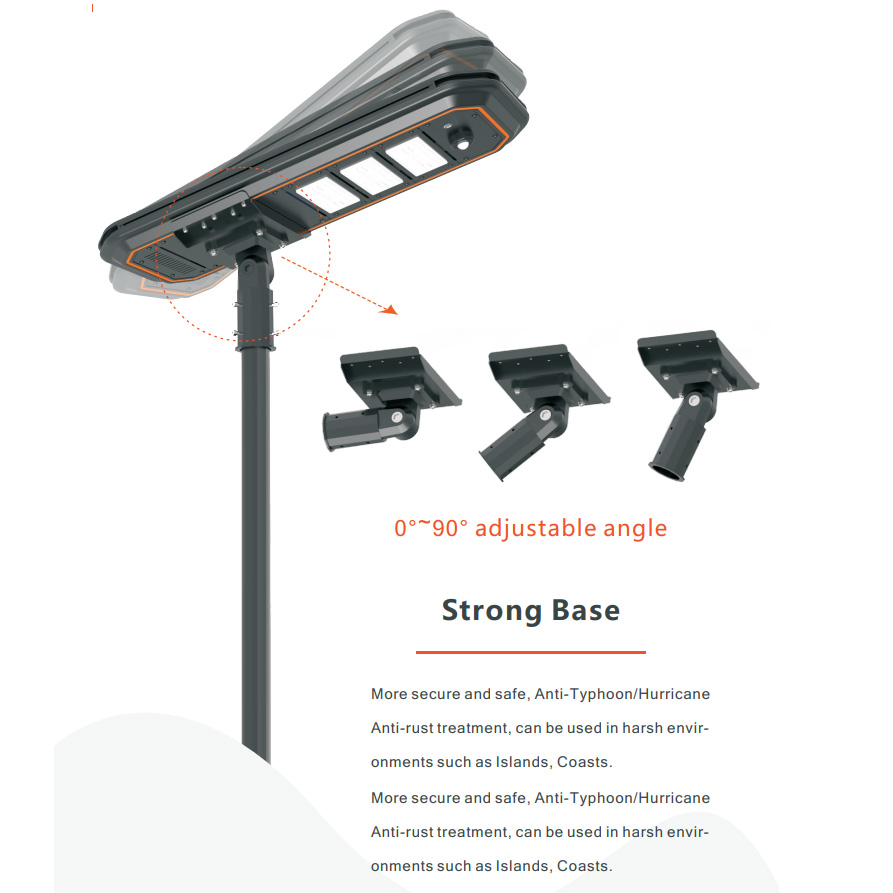

Pre-installed detachable mounting base, compatible with 60/76mm standard street poles.

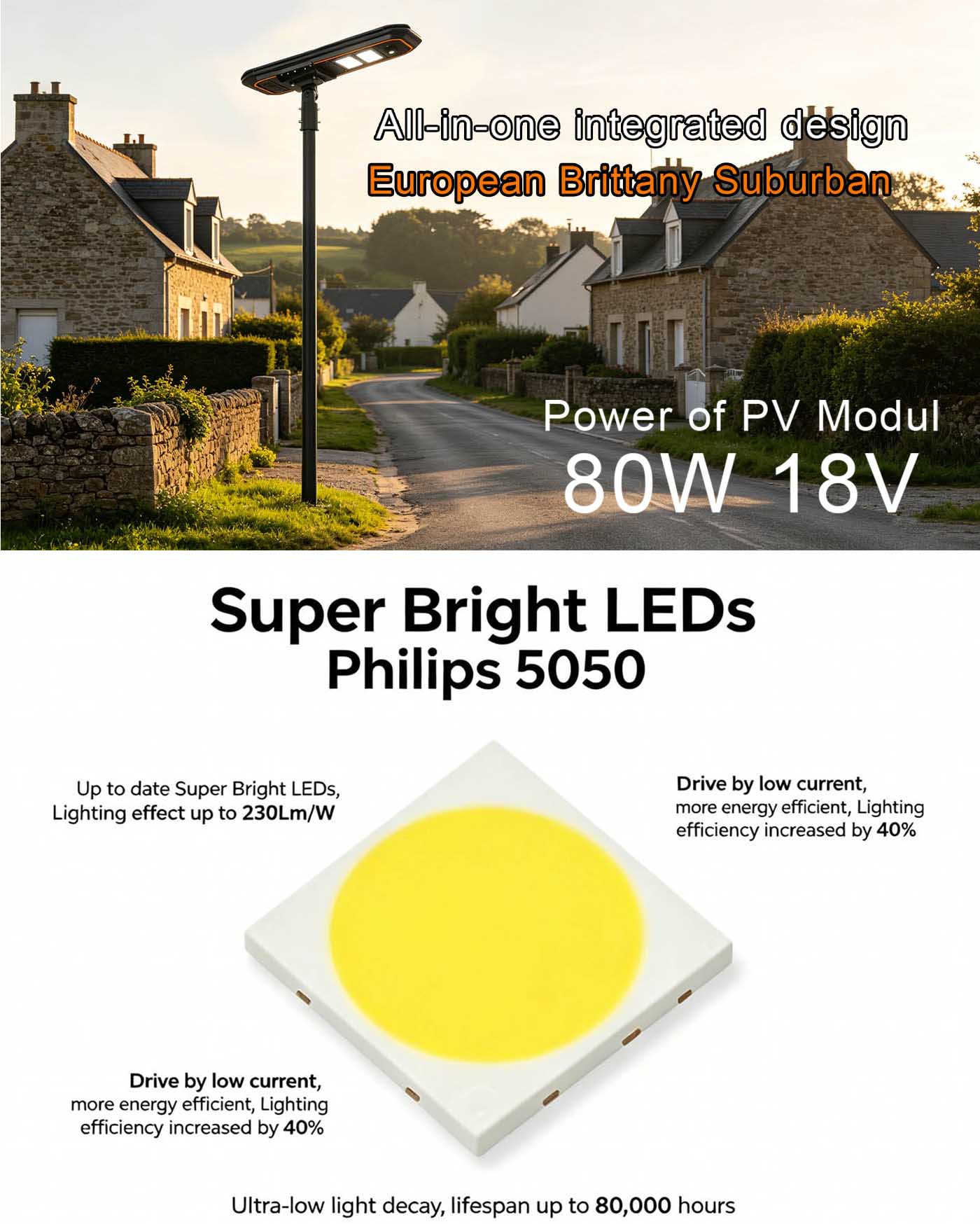

Super High Bright LED Source

Adopts latest high-luminance LED chips with ultra-high efficacy up to 230Lm/W.

Powered by low-current drive design, lighting efficiency is boosted by 40% vs traditional LED lamps. Features ultra-low light decay, service lifespan over 80,000 working hours.

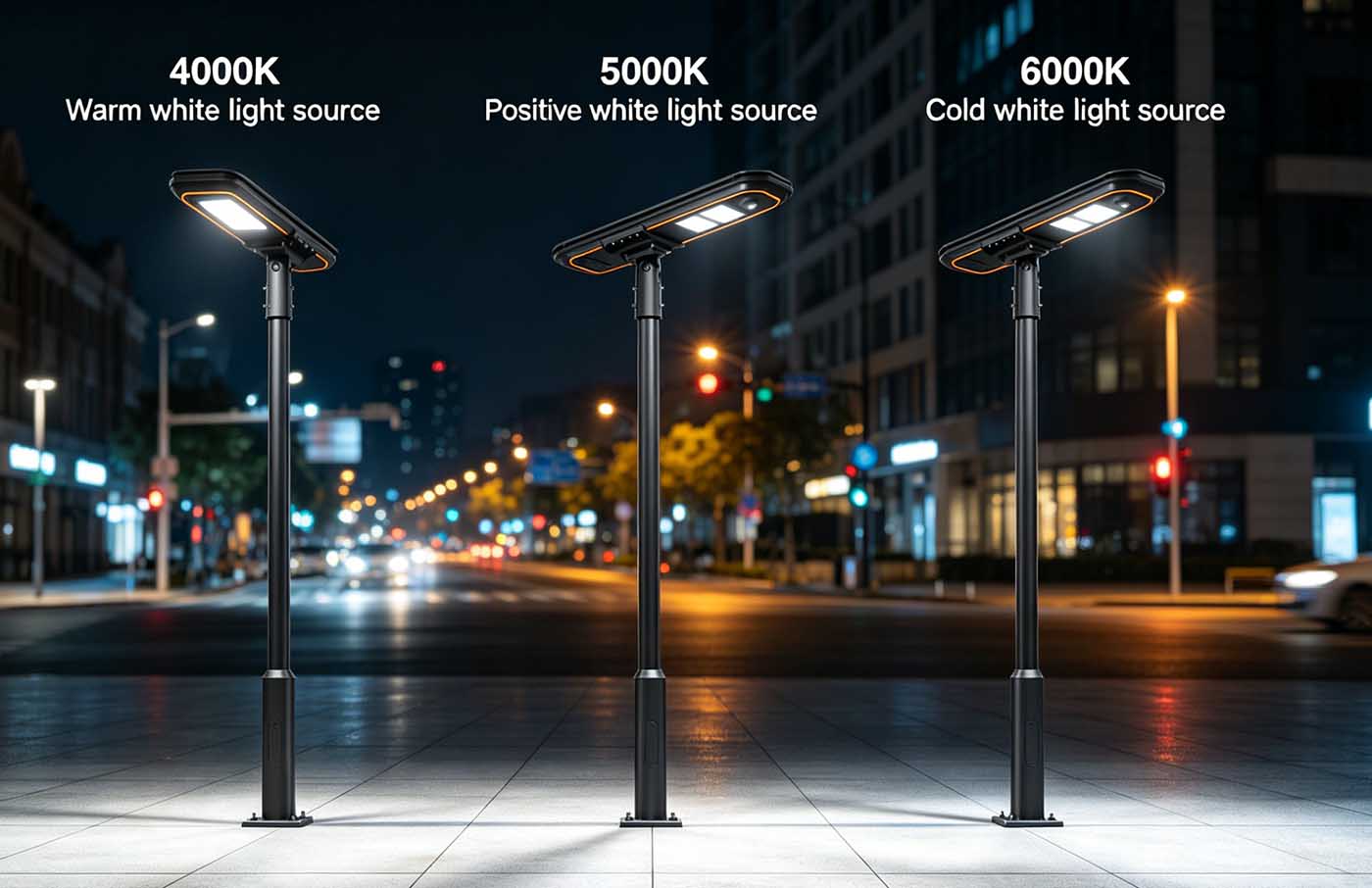

Optional CCT: Warm White(2700-4000K), Neutral White(5000K), Cool White(6000K), meets diverse outdoor lighting demands.

Warm White(2700-4000K)

3 Optional Color Temperature

4000K Warm White: Courtyard, residential area, pedestrian path.

5000K Natural White: Main rural road, highway auxiliary road.

6000K Cool White: Factory perimeter, parking lot, industrial zone.

Item	Parameter
Rated LED Power	60W
Total Luminous Flux	10800 Lm
LED Efficacy	230 Lm/W
Color Temperature	2700K~6500K
Beam Angle	150°×80°
Working Time(100% full brightness)	Min 14 Hours
Working Time(30% dim mode)	Min 46 Hours
Light Sensor Trigger	30 Lux (Auto on/off)
Lamp Dimension	86842860mm
Bracket Base Dimension	318140112mm
Lamp Packing Size	940490165mm
Base Packing Size	415175160mm

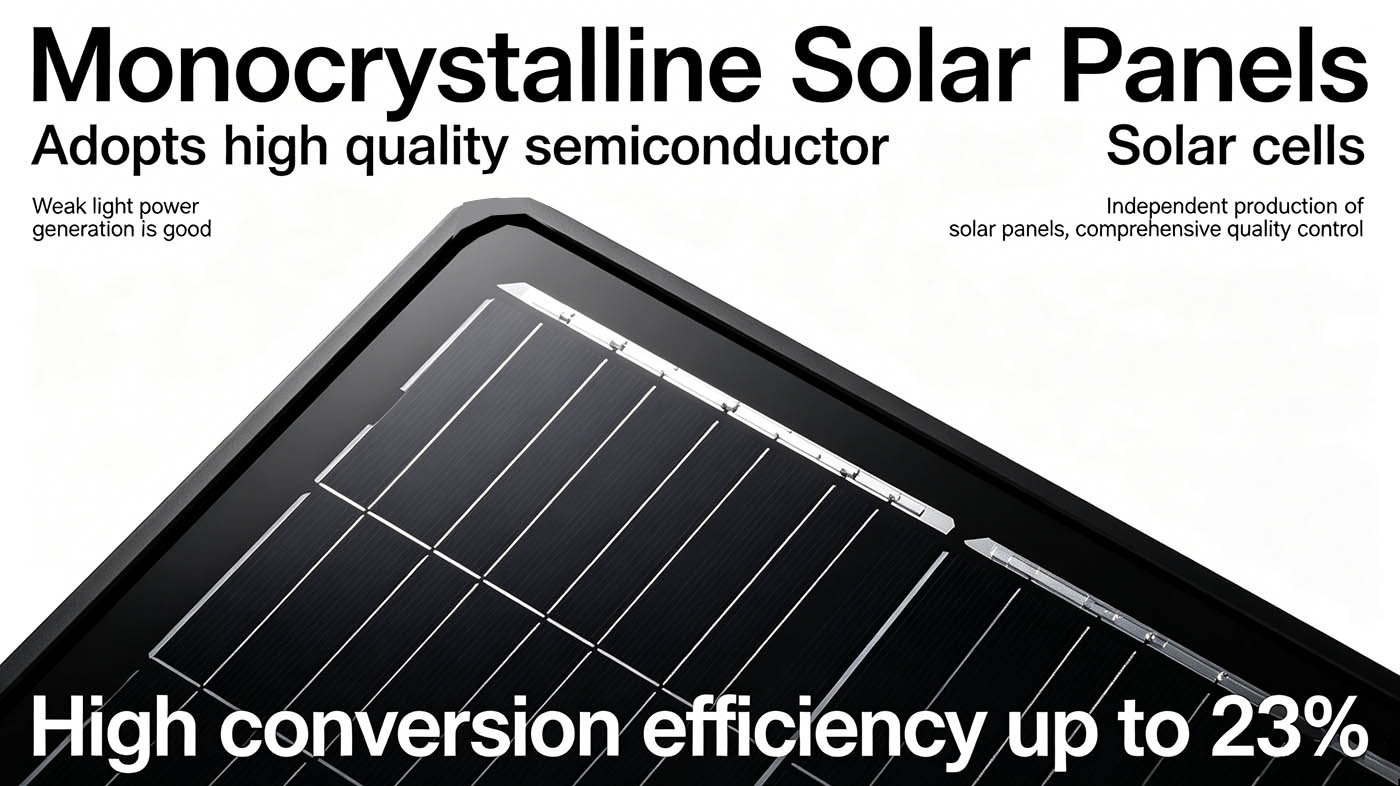

Grade A Monocrystalline Solar Panel

Made of Grade A monocrystalline silicon cells with max conversion efficiency of 23%.

Outstanding weak-light power generation performance ensures stable charging on cloudy/rainy days.

Independent in-house production with strict full QC control, eco-friendly raw material, service life up to 25 years.

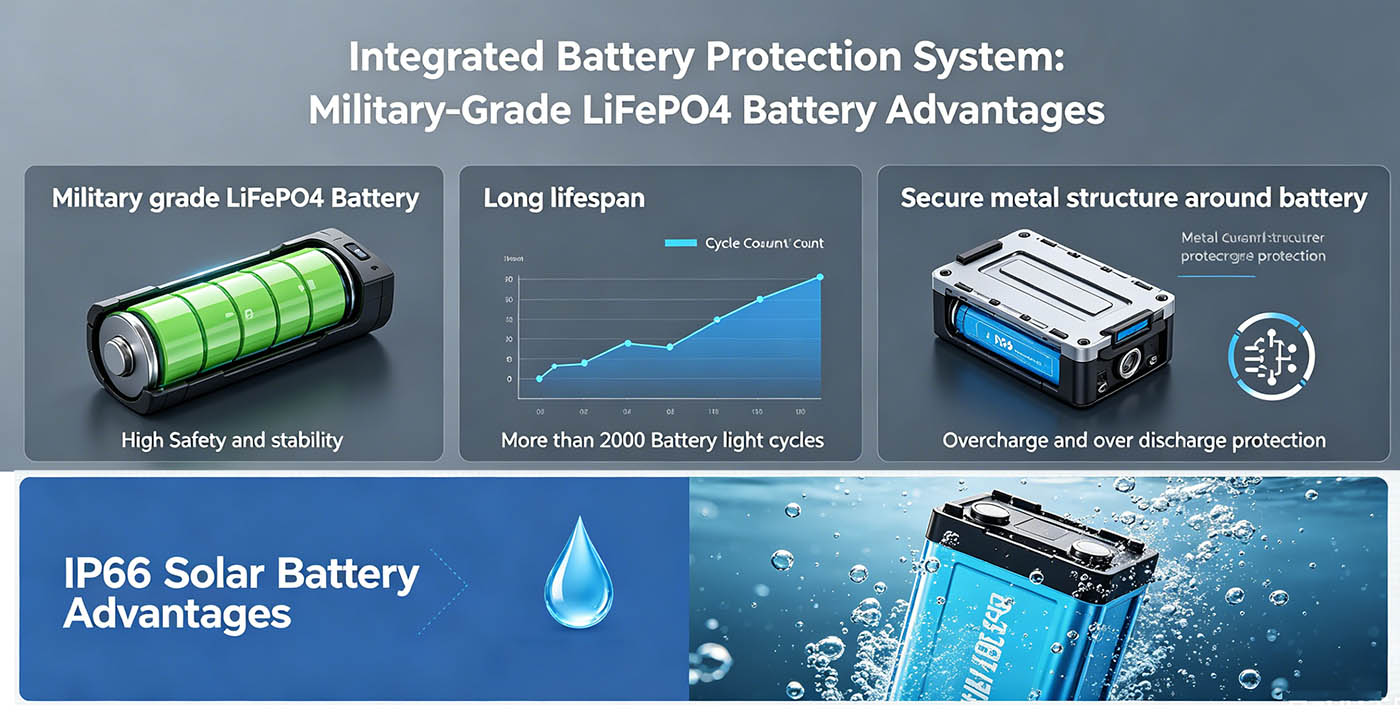

Military-grade LiFePO4 Battery Protection System

Equipped with military-standard Lithium Iron Phosphate battery for superior safety & chemical stability, supports over 2000 charge-discharge cycles.

Full enclosed metal battery housing with dual-side thermal design: heat insulation on top + bottom air convection heat dissipation to avoid overheating damage.

Built-in intelligent BMS chip to prevent over-charging & over-discharging, greatly extend battery service life.

Military-grade LiFePO4 Battery Protection System

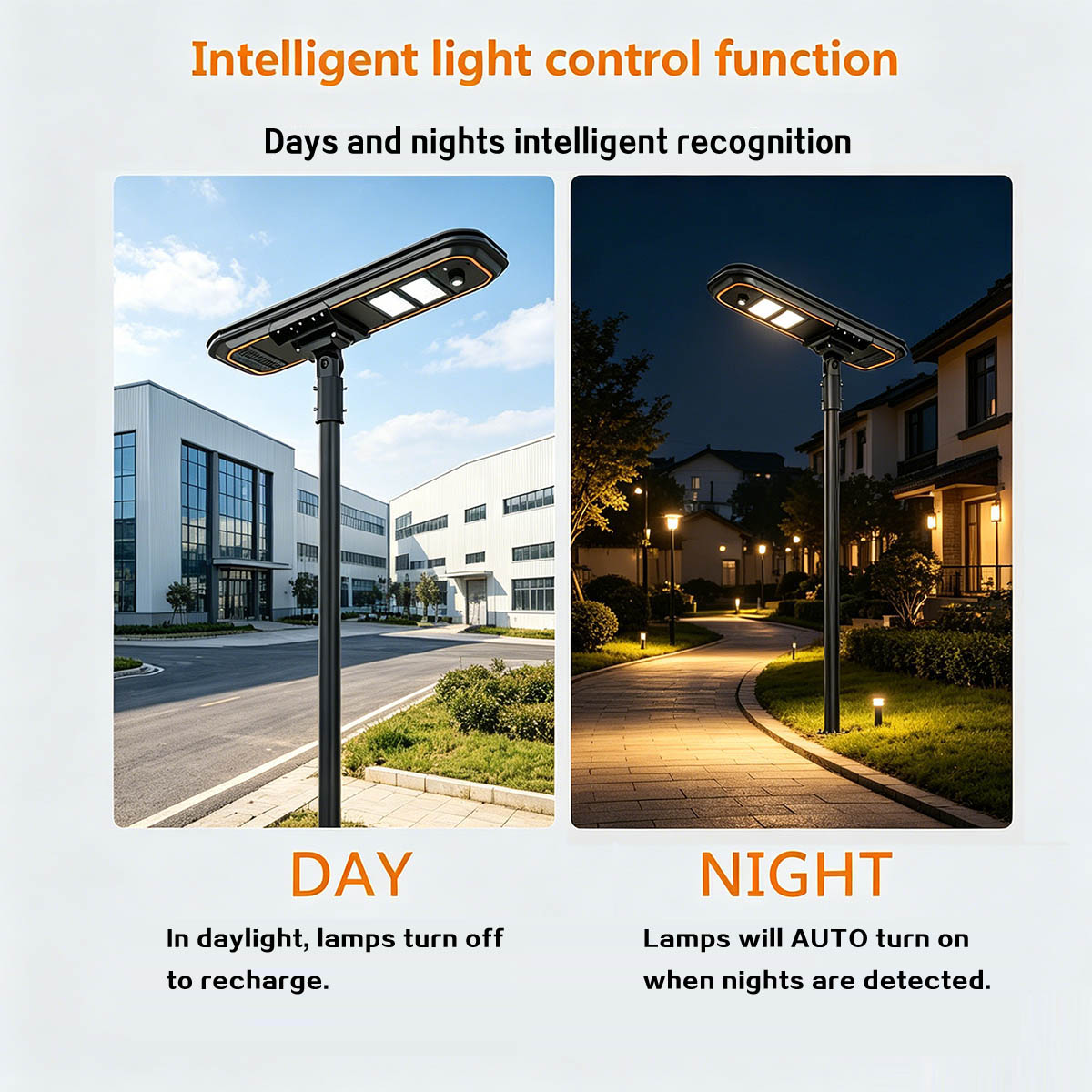

Intelligent Light Control & Dual Power Mode

Built-in high-precision light sensor, automatically turns on when ambient light below 30Lux and turns off at dawn without manual operation. Dual working mode available: 100% full brightness for minimum 14 hours or 30% dim power to sustain up to 46 hours, ideal for continuous rainy weather backup.

60W integrated solar street light application scenarios：Rural road reconstruction, countryside pathway, garden, factory perimeter, residential courtyard, highway auxiliary lighting.

Intelligent MPPT Driver & Energy Management System

Four core driver advantages:

Constant Current Control: Stabilize LED output, slow down light attenuation, driver efficiency over 95% to prolong lamp lifespan;

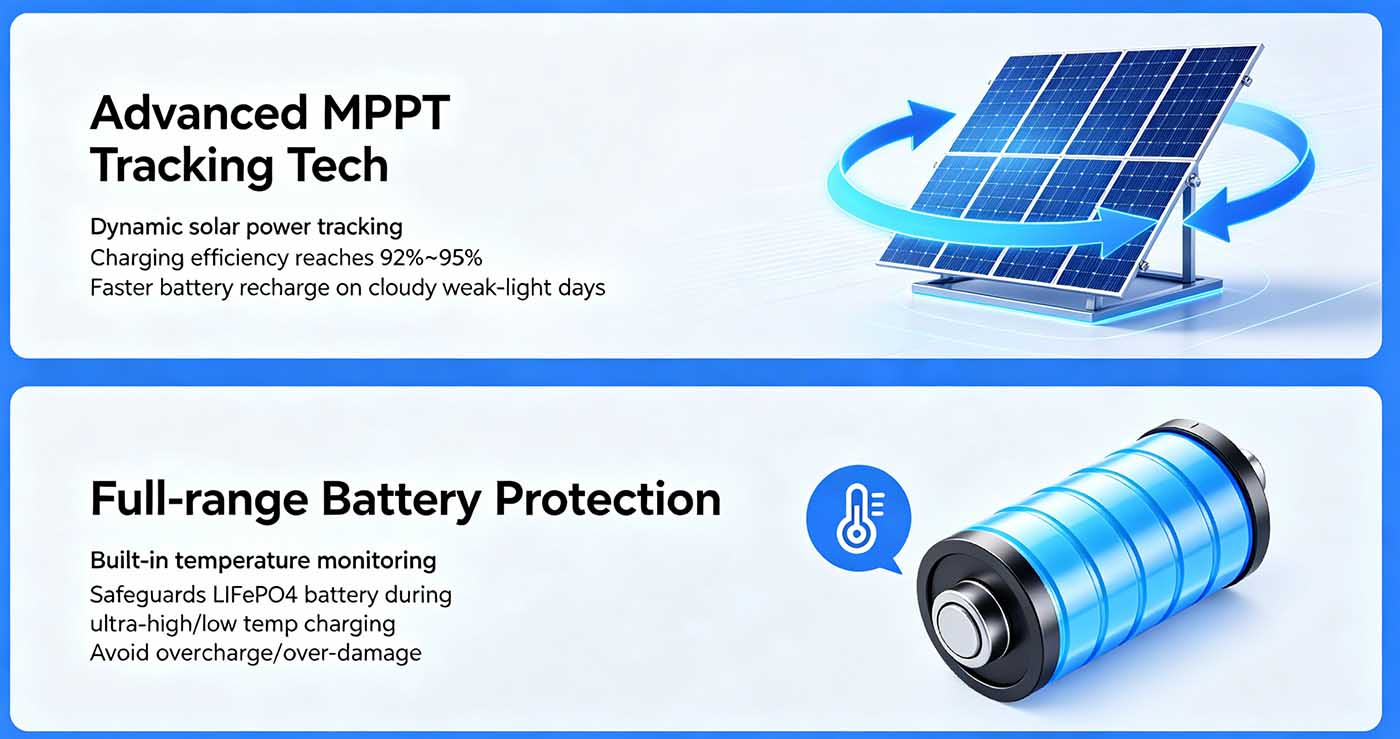

Advanced MPPT Tracking Tech: Dynamic solar power tracking, charging efficiency reaches 92%~95%, faster battery recharge on cloudy weak-light days;

Full-range Battery Protection: Built-in temperature monitoring, safeguards LiFePO4 battery during ultra-high/low temp charging to avoid overcharge/over-damage;

Parameter project	LRC-H30W	LRC-H40W	LRC-H60W	LRC-H80W
Photovoltaic panel configuration	50W 18V	65W 18V	80W 18V	100W 18V
Lithium iron phosphate battery	12.8V24Ah	12.8V30Ah	12.8V36Ah	12.8V42Ah
Philips 5050 LED bead quantity qty	24 PCS	36 PCS	56 PCS	114 PCS
Rated power	30W	40W	60W	80W
Rated luminous flux	5400lm	7200lm	10800lm	14400lm
High luminous efficacy	Unified 230Lm/W, standard across the entire series
Full brightness/30% dimming range	13h /43h	14h/46h	14h/46h	13h/44h
Duration of cloudy and rainy weather	Full specification 3-5 days
Adapt to installation pole height	4~6m	4~6m	6~8m	6~8m
Installation spacing of lighting fixtures	15~20m	20~25m	25~30m	30~35m

Adaptive Power Regulation: Intelligent energy management automatically adjusts output power based on remaining battery capacity, extend dim-mode lighting duration to 46H for rainy weather backup.

FAQ

Q1: Can we customize color temperature?

A: Yes, standard 4000K/5000K/6000K, 2700K~6500K customized CCT is available for bulk order.

Q2: What’s the advantage of modular structure?

A: Damaged LED module or driver can be replaced separately without changing the whole lamp, greatly cut after-sales maintenance cost for large engineering projects.
