Outdoor integrated solar street light 80W meets the color temperature requirements of European road lighting

The dual MPPT intelligent solar charging efficiency is 20%~30% higher than traditional PWM controllers. In Europe, the autumn and winter sunshine hours are short and the light intensity is weak.

MPPT tracking technology can maximize the use of weak light energy for charging, improve charging conversion rate, and solve the common problems of insufficient charging and range in high latitude areas.

Built in multiple battery protections including overcharge, over discharge, over temperature, and short circuit, to avoid the risk of low-temperature charging and discharging faults.

Equipped with 114pcs original Philips 5050 LED chips, total luminous flux up to 14400lm, CRI＞75Ra, adjustable color temperature 2700K-6500K, perfectly matching European road color temperature regulation: 3000K warm white for residential streets, 4000K neutral white for arterial roads. Low light decay, long service life up to 50000 hours.

The photoelectric conversion rate of A-level high-efficiency monocrystalline silicon photovoltaic panels is as high as 96%, with faster energy storage speed. The panels are resistant to wind, frost, and UV aging, and can be used outdoors for 25 years. They are suitable for rainy, frosty, and strong UV outdoor climates in Europe, and the long-term outdoor use attenuation is controllable.

The transmittance of the high transparency optical lens distribution system is greater than 96%, with customized road specific light distribution curves. The beam has sufficient horizontal paving width, long vertical illumination distance, and uniform road illumination without glare or blind spots. It meets the European road anti glare lighting standards and avoids glare from headlights and street lights that interfere with the driver's line of sight.

The adjustable lamp arm installation structure can be adjusted from multiple angles, and the illumination range is flexible and controllable. It can fine tune the illumination direction for special road sections such as bends, intersections, sidewalks, and green belts. The engineering lamp layout has stronger adaptability and wider illumination coverage.

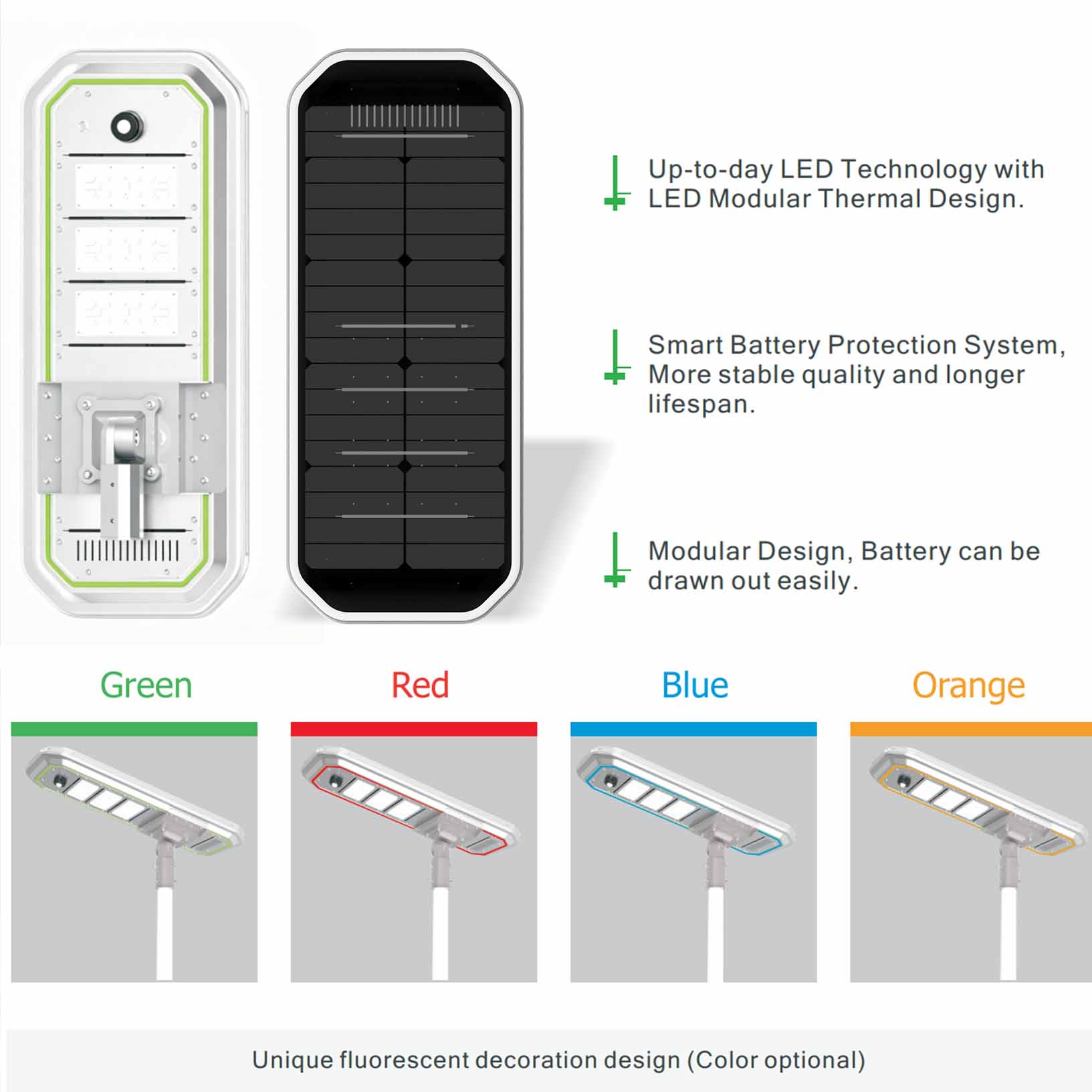

The replaceable large capacity lithium iron phosphate battery can better withstand low temperatures, have a long cycle life, and is suitable for European winter sub zero low temperature conditions; The battery compartment is designed with a pull-out and detachable design, which eliminates the need to return to the factory for full lamp maintenance during later aging replacement. Local parts can be quickly replaced, significantly reducing cross-border after-sales costs.

1. Integrated whole machine structure

The whole machine is highly integrated with solar panels, LED light sources, lithium batteries, and dual MPPT intelligent controllers. There is no need to excavate cable trenches, lay utility pipelines, or set up distribution boxes on site. Only single pole fixation is needed to complete the installation in one go, greatly reducing civil engineering materials and labor hours, and significantly reducing construction costs and schedules for European engineering contractors.

2. Modular maintenance design of controller

The controller components can be disassembled and removed separately, eliminating the need to disassemble the entire lamp for later troubleshooting, program debugging, and accessory maintenance. The European localized maintenance team has higher maintenance efficiency and reduces long-term operation and maintenance labor costs.

3. Unified structural system for all series specifications

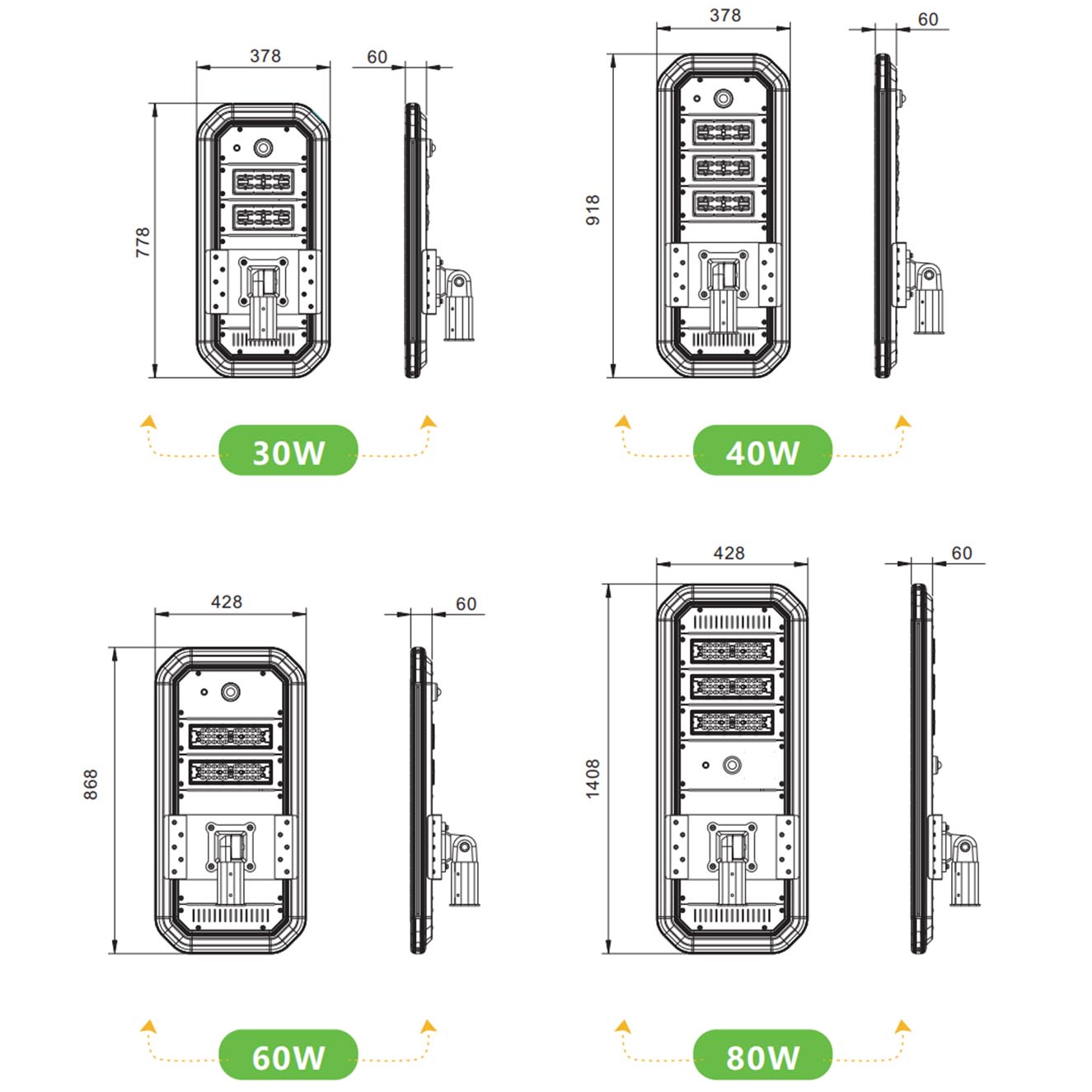

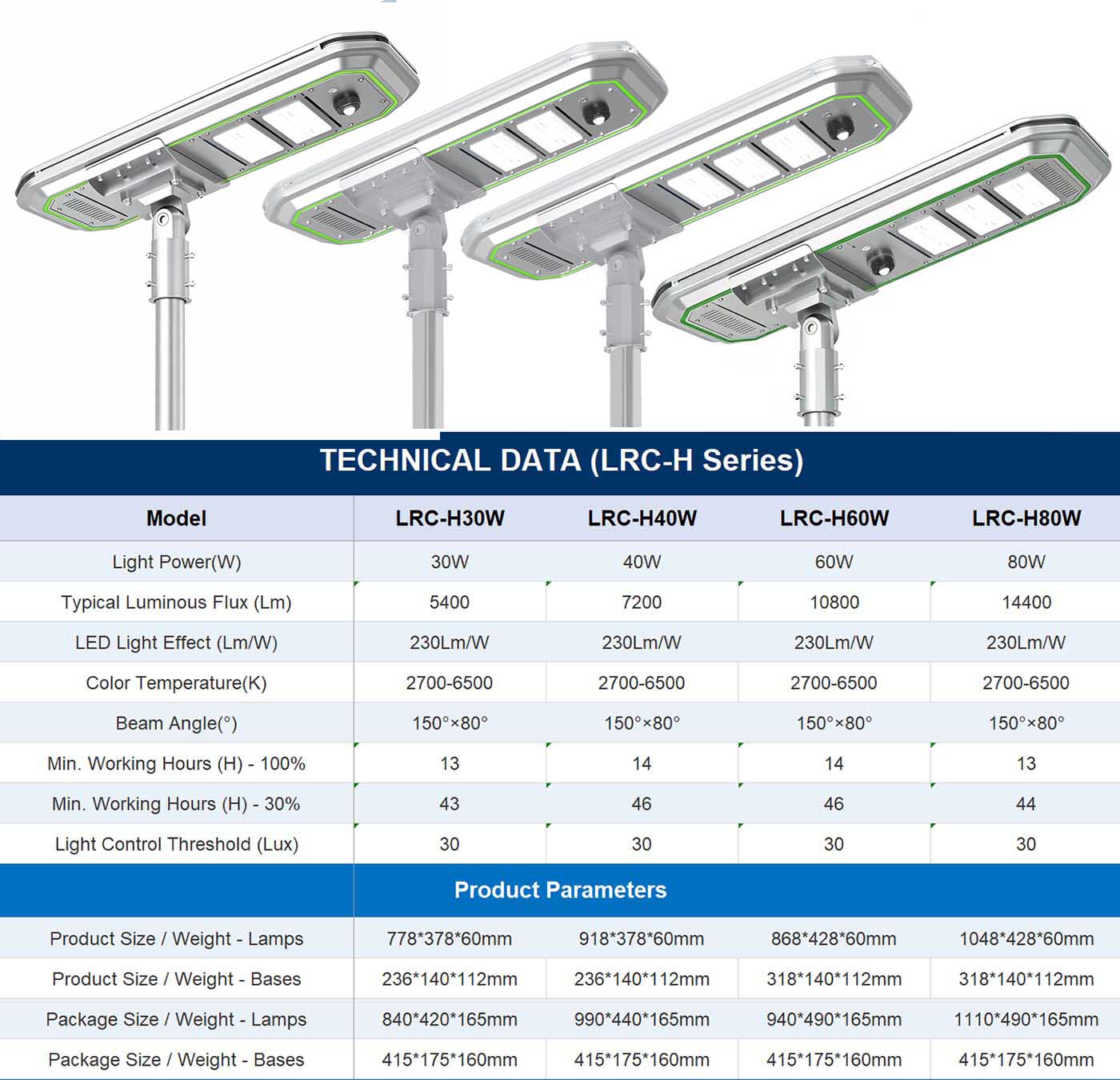

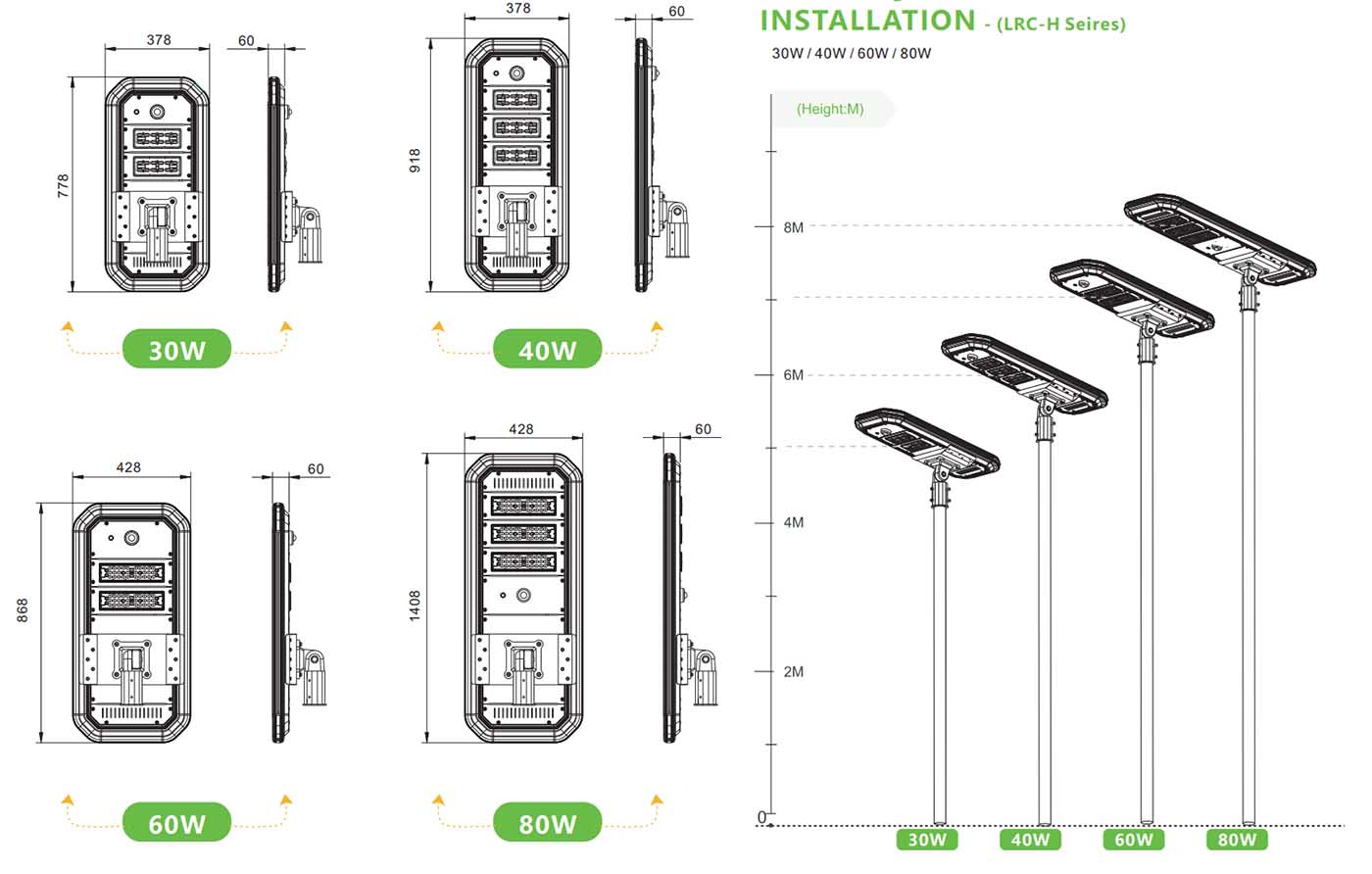

The LRC-H series covers four power levels of 30W/40W/60W/80W, corresponding to different length and width sizes; The 80W exclusive body has a length of 1408mm and is matched with a 6-8 meter pole installation logic. The higher the power, the higher the pole height. It can be flexibly selected according to the road level, and the selection of branch and main roads is more convenient through systematic matching.

4. Multi caliber universal installation bracket

Three installation apertures are standard: Φ 60mm, Φ 64mm, and Φ 80mm. The lamp post has an adaptive structure, and the lamp head supports 180 ° pitch angle adjustment. On the one hand, it is compatible with the vast majority of galvanized street lamp posts in the European market and can adapt to different engineering projects' existing pole renovations; On the other hand, the orientation angle of the photovoltaic panel can be fine tuned to maximize the capture of solar radiation and improve the charging efficiency in low light environments.

Suitable for European town main roads, suburban highways, village lanes, community roads, park pathways & municipal energy-saving renovation projects.

The lamp has a professional light distribution curve diagram and adopts an asymmetric road specific light distribution design. A single side street lamp can evenly cover the entire road surface, with balanced illumination distribution and glare values that meet the EU EN 13201 road lighting luminance, glare, and uniformity hard detection standards. It can be used for European municipal new roads, old street lamp renovation, rural roads, park main roads, suburban auxiliary roads and other formal lighting engineering projects.
