40W All In One Solar Street Light 7200Lm high lumen output PIR Motion Sensor IP65 Road Lamp

Model LRC-H40W is a high-efficiency integrated solar street light equipped with built-in PIR motion sensor. It combines 65W monocrystalline solar panel, large-capacity LiFePO4 lithium battery and premium PHILIPS 5050 LED chips into one streamlined aviation aluminum housing.

This all-in-one lamp works fully off-grid without any municipal power wiring, delivering stable, long-lasting illumination for village roads, residential communities, park walkways, small municipal roads and off-grid engineering projects across the Middle East, Africa, Southeast Asia and Europe.

Solar Panel

Max Power: 18V 65W

Type: High-efficiency Monocrystalline Silicon

Lifespan: 25 years

Core Advantage: Strong weak-light power generation, fully charged within 6-8 hours under strong sunshine, ensures sufficient power storage for cloudy days.

Lithium Storage Battery

Type: Safe Lithium LiFePO4 Battery

Capacity: 12.8V 30Ah

Service Lifespan: 8-10 years

Core Advantage: High temperature resistance, explosion-proof structure, ultra-long cycle life, reliable energy reserve to support multiple consecutive rainy days lighting.

High-Efficiency 40W LED Light Source

Rated Max Power: 12V 40W High Energy Efficiency LED

Original LED Chip Brand: PHILIPS 5050

Typical Luminous Flux: 7200Lm

LED Lifespan: 50,000 hours

Adjustable Color Temperature: 2700K-6500K (warm white to pure cool white optional)

CRI: >75Ra, clear color rendering for road surface

Ultra-wide Beam Angle: 150°×80°, wider ground coverage with no dark zones

Core Advantage: Low light attenuation, high light conversion efficiency, brighter lighting with lower power consumption, cutting your long-term electricity cost to zero.

Charging & Rainy-Day Lighting Endurance

Full Charging Time: 6-8 hours under strong direct sunlight

Full Power Continuous Lighting: 12-14 hours per full charge

30% Energy-Saving Mode Runtime: Up to 39 hours, supports 3~5 days non-stop lighting without sunlight

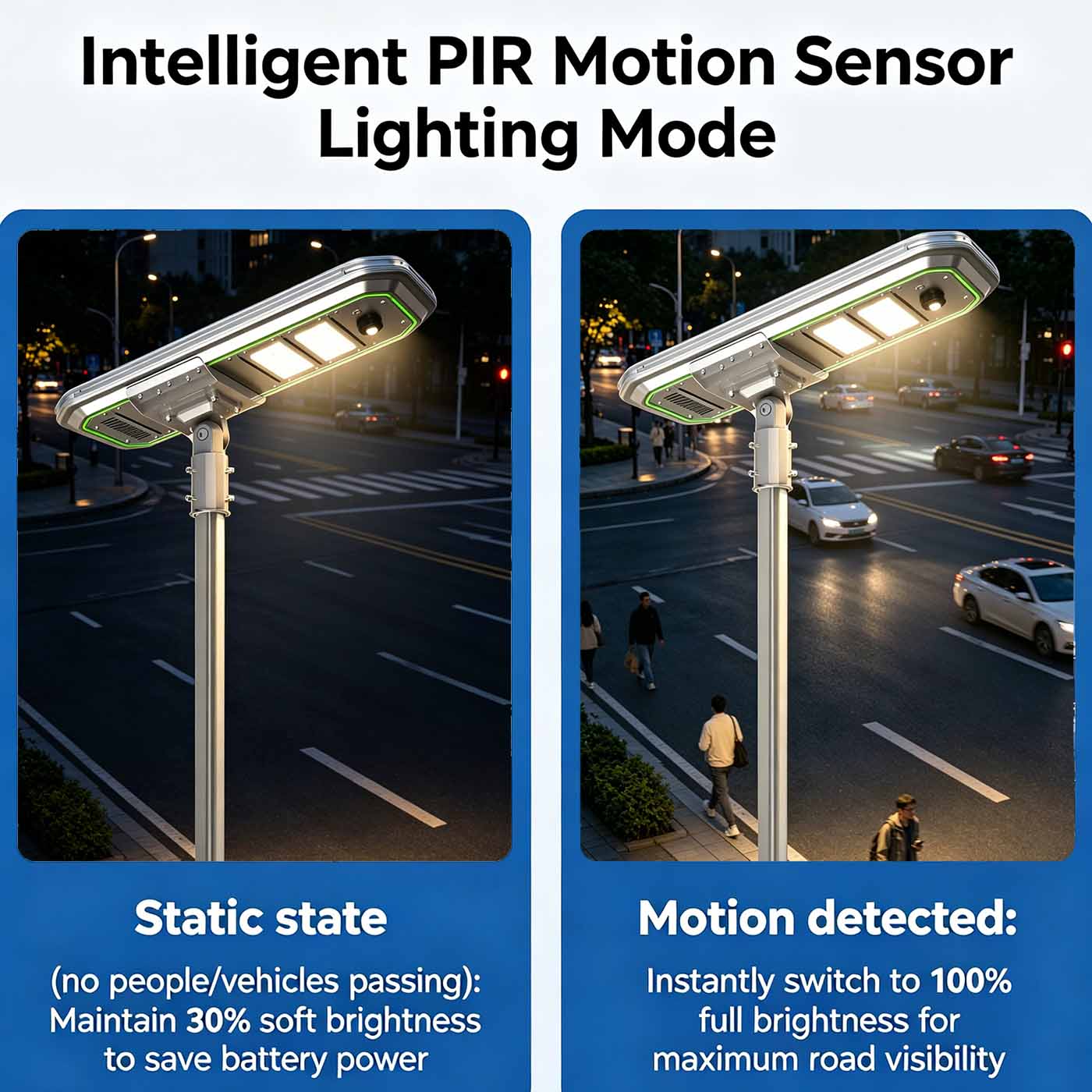

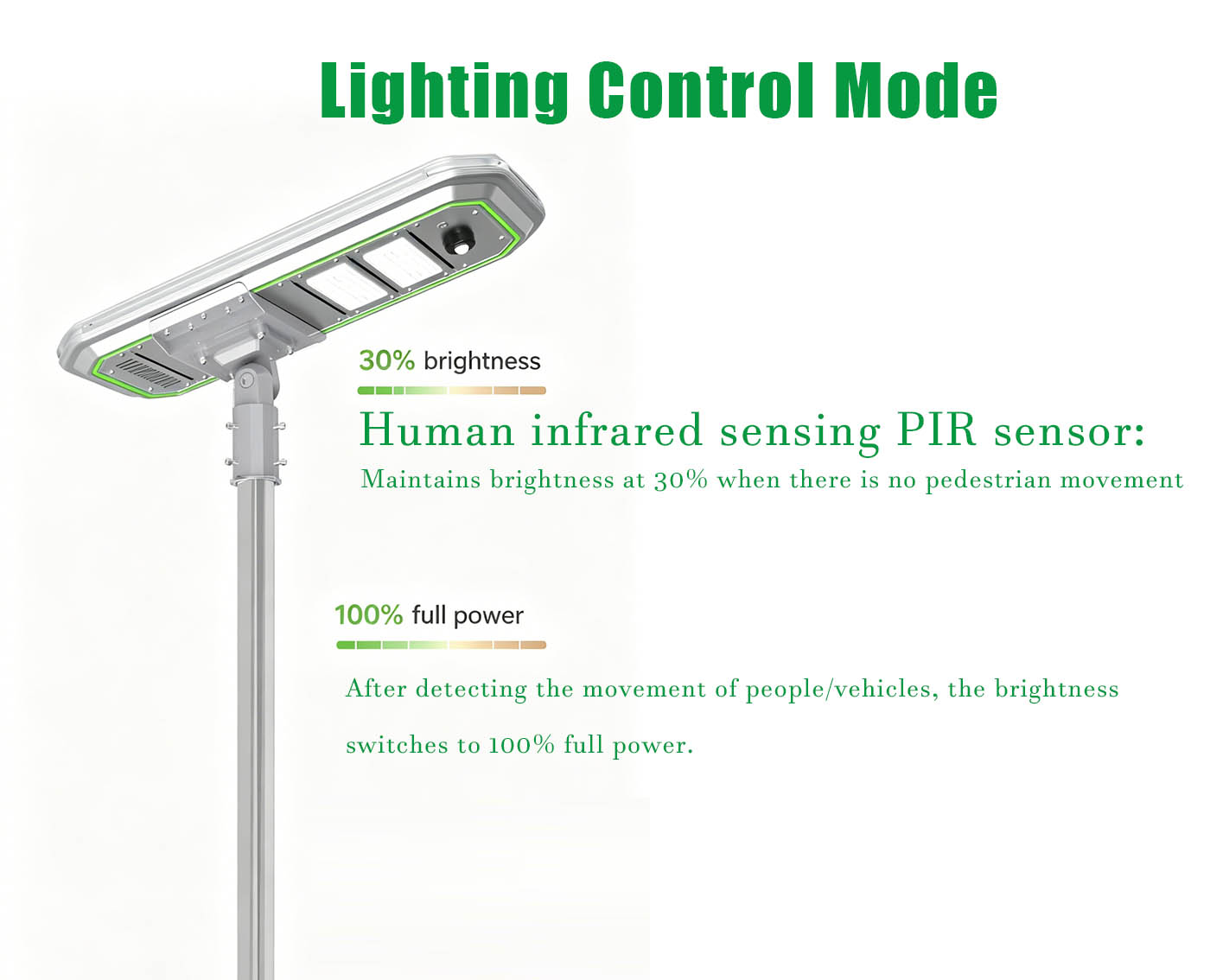

Intelligent PIR Motion Sensor Lighting Mode

Static state (no people/vehicles passing): Maintain 30% soft brightness to save battery power

Motion detected: Instantly switch to 100% full brightness for maximum road visibility

This intelligent dimming system effectively extends battery service life and greatly improves rainy-day standby capacity.

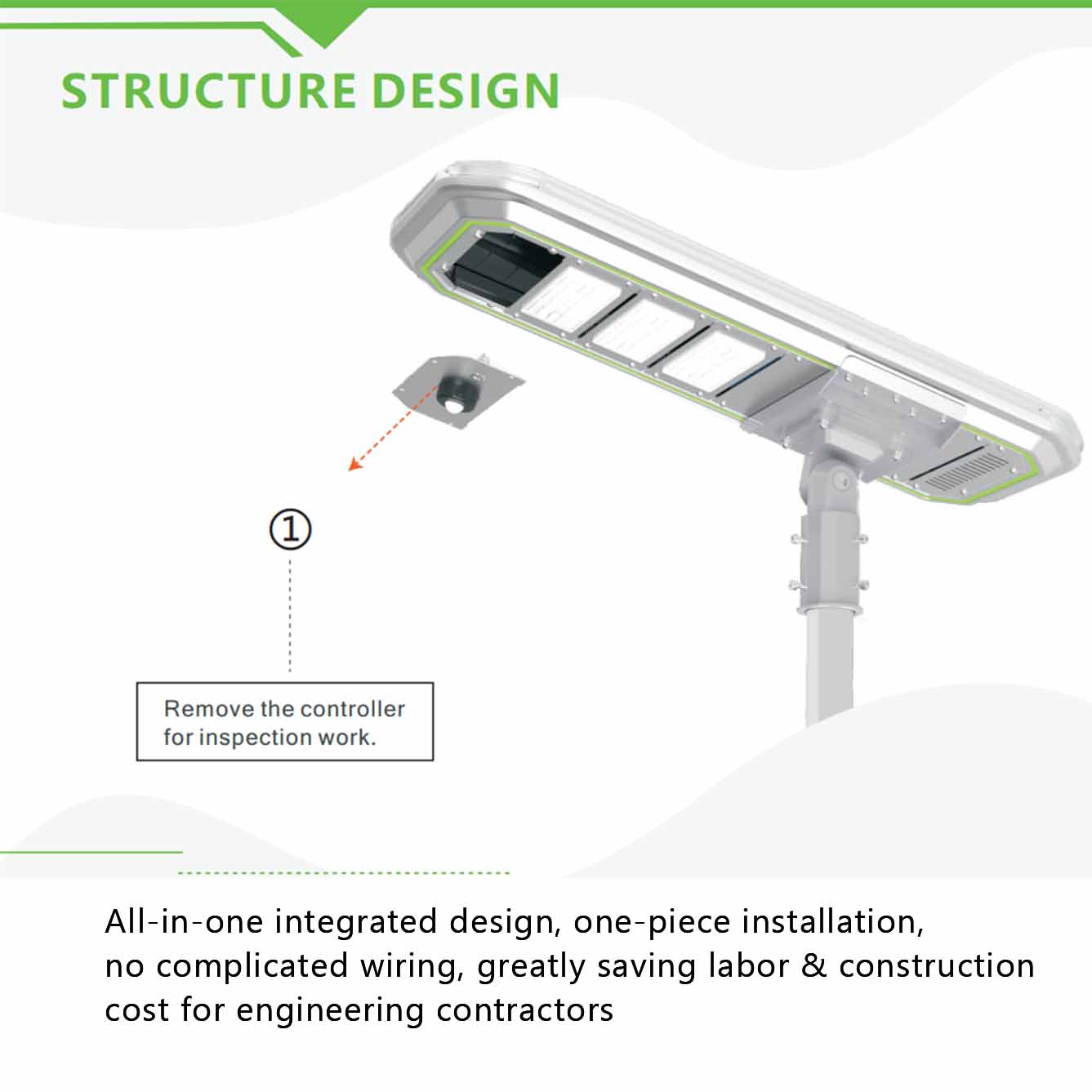

All-in-one integrated design, one-piece installation, no complicated wiring, greatly saving labor & construction cost for engineering contractors.

65W high-power monocrystalline solar panel + 30Ah large LiFePO4 battery, stable 3-5 rainy days backup lighting, no worries about overcast weather.

High-efficiency 40W PHILIPS LED chips, 7200Lm high lumen output, energy-saving lighting to lower long-term maintenance cost.

Built-in sensitive PIR human motion sensor, auto brightness adjustment, intelligent power saving design favored by government road projects.

IP65 aviation aluminum shell with ultra-wide temperature tolerance, works reliably in hot desert and cold snowy areas.

Complete international export certifications, no customs clearance trouble for bulk container orders.

All core components with long service lifespan: solar panel 25 years, battery 8-10 years, LED chips 50,000 hours, ultra-low after-sales maintenance cost.

Wide-Range Environmental Adaptability

Discharging Working Temperature: -20 ℃ ~ +60 ℃

Charging Working Temperature: 0 ℃ ~ +60 ℃

Storage Temperature: -20 ℃ ~ +45 ℃

Perfect for extreme climate regions: high-temperature desert areas in Middle East & Africa, and cold northern zones with freezing winters.

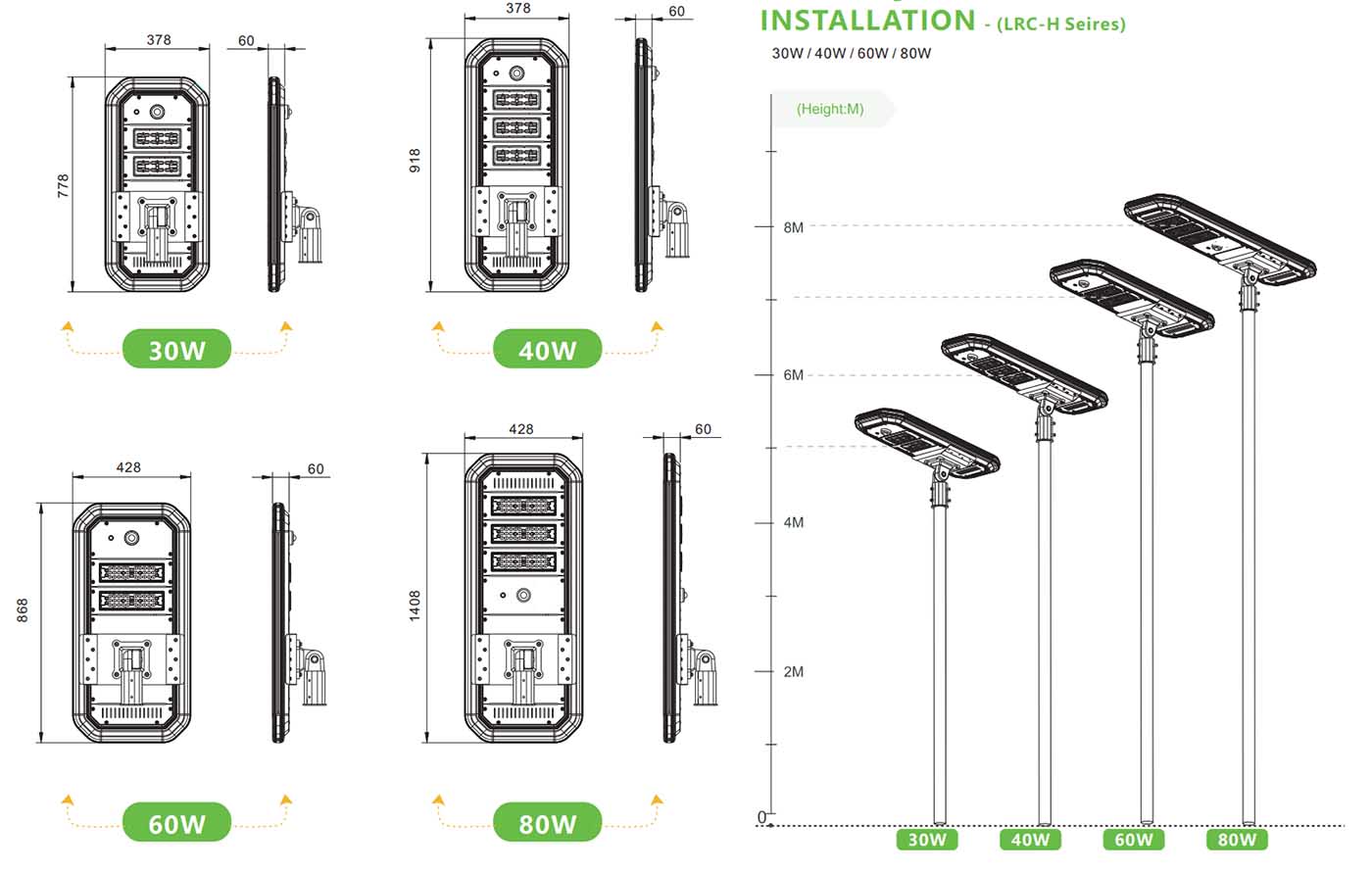

Professional Installation Parameters

Recommended Mounting Height: 4-6 meters.

Compatible Top Pole Diameter: 60mm.

Standard Spacing Between Two Lights: 20-25 meters

Balanced brightness & coverage, reduces total lamp quantity and construction cost for medium-scale road projects.

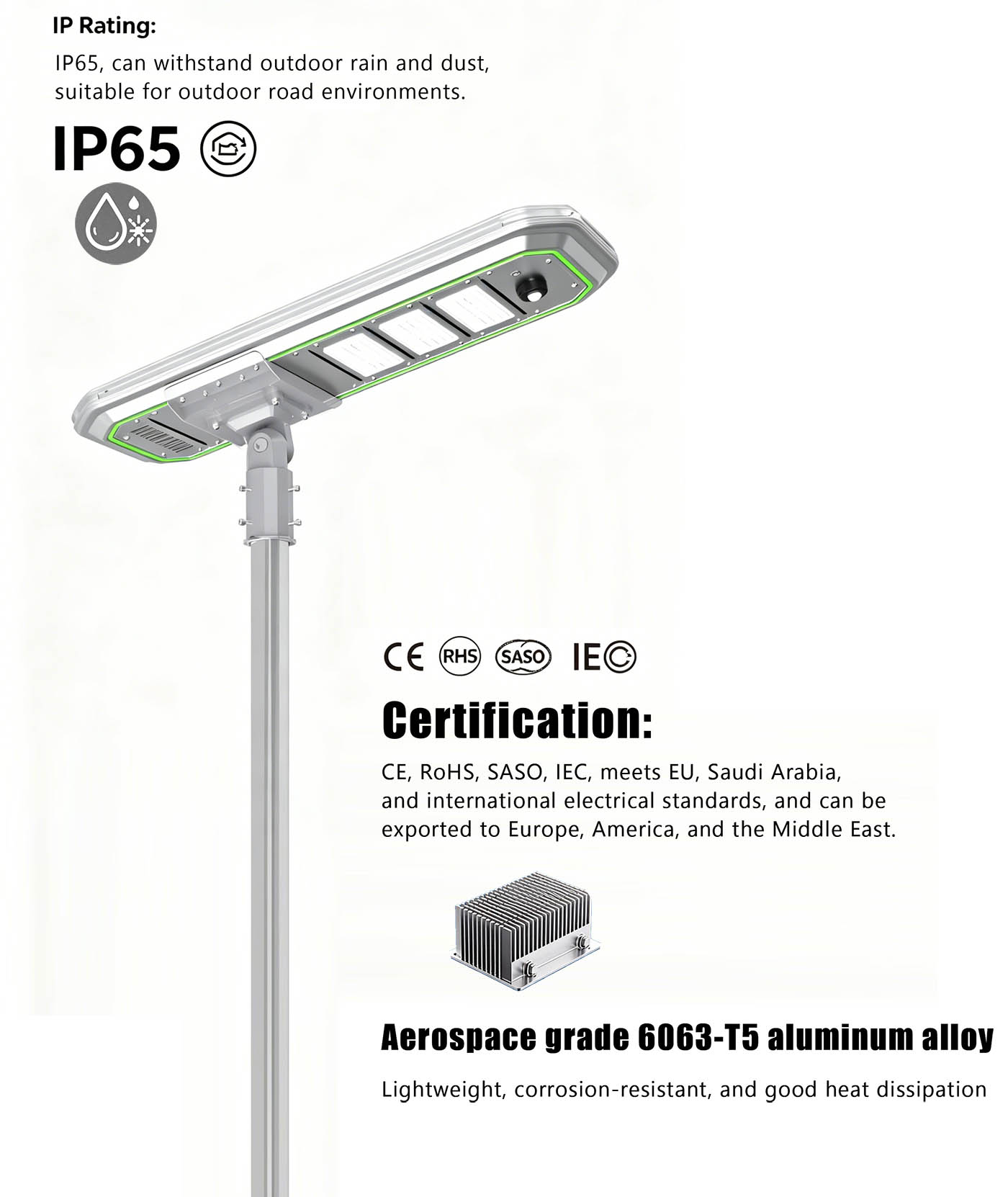

Housing Material, Certifications & Waterproof Grade

Housing Material: Superior aviation aluminum AL6063-T5, lightweight, fast heat dissipation, anti-rust & anti-corrosion for long outdoor exposure.

Global Authorized Certifications: CE, RoHS, SASO, IEC, smooth customs clearance for all mainstream overseas markets.

IP Rating: IP65 full dustproof & waterproof, withstand heavy rain, dust and outdoor all-year exposure.
