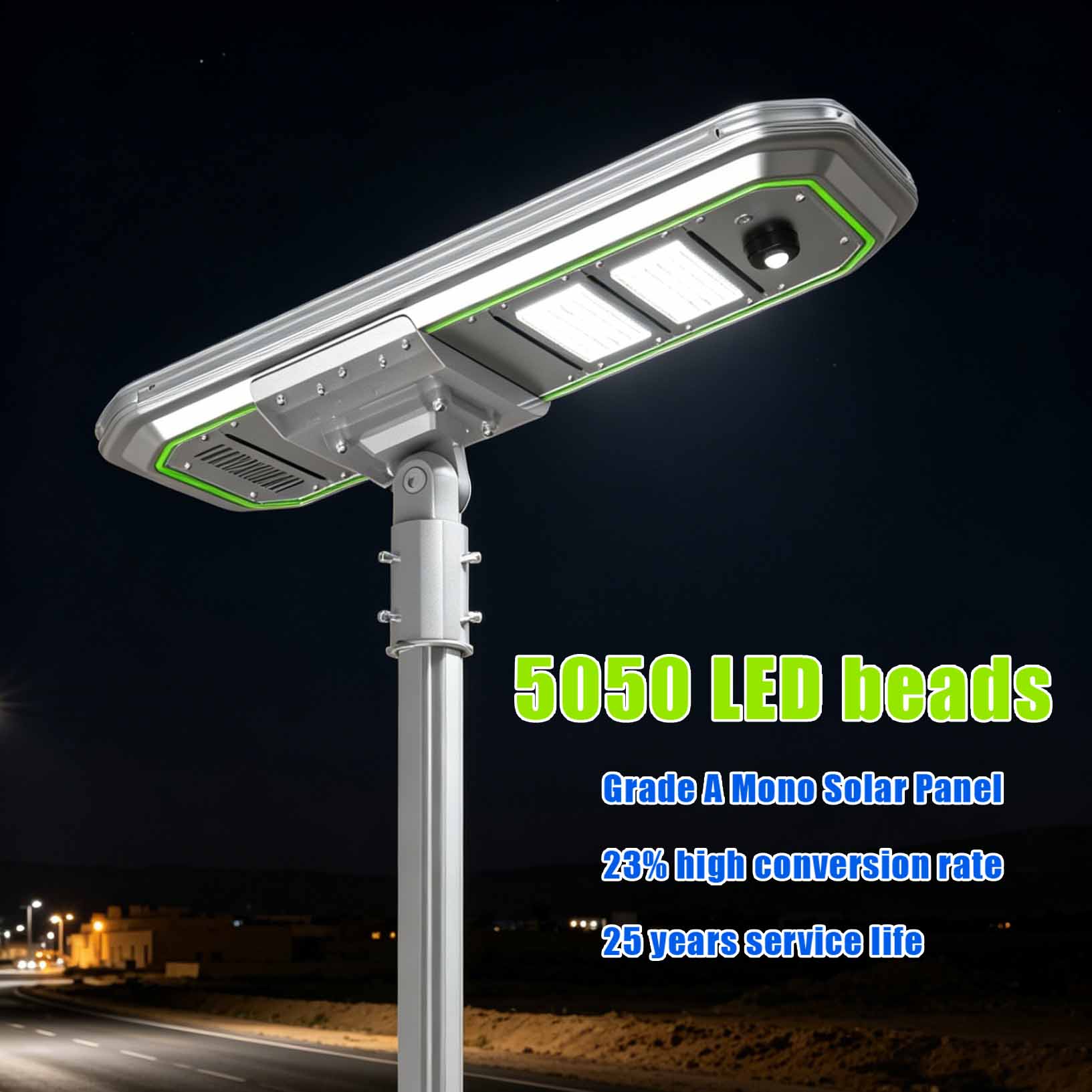

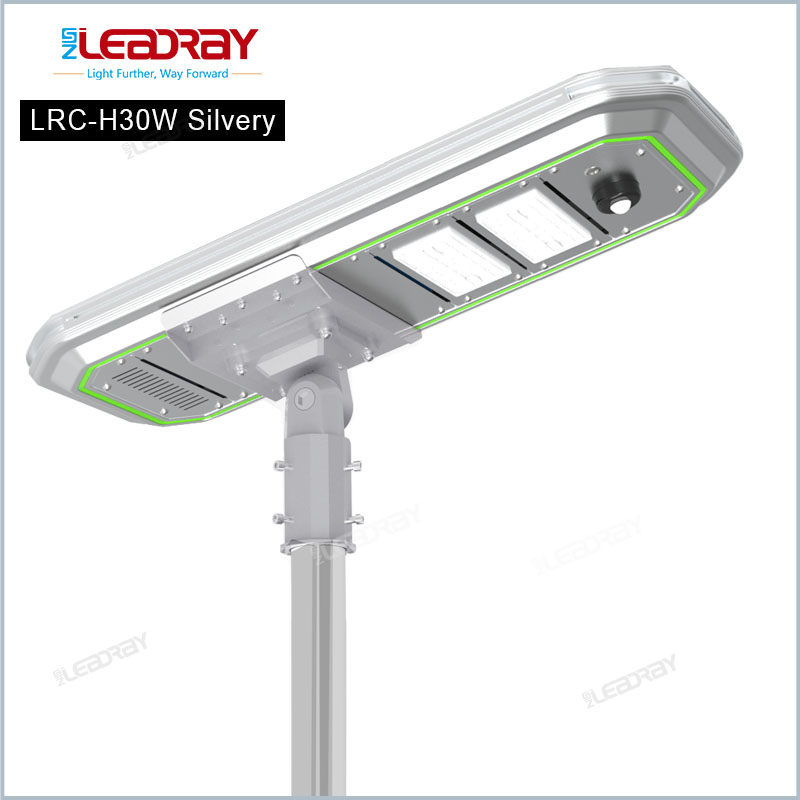

High-efficiency Monocrystalline Silicon 30W All In One Solar Street Light

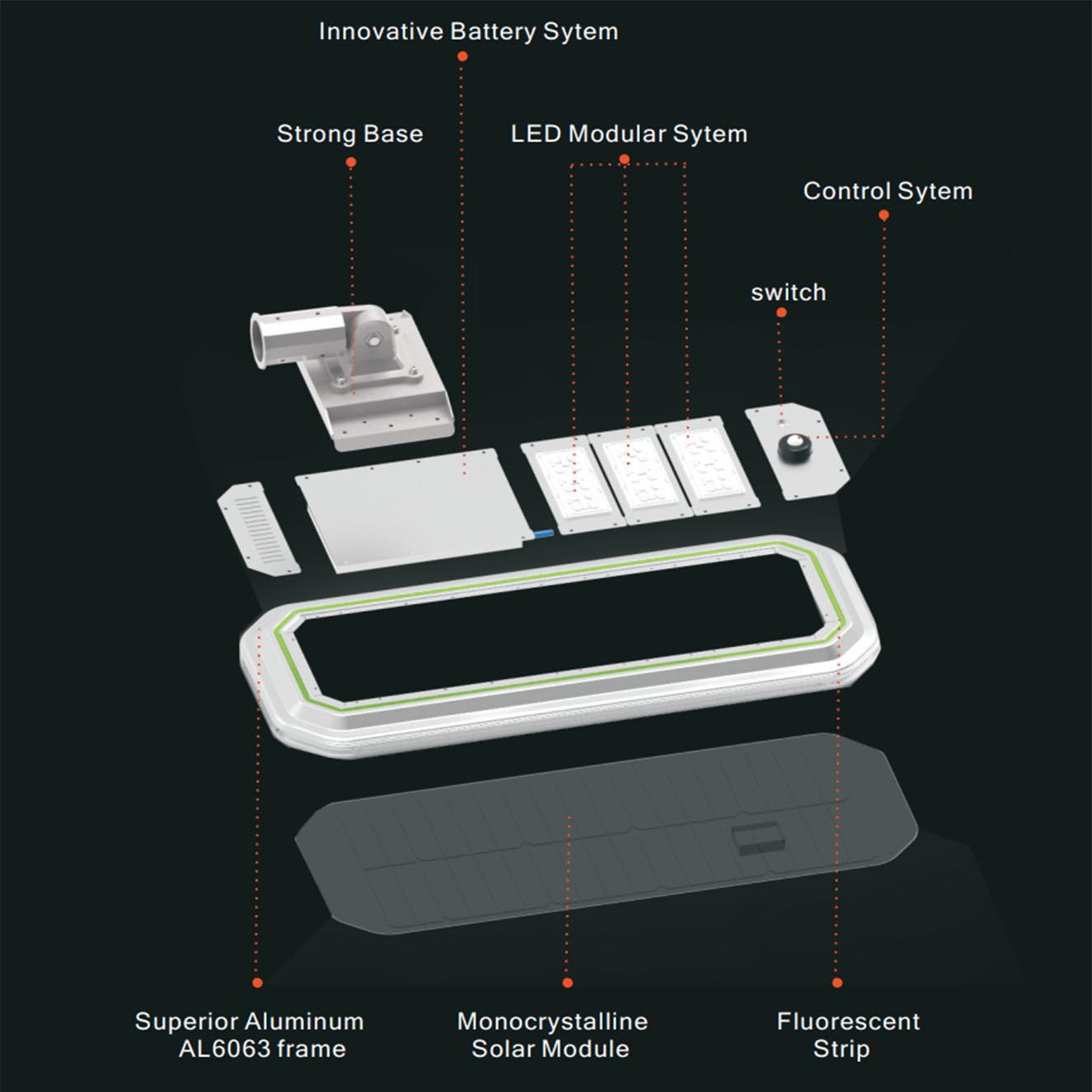

This 30W integrated solar street light integrates monocrystalline solar panel, LiFePO4 lithium battery and PHILIPS LED light source into one compact unit. It runs completely off-grid without city power supply, featuring intelligent PIR human induction dimming, wide temperature adaptability and IP65 waterproof performance. Perfect for village lanes, residential quarters, park paths, farm roads and small-scale municipal lighting projects globally.

30W All In One Solar Street Light | PHILIPS 5050 LED 5400Lm | LiFePO4 Battery PIR Motion Sensor IP65 Road Lamp

50W monocrystalline solar panel, 25-year service lifespan.

12.8V 24Ah lithium iron phosphate battery, 3–5 rainy days backup lighting.

30W PHILIPS LED light source, 5400Lm high luminous flux.

Intelligent PIR motion sensor auto brightness adjustment, energy saving.

IP65 aviation aluminum housing, working temp -20℃ ~ +60℃.

CE RoHS SASO IEC certified, bulk container supply for engineering projects.

Suggested install height 4–6m, light spacing 15–20m for residential & village road lighting.

Solar Panel

Max Power: 18V 50W

Type: High-efficiency Monocrystalline Silicon

Lifespan: 25 years

Advantage: Superior weak-light power generation, fast full charge under strong sunlight.

Lithium Battery

Type: Lithium LiFePO4 Battery

Capacity: 12.8V 24Ah

Lifespan: 8–10 years

Advantage: Safe, explosion-proof, long cycle life, stable energy storage for rainy weather backup.

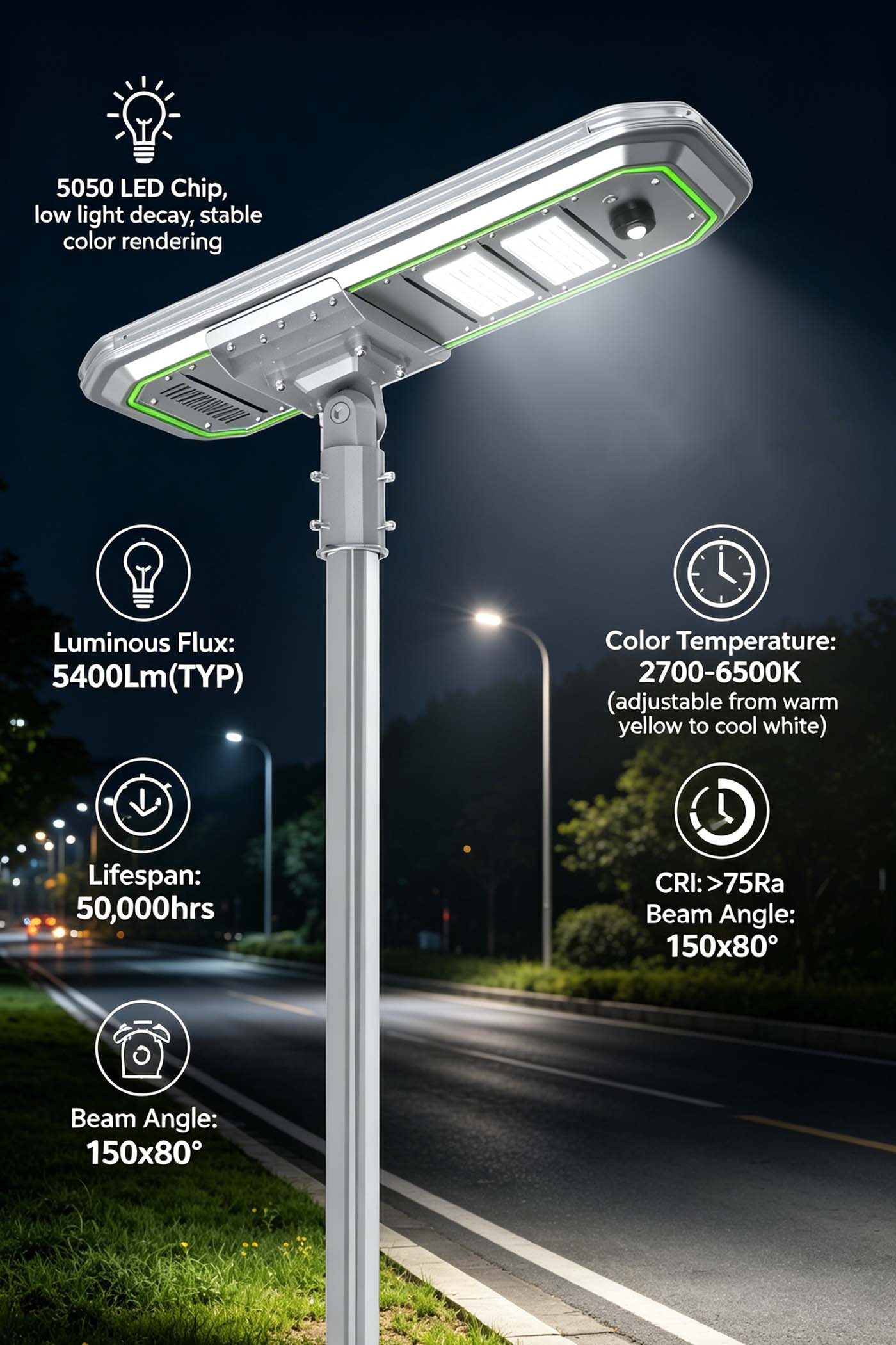

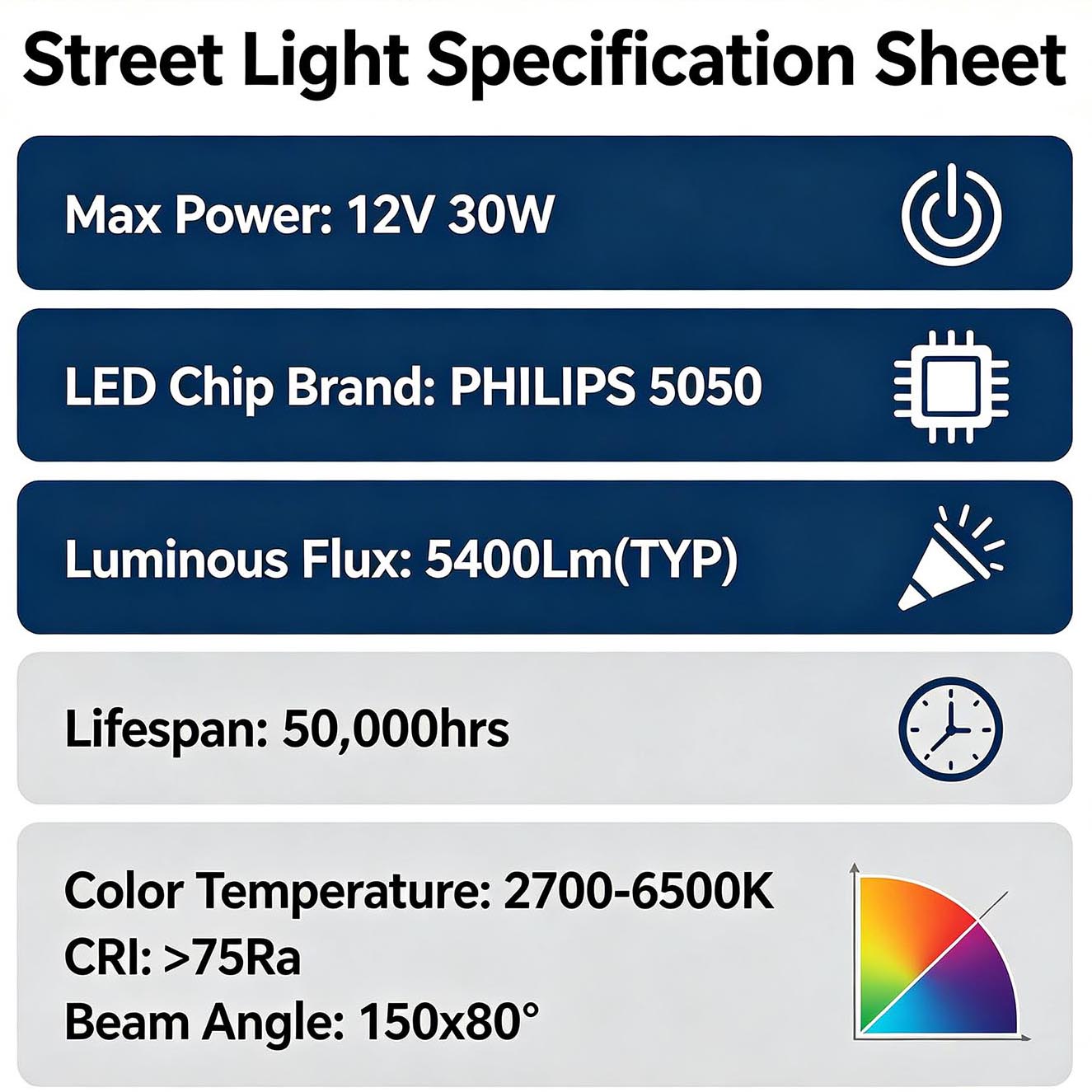

LED Light Source

Max Power: 12V 30W

LED Chip Brand: Original PHILIPS 5050

Typical Luminous Flux: 5400Lm

LED Lifespan: 50,000 hours

Adjustable Color Temperature: 2700K–6500K (warm white to cool white)

CRI: ≥75Ra

Beam Angle: 150°×80° ultra-wide lighting range

Advantage: Low light decay, even road illumination, clear color rendering for pedestrian areas.

30W integrated solar street light integrates application scenarios: Village roads, community walkways, garden & park paths, farm access roads, parking lots, small industrial zones, remote off-grid villages, school perimeter lighting.

Charging & Lighting Duration

Charging Time: 6–8 hours under strong sunshine.

Full Power Lighting Time: 12–14 hours per full charge.

Energy-saving Mode Runtime: Up to 39 hours, supporting continuous lighting for 3~5 rainy days without sunlight.

Intelligent PIR Motion Sensor Mode

Standby status (no motion): Maintain 30% low brightness to save battery power

Motion detected: Automatically switch to 100% full brightness for maximum visibility

Effectively extend battery cycle life and rainy-day standby capacity.

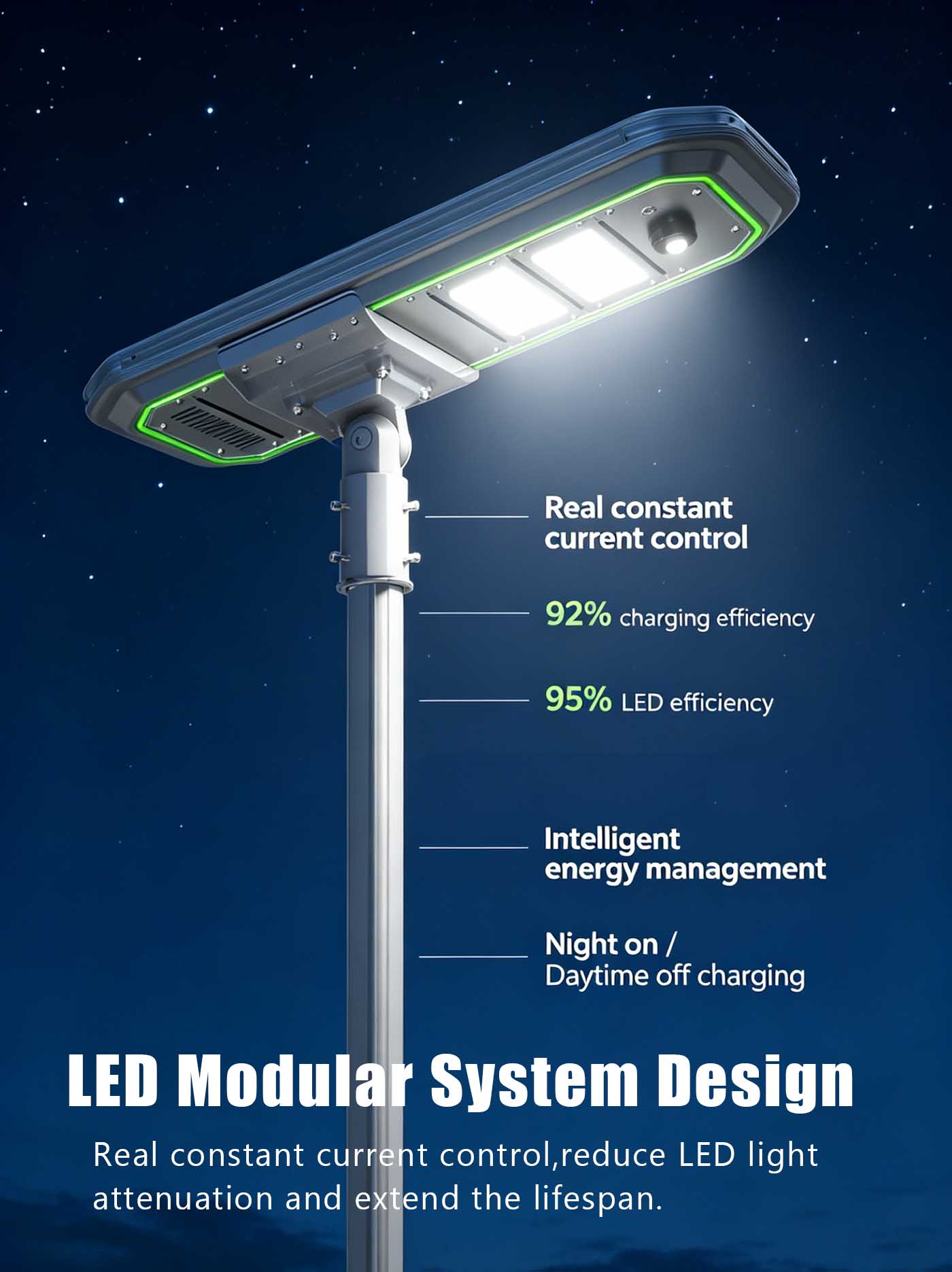

LED Modular System Design

Real constant current control,reduce LED light attenuation and extend the lifespan;Protecting the battery when charging in high or low temperature;

Charging efficiency is 92%, LED driving efficiency above 95%;

Intelligent energy management, adjust the power output and extend the light hours according to the battery capacity;

Light control: Turn on at night and turn off in the daytime for charging.

Environmental Working Parameters

Discharging Temperature: -20 ℃ ~ +60 ℃

Charging Temperature: 0 ℃ ~ +60 ℃

Storage Temperature: -20 ℃ ~ +45 ℃

Suitable for high-temperature regions like Middle East/Africa and cold northern areas.

Installation Requirements

Recommended Mounting Height: 4–6 meters

Compatible Top Pole Diameter: 60mm

Spacing Between Adjacent Lights: 15–20 meters

Fit for narrow roads and pedestrian paths, reduce overall project quantity & construction cost.
